在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MLF1608C270MTD00FIXED IND 27UH 2MA 1.8 OHM SMD |
4,156 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 27 µH | ±20% | 2 mA | - | Shielded | 1.8Ohm Max | 20 @ 1MHz | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQW18AN75NJ00DFIXED IND 75NH 270MA 0.56OHM SMD |
4,006 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 75 nH | ±5% | 270 mA | - | Unshielded | 560mOhm Max | 34 @ 150MHz | 2.05GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQW18ASR12J00DFIXED IND 120NH 300MA 0.65OHM SM |
4,000 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 120 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 32 @ 150MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

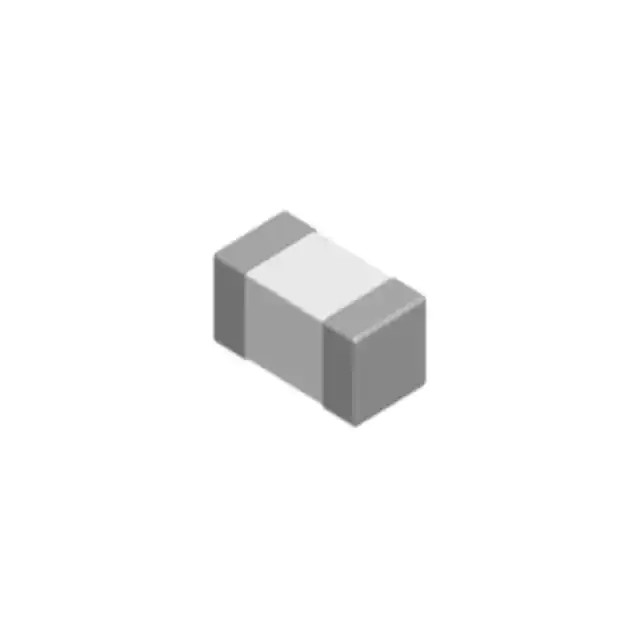

SDCL1608C12NJTDFFIXED IND 12NH 300MA 450MOHM SMD |
4,000 |
|
规格书 |
SDCL-D | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 12 nH | ±5% | 300 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MLF2012E6R8MT000FIXED IND 6.8UH 15MA 650MOHM SMD |
3,959 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 15 mA | - | Shielded | 650mOhm Max | 50 @ 4MHz | 40MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012DR33MT000FIXED IND 330NH 250MA 400MOHM SM |
3,957 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±20% | 250 mA | - | Shielded | 400mOhm Max | 20 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLF2012A3R3MT000FIXED IND 3.3UH 50MA 600MOHM SMD |
3,950 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 50 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 60MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MCL1608NR22KTFIXED IND 220NH 600MA 260MOHM SM |
3,940 |
|
规格书 |
MCL-N | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 220 nH | ±10% | 600 mA | 700mA | Shielded | 260mOhm Max | - | 200MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQG15WH3N3C02DFIXED IND 3.3NH 900MA 0.08OHM SM |
3,845 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 3.3 nH | ±0.2nH | 900 mA | - | Unshielded | 80mOhm Max | - | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
MLF1608DR27MFIXED IND 270NH 150MA 600MOHM SM |
3,791 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±20% | 150 mA | - | Shielded | 600mOhm Max | 15 @ 25MHz | 260MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18AS4N7J00DFIXED IND 4.7NH 700MA 0.116OHM |
3,720 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 4.7 nH | ±5% | 700 mA | - | Unshielded | 116mOhm Max | 20 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MLF2012A1R2MT000FIXED IND 1.2UH 80MA 350MOHM SMD |
3,713 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±20% | 80 mA | - | Shielded | 350mOhm Max | 45 @ 10MHz | 110MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLF2012DR39MFIXED IND 390NH 200MA 450MOHM SM |
3,641 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 390 nH | ±20% | 200 mA | - | Shielded | 450mOhm Max | 25 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
-1,80mm.jpg)
|
LB2016T150MFIXED IND 15UH 130MA 700MOHM SMD |
3,562 |
|
规格书 |
LB | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 130 mA | - | Unshielded | 700mOhm | - | 28MHz | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

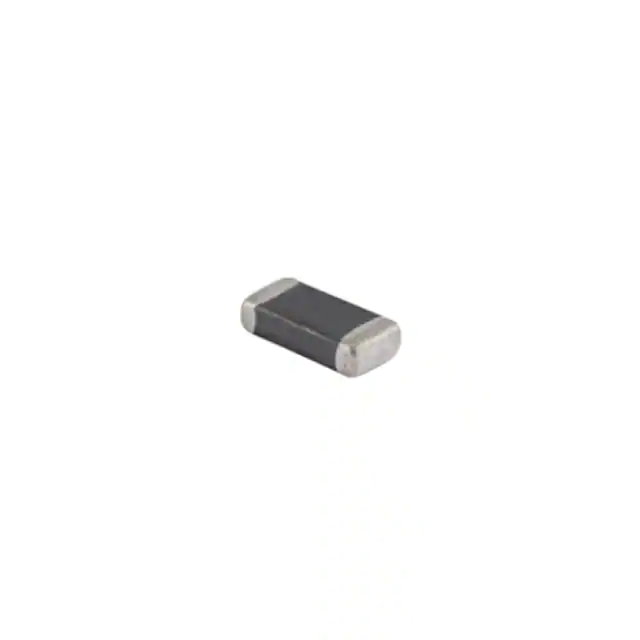

MCLA3216V1-2R2-RFIXED IND 2.2UH 50MA 500MOHM SMD |
3,475 |
|
规格书 |
MCLA3216V1 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±10% | 50 mA | - | Unshielded | 500mOhm Max | 35 @ 10MHz | 50MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) |
|
|
MLF2012C820MT000FIXED IND 82UH 2MA 3 OHM SMD |
3,464 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 82 µH | ±20% | 2 mA | - | Shielded | 3Ohm Max | 25 @ 1MHz | 8MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLG1005S3N6CTD25FIXED IND 3.6NH 700MA 200MOHM SM |
3,390 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.6 nH | ±0.2nH | 700 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
-2,00mm.jpg)
|
LB3218T100MFIXED IND 10UH 340MA 250MOHM SMD |
3,312 |
|
规格书 |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 340 mA | - | Unshielded | 250mOhm | - | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1207 (3218 Metric) | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
 MHQ Series.jpg)
|
MHQ0603P1N4BT000FIXED IND 1.4NH 800MA 100MOHM SM |
3,224 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.4 nH | ±0.1nH | 800 mA | - | Unshielded | 100mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
LQW15AN8N1G8ZDFIXED IND 8.1NH 1.5A 0.069OHM SM |
3,185 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.1 nH | ±2% | 1.5 A | - | Unshielded | 69mOhm Max | 32 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
