在线询价交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-320D-12-BAC/DC CONVERTER 12V 320W |
4,897 |
|
规格书 |
VGS-320D | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 26.7 A | - | - | - | - | - | 320W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
WRM23FWX-OUNIVERSAL, DUAL OUTPUT, ENCLOSED |
2,380 |
|
规格书 |
WRM-FMX-O (15W | Bulk | Active | Enclosed | 2 | 85 ~ 264 VAC, 125 ~ 370 VDC | 15V | 15V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.31" L x 3.20" W x 1.24" H (84.0mm x 81.2mm x 31.5mm) |
|
|
WRM22FWX-OUNIVERSAL, DUAL OUTPUT, ENCLOSED |
2,278 |
|
规格书 |
WRM-FMX-O (15W | Bulk | Active | Enclosed | 2 | 85 ~ 264 VAC, 125 ~ 370 VDC | 12V | 12V | - | - | - | - | 700 mA | 700 mA | - | - | - | - | 17W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.31" L x 3.20" W x 1.24" H (84.0mm x 81.2mm x 31.5mm) |
|
MTW30-51212-VAC/DC CONVERTER 5V +/-12V 30W |
1,694 |
|
规格书 |
MTW (30W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 3 A | 1.2 A | 300 mA | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.51" L x 2.56" W x 1.02" H (140.0mm x 65.0mm x 26.0mm) |
|

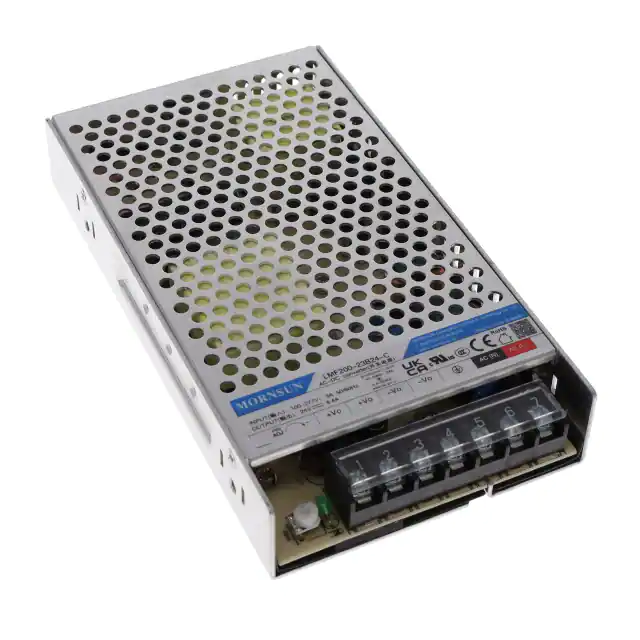

LMF200-23B24-CAC/DC CONVERTER 24V 202W |
1,302 |
|
规格书 |
LMF200-23Bxx-C (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|

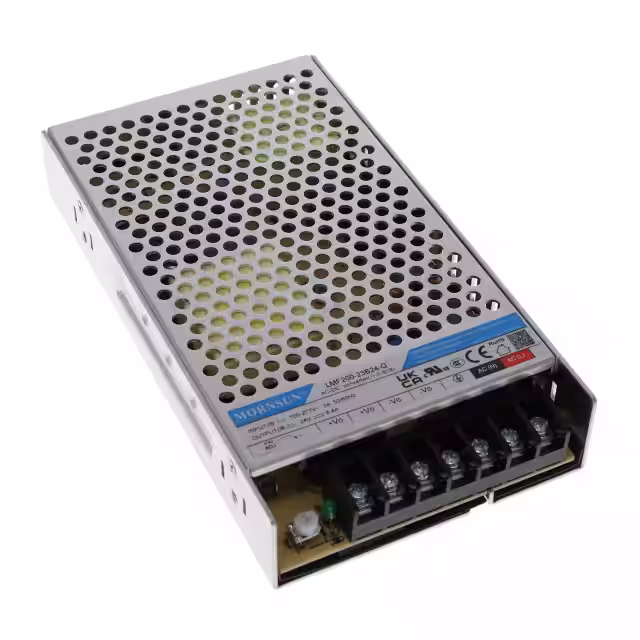

LMF200-23B24-QAC/DC CONVERTER 24V 202W |
3,161 |
|
规格书 |
LMF200-23Bxx-Q (200W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|

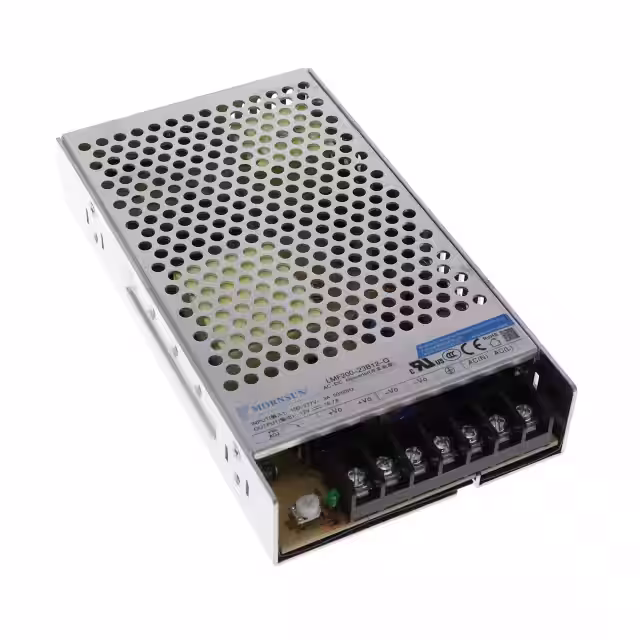

LMF200-23B12-QAC/DC CONVERTER 12V 200W |
4,332 |
|
规格书 |
LMF200-23Bxx-Q (200W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
1010428SRP-25-1005 |
2,857 |
|
规格书 |
SRP-25 (25W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 1.04 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) |
|
|
1010426SRP-25-1003 |
3,302 |
|
规格书 |
SRP-25 (25W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) |
|
AMEOF225-48SHAMJZAC/DC CONVERTER 48V 140W |
3,579 |
|
规格书 |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 140W (226W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
VOF-180C-48-CNFAC/DC CONVERTER 48V 180W |
4,949 |
|
规格书 |
VOF-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 180W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|
LGA100A-48AC/DC CONVERTER 48V |
2,935 |
|
规格书 |
LGA (100W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.40" H (154.9mm x 62.0mm x 35.6mm) |
|
ZWS100AF-48AC/DC CONVERTER 48V 100W |
3,138 |
|
规格书 |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) |
|
VMS-180C-36-CNFAC/DC CONVERTER 36V 180W |
1,576 |
|
规格书 |
VMS-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 5 A | - | - | - | - | - | 180W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|
|
VMS-180C-27-CNFAC/DC CONVERTER 27V 180W |
2,790 |
|
规格书 |
VMS-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 6.66 A | - | - | - | - | - | 180W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|
|
VMS-180C-15-CNFAC/DC CONVERTER 15V 180W |
4,171 |
|
规格书 |
VMS-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 12 A | - | - | - | - | - | 180W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|
SPLFA30F-5AC/DC CONVERTER 5V |
2,844 |
|
规格书 |
SPLFA (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 2.40" W x 1.42" H (150.1mm x 61.0mm x 36.1mm) |
|
SP-100-48AC/DC CONVERTER 48V 101W |
3,308 |
|
规格书 |
SP-100 (100W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.77" H (179.0mm x 99.0mm x 45.0mm) |
|
LGA100A-5-YAC/DC CONVERTER 5V |
1,250 |
|
规格书 |
LGA (100W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.40" H (154.9mm x 62.0mm x 35.6mm) |
|
LGA100A-3R3-YAC/DC CONVERTER 3.3V |
4,415 |
|
规格书 |
LGA (100W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.40" H (154.9mm x 62.0mm x 35.6mm) |
