在线询价铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
875105244011CAP ALUM POLY 150UF 20% 10V SMD |
3,406 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RFS1A680MCN1GSCAP ALUM POLY 68UF 20% 10V SMD |
8,846 |
|
规格书 |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APA0609680M035RCAP ALUM POLY 68UF 20% 35V SMD |
6,800 |
|
规格书 |
APA | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
875105344010CAP ALUM POLY 100UF 20% 16V SMD |
5,659 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 134.5 mA @ 120 Hz | 2.69 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
875105345011CAP ALUM POLY 150UF 20% 16V SMD |
6,309 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 134.5 mA @ 120 Hz | 2.69 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SEPC220MDCAP ALUM POLY 220UF 20% 16V TH |
1,383 |
|
规格书 |
OS-CON™, SEPC | Bulk | Active | Polymer | 220 µF | ±20% | 16 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 207.5 mA @ 120 Hz | 4.15 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
|
875105444001CAP ALUM POLY 10UF 20% 20V SMD |
1,038 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 20 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXF6R3ARA151ME40GCAP ALUM POLY 150UF 20% 6.3V SMD |
22,699 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 20mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.165" (4.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A750KK477M1AAAE016CAP ALUM POLY 470UF 20% 10V TH |
3,906 |
|
规格书 |
A750 | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
A758EK107M1AAAE016CAP ALUM POLY 100UF 20% 10V TH |
3,076 |
|
规格书 |
A758 | Bulk | Active | Polymer | 100 µF | ±20% | 10 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
APXG200ARA470ME61GCAP ALUM POLY 47UF 20% 20V SMD |
2,002 |
|
规格书 |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 30mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

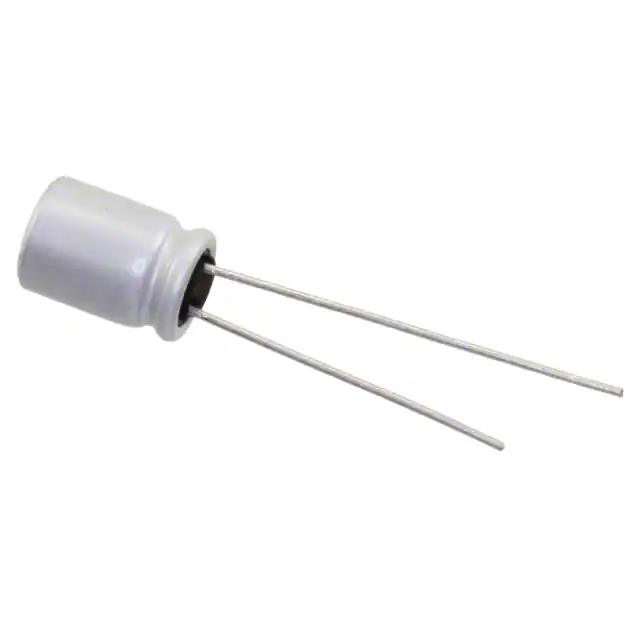

RNS1A330MDS1CAP ALUM POLY 33UF 20% 10V TH |
1,024 |
|
规格书 |
FPCAP, RNS | Bulk | Active | Polymer | 33 µF | ±20% | 10 V | 49mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|

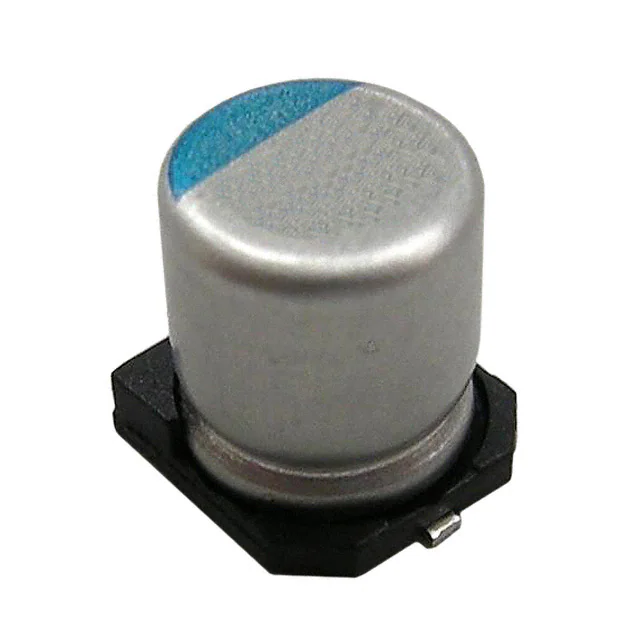

HHXD160ARA470ME61GCAP ALUM HYBRID 47UF 20% 16V SMD |
4,933 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 16 V | 80mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RNS1C470MDS1JXCAP ALUM POLY 47UF 20% 16V TH |
2,169 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 16 V | 42mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
|
875105544001CAP ALUM POLY 10UF 20% 25V SMD |
1,041 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
875105444004CAP ALUM POLY 33UF 20% 20V SMD |
1,653 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 20 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

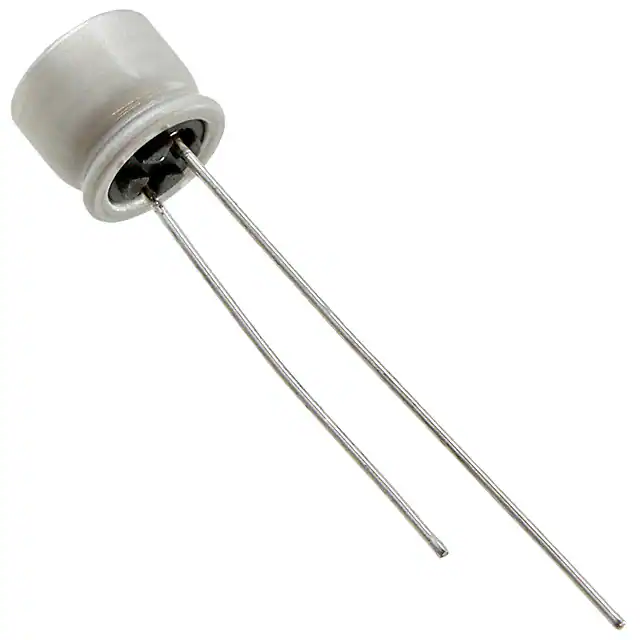

20SEP22MCAP ALUM POLY 22UF 20% 20V TH |
26,507 |
|
规格书 |
OS-CON™, SEP | Bulk | Active | Polymer | 22 µF | ±20% | 20 V | 60mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 72.5 mA @ 120 Hz | 1.45 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
A765EB227M0JLAE020CAP ALUM POLY 220UF 20% 6.3V SMD |
9,985 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
875105245015CAP ALUM POLY 330UF 20% 10V SMD |
8,796 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 134.5 mA @ 120 Hz | 2.69 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXJ100ARA391MF80GCAP ALUM POLY 390UF 20% 10V SMD |
7,419 |
|
规格书 |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 10 V | 13mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 223 mA @ 120 Hz | 4.46 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
