在线询价铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-UD0J101RCAP ALUM POLY 100UF 20% 6.3V SMD |
3,812 |
|
规格书 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-SX0D271XECAP ALUM POLY 270UF 20% 2V SMD |
2,179 |
|
规格书 |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ECASD60J157M010K00CAP ALUM POLY 150UF 20% 6.3V SMD |
2,460 |
|
规格书 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 10mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ECASD41C106M060K00CAP ALUM POLY 10UF 20% 16V SMD |
4,762 |
|
规格书 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 16 V | 60mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PVH-10V151MG70E-R2CAP ALUM POLY 150UF 20% 10V SMD |
3,434 |
|
规格书 |
PVH | Cut Tape (CT) | Obsolete | Polymer | 150 µF | ±20% | 10 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
F862FY475K310ZV054V093CAP ALUM HYBRID 56UF 20% 63V TH |
1,881 |
|
规格书 |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PLX1C391MDL1CAP ALUM POLY 390UF 20% 16V TH |
2,107 |
|
规格书 |
PLX | Bulk | Active | Polymer | 390 µF | ±20% | 16 V | 23mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCK0G102MCO1GSCAP ALUM POLY 1000UF 20% 4V SMD |
3,890 |
|
规格书 |
PCK | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

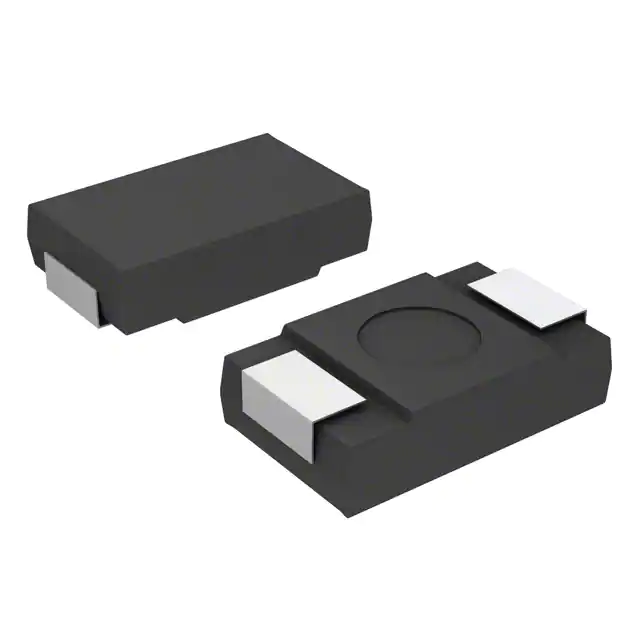

SPCX101M06RCAP ALUM POLY 100UF 20% 6.3V SMD |
4,130 |
|
规格书 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
SPCX221M0ERCAP ALUM POLY 220UF 20% 2.5V SMD |
3,980 |
|
规格书 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
SPCX331M0ERCAP ALUM POLY 330UF 20% 2.5V SMD |
2,513 |
|
规格书 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PLE0G561MCO1TDCAP ALUM POLY 560UF 20% 4V T/H |
3,622 |
|
规格书 |
PLE | Cut Tape (CT) | Obsolete | Polymer | 560 µF | ±20% | 4 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PLE0J471MDO1TDCAP ALUM POLY 470UF 20% 6.3V TH |
1,574 |
|
规格书 |
PLE | Cut Tape (CT) | Obsolete | Polymer | 470 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
ECASD41E226M040KH0CAP ALUM POLY 22UF 20% 25V SMD |
4,005 |
|
规格书 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
UGS1C302MNN1022RUCAP ALUM POLY 3000UF 20% 16V TH |
2,305 |
|
规格书 |
UGS | Active | Polymer | 3000 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.925" (23.50mm) | - | Through Hole | |
|
2.5SXB120MCAP ALUM POLY 120UF 20% 2.5V SMD |
2,508 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
UPE1E471MP51010SUCAP ALUM POLY 470UF 20% 25V TH |
4,625 |
|
规格书 |
UPE | Active | Polymer | 470 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
A700X397M002ATE010CAP ALUM POLY 390UF 20% 2V SMD |
2,604 |
|
规格书 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X187M004ATE010CAP ALUM POLY 180UF 20% 4V SMD |
2,145 |
|
规格书 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X337M002ATE010CAP ALUM POLY 330UF 20% 2V SMD |
1,912 |
|
规格书 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
