在线询价汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

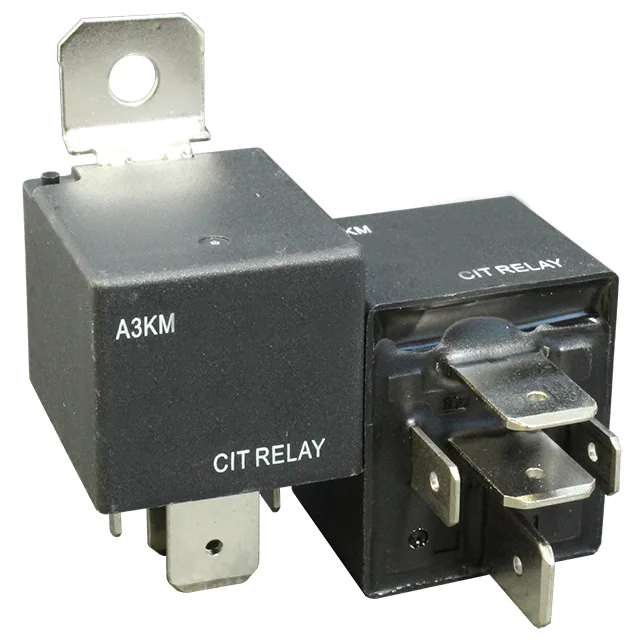

A3KM1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 150A 24V |
107 |
|
规格书 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

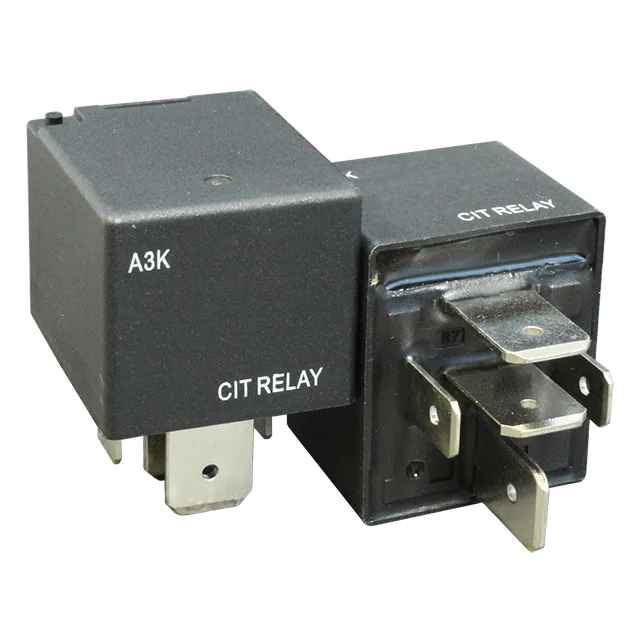

A3K1CSP12VDC1.6RELAY AUTOMOTIVE SPDT 150A 12V |
210 |
|
规格书 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3K1CSP12VDC1.6DRELAY AUTOMOTIVE SPDT 150A 12V |
306 |
|
规格书 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3K1CSP24VDC1.6RELAY AUTOMOTIVE SPDT 150A 24V |
276 |
|
规格书 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3KM1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 150A 24V |
280 |
|
规格书 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

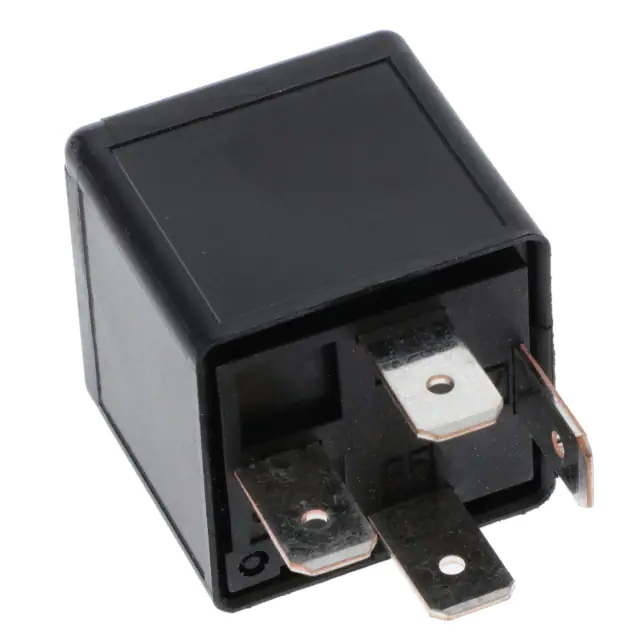

1393303-9RELAY GEN PURPOSE SPST 20A 24V |
103 |
|
规格书 |
F4 | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
3-1415001-2RELAY GEN PURPOSE SPST 70A 12V |
453 |
|
规格书 |
- | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|

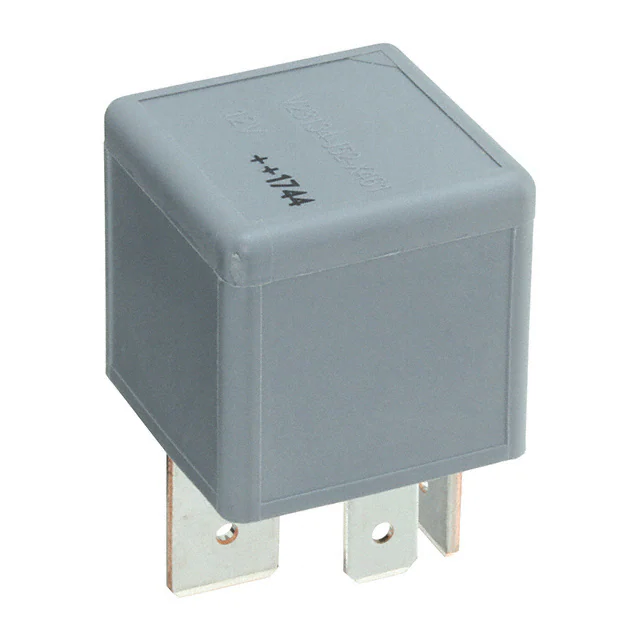

1-1414469-0RELAY GEN PURPOSE SPST 70A 12V |
184 |
|
规格书 |
- | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
RA-700112-DNRELAY GEN PURPOSE SPST 70A 12V |
392 |
|
规格书 |
- | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.8 VDC | 1.2 VDC | - | - | Diode | Chassis Mount | Plug In | -40°C ~ 85°C |
|
|
RC-700112-RNRELAY GEN PURPOSE SPDT 70A 12V |
273 |
|
规格书 |
- | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 70 A | 12VDC - Nom | 7.8 VDC | 1.2 VDC | - | - | Resistor | Chassis Mount | Plug In | -40°C ~ 85°C |
|

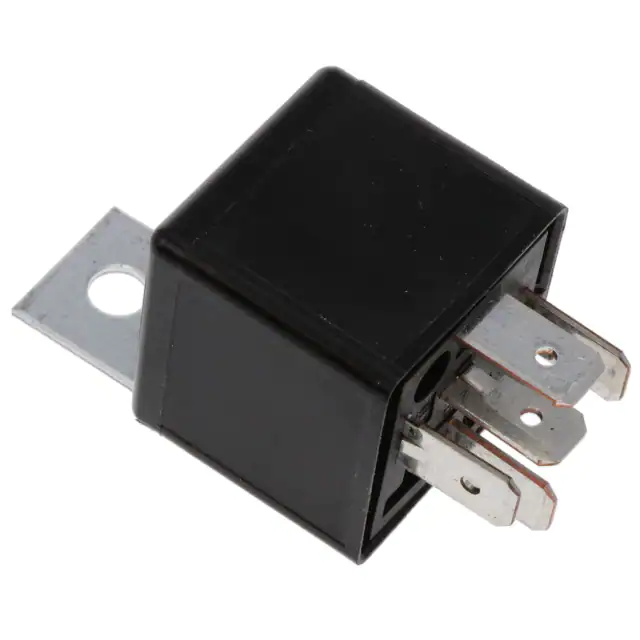

V23134A1052C643RELAY AUTOMOTIVE SPDT 40A 12V |
121 |
|
规格书 |
F4 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

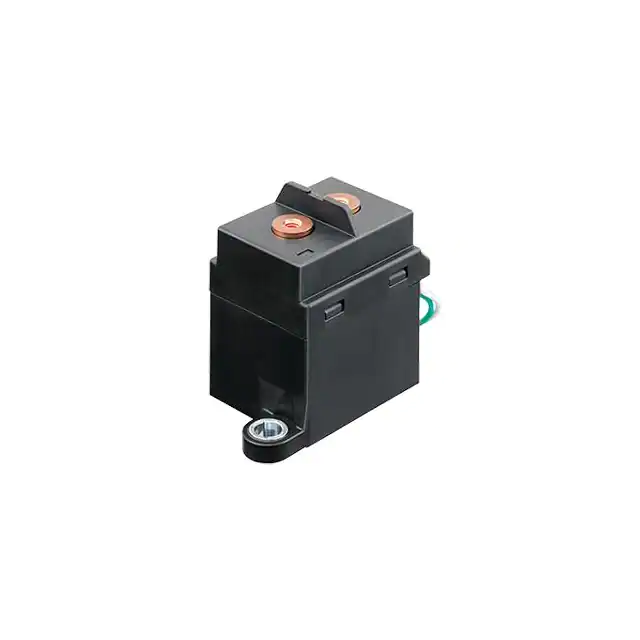

AEVG16012RELAY AUTOMOTIVE SPST 60A 12V |
4,509 |
|
规格书 |
EV | Tray | Active | Non Latching | 429 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 450VDC - Nom | 9 VDC | 0.5 VDC | 50 ms | 30 ms | Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
1-1414476-0RELAY AUTOMOTIVE SPST 130A 12V |
1,539 |
|
规格书 |
HCR 150 | Bulk | Active | Non Latching | 324 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

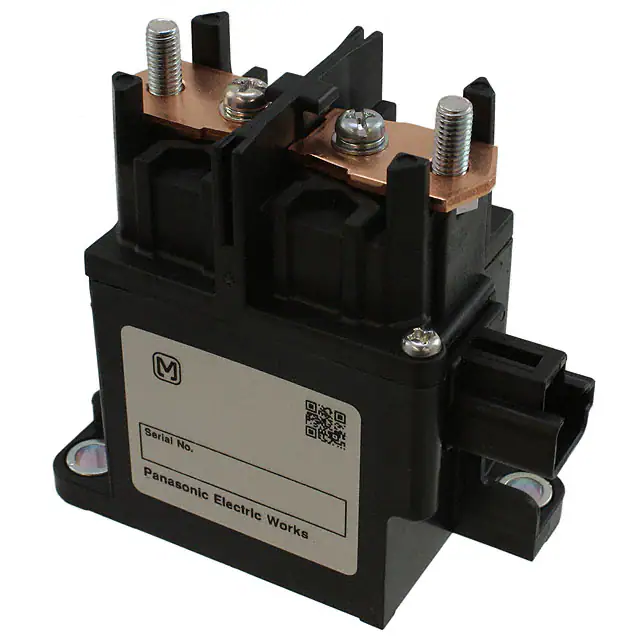

AEV18012RELAY AUTOMOTIVE SPST 80A 12V |
104 |
|
规格书 |
AEV | Tray | Active | Non Latching | 353 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 450VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|

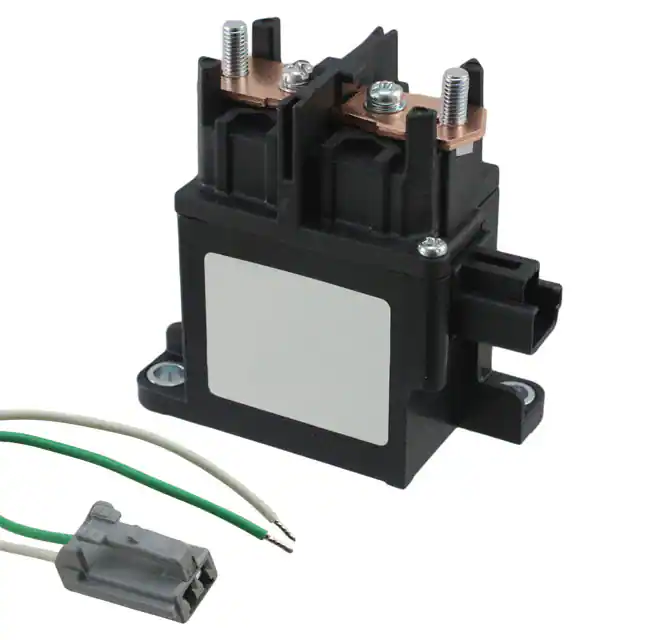

AEV18024WRELAY AUTOMOTIVE SPST 80A 24V |
4,879 |
|
规格书 |
AEV | Bulk | Active | Non Latching | 176 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 450VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|
A11CSP48VDC1.2RRELAY AUTOMOTIVE SPDT 30A 48V |
490 |
|
规格书 |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A1M1CSQ24VDCRELAY AUTOMOTIVE SPDT 40A 24V |
442 |
|
规格书 |
A1M | Tube | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A1M1CSQ24VDCRRELAY AUTOMOTIVE SPDT 40A 24V |
400 |
|
规格书 |
A1M | Tube | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A41AS24VDCRELAY AUTOMOTIVE SPST 20A 24V |
143 |
|
规格书 |
A4 | Tube | Active | Non Latching | 41.7 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

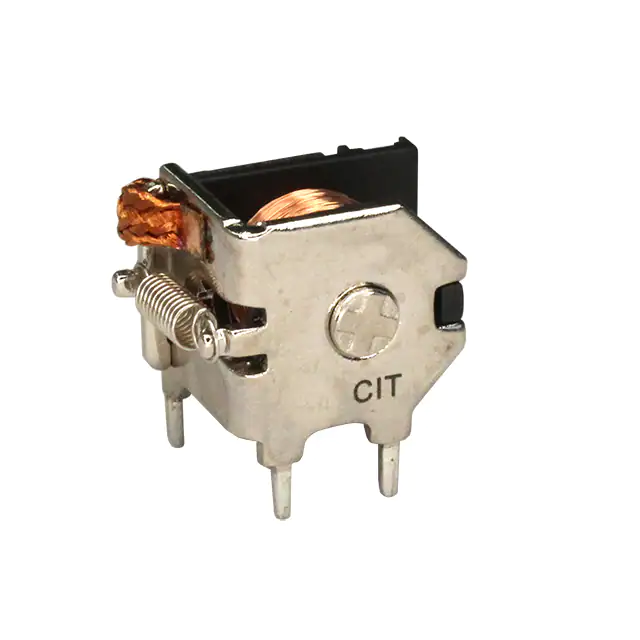

A51AO24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
194 |
|
规格书 |
A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
