型号	库存	价格	数量	规格书	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度
4-1904124-3 RELAY AUTOMOTIVE SPDT 30A 12V TE Connectivity AMP Connectors	1,593	-	立即询价	规格书	Micro Relay A	Bulk	Active	Non Latching	-	12VDC	SPDT (1 Form C)	30 A	12VDC - Nom	7.2 VDC	1.6 VDC	-	-	Resistor	Socketable	Plug In, Quick Connect - Multiple Sizes	-40°C ~ 125°C

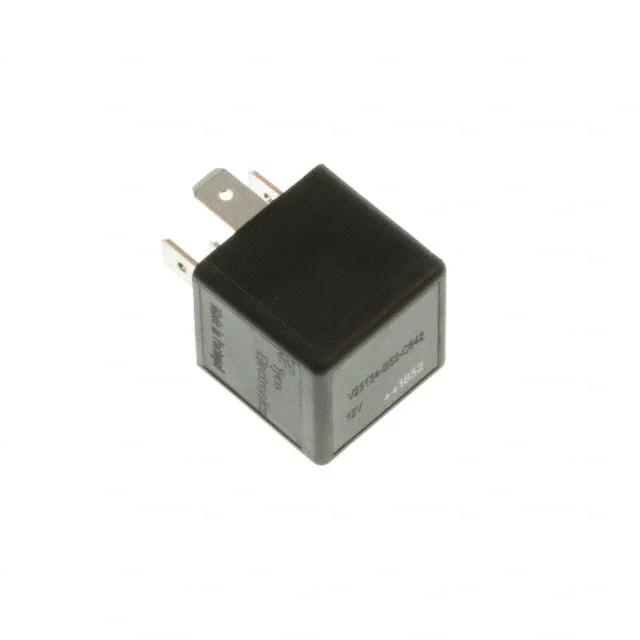

7-1393302-5 RELAY GEN PURPOSE SPST 40A 12V TE Connectivity AMP Connectors	617	-	立即询价	规格书	-	Bulk	Active	Non Latching	133.3 mA	12VDC	SPST-NO (1 Form A)	40 A	14VDC - Nom	7.2 VDC	1.6 VDC	7 ms	2 ms	-	Socketable	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C

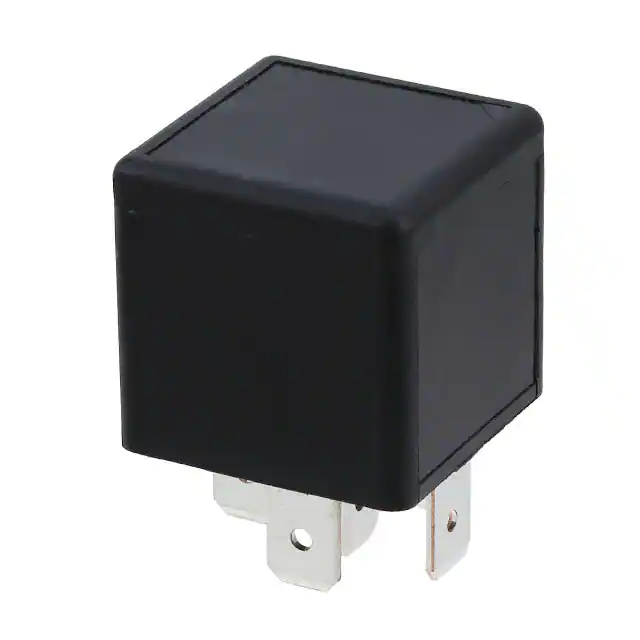

2-1393302-2 RELAY AUTOMOTIVE SPDT 60A 12V TE Connectivity AMP Connectors	2,140	-	立即询价	规格书	F4	Bulk	Active	Non Latching	-	12VDC	SPDT (1 Form C)	60 A	12VDC - Nom	7.2 VDC	1.6 VDC	7 ms	2 ms	-	Socketable	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C

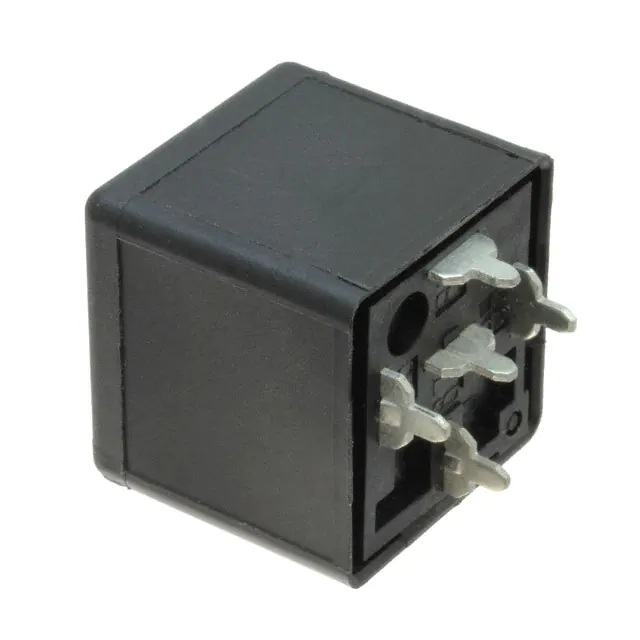

5-1393302-2 RELAY GEN PURPOSE SPDT 20A 24V TE Connectivity AMP Connectors	314	-	立即询价	规格书	-	Bulk	Active	Non Latching	74.1 mA	24VDC	SPDT (1 Form C)	20 A	28VDC - Nom	14.4 VDC	3.2 VDC	7 ms	2 ms	-	Through Hole	PC Pin	-40°C ~ 125°C
6-1393302-3 RELAY AUTOMOTIVE SPDT 60A 24V TE Connectivity AMP Connectors	283	-	立即询价	规格书	F4	Bulk	Active	Non Latching	-	24VDC	SPDT (1 Form C)	60 A	24VDC - Nom	14.4 VDC	3.2 VDC	7 ms	2 ms	-	Socketable	Plug In, Quick Connect - 0.250" (6.3mm)	-40°C ~ 125°C

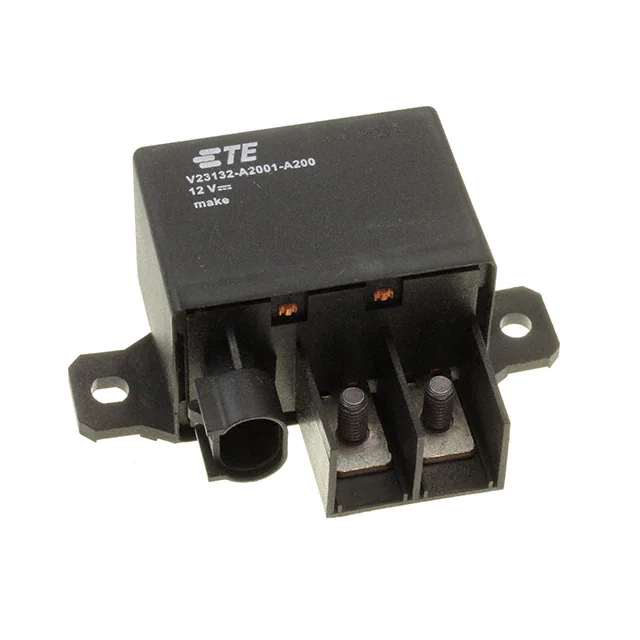

1393315-2 RELAY AUTO SPST-NO 130A 12V TE Connectivity AMP Connectors	354	-	立即询价	规格书	HCR 150	Bulk	Active	Non Latching	-	12VDC	SPST-NO (1 Form A)	130 A	12VDC - Nom	7.2 VDC	1.2 VDC	25 ms	8 ms	-	Chassis Mount	Screw Terminal	-40°C ~ 125°C

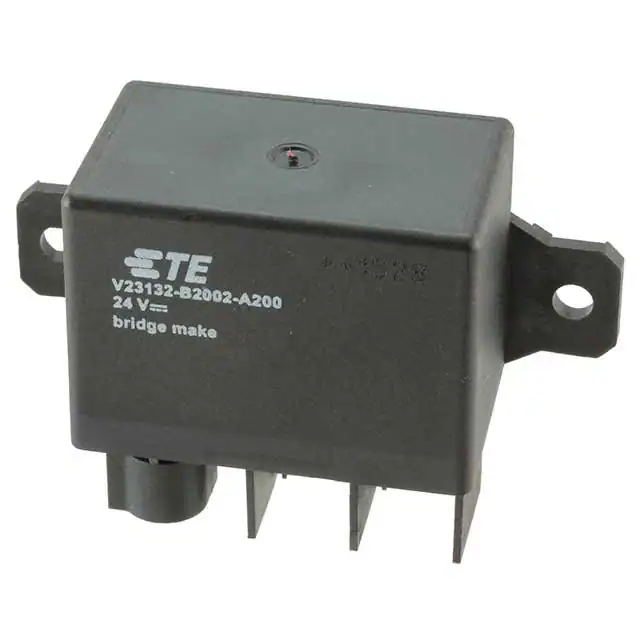

1393315-9 RELAY AUTO SPST-NO-DM 130A 24V TE Connectivity AMP Connectors	139	-	立即询价	规格书	HCR 150	Bulk	Active	Non Latching	-	24VDC	SPST-NO (DM) (1 Form X)	130 A	24VDC - Nom	14.4 VDC	2.4 VDC	25 ms	8 ms	-	Chassis Mount	Screw Terminal	-40°C ~ 125°C
1-1393315-1 V23132B2002B200=HCR TE Connectivity AMP Connectors	1,245	-	立即询价	规格书	High Current Relay 150	Box	Active	Non Latching	170.2 mA	24VDC	SPST-NO (DM) (1 Form X)	130 A	24VDC - Nom	14.4 VDC	2.4 VDC	25 ms	8 ms	IP67 - Dust Tight, Waterproof	Chassis Mount	Screw Terminal	-40°C ~ 125°C
1-1393277-4 RELAY AUTOMOTIVE SPST 45A 12V TE Connectivity AMP Connectors	4,726	-	立即询价	规格书	V23076	Bulk	Active	Non Latching	133 mA	12VDC	SPST-NO (1 Form A)	45 A	12VDC - Nom	6.9 VDC	1.2 VDC	5 ms	3 ms	Sealed - Fully	Through Hole	PC Pin	-40°C ~ 85°C

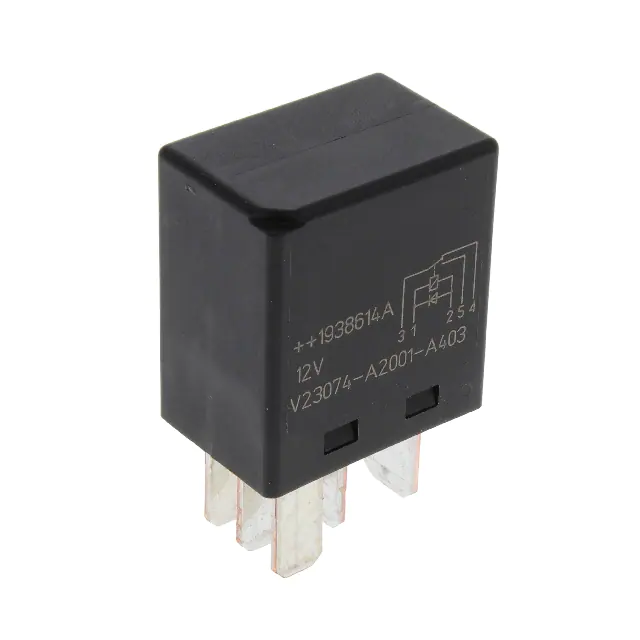

6-1419137-4 RELAY GEN PURPOSE SPDT 25A 12V TE Connectivity AMP Connectors	431	-	立即询价	规格书	-	Bulk	Active	Non Latching	100.8 mA	12VDC	SPDT (1 Form C)	25 A	14VDC - Nom	7.2 VDC	1.6 VDC	6 ms	3 ms	Diode	Socketable	Plug In	-40°C ~ 125°C

共 50 记录«上一页12 3 4 5 下一页»
