在线询价汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

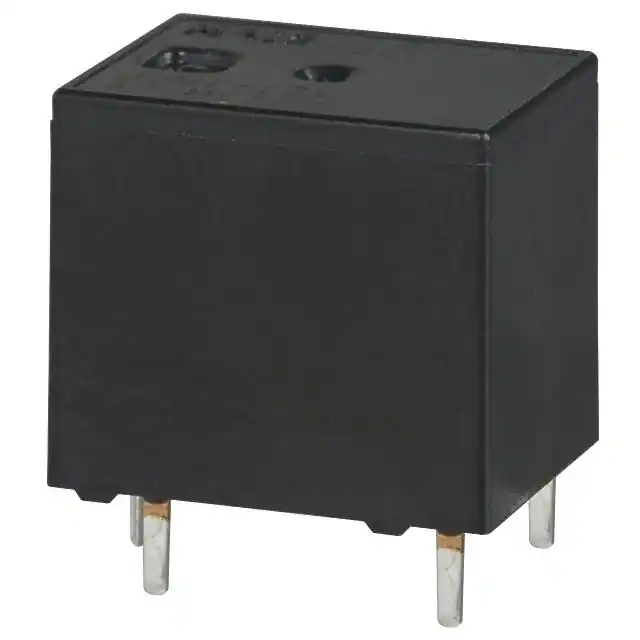

JJM1-12VRELAY AUTOMOTIVE SPDT 20A 12V |
4,090 |
|
规格书 |
JJM | Tube | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
JJM2W-12VRELAY AUTOMOTIVE SPST 12A 12V |
457 |
|
规格书 |
JJM | Tube | Obsolete | Non Latching | 83.3 mA | 12VDC | SPST-NO (DM) (1 Form U) | 12 A | 14VDC - Nom | 6.9 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

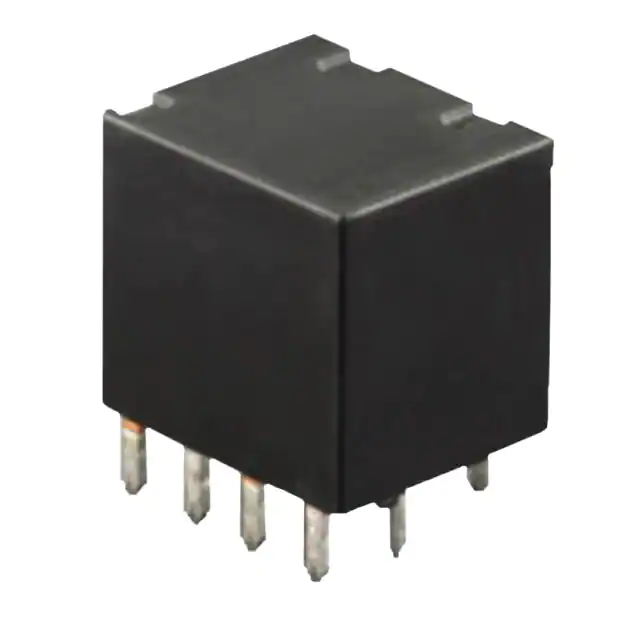

ACJ5212RELAY AUTOMOTIVE SPDTX2 20A 12V |
574 |
|
规格书 |
ACJ | Box | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
901770High Current Mini ISO Relay, 40 |
1,960 |
|
规格书 |
- | Bag | Active | Non Latching | 500 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8JR-1A2T-R-F1-DC12AUTOMOTIVE RELAY |
8,302 |
|
规格书 |
G8JR | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
6-1419137-4Automotive Relays V23074A2001A40 |
336 |
|
规格书 |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

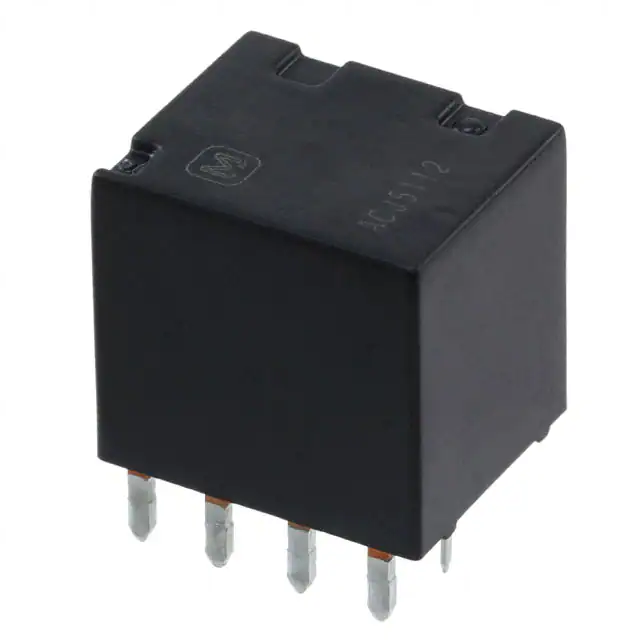

ACJ5112RELAY AUTOMOTIVE SPDTX2 20A 12V |
3,056 |
|
规格书 |
ACJ | Tube | Obsolete | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
1393277-4RELAY AUTOMOTIVE SPDT 45A 12V |
3,017 |
|
规格书 |
V23076 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 45 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

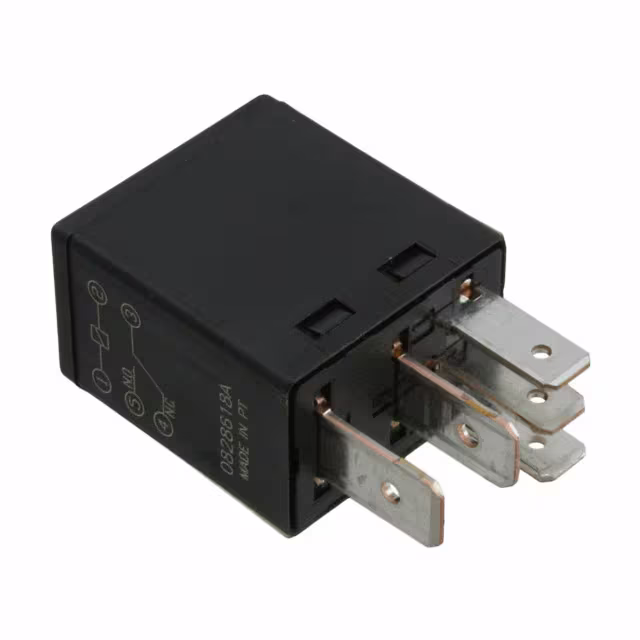

VFMA-15F41RELAY AUTOMOTIVE SPDT 12V |
1,816 |
|
规格书 |
VFM | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | - | - | 7.2 VDC | 1.2 VDC | - | - | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
V23234A0004X051-EV-100Automotive Relays V23234A0004X05 |
3,045 |
|
规格书 |
Power Relay B | Bulk | Active | Non Latching | 94 mA | 24VDC | SPDT (1 Form C) | 50 A | 24VDC - Max | 16 VDC | 3 VDC | 7 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

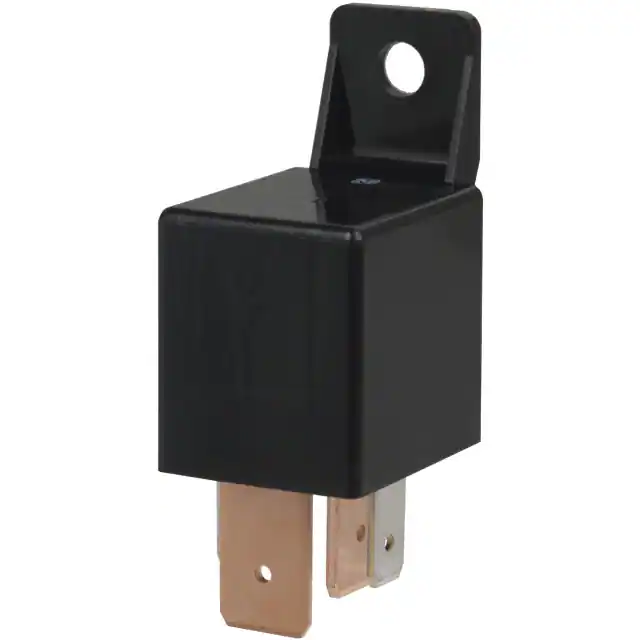

CB1AHF-M-12VRELAY AUTOMOTIVE SPST 70A 12V |
254 |
|
规格书 |
CB | Bulk | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 85°C |
|
|
VFMA-11F41VFMA-11F41=VFMA |
3,381 |
|
规格书 |
VFMA | Bulk | Obsolete | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | - | 7.2 VDC | 1.2 VDC | - | - | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
5-1904006-1V23234B0001X001-EV-144 |
2,456 |
|
规格书 |
- | Box | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
V23234B0001X001-EV-144Automotive Relays 1 Form A 12V P |
606 |
|
规格书 |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

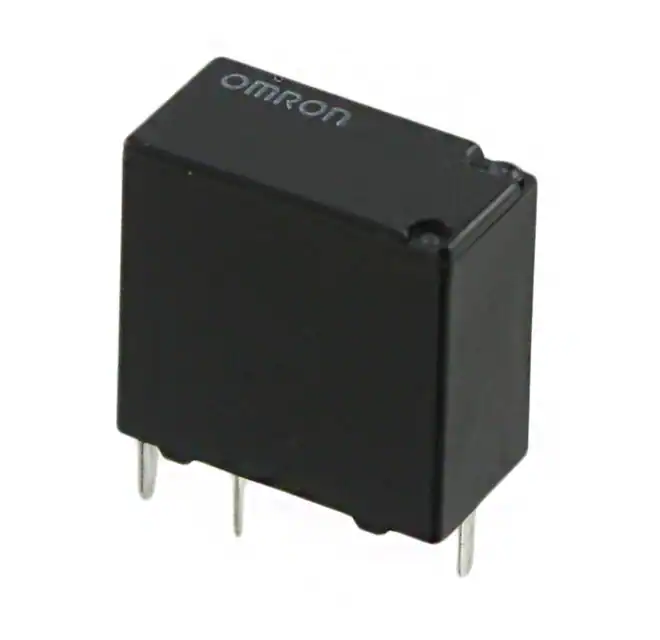

G8N-1 DC12 SKRELAY AUTOMOTIVE SPDT 30A 12V |
1,899 |
|
规格书 |
G8N-1 | Bulk | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
6-1393302-1V23134A1052X299 |
776 |
|
规格书 |
V23134, AXICOM | Box | Active | Non Latching | 133.3 mA | 12VDC | - | - | - | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|
|
2-1904025-3V23234A0004X051-EV-100 |
438 |
|
规格书 |
Power Relay B | Bulk | Obsolete | Non Latching | 94 mA | 24VDC | SPDT (1 Form C) | 50 A | 24VDC - Nom | 16 VDC | 3 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

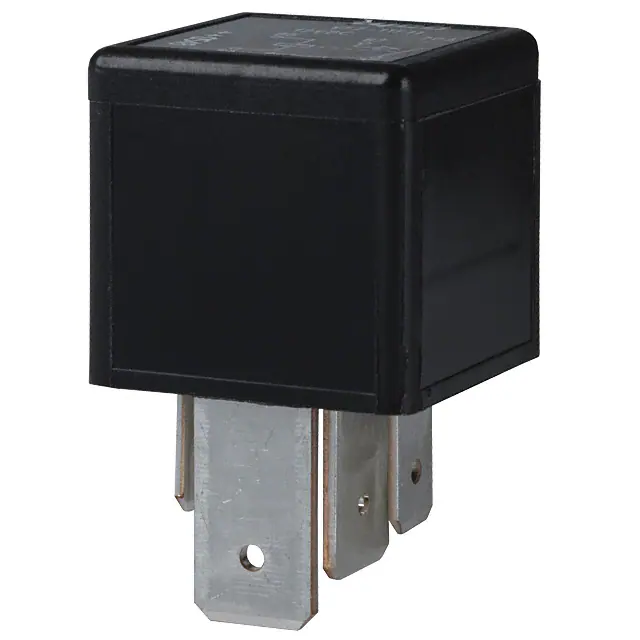

VF7-11F11RELAY AUTOMOTIVE SPST 70A 12V |
1,138 |
|
规格书 |
VF7 | Bulk | Obsolete | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

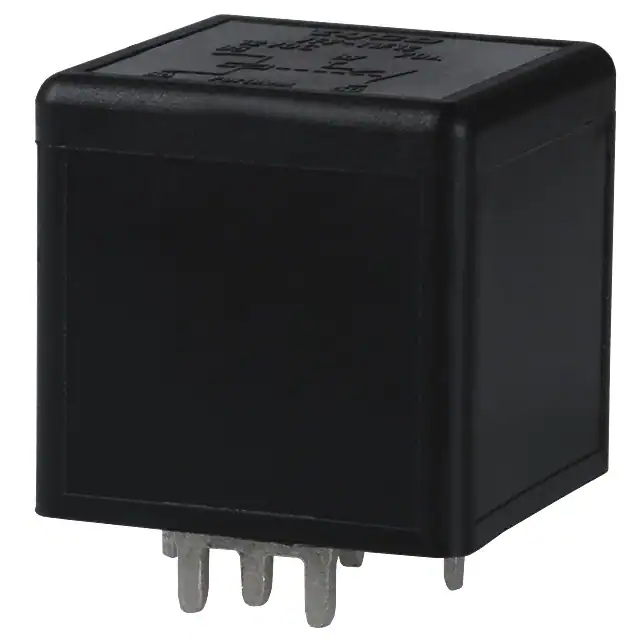

VF7-11F12RELAY AUTOMOTIVE SPST 70A 12V |
483 |
|
规格书 |
VF7 | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
BU509TDTime Delay Relay delay to OFF |
467 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | Socketable | Quick Connect - 0.250" (6.3mm) | - |
