在线询价汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-24S-D-XRELAY AUTOMOTIVE SPST 130A 24V |
2,302 |
|
规格书 |
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24S-R-XRELAY AUTOMOTIVE SPST 130A 24V |
1,322 |
|
规格书 |
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

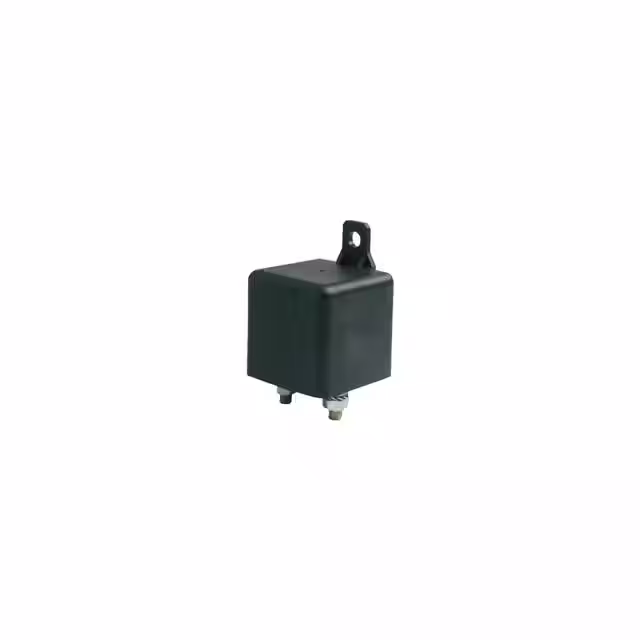

05903500RELAY24V.100A |
3,379 |
|
规格书 |
- | Box | Active | Non Latching | - | - | - | 100 A | 24VDC - Max | - | - | - | - | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 100°C |
|
|
K1157163ADR / GGVS 87-3-3000 |
2,292 |
|
规格书 |
87, KISSLING | Bulk | Active | Latching, Dual Coil | 3 A | 24VDC | SPST-NO (1 Form A) | 300 A | - | - | - | - | - | Diode | Chassis Mount | Connector | -40°C ~ 85°C |
|

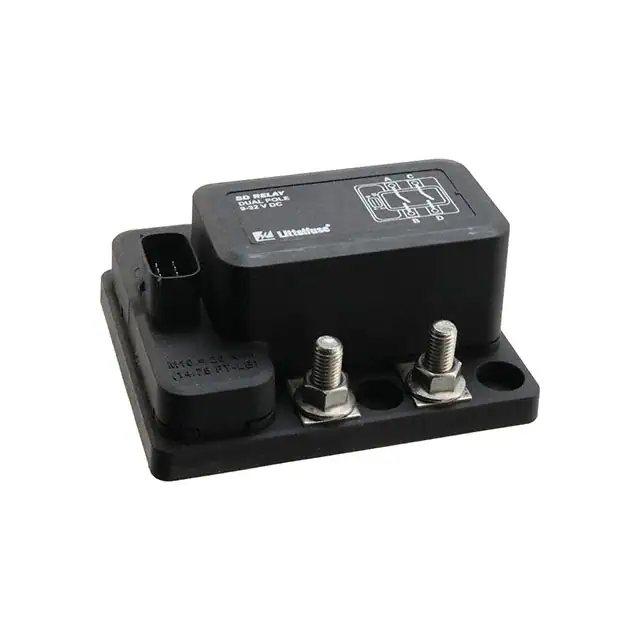

880107SD RELAY DUAL POLE |
2,676 |
|
规格书 |
SD | Bulk | Active | Latching, Single Coil | - | 12VDC | DPST-NO (2 Form A) | 300 A | 12VDC - Nom | - | - | - | - | - | Chassis Mount | Stud | -40°C ~ 85°C |
|

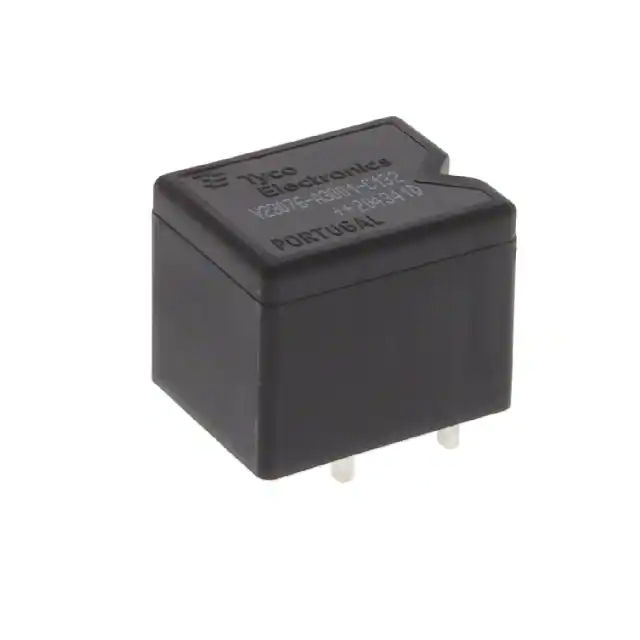

1-1414310-0RELAY AUTOMOTIVE SPST 40A 12V |
2,831 |
|
规格书 |
- | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 45 A | - | 6.9 VDC | 1.2 VDC | - | - | - | - | - | -40°C ~ 85°C |
|
|
9-1414992-1RELAY GEN PURPOSE SPST 25A 12V |
1,323 |
|
规格书 |
VFMA | Tray | Obsolete | Non Latching | 100.8 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | - | - | Resistor | Socketable | Quick Connect - 0.187"/0.250" | -40°C ~ 125°C |
|
CB1-R-24VRELAY AUTOMOTIVE SPDT 20A 24V |
4,350 |
|
规格书 |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AH-T-P-12VCB RELAY HR 1 FORM A 12V |
3,912 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
5601-24PT Series 30 A Time Delay Relay, |
4,634 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5-1393302-8Power/Signal Relay, 1 Form C, SP |
1,294 |
|
规格书 |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7421-24BRelay, 160 Amp / 24V, Bulk |
1,278 |
|
规格书 |
TH Series | Bulk | Active | Non Latching | 170 mA | 24VDC | SPST-NO (1 Form A) | 160 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud, Wire Leads | - |
|
|
7422-24BRelay, 2x80 Amp / 24V, Bulk |
2,088 |
|
规格书 |
TH Series | Bulk | Active | Non Latching | 85 mA | 24VDC | DPST-NO (2 Form A) | 80 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud, Wire Leads | - |
|
|
7610-24BAutomatic Charging Relay Plus - |
1,604 |
|
规格书 |
- | Bulk | Active | Non Latching | 170 mA | 24VDC | SPST-NO (1 Form A) | 160 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud | - |
|
|
7612-24BAutomatic Charging Relay Plus - |
4,756 |
|
规格书 |
- | Bulk | Active | Non Latching | 85 mA | 24VDC | DPST-NO (2 Form A) | 80 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud | - |
|

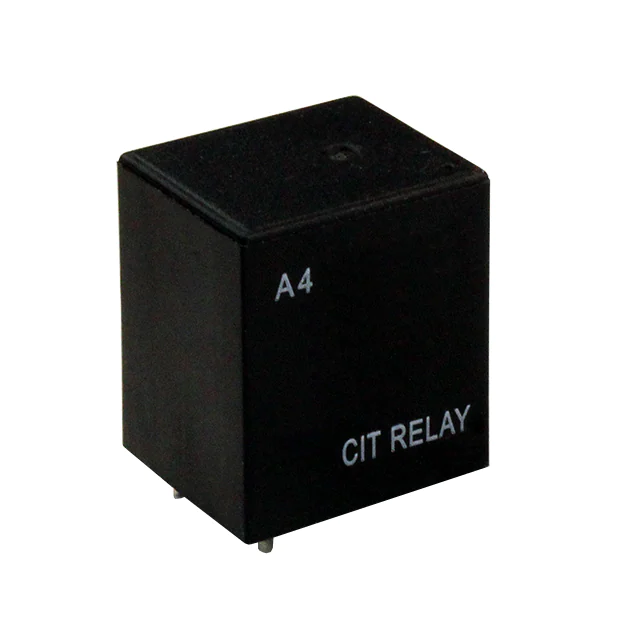

A41CS24VDCRELAY AUTOMOTIVE SPDT 20A 24V |
2,200 |
|
规格书 |
A4 | Tube | Active | Non Latching | 41.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21CSP12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
2,031 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
2,557 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CB1-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
1,693 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11CSQ24VDC1.2RELAY AUTOMOTIVE SPDT 30A 24V |
3,795 |
|
规格书 |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
