在线询价汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A41US24VDCRELAY AUTOMOTIVE SPDT 20A 24V |
1,372 |
|
规格书 |
A4 | Tray | Active | Non Latching | 41.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ977-1A-24DRELAY AUTOMOTIVE SPST 20A 24V |
2,378 |
|
规格书 |
AZ977 | Box | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 150VDC - Max | 14.4 VDC | 2 VDC | 10 ms | 7 ms | MICRO-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 115°C |
|
|
AZ970E-1C-24DRELAY AUTOMOTIVE SPDT 30A 24V |
2,772 |
|
规格书 |
AZ970E | Box | Active | Non Latching | 66.3 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 13.9 VDC | 1.44 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ970-1C-24DRELAY AUTOMOTIVE SPDT 30A 24V |
1,730 |
|
规格书 |
AZ970 | Box | Active | Non Latching | 66.3 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 1.44 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
A51AE24VDC1.9URELAY AUTOMOTIVE SPST 40A 24V |
3,331 |
|
规格书 |
A5 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51CE12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
2,468 |
|
规格书 |
A5 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51CE12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
1,345 |
|
规格书 |
A5 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51CS12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
2,322 |
|
规格书 |
A5 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AS24VDC1.9URELAY AUTOMOTIVE SPST 40A 24V |
2,575 |
|
规格书 |
A5 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AS24VDC1.6URELAY AUTOMOTIVE SPST 40A 24V |
4,908 |
|
规格书 |
A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC822-1C-12-A-XRELAY AUTOMOTIVE SPDT 45A 12V |
3,818 |
|
规格书 |
- | Tube | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
A1M1ASQ12VDCDRELAY AUTOMOTIVE SPST 40A 12V |
3,366 |
|
规格书 |
A1M | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A1M1ASQ12VDCRRELAY AUTOMOTIVE SPST 40A 12V |
4,378 |
|
规格书 |
A1M | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ971E-1C-12DRELAY AUTOMOTIVE SPDT 30A 12V |
2,792 |
|
规格书 |
AZ971E | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 6.8 VDC | 0.7 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ977-1A-12DERELAY AUTOMOTIVE SPST 20A 12V |
3,826 |
|
规格书 |
AZ977 | Box | Active | Non Latching | 123.7 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 150VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 7 ms | MICRO-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 115°C |
|
|
AZ977-1A-12DSERELAY AUTOMOTIVE SPST 20A 12V |
1,754 |
|
规格书 |
AZ977 | Box | Active | Non Latching | 97.6 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 150VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 7 ms | MICRO-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 115°C |
|
|
AZ971-1C-12DRELAY AUTOMOTIVE SPDT 30A 12V |
4,295 |
|
规格书 |
AZ971 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 150VDC - Max | 8.4 VDC | - | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ971-1A-24DERELAY AUTOMOTIVE SPST 45A 24V |
3,212 |
|
规格书 |
AZ971 | Box | Active | Non Latching | 66.3 mA | 24VDC | SPST-NO (1 Form A) | 45 A | 75VDC - Max | 16.8 VDC | 1.44 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ971E-1A-24DERELAY AUTOMOTIVE SPST 45A 24V |
2,174 |
|
规格书 |
AZ971E | Box | Active | Non Latching | 66.3 mA | 24VDC | SPST-NO (1 Form A) | 45 A | 75VDC - Max | 13.9 VDC | 1.44 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|

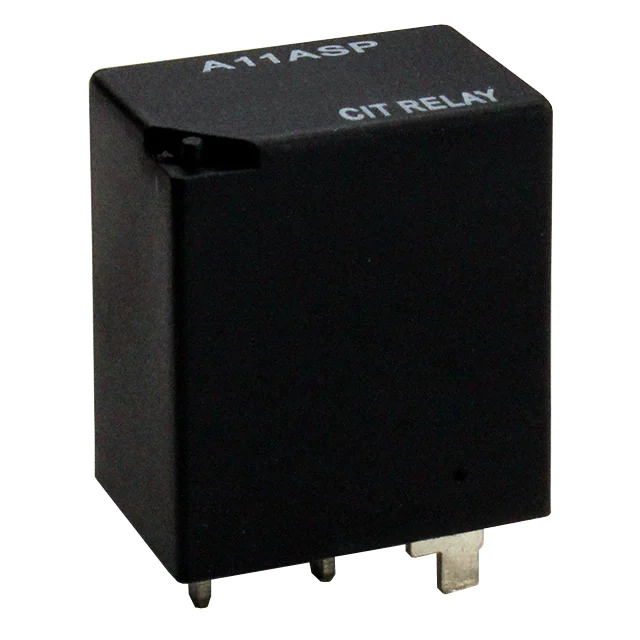

A11ASP24VDC1.2RELAY AUTOMOTIVE SPST 30A 24V |
4,237 |
|
规格书 |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
