在线询价汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

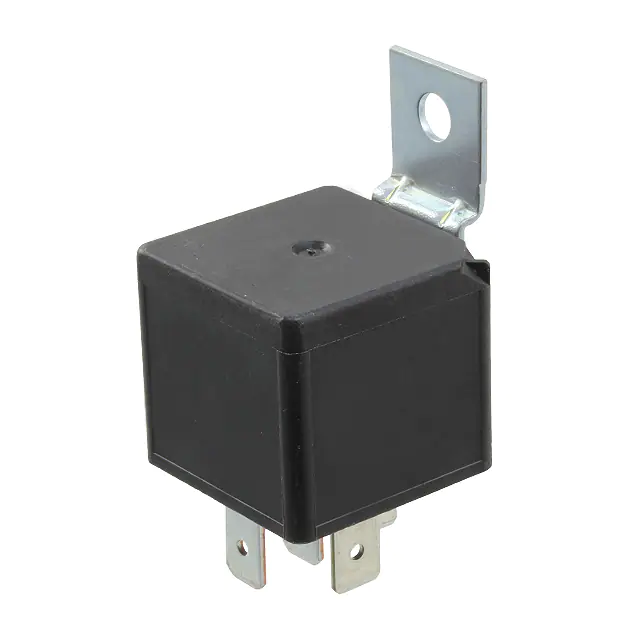

1-1393302-0RELAY GEN PURPOSE SPDT 40A 12V |
1,303 |
|
规格书 |
VF4 | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
5-1414782-7RELAY AUTO SPST-NO 40A 12V |
1,183 |
|
规格书 |
V23201 | Bulk | Discontinued at Digi-Key | Non Latching | 68 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
VFMA-11F41-S01VFMA-11F41-S01=VFMA |
1,007 |
|
规格书 |
VFMA | Bulk | Obsolete | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | - | 7.2 VDC | 1.2 VDC | - | - | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
3-1393278-7RELAY AUTOMOTIVE SPDT 45A 24V |
4,483 |
|
规格书 |
V23133 | Bulk | Obsolete | Non Latching | 66 mA | 24VDC | SPDT (1 Form C) | 45 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|

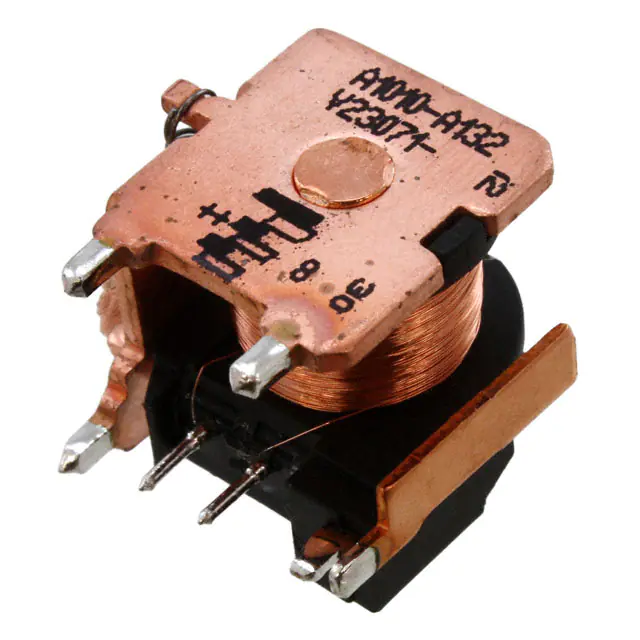

1393276-7RELAY AUTO SPST-NO 70A 24V |
2,397 |
|
规格书 |
V23071 | Bulk | Obsolete | Non Latching | 103 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.1 VDC | 2.4 VDC | 4 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
1904001-5AUTOMOTIVE RELAYS |
1,536 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
02040612ZRELAY AUTOMOTIVE SPDT 15A 24V |
3,489 |
|
规格书 |
MICRO | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 15 A | 24VDC - Nom | - | - | - | - | Diode | Socketable | Plug In | - |
|

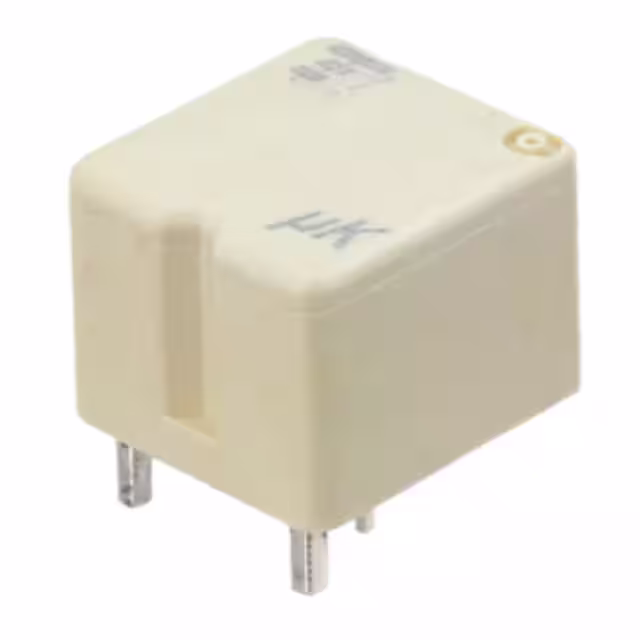

6-1414920-0RELAY AUTO SPDT 30A 12V |
3,838 |
|
规格书 |
Micro Relay K | Bulk | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
CA1BD-12V-N-5CA RELAY |
3,725 |
|
规格书 |
CA | Bulk | Obsolete | Non Latching | 150 mA | 12VDC | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Plug In | -30°C ~ 80°C |
|
JSM1F-12V-4AUTOMOTIVE POWER RELAY |
2,112 |
|
规格书 |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
JSM1F-12V-5JS-M RELAY 12V DC COIL HIGH CAPA |
2,383 |
|
规格书 |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 15 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1AH-D-12VCB RELAY 1 FORM A 12V |
4,582 |
|
规格书 |
CB | Bulk | Obsolete | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
G8N-1U-DC12RELAY AUTOMOTIVE SPDT 30A 12V |
2,762 |
|
规格书 |
G8N-1 | Tray | Obsolete | Non Latching | 92.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 5.5 VDC | 0.8 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
G8NW-2L-DC12RELAY AUTOMOTIVE SPDT 30A 12V |
3,062 |
|
规格书 |
G8NW-2 | Tray | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
G8PE1A4ZDC12SIRELAY AUTOMOTIVE PLUGIN |
2,025 |
|
规格书 |
G8PE | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G8TA1CE1FDC12VRELAY AUTOMOTIVE PLUGIN |
3,941 |
|
规格书 |
G8TA | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G8HE-1A7T-R1-DC12RELAY MINI ISO AUTO |
4,631 |
|
规格书 |
G8HE | Bulk | Obsolete | Non Latching | 141 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8HE-1A7T-R2-DC12RELAY MINI ISO AUTO |
2,332 |
|
规格书 |
G8HE | Bulk | Obsolete | Non Latching | 141 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8HE-1C7T-R1-DC12RELAY MINI ISO AUTO |
4,766 |
|
规格书 |
G8HE | Bulk | Obsolete | Non Latching | 141 mA | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8HL-1A4P DC12 SKRELAY AUTO |
3,837 |
|
规格书 |
G8HL | Bulk | Obsolete | Non Latching | 90 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 7 VDC | 0.7 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 100°C |
