在线询价数字隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 类型 | 隔离电源 | 通道数 | 输入 - 侧 1/侧 2 | 通道类型 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM5402CRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,206 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM5402CRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
946 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM5401CRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
5,259 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM5401CRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,082 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|

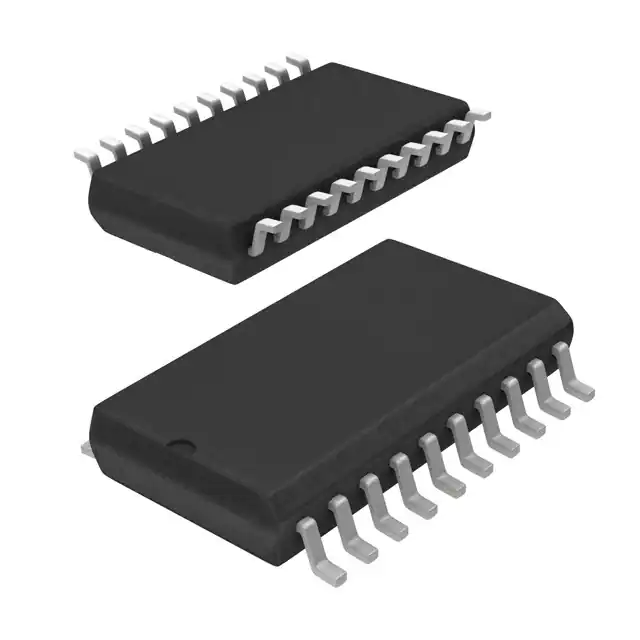

ADUM4166BRIZ5KV 480MBPS USB DIG ISOLATOR PER |
1,168 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS232, USB | Yes | 1 | 1/0 | Unidirectional | 5700Vrms | 40kV/µs | 480Mbps | 650ns, 600ns | - | 300ns, 350ns (Max) | 3V ~ 3.6V, 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 20-SOIC-IC |
|
|
ADUM6401ARWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,509 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM6401ARWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
203 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM6404ARIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
143 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
ADM2582EBRWZDGT ISO 2.5KV RS422/RS485 20SOIC |
781 |
|
规格书 |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 16Mbps | - | - | 15ns, 15ns (Max) | 3.3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 20-SOIC |
|
|
ADM2582EBRWZ-REEL7DGT ISO 2.5KV RS422/RS485 20SOIC |
3,208 |
|
规格书 |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 16Mbps | - | - | 15ns, 15ns (Max) | 3.3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 20-SOIC |
|
ISO7241AMDWREPDGTL ISO 4000VPK 4CH GP 16SOIC |
1,870 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 4000Vpk | 25kV/µs | 1Mbps | 95ns, 95ns | 10ns | 2ns, 2ns | 3.15V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM6401CRWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,500 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM6402CRWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
774 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM6401CRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
582 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM6402CRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
177 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADM2687EBRIZ-RL7DGTL ISO 5KV RS422/RS485 16SOIC |
1,264 |
|
规格书 |
isoPower® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | Yes | 3 | 2/1 | Unidirectional | 5000Vrms | 25kV/µs | 500kbps | 700ns, 700ns | - | 1.1µs, 1.1µs (Max) | 3.3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADM2687EBRIZDGTL ISO 5KV RS422/RS485 16SOIC |
451 |
|
规格书 |
isoPower® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | Yes | 3 | 2/1 | Unidirectional | 5000Vrms | 25kV/µs | 500kbps | 700ns, 700ns | - | 1.1µs, 1.1µs (Max) | 3.3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADUM5401WCRWZ-1RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,752 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
HCPL-090J-000EDGTL ISO 2500VRMS 4CH GP 16SOIC |
872 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-092J-000EDGTL ISO 2500VRMS 4CH GP 16SOIC |
717 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
