在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BG0703-B053-000-00FAN BLOWER 75.7X30MM 24VDC WIRE |
2,292 |
|
规格书 |
07530GA | Box | Obsolete | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 8.8 CFM (0.246m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Blower | - | 34.5dB | 2.16 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.198 lb (89.81 g) |
|
|
BG0903-B042-000-00FAN BLOWER 97X33MM 12VDC WIRE |
1,218 |
|
规格书 |
09533GA | Box | Obsolete | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 20.5 CFM (0.574m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | - | 47.5dB | 4.8 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B043-000-00FAN BLOWER 97X33MM 12VDC WIRE |
2,216 |
|
规格书 |
09533GA | Box | Obsolete | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 24.7 CFM (0.692m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Blower | - | 51.5dB | 7.68 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B047-000-00FAN BLOWER 97X33MM 12VDC WIRE |
2,424 |
|
规格书 |
09533GA | Box | Obsolete | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 38.1 CFM (1.07m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Blower | - | - | 19.2 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B047-00L-00FAN BLOWER 97X33MM 12VDC WIRE |
4,475 |
|
规格书 |
09533GA | Box | Obsolete | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 38.1 CFM (1.07m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Blower | Locked Rotor Sensor | - | 19.2 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B052-000-00FAN BLOWER 97X33MM 24VDC WIRE |
2,101 |
|
规格书 |
09533GA | Box | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 20.5 CFM (0.574m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | - | 47.5dB | 5.04 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B053-000-00FAN BLOWER 97X33MM 24VDC WIRE |
4,081 |
|
规格书 |
09533GA | Box | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 24.7 CFM (0.692m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Blower | - | 51.5dB | 7.92 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG1203-B042-000-00FAN BLOWER 120X32MM 12VDC WIRE |
1,105 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 22.2 CFM (0.622m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | - | 41.5dB | 3.6 W | 1800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B043-000-00FAN BLOWER 120X32MM 12VDC WIRE |
4,281 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 26.1 CFM (0.731m³/min) | 0.582 in H2O (145.0 Pa) | Ball | Blower | - | 46.5dB | 5.78 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B045-000-00FAN BLOWER 120X32MM 12VDC WIRE |
1,089 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.2 CFM (0.930m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Blower | - | 54.0dB | 11.2 W | 2650 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B052-000-00FAN BLOWER 120X32MM 24VDC WIRE |
3,606 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 22.2 CFM (0.622m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | - | 46.0dB | 4.08 W | 1800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B053-000-00FAN BLOWER 120X32MM 24VDC WIRE |
1,760 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 26.1 CFM (0.731m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | - | 50.5dB | 6 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B054-000-00FAN BLOWER 120X32MM 24VDC WIRE |
4,984 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.2 CFM (0.790m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Blower | - | 52.0dB | 7.2 W | 2250 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
1611FT-D4W-B86-B00FAN AXIAL 40X28MM 12VDC WIRE |
2,639 |
|
规格书 |
1611FT | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.3 CFM (0.820m³/min) | 2.680 in H2O (670.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 60.0dB | 11.4 W | 22000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL, VDE | 0.108 lb (48.99 g) |
|

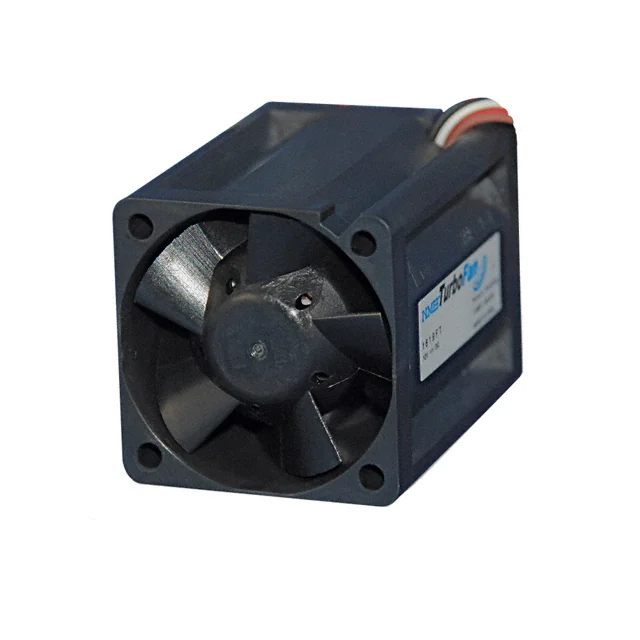

1619FT-04W-B86-B00FAN AXIAL 40X48MM 12VDC WIRE |
1,243 |
|
规格书 |
1619FT | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 28.9 CFM (0.809m³/min) | 3.290 in H2O (820.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.0dB | 12.6 W | 23000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | UL, VDE | 0.156 lb (70.76 g) |
|

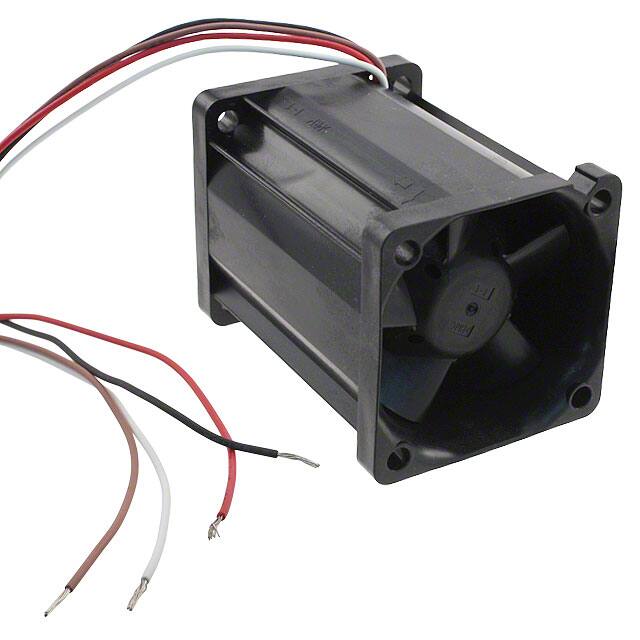

1622FT-04W-B86-E50FAN AXIAL 40X56MM 12VDC WIRE |
1,300 |
|
规格书 |
1622FT | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 30.0 CFM (0.840m³/min) | 3.540 in H2O (885.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB | 12.6 W | 23000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.15 lb (68.04 g) |
|
|
3106KL-04W-B50-B00FAN AXIAL 80X15MM 12VDC WIRE |
1,772 |
|
规格书 |
3106KL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 32.8 CFM (0.918m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.76 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.111 lb (50.35 g) |
|
|
4715KL-07W-B59-E00FAN AXIAL 119X38MM 48VDC WIRE |
3,961 |
|
规格书 |
11938KA | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 50.0dB | 7.68 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B59-E50FAN AXIAL 119X38MM 48VDC WIRE |
1,491 |
|
规格书 |
11938KA | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 50.0dB | 7.68 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
BG1203-B054-00L-00FAN BLOWER 120X32MM 24VDC WIRE |
2,570 |
|
规格书 |
12032GA | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.2 CFM (0.790m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Blower | Locked Rotor Sensor | 52.0dB | 7.2 W | 2250 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
