在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD1238X24B-FSR-CC-L15FAN AXIAL 120X38MM 24VDC WIRE |
2,004 |
|
规格书 |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
9G1212E4011FAN AXIAL 119X25MM 12VDC WIRE |
1,587 |
|
规格书 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 6.96 W | 3650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9G1224E4011FAN AXIAL 119X25MM 24VDC WIRE |
2,562 |
|
规格书 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 8.88 W | 3650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1224G4011FAN AXIAL 119X25MM 24VDC WIRE |
3,650 |
|
规格书 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 11.28 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1248A401FAN AXIAL 119X25MM 48VDC WIRE |
2,941 |
|
规格书 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 25.00mm | 100.1 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB(A) | 6.24 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|

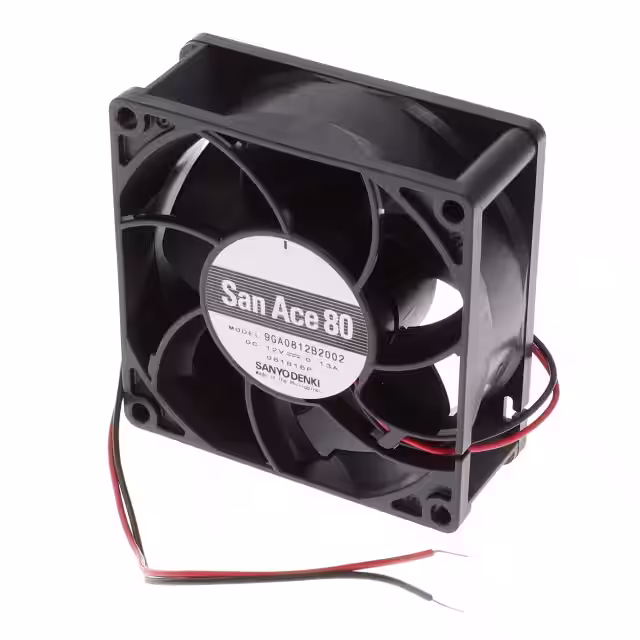

9GA0812B2002FAN AXIAL 80X32MM 12VDC WIRE |
2,028 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.56 W | - | 2 Wire Leads | - | - | - | - |
|
8412NGMVFAN AXIAL 80X25.4MM 12VDC WIRE |
4,341 |
|
规格书 |
8400NV | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 2 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

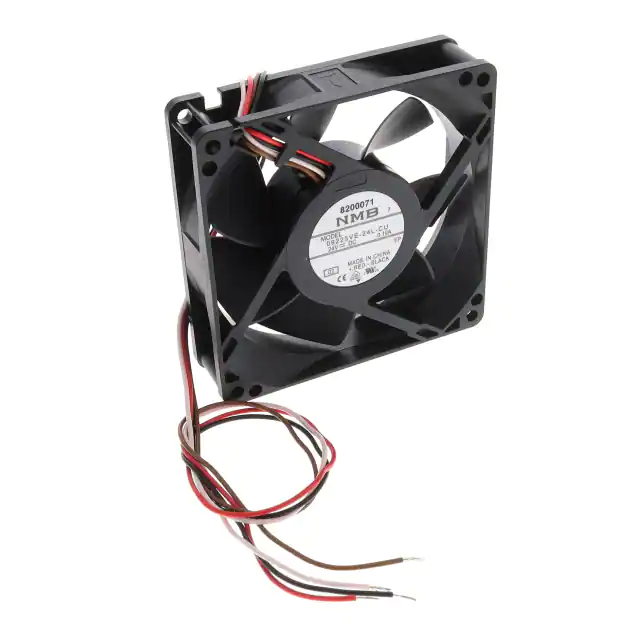

09225VE-24L-CU-02FAN AXIAL 92X25MM 24VDC WIRE |
2,968 |
|
规格书 |
09225VE | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.5dB | 3.36 W | 3700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
|
9WF0824S402FAN AXIAL 80X25MM 24VDC WIRE |
3,312 |
|
规格书 |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 3.84 W | 4000 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

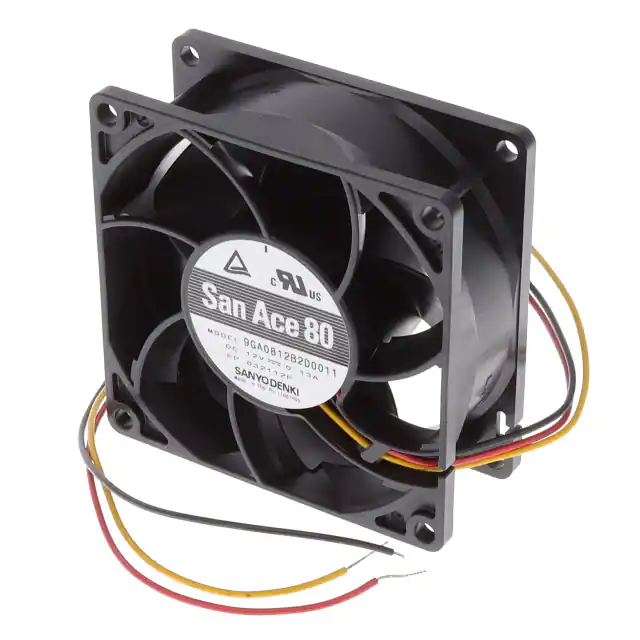

9GA0812B2D0011FAN AXIAL 80X32MM 12VDC WIRE |
4,135 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 1.56 W | - | 3 Wire Leads | - | - | - | - |
|
9RA0948H4001FAN AXIAL 92X25MM 48VDC WIRE |
1,851 |
|
规格书 |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 51.7 CFM (1.45m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0948H40011FAN AXIAL 92X25MM 48VDC WIRE |
2,895 |
|
规格书 |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 51.7 CFM (1.45m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9GA0912S402FAN AXIAL 92X25.2MM 12VDC WIRE |
1,565 |
|
规格书 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.20mm | 59.0 CFM (1.65m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|

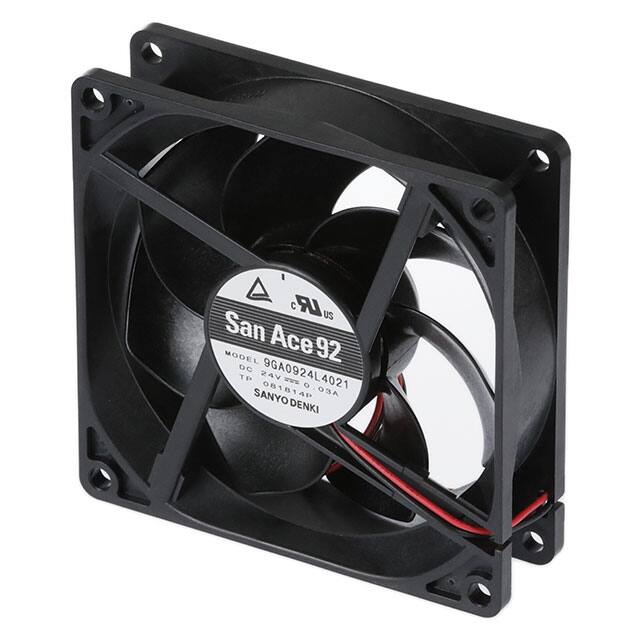

9GA0924L4021FAN AXIAL 92X25MM 24VDC WIRE |
3,649 |
|
规格书 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 720 mW | - | 2 Wire Leads | - | - | - | - |
|

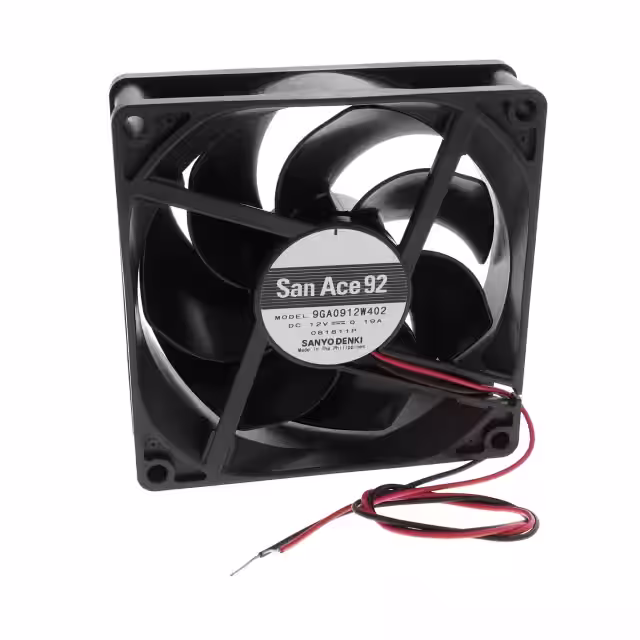

9GA0912W402FAN AXIAL 92X25MM 12VDC WIRE |
3,299 |
|
规格书 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.28 W | - | 2 Wire Leads | - | - | - | - |
|
9GA0912W4021FAN AXIAL 92X25MM 12VDC WIRE |
4,580 |
|
规格书 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.28 W | - | 2 Wire Leads | - | - | - | - |
|

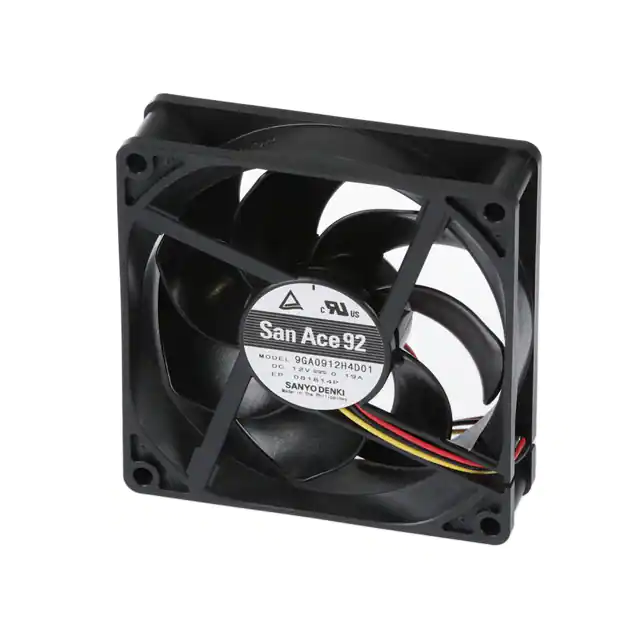

9GA0912H4D01FAN AXIAL 92X25MM 12VDC WIRE |
3,177 |
|
规格书 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.28 W | - | 3 Wire Leads | - | - | - | - |
|

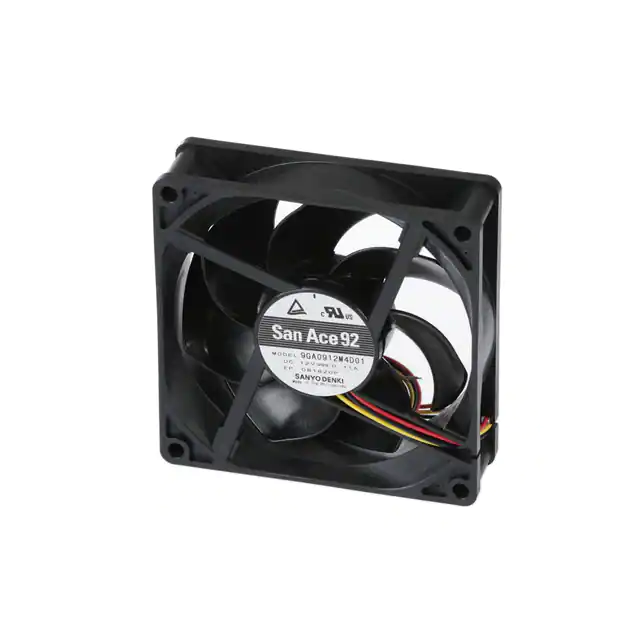

9GA0912M4D01FAN AXIAL 92X25MM 12VDC WIRE |
4,341 |
|
规格书 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 1.32 W | - | 3 Wire Leads | - | - | - | - |
|
9GA0924M402FAN AXIAL 92X25MM 24VDC WIRE |
2,219 |
|
规格书 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.2 W | - | 2 Wire Leads | - | - | - | - |
|

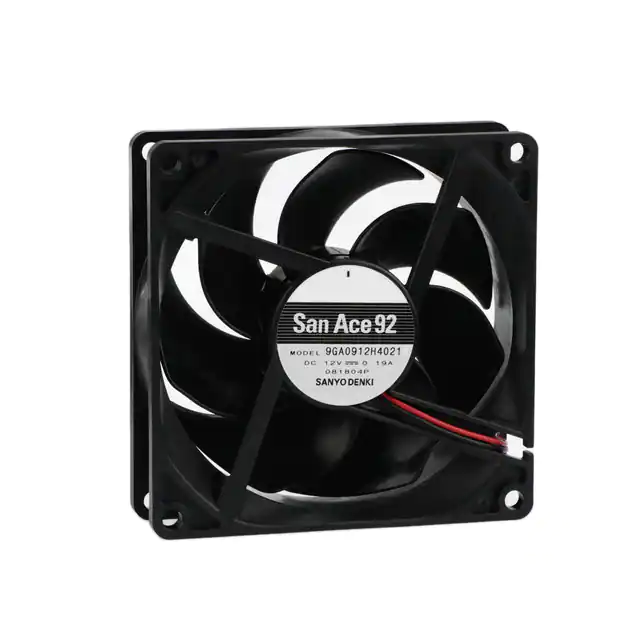

9GA0912H4021FAN AXIAL 92X25MM 12VDC WIRE |
4,346 |
|
规格书 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.28 W | - | 2 Wire Leads | - | - | - | - |
