在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17001215AFAN AXL 80X32MM 48VDC STD48B3-E3 |
3,817 |
|
规格书 |
Sprint | Box | Active | 48VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.9dB(A) | 3.6 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001214AFAN AXIAL 24VDC STD24B3-E3 |
4,754 |
|
规格书 |
Sprint | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.9dB(A) | 3.3 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
9RFA1312P3H001FAN AXIAL 136X28MM 12VDC WIRE |
1,856 |
|
规格书 |
San Ace 136RF | Bulk | Active | 12VDC | Round - 136mm Dia | 28.00mm | 59.4 CFM (1.66m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Reversible Flow, Speed Sensor (Tach) | 44.0dB(A) | 1.92 W | 4350 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | cURus, TUV | - |
|
|
CFR5B5X-SCF Blower 141X23.5mm 5VDC/Tach |
2,067 |
|
规格书 |
CFR5B | Tape & Box (TB) | Active | 5VDC | Rectangular - 141mm L x 23mm H | 23.50mm | 23.2 CFM (0.650m³/min) | - | Ball | Blower, Cross Flow | - | 30.0dB | 1.68 W | 6500 RPM | - | - | -10°C ~ 70°C | - | - |
|
|
CFR5B12X-S-PCF BLOWER 141X23.5mm 12V/Tach/PW |
3,769 |
|
规格书 |
CFR5B | Tape & Box (TB) | Active | 12VDC | Rectangular - 141mm L x 23mm H | 23.50mm | 23.2 CFM (0.650m³/min) | - | Ball | Blower, Cross Flow | - | 30.0dB | 1.68 W | 6500 RPM | - | - | -10°C ~ 70°C | - | - |
|
|
CFR5B12XCF Blower 141X23.5mm 12VDC |
2,225 |
|
规格书 |
CFR5B | Tape & Box (TB) | Active | 12VDC | Rectangular - 141mm L x 23mm H | 23.50mm | 23.2 CFM (0.650m³/min) | - | Ball | Blower, Cross Flow | - | 30.0dB | 1.68 W | 6500 RPM | - | - | -10°C ~ 70°C | - | - |
|
|
CFR5B5X-S-PCF Blower 141X23.5mm 5V/Tach/PWM |
1,203 |
|
规格书 |
CFR5B | Tape & Box (TB) | Active | 5VDC | Rectangular - 141mm L x 23mm H | 23.50mm | 23.2 CFM (0.650m³/min) | - | Ball | Blower, Cross Flow | - | 30.0dB | 1.68 W | 6500 RPM | - | - | -10°C ~ 70°C | - | - |
|
|
CFR5B5XCF Blower 141X23.5mm 5VDC |
2,872 |
|
规格书 |
CFR5B | Tape & Box (TB) | Active | 5VDC | Rectangular - 141mm L x 23mm H | 23.50mm | 23.2 CFM (0.650m³/min) | - | Ball | Blower, Cross Flow | - | 30.0dB | 1.68 W | 6500 RPM | - | - | -10°C ~ 70°C | - | - |
|
5910PL-05W-B50-L00FAN AXIAL 172X25.4MM 24VDC WIRE |
3,928 |
|
规格书 |
5910PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 250.0 CFM (7.00m³/min) | 0.657 in H2O (163.7 Pa) | Ball | Tubeaxial | - | 62.5dB | 24 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
|
5112N/2FAN TAC OUT 135X38MM 12VDC |
3,415 |
|
规格书 |
5100N | Bulk | Active | 12VDC | Square - 135mm L x 135mm H | 38mm | 147.0 CFM (4.12m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 9.3 W | 2900 RPM | 3 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE | 1.4 lbs (635.0 g) |
|
|
9RA1448H10011140X38MM 48VDC LOW NOISE RBLS TA |
2,037 |
|
规格书 |
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 6.2 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

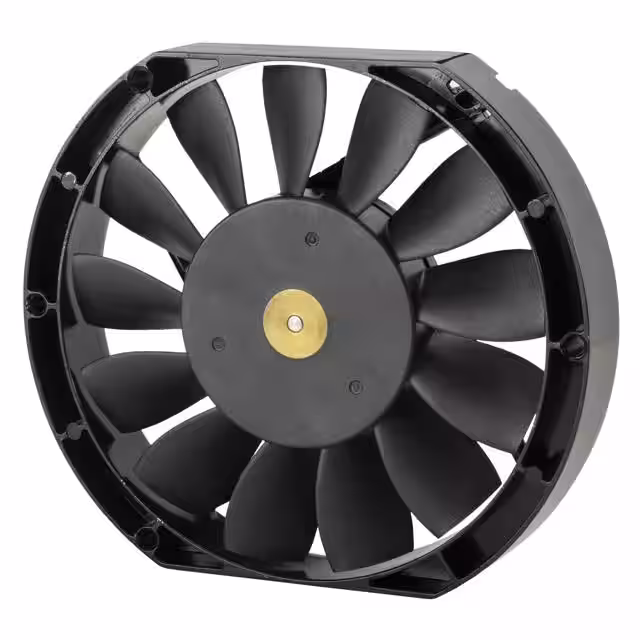

K1725H12BALA2A-13FAN AXIAL 172X25MM 12VDC WIRE |
4,953 |
|
规格书 |
Intelligent Motion | Bulk | Active | 12VDC | Rectangular/Round - 172mm L x 150mm H | 25.00mm | 244.9 CFM (6.93m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 60.1dB(A) | 27 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001218AFAN AXIAL 48VDC SDD48B1-E3 |
1,265 |
|
规格书 |
Sprite | Box | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
OD3010-12LBFAN AXIAL 30X10.2MM 12VDC WIRE |
2,634 |
|
规格书 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 23.1dB(A) | - | 8000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
17001194AFAN AXIAL 48VDC PQD48K3E2X-E3 |
4,903 |
|
规格书 |
Major | Bulk | Active | 48VDC | Round - 171.4mm Dia | 50.80mm | 285.0 CFM (7.98m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.9dB(A) | 43.2 W | 4200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
9WPA0924H400192X25MM 24VDC IP68 HIGH PERF TAC |
2,941 |
|
规格书 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9RA1448S1001140X38MM 48VDC LOW NOISE TACH |
2,770 |
|
规格书 |
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 189.0 CFM (5.29m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 10.1 W | 3750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
REF100-11/18FAN IMP MTRZD 100X25MM 48VDC |
3,546 |
|
规格书 |
REF100 | Bulk | Obsolete | 48VDC | Round - 100mm Dia | 25.00mm | 50.6 CFM (1.42m³/min) | - | Ball | Motorized Impellers | - | 66.0dB(A) | 7.5 W | 5400 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.353 lb (160.12 g) |
|
|
QG030-303/12032FAN BLOWER CF 413X48MM 12VDC |
4,826 |
|
规格书 |
QG030 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 413mm L x 50mm H | 48.00mm | - | - | - | Blower, Cross Flow | - | - | - | - | - | - | - | - | - |
|
FDD1-17238EBLW42FAN AXIAL 172X38.5MM 48VDC WIRE |
2,553 |
|
规格书 |
HPLC, FDD1-17238 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 245.0 CFM (6.86m³/min) | 0.732 in H2O (182.3 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 17.8 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
