在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

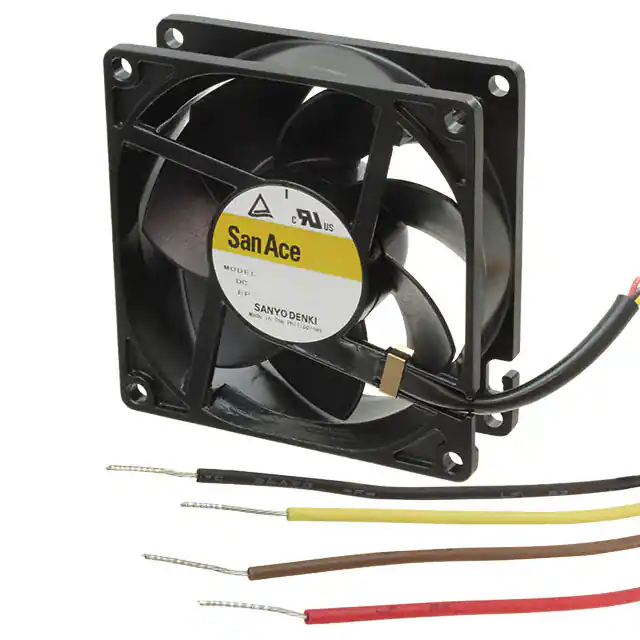

9WL0812P4G001FAN AXIAL 80X25MM 12VDC WIRE |
149 |
|
规格书 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 54.4 CFM (1.52m³/min) | 0.393 in H2O (98.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 5500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
EFB1524VHG-EPFAN AXIAL 172X50.8MM 24VDC WIRE |
1,445 |
|
规格书 |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 24.48 W | 4000 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
19031769AFAN AXIAL 175.5X111.8MM TD24B1 |
550 |
|
规格书 |
Tarzan | Bulk | Active | 24VDC | Square - 175.5mm L x 175.5mm H | 111.8mm | 325.0 CFM (9.10m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 65.2dB(A) | 36 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 5 lbs (2.3 kg) |
|

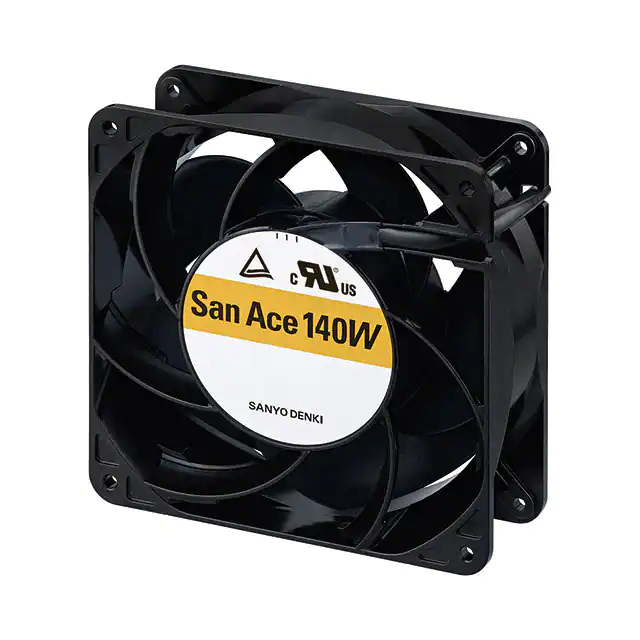

9WL1424P1A001FAN AXIAL 140X38MM 24VDC WIRE |
1,274 |
|
规格书 |
San Ace 140W | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 44.64 W | 6900 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|

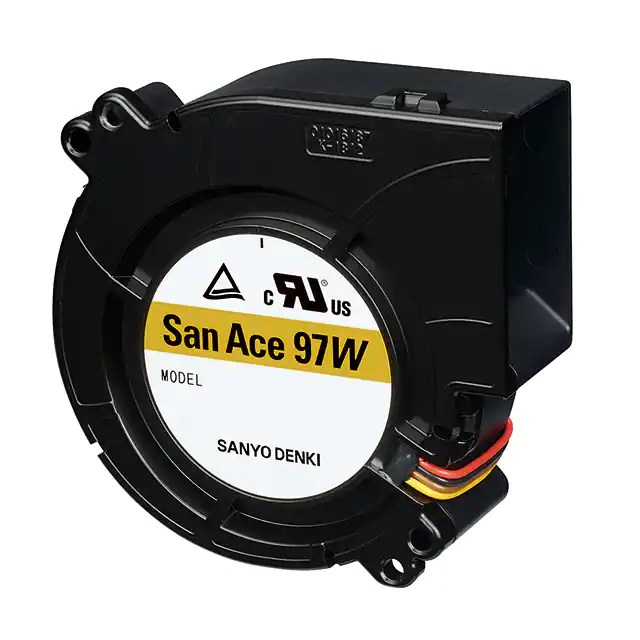

9W1BM24P2H001FAN BLOWER 97.1X33MM 24VDC WIRE |
121 |
|
规格书 |
San Ace 97W | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 38.6 CFM (1.08m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 15.6 W | 4800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.529 lb (240.00 g) |
|
|
9W1BM24P2M001FAN BLOWER 97.1X33MM 24VDC WIRE |
3,234 |
|
规格书 |
San Ace 97W | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 32.8 CFM (0.918m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 10.8 W | 4100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.529 lb (240.00 g) |
|
QG030-198/12FAN BLOWER CF 258X47.5MM 12VDC |
390 |
|
规格书 |
QG030 | Box | Active | 12VDC | Rectangular - 258mm L x 50mm H | 47.50mm | 59.0 CFM (1.65m³/min) | - | Ball | Blower, Cross Flow | - | 51.0dB(A) | 8 W | - | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.639 lb (289.85 g) |
|

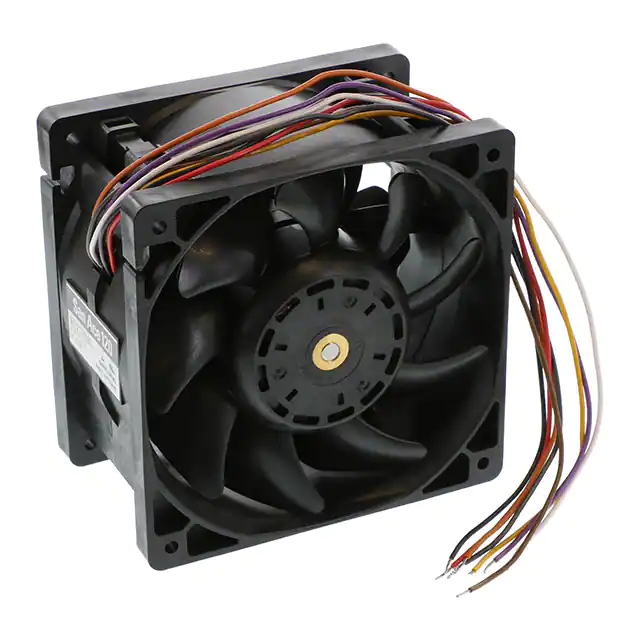

9CR1212P0G03FAN AXIAL DUAL 120X76MM 12VDC |
1,445 |
|
规格书 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 76.00mm | 300.0 CFM (8.40m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 86.4 W | 6200 Front, 3800 Rear | 4 Wire Leads per Fan | - | -4 ~ 140°F (-20 ~ 60°C) | cURus, TUV | 1.5 lbs (670.0 g) |
|
9WL0812P4J001FAN AXIAL 80X25MM 12VDC WIRE |
1,766 |
|
规格书 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 7.2 W | 7400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WL0824P4J001FAN AXIAL 80X25MM 24VDC WIRE |
2,879 |
|
规格书 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 6.72 W | 7400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
QG030-303/12FAN BLOWER CF 363X47.5MM 12VDC |
141 |
|
规格书 |
QG030 | Bulk | Active | 12VDC | Rectangular - 363mm L x 50mm H | 47.50mm | 82.2 CFM (2.30m³/min) | - | Ball | Blower, Cross Flow | - | 51.0dB(A) | 8.7 W | - | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
4118N/2H4PUFAN AXIAL 119X38MM 48VDC WIRE |
419 |
|
规格书 |
4100NU | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 34 W | 6800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | UL | 0.882 lb (400.07 g) |
|

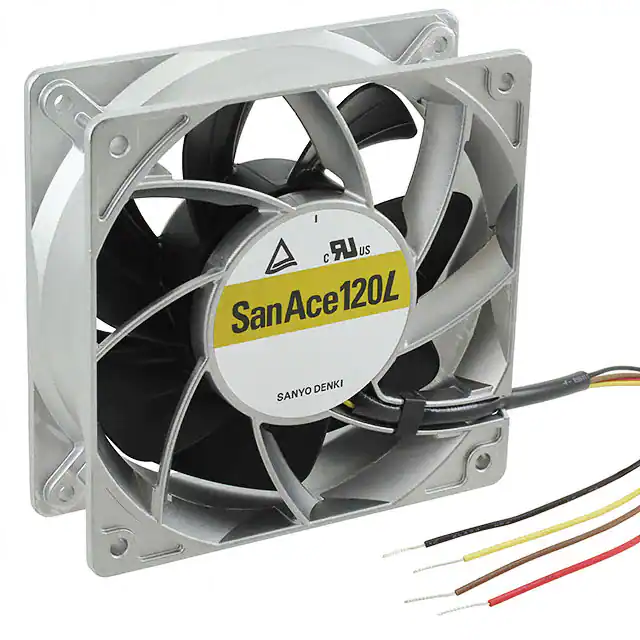

9LG1224P1G001FAN AXIAL 119X38MM 24VDC WIRE |
2,800 |
|
规格书 |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 38.4 W | 6550 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|

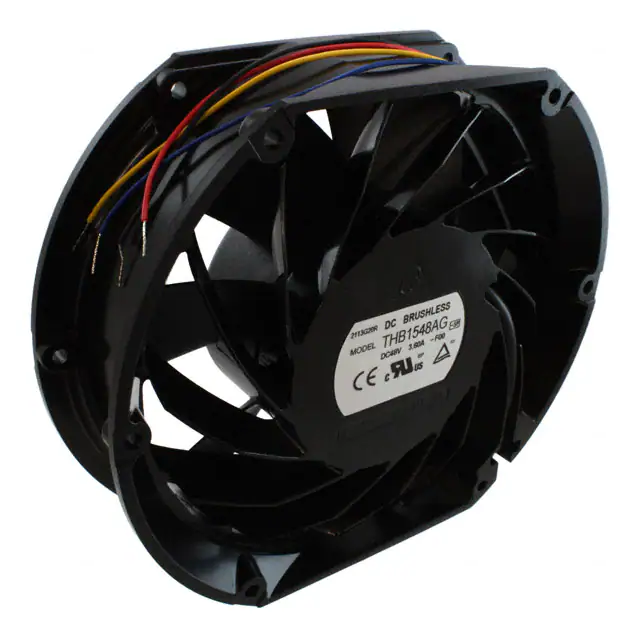

THB1548AGFAN AXIAL 172X50.8MM 48VDC WIRE |
119 |
|
规格书 |
THB | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 527.5 CFM (14.77m³/min) | 3.780 in H2O (941.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 144 W | 7200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (900.0 g) |
|

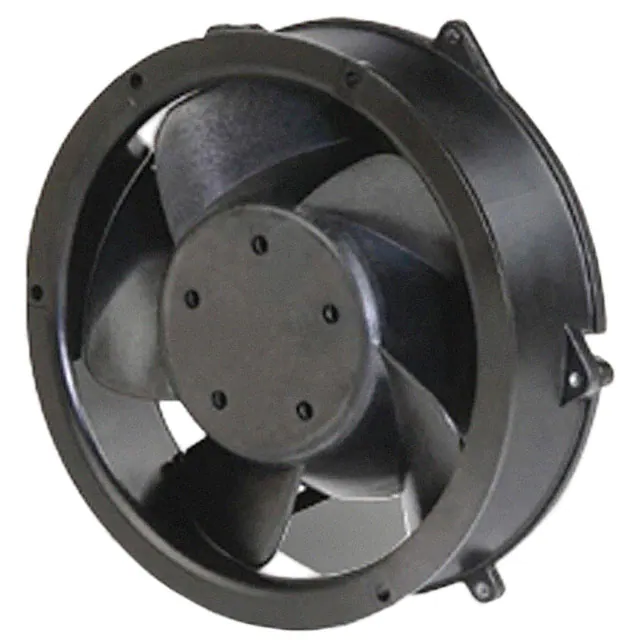

19044019AFAN AXIAL 172X51MM MFXE24Z1D3-E2 |
206 |
|
规格书 |
Mixtus | Box | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 400.0 CFM (11.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 69.0dB(A) | 74.4 W | 5400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, UL | - |
|
9W2TM24P4G001FAN IMP MTRZD 100X25MM 24VDC |
3,869 |
|
规格书 |
San Ace 100W | Box | Active | 24VDC | Round - 100mm Dia | 25.00mm | 71.7 CFM (2.01m³/min) | 2.840 in H2O (708.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 16.8 W | 7400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

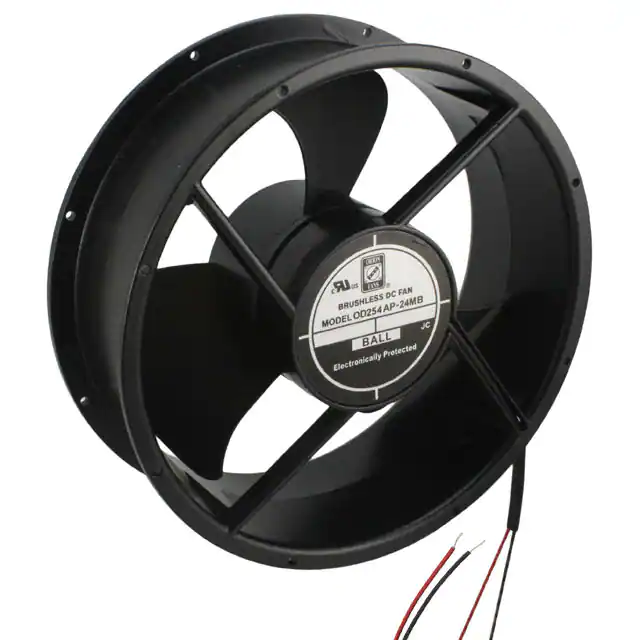

OD254AP-24MBFAN AXIAL 254X89MM 24VDC WIRE |
2,692 |
|
规格书 |
OD254 | Box | Active | 24VDC | Round - 254mm Dia | 89.00mm | 690.0 CFM (19.32m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB | 24 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
RG160-28/14NFAN BLOWER CF 220X56MM 24VDC |
317 |
|
规格书 |
RG160N | Box | Active | 24VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | - | 66.0dB(A) | 20 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 3.1 lbs (1.4 kg) |
|

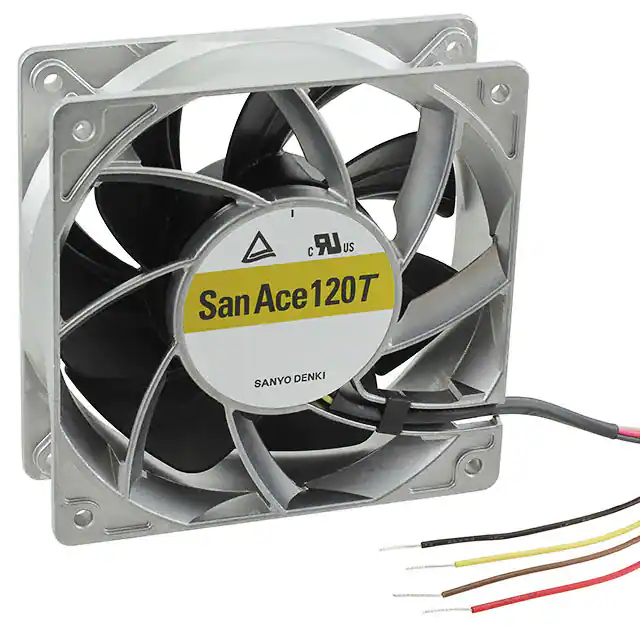

9GT1224P1S001FAN AXIAL 119X38MM 24VDC WIRE |
369 |
|
规格书 |
San Ace 120T | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 26.4 W | 5600 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | cURus, TUV | 0.926 lb (420.03 g) |
|
|
9GT1212P1S001FAN AXIAL 119X38MM 12VDC WIRE |
3,302 |
|
规格书 |
San Ace 120T | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 26.4 W | 5600 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | cURus, TUV | 0.926 lb (420.03 g) |
