在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC30101V2-000U-A99FAN AXIAL 30X10MM 12VDC WIRE |
4,187 |
|
规格书 |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.6 CFM (0.129m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 20.0dB(A) | 480 mW | 8000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
MC35101V2-000U-A99FAN AXIAL 35X10MM 12VDC WIRE |
2,247 |
|
规格书 |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 22.0dB(A) | 520 mW | 7500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|

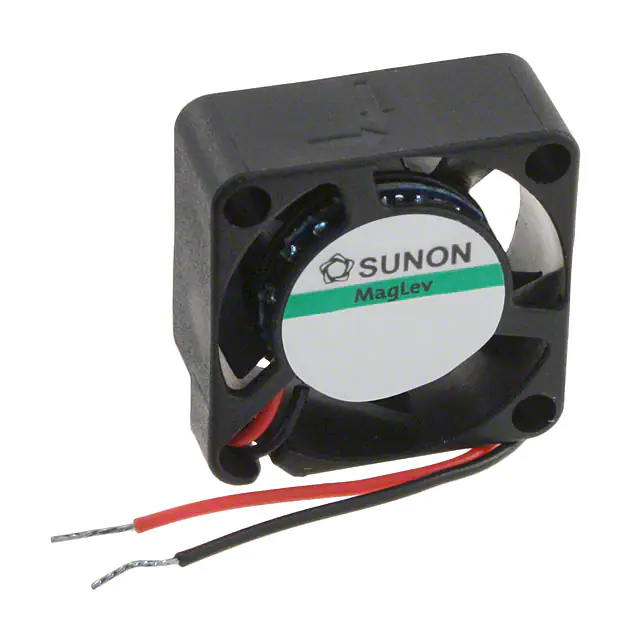

MC20080V1-000U-A99FAN AXIAL 20X8MM VAPO 5VDC WIRE |
1,672 |
|
规格书 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.6 CFM (0.045m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 23.0dB(A) | 680 mW | 15000 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.01 lb (4.54 g) |
|
|
MC20080V2-000U-A99FAN AXIAL 20X8MM VAPO 5VDC WIRE |
4,623 |
|
规格书 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.3 CFM (0.036m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 450 mW | 12000 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.01 lb (4.54 g) |
|
KD1206PKB1.(2).GNFAN AXIAL 60X20MM 12VDC WIRE |
1,097 |
|
规格书 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 1.9 W | 4500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KD1206PKB2.(2).GNFAN AXIAL 60X20MM 12VDC WIRE |
2,617 |
|
规格书 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 1.1 W | 3700 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD2406PKB2.(2).GNFAN AXIAL 60X20MM 24VDC WIRE |
4,793 |
|
规格书 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 1.4 W | 3700 RPM | 2 Wire Leads | - | - | - | - |
|
MC30151V1-000U-A99FAN AXIAL 30X15MM 12VDC WIRE |
3,115 |
|
规格书 |
MagLev® MC | Box | Obsolete | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.0dB(A) | 650 mW | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.029 lb (13.15 g) |
|
|
EF60251B1-1000U-G9912VDC FAN 60X25MM ALARM |
4,197 |
|
规格书 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.5dB(A) | 0.99 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60251B2-1000U-G9912VDC FAN 60X25MM ALARM |
2,640 |
|
规格书 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 0.7 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60251B3-1000U-G9912VDC FAN 60X25MM ALARM |
3,610 |
|
规格书 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.9 CFM (0.389m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.0dB(A) | 0.46 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
DC0702512H2B-BT0FAN AXIAL 70X25MM 12VDC WIRE |
1,132 |
|
规格书 |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.12m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 1.56 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.111 lb (50.35 g) |
|
|
DC0501524L2B-2T2FAN 50X15MM 24VDC MOLEX 22-01-10 |
1,827 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 12.2 CFM (0.342m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.68 W | 4200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401005V2B-2T2FAN 40X10MM 5VDC MOLEX 22-01-102 |
4,742 |
|
规格书 |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 2 W | 10000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702524H2B-3T0FAN 70X25MM 24VDC TACH |
1,230 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.12 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0502024I2B-2T2FAN 50X20MM 24VDC MOLEX 22-01-10 |
2,923 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 2.4 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501524J2B-2T2FAN 50X15MM 24VDC MOLEX 22-01-10 |
1,924 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.44 W | 3600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0502024J2B-2T2FAN 50X20MM 24VDC MOLEX 22-01-10 |
3,854 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 12.7 CFM (0.356m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 3.12 W | 4800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802512J2B-2T2FAN 80X25MM 12VDC MOLEX 22-01-10 |
4,499 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 3.84 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0702548H2B-2T0FAN 70X25MM 48VDC |
1,934 |
|
规格书 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 6.24 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
