在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0801512L2B-3T3FAN 80X15MM 12VDC TACH MOLEX 22- |
2,192 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.2 W | 2700 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401524H2B-3T3FAN 40X15MM 24VDC TACH MOLEX 22- |
4,169 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 10.5 CFM (0.294m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 3.84 W | 8600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401524L2B-3T3FAN 40X15MM 24VDC TACH MOLEX 22- |
1,267 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.92 W | 6000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401524M2B-3T3FAN 40X15MM 24VDC TACH MOLEX 22- |
4,828 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.3 CFM (0.232m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.88 W | 7300 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602024J2B-3T3FAN 60X20MM 24VDC TACH MOLEX 22- |
3,340 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.68 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602024L2B-3T3FAN 60X20MM 24VDC TACH MOLEX 22- |
1,217 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 2.16 W | 3600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
17000170AFAN AXL 80X15.5MM CR0812HB-D9*GP |
3,064 |
|
规格书 |
- | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.50mm | 35.5 CFM (0.994m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.8dB(A) | 1.56 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
17000173AFAN AXL 80X15.5MM CR0812LB-D9*GP |
2,672 |
|
规格书 |
- | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.50mm | 22.6 CFM (0.633m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 22.1dB(A) | 840 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
17000175AFAN AXL 80X15.5MM CR0812MB-D9*GP |
3,169 |
|
规格书 |
- | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.50mm | 28.9 CFM (0.809m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 29.6dB(A) | 1.32 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
17000188AFAN AXL 80X15.5MM CR0812LB-D9*GP |
2,830 |
|
规格书 |
- | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.50mm | 22.6 CFM (0.633m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 22.1dB(A) | 840 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
17000189AFAN AXL 80X15.5MM CR0812HB-D9*GP |
3,641 |
|
规格书 |
- | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.50mm | 35.5 CFM (0.994m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.8dB(A) | 1.56 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

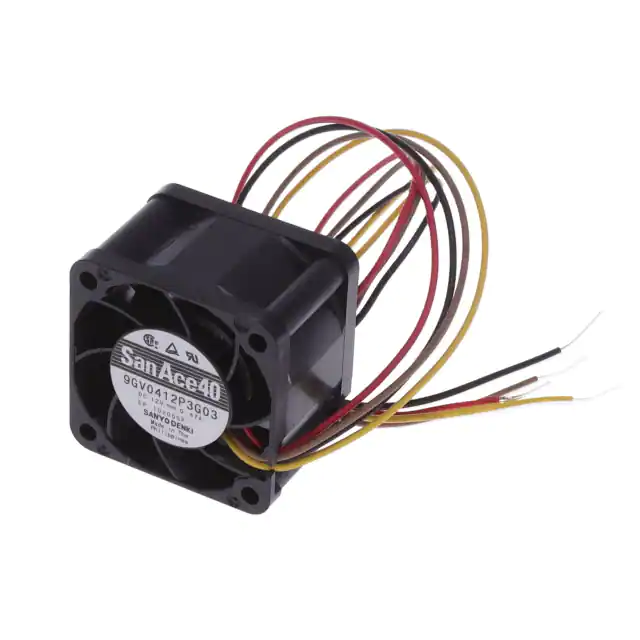

9GV0412P3G03FAN AXIAL 40X28MM 12VDC WIRE |
4,717 |
|
规格书 |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.1 CFM (0.591m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 5.64 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
KD0505PHB2.(2).GN.C1500FAN AXIAL 50X15MM BALL 5VDC WIRE |
3,660 |
|
规格书 |
KD | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 800 mW | 4700 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD0506PHB2.(2).GNFAN AXIAL 60X15MM BALL 5VDC WIRE |
3,152 |
|
规格书 |
KD | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1 W | 3800 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD0506PHB3.(2).GNFAN AXIAL 60X15MM BALL 5VDC WIRE |
3,781 |
|
规格书 |
KD | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 15.0 CFM (0.420m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 600 mW | 3000 RPM | 2 Wire Leads | - | - | - | - |
|
F6025H24B-FHR-CCFAN AXIAL 60X25MM 24VDC WIRE |
4,448 |
|
规格书 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F6025H24B-RSR-CCFAN AXIAL 60X25MM 24VDC WIRE |
1,896 |
|
规格书 |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 31.0dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025M24B-FHR-CCFAN AXIAL 60X25MM 24VDC WIRE |
3,137 |
|
规格书 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 28.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025X12B2-RHR-WSFAN AXIAL 60X25MM 12VDC WIRE |
4,999 |
|
规格书 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F6025X12B-RSR-CCFAN AXIAL 60X25MM 12VDC WIRE |
2,585 |
|
规格书 |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 41.0dB(A) | - | 5200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
