在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0412R701FAN AXIAL 40X15MM 12VDC WIRE |
4,387 |
|
规格书 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 8.0 CFM (0.224m³/min) | 0.449 in H2O (111.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 1.56 W | 9700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
B.jpg)
|
CFM-A225B-230-438-22FAN AXIAL 120X25.4MM 24VDC WIRE |
3,393 |
|
规格书 |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 104.6 CFM (2.93m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 46.6dB(A) | 7.2 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
KD2405PHB1.(2).GNFAN AXIAL 50X15MM 24VDC WIRE |
2,806 |
|
规格书 |
KD | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD2405PHB2.(2).GNFAN AXIAL 50X15MM 24VDC WIRE |
2,851 |
|
规格书 |
KD | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.3 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|

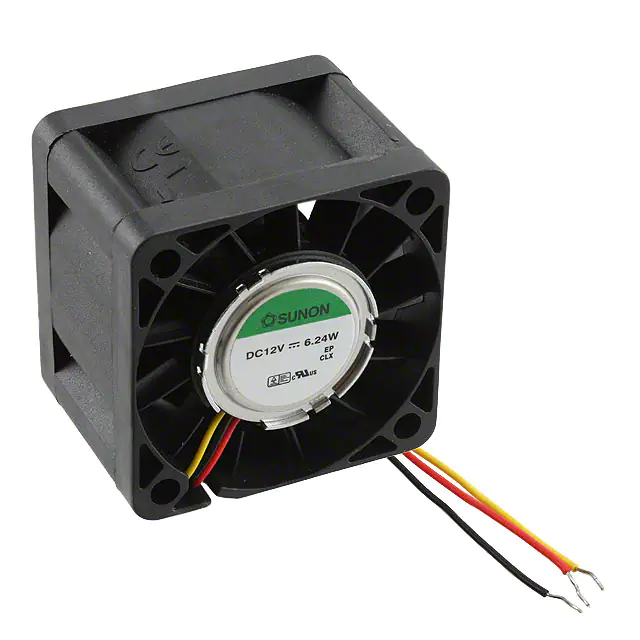

SG38281B1-000U-G99FAN AXIAL 38X28MM 12VDC WIRE |
4,836 |
|
规格书 |
SG | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.2dB | 6.24 W | 19000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.077 lb (34.93 g) |
|
|
DC0601005U2B-BT4FAN 60X10MM 5VDC PWM/TACH MOLEX |
2,627 |
|
规格书 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 10.50mm | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 1 W | 4900 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
PMD1208PKV1-A.GNFAN AXIAL 80X20MM 12VDC WIRE |
1,630 |
|
规格书 |
MagLev® PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 48.0dB(A) | 4.7 W | 4600 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1208PKV3-A.GNFAN AXIAL 80X20MM 12VDC WIRE |
3,270 |
|
规格书 |
MagLev® PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 45.0 CFM (1.26m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.0dB(A) | 3.1 W | 3900 RPM | 2 Wire Leads | - | - | - | - |
|
|
DC0251005M2B-BT0FAN 25X10MM 5VDC PWM/TACH |
2,459 |
|
规格书 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 300 mW | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0251005L2B-BT0FAN 25X10MM 5VDC PWM/TACH |
1,485 |
|
规格书 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.0dB(A) | 250 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922524U2B-2T2FAN 92X25MM 24VDC MOLEX 22-01-10 |
3,048 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 7.2 W | 3800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702548H2B-BT4FAN 70X25MM 48VDC PWM/TACH MOLEX |
1,788 |
|
规格书 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 6.24 W | 4000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0301005U2B-2T2FAN 30X10MM 5VDC MOLEX 22-01-102 |
2,797 |
|
规格书 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 850 mW | 11000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702548U2B-BT4FAN 70X25MM 48VDC PWM/TACH MOLEX |
3,618 |
|
规格书 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 12.96 W | 5500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
CFM-A225V-127-405-11FAN AXIAL 120X25MM 12VDC WIRE |
4,703 |
|
规格书 |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 40.5dB(A) | 3.46 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
|
CFM-A225V-131-445-11FAN AXIAL 120X25MM 12VDC WIRE |
3,659 |
|
规格书 |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 44.5dB(A) | 4.84 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
|
CBM-9330B-240-507DC BLOWER, 92.3 X 92.6 X 30 MM, |
3,188 |
|
规格书 |
CBM-93B | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 21.7 CFM (0.608m³/min) | 1.140 in H2O (284.0 Pa) | Ball | Blower | Auto Restart | 47.5dB(A) | 7.2 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9238TH12BFAN 12VDC 92X38MM |
3,965 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 112.7 CFM (3.16m³/min) | 0.677 in H2O (168.6 Pa) | Ball | Tubeaxial | Auto Restart | 56.5dB(A) | 10.68 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602548H2B-3T0FAN 60X25MM 48VDC TACH |
1,259 |
|
规格书 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 13.44 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548J2B-3T0FAN 60X25MM 48VDC TACH |
1,400 |
|
规格书 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 9.6 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
