在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0812F4D011FAN AXIAL 80X25MM 12VDC WIRE |
1,309 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 1.32 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812L4D011FAN AXIAL 80X25MM 12VDC WIRE |
1,410 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 16.0dB(A) | 600 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812M4D011FAN AXIAL 80X25MM 12VDC WIRE |
2,124 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 960 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812F4D01FAN AXIAL 80X25MM 12VDC WIRE |
1,393 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 1.32 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812L4D01FAN AXIAL 80X25MM 12VDC WIRE |
3,590 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 16.0dB(A) | 600 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812M4D01FAN AXIAL 80X25MM 12VDC WIRE |
4,774 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 960 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0824L4D01FAN AXIAL 80X25MM 24VDC WIRE |
4,099 |
|
规格书 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 16.0dB(A) | 960 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0824L4D011FAN AXIAL 80X25MM 24VDC WIRE |
1,174 |
|
规格书 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 16.0dB(A) | 960 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0824M4D01FAN AXIAL 80X25MM 24VDC WIRE |
4,572 |
|
规格书 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 1.44 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0824M4D011FAN AXIAL 80X25MM 24VDC WIRE |
2,338 |
|
规格书 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 1.44 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
FFB0812HHEFAN AXIAL 80X38MM 12VDC WIRE |
4,976 |
|
规格书 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 45.2 CFM (1.27m³/min) | 0.281 in H2O (70.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
CFM-6025BG-270-434-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,868 |
|
规格书 |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.4dB(A) | 6 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG-170-434-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,412 |
|
规格书 |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.4dB(A) | 5.4 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922524J2B-3T3FAN 92X25MM 24VDC TACH MOLEX 22- |
2,455 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 2.16 W | 2100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0351005W2B-3T3FAN 35X10MM 5VDC TACH MOLEX 22-0 |
2,039 |
|
规格书 |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 540 mW | 9000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
AFB0924H-R00FAN AXIAL 92X25.4MM 24VDC WIRE |
1,833 |
|
规格书 |
AFB | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.4 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
|
PSD1204PHB1-A(2).Z.GNFAN AXIAL 40X15MM 12VDC WIRE |
2,047 |
|
规格书 |
MagLev® PSD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 14.0 CFM (0.392m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 44.2dB(A) | 2.9 W | 12000 RPM | 2 Wire Leads | - | - | - | - |
|

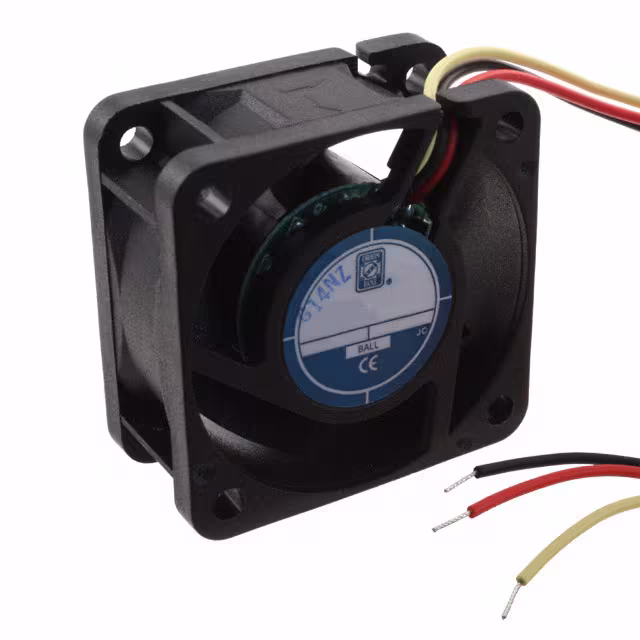

OD4020-12HB02AFAN AXIAL 40X20MM 12VDC WIRE |
3,738 |
|
规格书 |
OD4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.1dB(A) | 1.3 W | 8190 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV | - |
|
|
MS9225H24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
3,550 |
|
规格书 |
MS9225-S | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 73.6 CFM (2.06m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 49.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | - | 0.225 lb (102.06 g) |
|
|
MS9225H48B-FSRFAN AXIAL 92X25MM 48VDC WIRE |
1,535 |
|
规格书 |
MS9225-S | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 73.6 CFM (2.06m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 49.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | - | 0.225 lb (102.06 g) |
