在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09225VA-24P-AL-00FAN AXIAL 92X25MM 24VDC WIRE |
3,572 |
|
规格书 |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 85.8 CFM (2.40m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 48.0dB | 6.7 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24M-ET-00FAN AXIAL 92X25MM 24VDC WIRE |
2,753 |
|
规格书 |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB | 4.1 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24K-AT-00FAN AXIAL 92X25MM 24VDC WIRE |
2,048 |
|
规格书 |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.5dB | 2.6 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
AFB1212ME-R00FAN AXIAL 120X38MM 12VDC WIRE |
4,980 |
|
规格书 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 3.12 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
AFB1212ME-F00FAN AXIAL 120X38MM 12VDC WIRE |
1,758 |
|
规格书 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 3.12 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
PMD4806PTVX-A.U.GNFAN AXIAL 60X25MM 48VDC WIRE |
4,848 |
|
规格书 |
MagLev® PMD | Bulk | Obsolete | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.640 in H2O (159.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.0dB(A) | 5.5 W | 7600 RPM | 2 Wire Leads | - | - | - | - |
|
|
DC1202512V2B-3T3FAN 120X25MM 12VDC TACH MOLEX 22 |
1,970 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 7.8 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512U2B-3T3FAN 120X25MM 12VDC TACH MOLEX 22 |
2,306 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 114.7 CFM (3.21m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 7.44 W | 3700 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512L2B-3T3FAN 120X25MM 12VDC TACH MOLEX 22 |
4,619 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.6 W | 2500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512J2B-3T3FAN 120X25MM 12VDC TACH MOLEX 22 |
3,176 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 2100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512M2B-3T3FAN 120X25MM 12VDC TACH MOLEX 22 |
1,027 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 5.76 W | 2800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512H2B-3T3FAN 120X25MM 12VDC TACH MOLEX 22 |
2,606 |
|
规格书 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 103.9 CFM (2.91m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 6 W | 3400 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MR1225E24B1-FSRFAN AXIAL 120X25MM 24VDC WIRE |
4,947 |
|
规格书 |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 151.0 CFM (4.23m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.6dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
|
MR1225E24B2-FSRFAN AXIAL 120X25MM 24VDC WIRE |
3,921 |
|
规格书 |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 151.0 CFM (4.23m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 56.6dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
|
MR1225H24B2-FSRFAN AXIAL 120X25MM 24VDC WIRE |
3,765 |
|
规格书 |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 136.0 CFM (3.81m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 53.8dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
|
MR1225L24B1-FSRFAN AXIAL 120X25MM 24VDC WIRE |
2,060 |
|
规格书 |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 107.0 CFM (3.00m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.2dB(A) | - | 3500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
|
MR1225L24B2-FSRFAN AXIAL 120X25MM 24VDC WIRE |
2,005 |
|
规格书 |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 107.0 CFM (3.00m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 47.2dB(A) | - | 3500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
|
MR1225M24B1-FSRFAN AXIAL 120X25MM 24VDC WIRE |
2,846 |
|
规格书 |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 122.1 CFM (3.42m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.5dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
|
MR1225M24B2-FSRFAN AXIAL 120X25MM 24VDC WIRE |
3,215 |
|
规格书 |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 122.1 CFM (3.42m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 50.5dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|

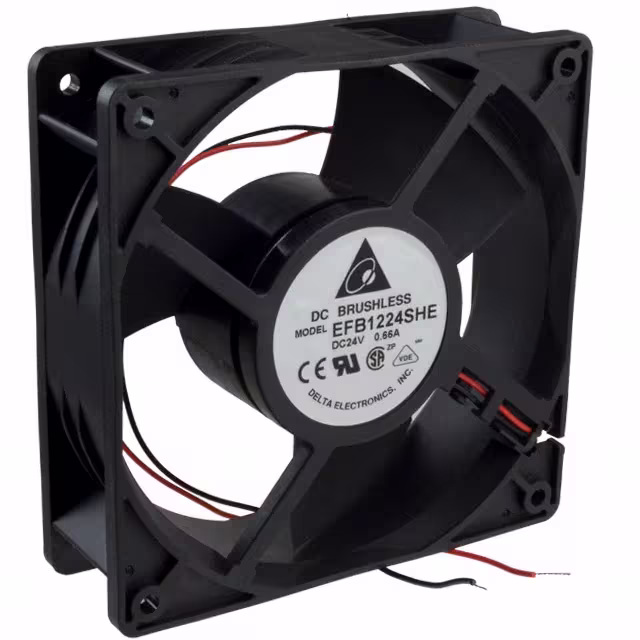

EFB1224SHEFAN AXIAL 120X38MM 24VDC WIRE |
2,540 |
|
规格书 |
EFB | Tray | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 141.9 CFM (3.97m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | - | 52.5dB(A) | 10.6 W | 3700 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.653 lb (296.2 g) |
