在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASFN94391FAN AXIAL 92X25MM 12VDC WIRE |
1,287 |
|
规格书 |
ASFN9 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.0 CFM (0.980m³/min) | 0.058 in H2O (14.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.0dB(A) | 1.44 W | 1700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN94392FAN AXIAL 92X25MM 24VDC WIRE |
4,550 |
|
规格书 |
ASFN9 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 35.0 CFM (0.980m³/min) | 0.058 in H2O (14.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.0dB(A) | 1.68 W | 1700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN96372FAN AXIAL 92X25MM 24VDC WIRE |
1,891 |
|
规格书 |
ASFN9 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 57.5 CFM (1.61m³/min) | 0.150 in H2O (37.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.5dB(A) | 5.28 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN96392FAN AXIAL 92X25MM 24VDC WIRE |
2,804 |
|
规格书 |
ASFN9 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 57.5 CFM (1.61m³/min) | 0.150 in H2O (37.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.5dB(A) | 5.28 W | 2750 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
9G0648S400260X25MM 48V,HIGH PERF.,LOW POWER |
3,348 |
|
规格书 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9CRA0412P4G03FAN AXIAL DUAL 40X48MM 12VDC |
3,328 |
|
规格书 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 27.2 CFM (0.762m³/min) | 1.850 in H2O (460.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 12 W | 14700 Front, 9800 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.176 lb (80.00 g) |
|
BFB1248HH-TP21FAN BLOWER 120X32MM 48VDC WIRE |
1,598 |
|
规格书 |
BFB | Box | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 35.3 CFM (0.988m³/min) | 0.984 in H2O (245.1 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 12 W | 2800 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|
|
9CRA0412K501FAN AXIAL DUAL 40X56MM 12VDC |
1,006 |
|
规格书 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 33.5 CFM (0.938m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | 65.0dB(A) | 21.6 W | 17000 Front, 13000 Rear | 3 Wire Leads per Fan | - | -4 ~ 140°F (-20 ~ 60°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9GV0848G102FAN AXIAL 80X38MM 48VDC WIRE |
3,237 |
|
规格书 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 65.0dB(A) | 40.32 W | 10200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|
|
16003354AFAN BLWR 80X32.4MM 12V WT12Z7-E2 |
4,168 |
|
规格书 |
Whiffet | Box | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 32.00mm | 20.0 CFM (0.560m³/min) | - | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 51.4dB(A) | 10.2 W | 5250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | - |
|
GFM0412SS-BL4FFAN AXIAL DUAL 40X56MM 12VDC |
2,129 |
|
规格书 |
GFM | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 27.1 CFM (0.759m³/min) | 2.230 in H2O (555.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 9.6 W | 17200 Front, 14000 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | cULus, TUV | 0.183 lb (83.01 g) |
|
MR1238H24B1+6-FSRFAN AXIAL 120X38MM 24VDC WIRE |
1,143 |
|
规格书 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 64.6dB(A) | - | 4500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
9GV0948H102FAN AXIAL 92X38MM 48VDC WIRE |
2,328 |
|
规格书 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 39.4 W | 8500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
9GV0948H1021FAN AXIAL 92X38MM 48VDC WIRE |
3,211 |
|
规格书 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 39.4 W | 8500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
ASFN82372FAN AXIAL 80X25MM 24VDC WIRE |
4,072 |
|
规格书 |
ASFN8 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 3.1 CFM (0.087m³/min) | 0.097 in H2O (24.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 27.0dB(A) | 1.68 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.176 lb (79.83 g) |
|

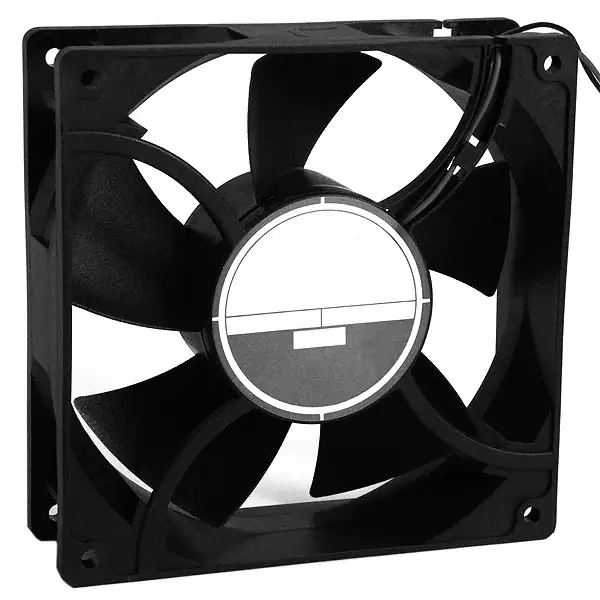

OD127-12HHBFAN AXIAL 127X38.5MM 12VDC WIRE |
1,729 |
|
规格书 |
OD127 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.50mm | 193.0 CFM (5.40m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 62.0dB | - | 4100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD127-12MBFAN AXIAL 127X38.5MM 12VDC WIRE |
3,429 |
|
规格书 |
OD127 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 53.0dB | - | 2950 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD127-24HHBFAN AXIAL 127X38.5MM 24VDC WIRE |
2,957 |
|
规格书 |
OD127 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 193.0 CFM (5.40m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 62.0dB | - | 4100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD127-24MBFAN AXIAL 127X38.5MM 24VDC WIRE |
3,498 |
|
规格书 |
OD127 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 53.0dB | - | 2950 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD127-48HBFAN AXIAL 127X38.5MM 48VDC WIRE |
3,622 |
|
规格书 |
OD127 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | - | 56.0dB | - | 3500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
