当前位置：首页 > 商品目录 > 滤波器 > 穿心电容器

穿心电容器

制造商	系列	封装/外壳	包装	产品状态	电容	容差	额定电压	电流	直流电阻 (DCR)（最大值）	工作温度	插入损耗	温度系数	额定值	安装类型	尺寸 / 尺寸	高度（最大值）	螺纹尺寸
Astrodyne TDI Digiwave EMI Filter Co EPCOS - TDK Electronics KEMET Knowles Syfer KYOCERA AVX Murata Electronics Schaffner EMC, Inc. Sumida America Components Inc. TDK Corporation TE Connectivity Corcom Filters Tusonix a Subsidiary of CTS Electronic Components Vishay Vishay Beyschlag/Draloric/BC Components	* - 0327 0357 056 2404 2425 2430 2432 2443 2450 2451 2461 2462 2463 2470 2482 2499 4300 4302 4304 4305 4306 4310 4400 4401 4402 4403 4404 4405 4600 4601 4702 AFC AFCC 100 AFCL 060 AFCL 100 AFPI 100 AFPI 160 AFPI 190 AKCL 100 B2 "C" circuit B3 "C" circuit B3 "L" circuit B4 "C" circuit B4 "L" circuit B7 "C" circuit B85111 B85121 B85321 DB DBF DBZ DFC DS DW EMI Filter EMIFIL®, NFM15 EMIFIL®, NFM18 EMIFIL®, NFM21 EMIFIL®, NFM3 EMIFIL®, NFM31 EMIFIL®, NFM41 FFA FFD FlexiCap™ FLLCC FN 751X FN 756X FN 761X HFC KGN L2F M3 "C" circuit M4 "C" circuit NFM R3 "C" circuit SBSG SBSM SFAAC SFAB SFAJ SFAK SFBC SFBD SFBL SFBM SFCD SFCM SFJE SFJN SFKK SFLM SFSRC SFSTC SFSUC SFSWG SFSWR SFTMC W2F W2H W3F W3F4 W3H XS "C" circuit YFF-AC YFF-AH YFF-HC YFF-P YFF-SC ZP "C" circuit ZR "C" circuit ZS "C" circuit	- 0402 (1005 Metric) 0402 (1005 Metric), 3 PC Pad 0402 (1005 Metric), 4 PC Pad 0504 (1210 Metric) 0603 (1608 Metric), 3 PC Pad 0603 (1608 Metric), 4 PC Pad 0612 (1632 Metric) 0805 (2012 Metric) 0805 (2012 Metric), 3 PC Pad 0805 (2012 Metric), 4 PC Pad 1205 (3212 Metric), 3 PC Pad 1206 (3216 Metric) 1206 (3216 Metric), 3 PC Pad 1206 (3216 Metric), 4 PC Pad 1806 (4516 Metric) 1806 (4516 Metric), 3 PC Pad 1812 (4532 Metric) 1812 (4532 Metric), 3 PC Pad 2220 (5750 Metric) 2220 (5750 Metric), 3 PC Pad Axial Axial - No Leads Axial - Threaded Terminals Axial, Bushing Axial, Bushing - 1 QC Lead Axial, Bushing - 2 Hooked Leads Axial, Bushing - 2 Notched Leads Axial, Bushing - 2 Solder Eyelets Axial, Bushing, 1 Turret Lead Axial, Discoidal - 1 Notched lead Axial, Discoidal - 1 Notched, 1 Missing Lead Axial, Eyelet Axial, Press Fit Axial, Right Angle Bend Axial, Shoulder Axial, Shoulder - No Leads Pill, Square Radial	Bag Box Bulk Tape & Reel (TR) Tray	Active Last Time Buy Obsolete	- 0 pF 0.015 µF 0.018 µF 0.02 µF 0.022 µF 0.025 µF 0.027 µF 0.033 µF 0.044 µF 0.047 µF 0.05 µF 0.068 µF 0.094 µF 0.1 µF 0.15 µF 0.2 µF 0.22 µF 0.33 µF 0.47 µF 0.5 µF 0.68 µF 1 µF 1.2 µF 1.4 µF 1.5 µF 10 pF 10 µF 100 pF 1000 pF 10000 pF 1200 pF 125 pF 14 µF 15 pF 15 µF 150 pF 1500 pF 1800 pF 2 µF 2.2 µF 200 pF 2000 pF 22 pF 22 µF 220 pF 2200 pF 25 pF 250 pF 2500 pF 27 µF 2700 pF 3 pF 3 µF 300 pF 3000 pF 33 pF 330 pF 3300 pF 4 µF 4.3 µF 4.7 µF 400 pF 4000 pF 44 pF 440 pF 47 pF 470 pF 4700 pF 5 pF 50 pF 500 pF 5000 pF 600 pF 6600 pF 68 pF 680 pF 6800 pF 7.5 µF 700 pF 800 pF 9.1 µF 940 pF 9400 pF	- -10%, +20% -20%, +50% -20%, +80% 0%, +100% ±10% ±20% ±3.5% ±35% ±5%	- 10000V (10kV) 1000V (1kV) 100V 10V 11000V (11kV) 12000V (12kV) 13000V (13kV) 130V 14000V (14kV) 16000V (16kV) 160V 16V 2.5V 20000V (20kV) 2000V (2kV) 200V 25000V (25kV) 250V 250VAC 25V 30000V (30kV) 3000V (3kV) 300V 350V 35V 40000V (40kV) 4000V (4kV) 440V 4V 500V 50V 6.3V 600V 60V 630V 650V 7000V (7kV) 70V 7500V (7.5kV) 750V 8000V (8kV) 80V	- 1 A 10 A 100 A 120 A 15 A 150 A 16 A 2 A 20 A 200 A 200 mA 25 A 250 A 3 A 30 A 300 A 300 mA 32 A 4 A 400 mA 450 mA 5 A 50 A 500 A 500 mA 6 A 60 A 600 mA 63 A 700 mA 75 A 800 A 87 A	- 0.01mOhm 0.08mOhm 0.14mOhm (Typ) 0.16mOhm (Typ) 0.18mOhm (Typ) 0.23mOhm (Typ) 0.25mOhm (Typ) 0.3mOhm (Typ) 0.43mOhm (Typ) 0.52mOhm (Typ) 0.53mOhm (Typ) 0.58mOhm (Typ) 0.5mOhm (Typ) 0.62mOhm (Typ) 0.63mOhm (Typ) 0.8mOhm (Typ) 0.92mOhm (Typ) 1.2mOhm 1.5mOhm 10mOhm 12mOhm 150mOhm 15mOhm 200mOhm 20mOhm 2mOhm 300mOhm 30mOhm 350mOhm 3mOhm 40mOhm 45mOhm 4mOhm 500mOhm 50mOhm 5mOhm 600mOhm 60mOhm 6mOhm 700mOhm 80mOhm 8mOhm 9mOhm	- -25°C ~ 85°C -30°C ~ 120°C -30°C ~ 85°C -40°C ~ 100°C -40°C ~ 60°C -40°C ~ 85°C -55°C ~ 100°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 85°C	- 100dB @ 100MHz 10dB @ 100MHz 10dB @ 1GHz 11dB @ 100MHz 12dB @ 100MHz 12dB @ 1GHz 13dB @ 100MHz 15dB @ 100MHz 16dB @ 100MHz 16dB @ 1GHz 18dB @ 100MHz 19dB @ 100MHz 1dB @ 100MHz 20dB @ 100MHz 22dB @ 100MHz 23dB @ 100MHz 25dB @ 100MHz 25dB @ 100MHz 26dB @ 100MHz 27dB @ 100MHz 29dB @ 100MHz 2dB @ 100MHz 30dB @ 1.5GHz ~ 6GHz 30dB @ 100MHz 30dB @ 100MHz ~ 4GHz 30dB @ 10MHz ~ 2GHz 30dB @ 10MHz ~ 3GHz 30dB @ 10MHz ~ 4GHz 30dB @ 1GHz ~ 5GHz 30dB @ 200MHz ~ 2GHz 30dB @ 200MHz ~ 3GHz 30dB @ 200MHz ~ 4GHz 30dB @ 20MHz ~ 2GHz 30dB @ 20MHz ~ 3GHz 30dB @ 20MHz ~ 4GHz 30dB @ 230kHz ~ 3GHz 30dB @ 2GHz ~ 5GHz 30dB @ 2GHz ~ 6GHz 30dB @ 2MHz ~ 2.5GHz 30dB @ 2MHz ~ 4GHz 30dB @ 300kHz ~ 3GHz 30dB @ 3GHz ~ 5GHz 30dB @ 400kHz ~ 3GHz 30dB @ 400MHz ~ 5GHz 30dB @ 400MHz ~ 6GHz 30dB @ 40MHz ~ 2GHz 30dB @ 40MHz ~ 3GHz 30dB @ 4GHz ~ 6GHz 30dB @ 50kHz ~ 3GHz 30dB @ 50MHz ~ 4GHz 30dB @ 5MHz ~ 2GHz 30dB @ 5MHz ~ 4GHz 30dB @ 600MHz ~ 4GHz 30dB @ 700MHz ~ 5GHz 30dB @ 70MHz ~ 2GHz 30dB @ 800MHz ~ 6GHz 30dB @ 90MHz ~ 3GHz 31dB @ 100MHz 33dB @ 100MHz 34dB @ 100MHz 35dB @ 100MHz 35dB @ 1GHz 36dB @ 100MHz 38dB @ 100MHz 39dB @ 100MHz 3dB @ 100MHz 40dB @ 100MHz 40dB @ 110kHz ~ 1GHz 40dB @ 1MHz ~ 2.6GHz 40dB @ 200kHz ~ 1GHz 40dB @ 200kHz ~ 2GHz 40dB @ 2MHz ~ 1GHz 40dB @ 2MHz ~ 2GHz 40dB @ 300kHz ~ 1GHz 40dB @ 3MHz ~ 1GHz 40dB @ 3MHz ~ 600MHz 40dB @ 400kHz ~ 1GHz 40dB @ 40kHz ~ 1GHz 40dB @ 40MHz ~ 1.3GHz 40dB @ 40MHz ~ 2GHz 40dB @ 4MHz ~ 1GHz 40dB @ 4MHz ~ 2GHz 40dB @ 60MHz ~ 2GHz 40dB @ 700kHz ~ 1GHz 40dB @ 70kHz ~ 1GHz 40dB @ 7MHz ~ 1GHz 40dB @ 7MHz ~ 2GHz 40dB @ 800kHz ~ 1GHz 40dB @ 800kHz ~ 2GHz 40dB @ 80kHz ~ 1GHz 40dB @ 90kHz ~ 1.8GHz 40dB @ 90MHz ~ 1.8GHz 40dB @ 9MHz ~ 1GHz 41dB @ 100MHz 42dB @ 100MHz 43dB @ 100MHz 44dB @ 100MHz 45dB @ 100MHz 46dB @ 100MHz 47dB @ 100MHz 48dB @ 100MHz 4dB @ 100MHz 4dB @ 1GHz 50dB @ 100MHz 51dB @ 100MHz 53dB @ 100MHz 54dB @ 100MHz 55dB @ 100MHz 56dB @ 100MHz 57dB @ 100MHz 5dB @ 100MHz 5dB @ 1GHz 60dB @ 100MHz 60dB @ 1GHz 62dB @ 100MHz 63dB @ 100MHz 64dB @ 100MHz 66dB @ 100MHz 68dB @ 100MHz 70dB @ 1GHz 71dB @ 100MHz 72dB @ 100MHz 73dB @ 100MHz 7dB @ 100MHz 80dB @ 100MHz 83dB @ 100MHz 85dB @ 100MHz 90dB @ 100MHz	- C0G, NP0 E S2L U2M X5F X5R X5S X5U X5W X6S X7R X7S X7U X7V X7W Y5U ±2.5ppm/°C	- AEC-Q200 Y2 Y4	- Bolt Bolt Mount Chassis Mount Surface Mount Through Hole	- 0.039" L x 0.020" W (1.00mm x 0.50mm) 0.039" L x 0.022" W (1.00mm x 0.55mm) 0.047" L x 0.035" W (1.20mm x 0.90mm) 0.063" L x 0.031" W (1.60mm x 0.80mm) 0.063" L x 0.032" W (1.60mm x 0.80mm) 0.063" L x 0.126" W (1.60mm x 3.20mm) 0.075" Dia x 0.155" L (1.90mm x 3.93mm) 0.079" L x 0.049" W (2.00mm x 1.25mm) 0.079" L x 0.049" W (2.01mm x 1.25mm) 0.079" L x 0.049" W x 0.045" H (2.00mm x 1.25mm x 1.15mm) 0.094" Dia x 0.098" L (2.39mm x 2.49mm) 0.094" Dia x 0.155" L (2.39mm x 3.94mm) 0.099" Dia x 0.125" L (2.51mm x 3.18mm) 0.099" Dia x 0.155" L (2.51mm x 3.94mm) 0.105" Dia x 0.200" L (2.67mm x 5.08mm) 0.124" Dia x 0.165" L (3.15mm x 4.19mm) 0.125" Dia x 0.100" L (3.18mm x 2.54mm) 0.125" Dia x 0.215" L (3.17mm x 5.45mm) 0.125" Dia x 0.215" L (3.18mm x 5.47mm) 0.125" Dia x 0.240" L (3.17mm x 6.09mm) 0.125" Dia x 0.244" L (3.17mm x 6.20mm) 0.126" Dia x 0.118" L (3.20mm x 3.00mm) 0.126" L x 0.049" W (3.20mm x 1.25mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.128" L x 0.063" W (3.25mm x 1.60mm) 0.140" Dia x 0.110" L (3.55mm x 2.79mm) 0.146" Dia x 0.110" L (3.71mm x 2.79mm) 0.156" Dia x 0.110" L (3.96mm x 2.79mm) 0.156" Dia x 0.250" L (3.96mm x 6.35mm) 0.156" Dia x 0.333" L (3.96mm x 8.45mm) 0.156" Dia x 0.340" L (3.96mm x 8.64mm) 0.156" Dia x 0.340" L (3.97mm x 8.64mm) 0.156" Dia x 0.350" L (3.96mm x 8.90mm) 0.156" Dia x 0.370" L (3.96mm x 9.39mm) 0.156" Dia x 0.370" L (3.96mm x 9.40mm) 0.157" Dia x 0.110" L (4.00mm x 2.80mm) 0.157" Dia x 0.276" L (3.98mm x 7.00mm) 0.157" Dia x 0.276" L (4.00mm x 7.00mm) 0.157" Dia x 0.362" L (4.00mm x 9.20mm) 0.165" Dia x 0.165" L (4.19mm x 4.19mm) 0.173" Dia x 0.417" L (4.40mm x 10.60mm) 0.177" L x 0.063" W (4.50mm x 1.60mm) 0.177" L x 0.063" W x 0.051" H (4.50mm x 1.60mm x 1.30mm) 0.179" L x 0.126" W (4.55mm x 3.20mm) 0.179" L x 0.126" W x 0.104" H (4.55mm x 3.20mm x 2.65mm) 0.180" Dia x 0.197" L (4.57mm x 5.00mm) 0.180" Dia x 0.359" L (4.57mm x 9.12mm) 0.187" Dia x 0.130" L (4.75mm x 3.31mm) 0.187" Dia x 0.215" L (4.75mm x 5.45mm) 0.187" Dia x 0.359" L (4.75mm x 9.12mm) 0.187" Dia x 0.362" L (4.75mm x 9.20mm) 0.187" Dia x 0.389" L (4.75mm x 9.88mm) 0.187" Dia x 0.470" L (4.75mm x 11.94mm) 0.220" Dia x 0.265" L (5.59mm x 6.73mm) 0.224" L x 0.197" W (5.70mm x 5.00mm) 0.224" L x 0.197" W x 0.133" H (5.70mm x 5.00mm x 3.38mm) 0.227" Dia x 0.375" L (5.77mm x 9.53mm) 0.227" Dia x 0.380" L (5.77mm x 9.65mm) 0.236" Dia x 0.502" L (6.00mm x 12.75mm) 0.236" Dia x 0.610" L (6.00mm x 15.50mm) 0.250" Dia x 0.220" L (6.35mm x 5.60mm) 0.250" Dia x 0.453" L (6.35mm x 11.50mm) 0.250" Dia x 0.467" L (6.35mm x 11.85mm) 0.250" Dia x 0.468" L (6.35mm x 11.89mm) 0.250" Dia x 0.469" L (6.35mm x 11.91mm) 0.250" Dia x 0.472" L (6.35mm x 12.00mm) 0.256" Dia x 0.118" L (6.50mm x 3.00mm) 0.281" Dia x 0.186" L (7.14mm x 4.72mm) 0.290" Dia x 0.250" L (7.37mm x 6.35mm) 0.290" Dia x 0.330" L (7.37mm x 8.38mm) 0.312" Dia x 0.348" L (7.92mm x 8.84mm) 0.312" Dia x 0.668" L (7.92mm x 16.97mm) 0.312" Dia x 0.750" L (7.92mm x 19.05mm) 0.312" Dia x 0.886" L (7.92mm x 22.51mm) 0.313" Dia x 0.625" L (7.95mm x 15.87mm) 0.315" L x 0.090" W (8.00mm x 2.29mm) 0.375" Dia x 0.875" L (9.52mm x 22.22mm) 0.385" Dia x 0.362" L (9.78mm x 9.20mm) 0.385" Dia x 0.487" L (9.78mm x 12.37mm) 0.385" Dia x 0.487" L (9.78mm x 12.38mm) 0.385" Dia x 0.501" L (9.78mm x 12.37mm) 0.386" Dia x 0.370" L (9.80mm x 9.40mm) 0.390" Dia x 0.748" L (9.90mm x 19.00mm) 0.394" Dia x 0.240" L (10.00mm x 6.10mm) 0.394" Dia x 0.325" L (10.00mm x 8.25mm) 0.394" Dia x 0.335" L (10.00mm x 8.50mm) 0.394" Dia x 0.472" L (10.00mm x 12.00mm) 0.394" Dia x 0.551" L (10.00mm x 14.00mm) 0.394" Dia x 0.740" L (10.00mm x 18.80mm) 0.394" Dia x 0.752" L (10.00mm x 19.10mm) 0.394" Dia x 1.063" L (10.00mm x 27.00mm) 0.500" Dia x 0.874" L (12.70mm x 22.20mm) 0.550" Dia x 2.283" L (13.97mm x 58.00mm) 0.591" Dia x 0.709" L (15.00mm x 18.00mm) 0.591" Dia x 2.244" L (15.00mm x 57.00mm) 0.630" Dia x 1.181" L (16.00mm x 30.00mm) 0.630" Dia x 1.339" L (16.00mm x 34.00mm) 0.630" Dia x 1.496" L (16.00mm x 38.00mm) 0.630" Dia x 1.772" L (16.00mm x 45.00mm) 0.630" Dia x 2.362" L (16.00mm x 60.00mm) 0.663" Dia x 2.244" L (16.85mm x 57.00mm) 0.748" Dia x 1.575" L (19.00mm x 40.00mm) 0.748" Dia x 2.953" L (19.00mm x 75.00mm) 0.787" Dia x 0.709" L (20.00mm x 18.00mm) 0.787" Dia x 1.181" L (20.00mm x 30.00mm) 0.787" Dia x 1.654" L (20.00mm x 42.00mm) 0.787" Dia x 2.362" L (20.00mm x 60.00mm) 0.787" Dia x 2.402" L (20.00mm x 61.00mm) 0.787" Dia x 2.953" L (20.00mm x 75.00mm) 0.787" Dia x 3.701" L (20.00mm x 94.00mm) 0.787" Dia x 3.898" L (20.00mm x 99.00mm) 0.864" Dia x 2.480" L (21.95mm x 63.00mm) 0.864" Dia x 2.953" L (21.95mm x 75.00mm) 0.945" Dia x 1.772" L (24.00mm x 45.00mm) 0.984" Dia x 1.181" L (25.00mm x 30.00mm) 0.984" Dia x 2.717" L (25.00mm x 69.00mm) 0.984" Dia x 3.780" L (25.00mm x 96.00mm) 0.984" Dia x 3.976" L (25.00mm x 101.00mm) 0.984" Dia x 5.827" L (25.00mm x 148.00mm) 1.000" Dia x 1.811" L (25.40mm x 46.00mm) 1.061" Dia x 3.031" L (26.95mm x 77.00mm) 1.063" Dia x 1.929" L (27.00mm x 49.00mm) 1.181" Dia x 1.772" L (30.00mm x 45.00mm) 1.181" Dia x 2.165" L (30.00mm x 55.00mm) 1.181" Dia x 3.189" L (30.00mm x 81.00mm) 1.260" Dia x 3.228" L (32.00mm x 82.00mm) 1.260" Dia x 3.898" L (32.00mm x 99.00mm) 1.260" Dia x 4.449" L (32.00mm x 113.00mm) 1.260" Dia x 5.118" L (32.00mm x 130.00mm) 1.260" L x 0.787" W (32.00mm x 20.00mm) 1.339" Dia x 1.570" L (34.00mm x 39.88mm) 1.339" Dia x 2.360" L (34.00mm x 59.94mm) 1.378" Dia x 5.354" L (35.00mm x 136.00mm) 1.496" Dia x 1.417" L (38.00mm x 36.00mm) 1.496" Dia x 5.236" L (38.00mm x 133.00mm) 1.496" Dia x 5.787" L (38.00mm x 147.00mm) 1.770" Dia x 3.465" L (44.96mm x 88.00mm) 1.770" Dia x 3.937" L (44.96mm x 100.00mm) 1.770" Dia x 4.331" L (44.96mm x 110.00mm) 1.772" Dia x 6.142" L (45.00mm x 156.00mm) 2.126" Dia x 5.669" L (54.00mm x 144.00mm) 2.126" Dia x 6.496" L (54.00mm x 165.00mm) 2.126" Dia x 7.441" L (54.00mm x 189.00mm) 2.165" Dia x 1.181" L (55.00mm x 30.00mm) 2.165" Dia x 1.220" L (55.00mm x 31.00mm) 2.165" Dia x 1.969" L (55.00mm x 50.00mm) 2.165" Dia x 2.362" L (55.00mm x 60.00mm) 2.165" Dia x 3.150" L (55.00mm x 80.00mm) 2.165" Dia x 3.937" L (55.00mm x 100.00mm) 2.165" Dia x 4.528" L (55.00mm x 115.00mm) 2.362" Dia x 7.323" L (60.00mm x 186.00mm) 2.560" Dia x 4.724" L (65.02mm x 120.00mm) 2.560" Dia x 5.910" L (65.02mm x 150.00mm) 2.560" Dia x 6.102" L (65.02mm x 155.00mm) 2.650" Dia x 5.910" L (67.31mm x 150.00mm) 2.950" Dia x 4.331" L (74.93mm x 110.00mm) 3.230" Dia x 5.315" L (82.04mm x 135.00mm) 3.350" Dia x 7.087" L (85.09mm x 180.00mm) 3.780" Dia x 6.535" L (96.01mm x 166.00mm) 3.780" Dia x 7.087" L (96.01mm x 180.00mm)	- 0.014" (0.35mm) 0.020" (0.50mm) 0.026" (0.65mm) 0.028" (0.70mm) 0.032" (0.80mm) 0.035" (0.90mm) 0.037" (0.95mm) 0.039" (1.00mm) 0.043" (1.10mm) 0.045" (1.14mm) 0.045" (1.15mm) 0.047" (1.20mm) 0.048" (1.22mm) 0.050" (1.27mm) 0.051" (1.30mm) 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.075" (1.90mm) 0.095" (2.42mm) 0.104" (2.64mm) 0.104" (2.65mm) 0.133" (3.38mm) 0.811" (20.60mm) 0.890" (22.60mm)	- 1/4"-28 1/4-28 12-28 12-32 2-56 3/8 4-40 5/16 5/16"-18 5/16"-24 6-32 8-32 8-36 M10 M10x0.75 M10x1 M12 M12x0.75 M12x1 M12x2 M16 M16x1 M16x2 M20 M20x1 M24x1 M24x2 M25 M27x1.5 M3 M3.5x0.5 M3.5x0.6 M32x1.5 M3x0.5 M4 M4x0.7 M5x0.8 M6 M6x0.75 M8

全部重置

应用所有

结果:

型号	库存	价格	数量	规格书	系列	封装/外壳	包装	产品状态	电容	容差	额定电压	电流	直流电阻 (DCR)（最大值）	工作温度	插入损耗	温度系数	额定值	安装类型	尺寸 / 尺寸	高度（最大值）	螺纹尺寸
4310-012 DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components	4,016	-	立即询价	规格书	4310	Axial, Press Fit	Bulk	Active	100 pF	0%, +100%	200V	1 A	-	-55°C ~ 125°C	3dB @ 100MHz	-	-	Chassis Mount	0.094" Dia x 0.098" L (2.39mm x 2.49mm)	-	-
4401-000 DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components	2,616	-	立即询价	规格书	4401	Axial, Bushing	Bulk	Active	100 pF	-	200V	10 A	-	-55°C ~ 125°C	3dB @ 100MHz	-	-	Chassis Mount	0.187" Dia x 0.130" L (4.75mm x 3.31mm)	-	-
4311-006 DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components	4,030	-	立即询价	规格书	-	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4311-005 DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components	3,302	-	立即询价	规格书	-	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4311-008 DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components	3,423	-	立即询价	规格书	-	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-

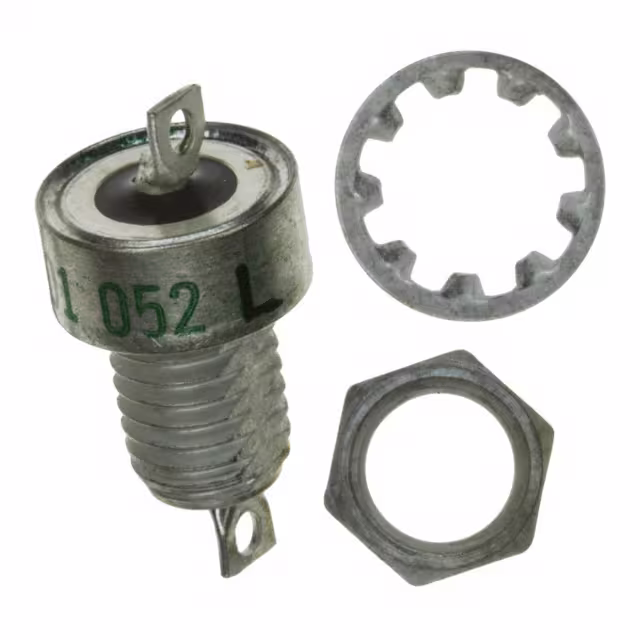

4601-052LF CAP FEEDTHRU 70V AXIAL Tusonix a Subsidiary of CTS Electronic Components	2,207	-	立即询价	规格书	4601	Axial, Bushing - 2 Solder Eyelets	Tray	Active	-	-	70V	15 A	-	-	70dB @ 1GHz	X7W	-	-	0.385" Dia x 0.487" L (9.78mm x 12.37mm)	-	1/4"-28
4601-052 CAP FEEDTHRU 1.4UF 70V AXIAL Tusonix a Subsidiary of CTS Electronic Components	3,766	-	立即询价	规格书	4601	Axial, Bushing - 2 Solder Eyelets	Bulk	Active	1.4 µF	-	70V	15 A	-	-	70dB @ 1GHz	X7W	-	-	0.385" Dia x 0.487" L (9.78mm x 12.37mm)	-	1/4"-28

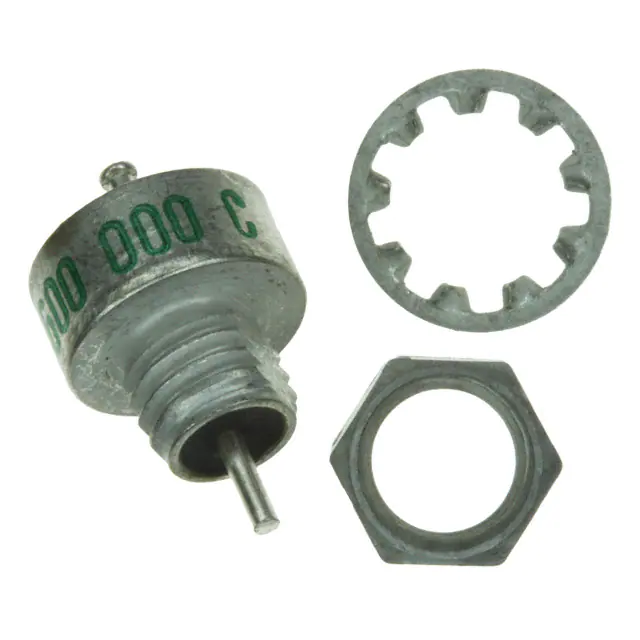

4600-000LF FILTER EMI 1.4 UF C TYPE Tusonix a Subsidiary of CTS Electronic Components	3,211	-	立即询价	规格书	-	Axial, Bushing, 1 Turret Lead	Tray	Active	1.4 µF	-	-	15 A	-	-55°C ~ 125°C	-	-	-	-	0.385" Dia x 0.362" L (9.78mm x 9.20mm)	-	1/4"-28
4600-009LF CAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components	3,758	-	立即询价	规格书	4600	Axial, Bushing, 1 Turret Lead	Tray	Active	-	-	200V	15 A	-	-55°C ~ 125°C	60dB @ 1GHz	X7R	-	-	0.385" Dia x 0.362" L (9.78mm x 9.20mm)	-	1/4"-28

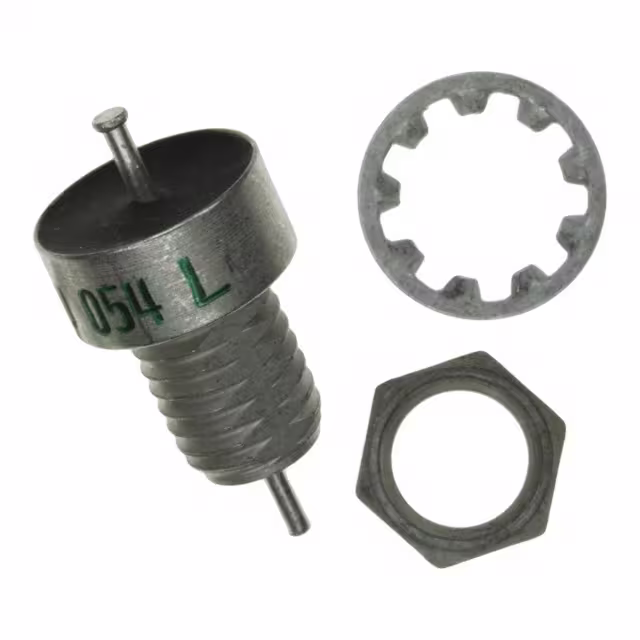

4600-054LF CAP FEEDTHRU 1.4UF 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components	4,159	-	立即询价	规格书	4600	Axial, Bushing, 1 Turret Lead	Tray	Active	1.4 µF	-	50V	15 A	-	-55°C ~ 125°C	70dB @ 1GHz	X7R	-	Chassis Mount	0.385" Dia x 0.487" L (9.78mm x 12.38mm)	-	1/4"-28
0327-042-X5U0-102M CAP FEEDTHRU 1000PF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components	4,519	-	立即询价	规格书	0327	Axial, Bushing - 2 Hooked Leads	Bulk	Active	1000 pF	±20%	500V	-	-	-55°C ~ 85°C	-	X5U	-	Chassis Mount	0.312" Dia x 0.750" L (7.92mm x 19.05mm)	-	1/4"-28
0327-042-X5U0-152M CAP FEEDTHRU 1500PF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components	1,120	-	立即询价	规格书	0327	Axial, Bushing - 2 Hooked Leads	Bulk	Active	1500 pF	±20%	500V	20 A	-	-55°C ~ 85°C	-	X5U	-	Chassis Mount	0.312" Dia x 0.750" L (7.92mm x 19.05mm)	-	1/4"-28
0327-062-X5R0-330K CAP FEEDTHRU 33PF 10% 500V Tusonix a Subsidiary of CTS Electronic Components	3,043	-	立即询价	规格书	0327	-	Bulk	Active	33 pF	±10%	500V	20 A	-	-55°C ~ 85°C	-	X5R	-	-	-	-	-
2432-012-X5R0-102M CAP FEEDTHRU 1000PF 2KV AXIAL Tusonix a Subsidiary of CTS Electronic Components	2,855	-	立即询价	规格书	2432	Axial, Bushing	Bulk	Active	1000 pF	±20%	2000V (2kV)	20 A	-	-55°C ~ 85°C	-	X5R	-	-	0.375" Dia x 0.875" L (9.52mm x 22.22mm)	-	5/16"-24
2404-613-X7R0-102M TUBULAR FEED-THRU CAPACITOR Tusonix a Subsidiary of CTS Electronic Components	4,147	-	立即询价	规格书	2404	Axial, Eyelet	Bulk	Active	1000 pF	±20%	500V	-	-	-55°C ~ 85°C	-	X7R	-	Through Hole	0.227" Dia x 0.375" L (5.77mm x 9.53mm)	-	-
4600-053 CAP FEEDTHRU 1.4UF 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components	3,171	-	立即询价	规格书	4600	Axial, Bushing, 1 Turret Lead	Bulk	Active	1.4 µF	-	50V	15 A	-	-55°C ~ 125°C	70dB @ 1GHz	X7R	-	Chassis Mount	0.385" Dia x 0.362" L (9.78mm x 9.20mm)	-	1/4"-28
4601-003 CAP FEEDTHRU 1.4UF 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components	2,412	-	立即询价	规格书	4601	Axial, Bushing - 2 Solder Eyelets	Bulk	Active	1.4 µF	-	50V	15 A	-	-	70dB @ 1GHz	X7R	-	-	0.385" Dia x 0.362" L (9.78mm x 9.20mm)	-	1/4"-28
4601-003LF CAP FEEDTHRU 1.4UF 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components	1,549	-	立即询价	规格书	4601	Axial, Bushing - 2 Solder Eyelets	Tray	Active	1.4 µF	-	50V	15 A	-	-	70dB @ 1GHz	X7R	-	-	0.385" Dia x 0.362" L (9.78mm x 9.20mm)	-	1/4"-28
AFCL060247DJT2T FILTER FILM FEED THROUGH AXL KEMET	3,511	-	立即询价	规格书	AFCL 060	Axial, Bushing - 2 Solder Eyelets	Bulk	Last Time Buy	0.047 µF	-	100V	10 A	6mOhm	-55°C ~ 125°C	51dB @ 100MHz	-	-	Chassis Mount	0.394" Dia x 0.240" L (10.00mm x 6.10mm)	-	-
AFCL060227DJT1T FILTER FILM FEED THROUGH AXL KEMET	3,908	-	立即询价	规格书	AFCL 060	Axial, Bushing - 2 Solder Eyelets	Tray	Last Time Buy	0.027 µF	-	100V	10 A	6mOhm	-55°C ~ 125°C	47dB @ 100MHz	-	-	Chassis Mount	0.394" Dia x 0.240" L (10.00mm x 6.10mm)	-	-
