在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9415TFIXED IND 56UH 1.15A 208MOHM SMD iNRCORE, LLC |
3,957 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 1.15 A | 1.15A | Shielded | 208mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9410TFIXED IND 12UH 2.4A 50 MOHM SMD iNRCORE, LLC |
4,459 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 2.4 A | 2.4A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9416TFIXED IND 68UH 1.05A 279MOHM SMD iNRCORE, LLC |
1,723 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.05 A | 1.05A | Shielded | 279mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9417TFIXED IND 82UH 940MA 317MOHM SMD iNRCORE, LLC |
2,300 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 940 mA | 940mA | Shielded | 317mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9418TFIXED IND 100UH 880MA 358MOHM SM iNRCORE, LLC |
2,147 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 880 mA | 880mA | Shielded | 358mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9419TFIXED IND 120UH 800MA 478MOHM SM iNRCORE, LLC |
1,484 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 800 mA | 800mA | Shielded | 478mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9420TFIXED IND 150UH 700MA 545MOHM SM iNRCORE, LLC |
1,299 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 700 mA | 700mA | Shielded | 545mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9421TFIXED IND 220UH 580MA 837MOHM SM iNRCORE, LLC |
3,165 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 580 mA | 580mA | Shielded | 837mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|

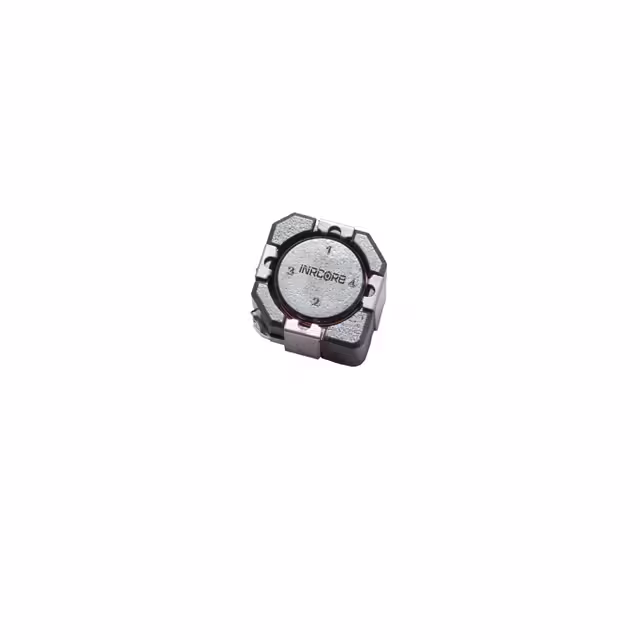

PL9422TFIXED IND 330UH 450MA 1.199 OHM iNRCORE, LLC |
4,742 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 450 mA | 450mA | Shielded | 1.199Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9412TPOWER DRUM CORES iNRCORE, LLC |
2,078 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 2.25 A | 1.85A | Shielded | 86.1mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
