在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L02011R0AHSTR\500FIXED IND 1NH 400MA 200 MOHM SMD KYOCERA AVX |
5,402 |
|
规格书 |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1 nH | ±0.05nH | 400 mA | - | Unshielded | 200mOhm Max | 7 @ 450MHz | 26GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|

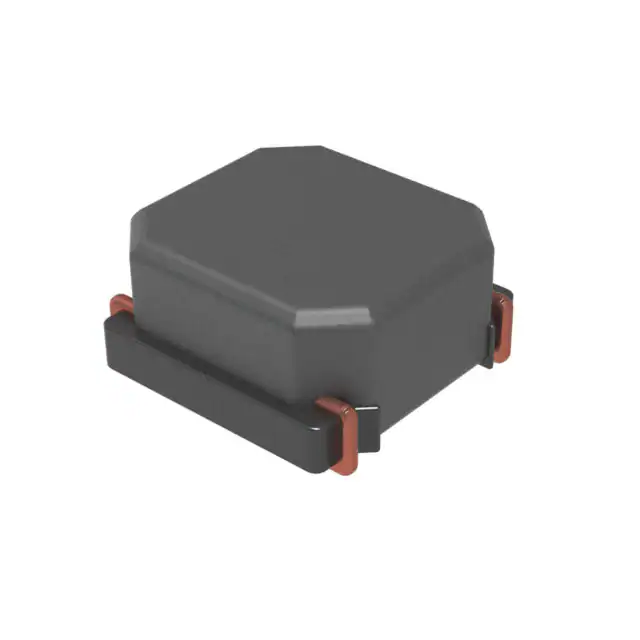

LMLP07A7M6R8DTASFIXED IND 6.8UH 4.5A 60MOHM SMD KYOCERA AVX |
8,064 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 4.5 A | 6.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
LMLP07A7M2R2DTASFIXED IND 2.2UH 8A 20 MOHM SMD KYOCERA AVX |
4,070 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 8 A | 12A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
LMLP07A7M100DTASFIXED IND 10UH 4A 68 MOHM SMD KYOCERA AVX |
2,098 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 4 A | 5.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
LMLP07A7M8R2DTASFIXED IND 8.2UH 4.5A 60MOHM SMD KYOCERA AVX |
1,255 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 4.5 A | 6A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
L04022R2BHNTRFIXED IND 2.2NH 400MA 200MOHM SM KYOCERA AVX |
13,186 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.2 nH | ±0.1nH | 400 mA | - | Unshielded | 200mOhm Max | 15 @ 450MHz | 15GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

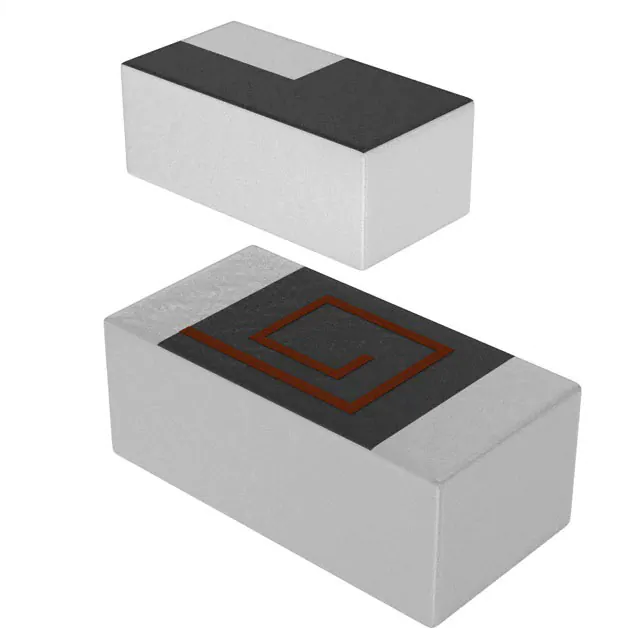

L06031R5CGSTRFIXED IND 1.5NH 1A 60 MOHM SMD KYOCERA AVX |
5,713 |
|
规格书 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.5 nH | ±0.2nH | 1 A | - | Unshielded | 60mOhm Max | 26 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06031R2CGSTRFIXED IND 1.2NH 1A 40 MOHM SMD KYOCERA AVX |
3,650 |
|
规格书 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.2 nH | ±0.2nH | 1 A | - | Unshielded | 40mOhm Max | 49 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06033R9CGSTRFIXED IND 3.9NH 500MA 120MOHM SM KYOCERA AVX |
18,016 |
|
规格书 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 3.9 nH | ±0.2nH | 500 mA | - | Unshielded | 120mOhm Max | 25 @ 450MHz | 6.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06036R8CGSTRFIXED IND 6.8NH 300MA 300MOHM SM KYOCERA AVX |
12,215 |
|
规格书 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 6.8 nH | ±0.2nH | 300 mA | - | Unshielded | 300mOhm Max | 23 @ 450MHz | 4.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
