在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

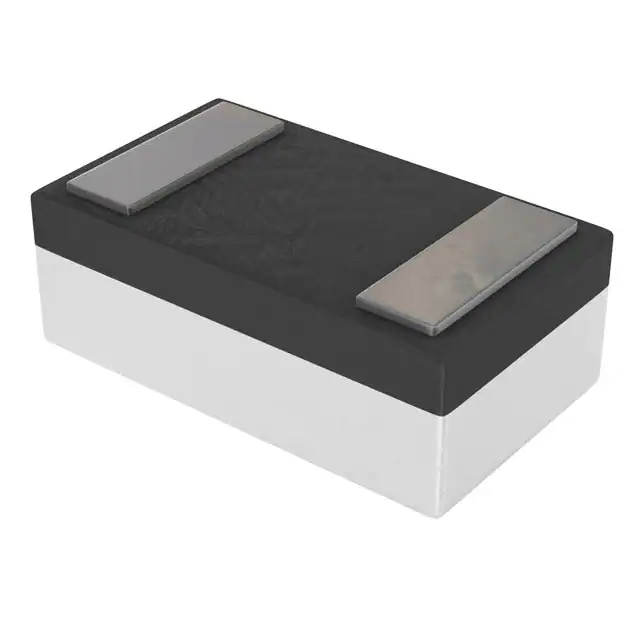

L04021R0AHNFIXED IND 1NH 500MA 150 MOHM SMD KYOCERA AVX |
3,990 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1 nH | ±0.05nH | 500 mA | - | Unshielded | 150mOhm Max | 20 @ 450MHz | 20GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04021R2AHNFIXED IND 1.2NH 400MA 200MOHM SM KYOCERA AVX |
3,251 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.2 nH | ±0.05nH | 400 mA | - | Unshielded | 200mOhm Max | 20 @ 450MHz | 20GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04021R5AHNFIXED IND 1.5NH 400MA 200MOHM SM KYOCERA AVX |
3,284 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.5 nH | ±0.05nH | 400 mA | - | Unshielded | 200mOhm Max | 20 @ 450MHz | 18GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04021R8AHNFIXED IND 1.8NH 400MA 200MOHM SM KYOCERA AVX |
1,669 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.8 nH | ±0.05nH | 400 mA | - | Unshielded | 200mOhm Max | 18 @ 450MHz | 16GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04022R2AHNFIXED IND 2.2NH 400MA 200MOHM SM KYOCERA AVX |
1,493 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.2 nH | ±0.05nH | 400 mA | - | Unshielded | 200mOhm Max | 15 @ 450MHz | 15GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

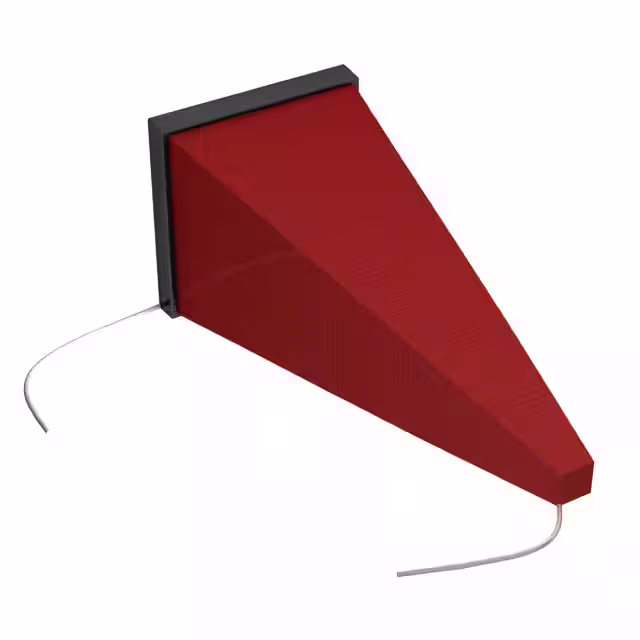

GL2R0KA7B250FIXED IND 2UH 250MA 1.45 OHM TH KYOCERA AVX |
2,312 |
|
规格书 |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | 2 µH | ±10% | 250 mA | - | Unshielded | 1.45Ohm | - | - | - | -55°C ~ 125°C | - | - | Through Hole | - | 0.102" L x 0.065" Sq Pyramid (2.59mm x 1.65mm) | - |
|
|
GL110KA7B115FIXED IND 11UH 115MA 7 OHM TH KYOCERA AVX |
1,926 |
|
规格书 |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | 11 µH | ±10% | 115 mA | - | Unshielded | 7Ohm | - | - | - | -55°C ~ 125°C | - | - | Through Hole | - | 0.182" L x 0.072" Sq Pyramid (4.62mm x 1.83mm) | - |
|
GLMR47KAT1AFIXED IND 470NH 815MA 190MOHM SM KYOCERA AVX |
3,672 |
|
规格书 |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | 470 nH | ±10% | 815 mA | - | Unshielded | 190mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
GLMR70KAT1AFIXED IND 700NH 619MA 320MOHM SM KYOCERA AVX |
3,060 |
|
规格书 |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | 700 nH | ±10% | 619 mA | - | Unshielded | 320mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
GLM1R1KAT1AFIXED IND 1.1UH 438MA 640MOHM SM KYOCERA AVX |
3,281 |
|
规格书 |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | 1.1 µH | ±10% | 438 mA | - | Unshielded | 640mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
