在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

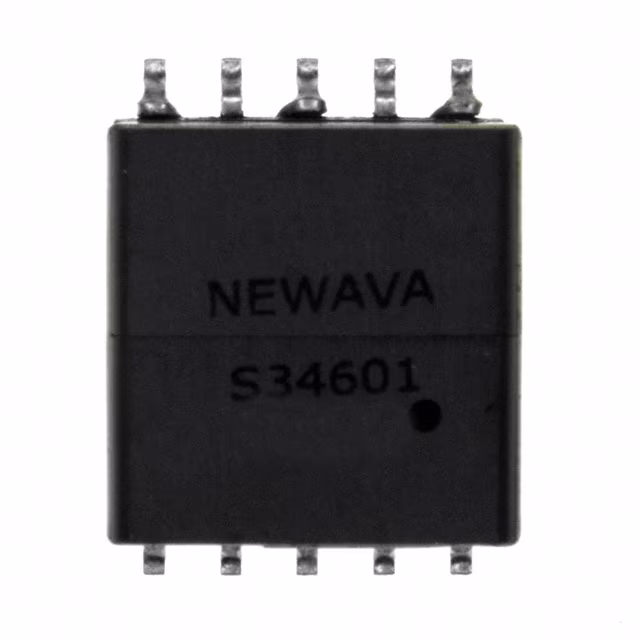

S34601FIXED IND 100UH 1.5A 90 MOHM SMD Newava Technology Inc. |
2,658 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | - | 1.5 A | - | Unshielded | 90mOhm Max | - | 2MHz | - | -45°C ~ 250°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.500" (12.70mm) |
|
S34582FIXED IND 150UH 450MA 300MOHM SM Newava Technology Inc. |
3,621 |
|
规格书 |
- | Nonstandard | Bulk | Active | - | - | 150 µH | - | 450 mA | - | Unshielded | 300mOhm Max | - | 1.3MHz | - | -45°C ~ 250°C | 10 kHz | - | Surface Mount | - | 0.380" L x 0.380" W (9.65mm x 9.65mm) | 0.342" (8.69mm) |
|
S34603FIXED IND 47UH 2.25A 35 MOHM SMD Newava Technology Inc. |
4,314 |
|
规格书 |
- | Nonstandard | Bulk | Active | - | - | 47 µH | - | 2.25 A | - | Unshielded | 35mOhm Max | - | 2MHz | - | -45°C ~ 250°C | 10 kHz | - | Surface Mount | - | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.500" (12.70mm) |
|

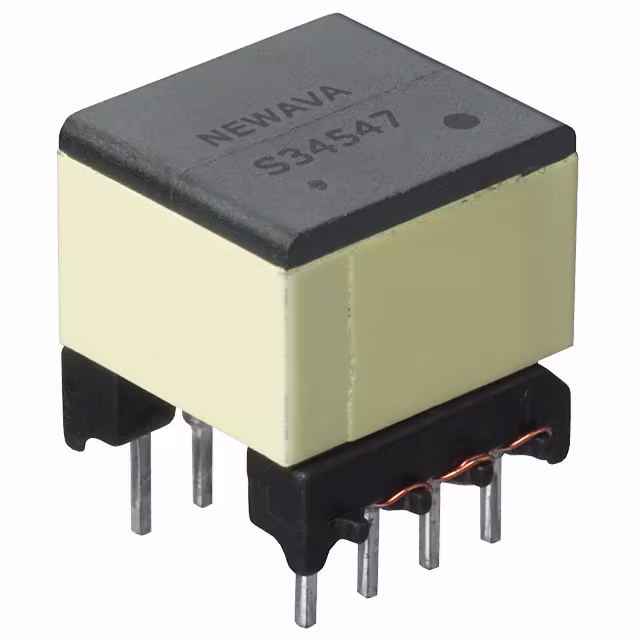

S34547FIXED IND 150UH 180 MOHM TH Newava Technology Inc. |
3,583 |
|
规格书 |
- | Radial, Horizontal, 8 Leads | Bulk | Active | - | - | 150 µH | - | - | - | Unshielded | 180mOhm Max | - | 950kHz | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 0.500" L x 0.470" W (12.70mm x 11.94mm) | 0.450" (11.43mm) |
|

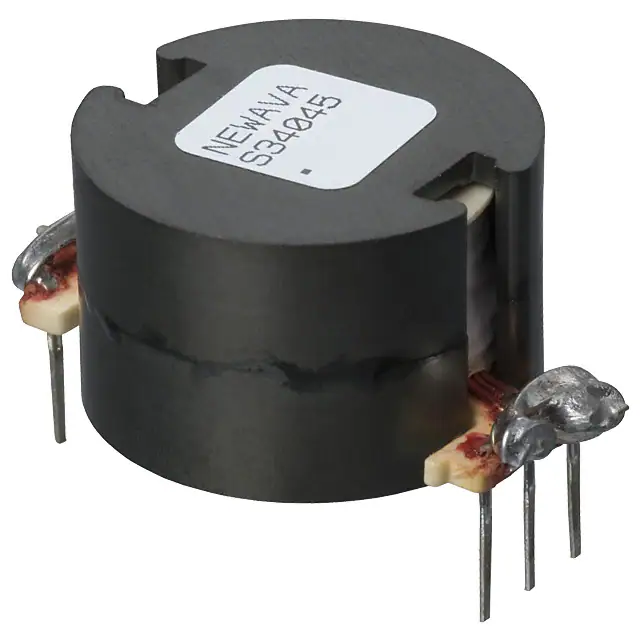

S34045FIXED IND 150UH 3A 0.06OHM TH Newava Technology Inc. |
4,922 |
|
规格书 |
- | Nonstandard | Bulk | Active | - | - | 150 µH | - | 3 A | - | Unshielded | 60mOhm Max | - | - | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 1.287" L x 0.890" W (32.69mm x 22.61mm) | 0.550" (13.97mm) |
|
|
85092-A0FIXED IND 5.5UH 1 OHM SMD Newava Technology Inc. |
2,210 |
|
规格书 |
- | Nonstandard | Bag | Active | Thick Film | Ceramic, Ferrite | 5.5 µH | ±25% | - | 225mA | Shielded | 1Ohm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - |
|
|
85043-A0FIXED IND 7.2UH 1.05A 100MOHM SM Newava Technology Inc. |
2,303 |
|
规格书 |
- | Nonstandard | Bag | Active | Thick Film | Ceramic, Ferrite | 7.2 µH | ±20% | 1.05 A | 350mA | Shielded | 100mOhm | - | 16MHz | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | - |
|
|
85044-A0FIXED IND 13UH 1A 200 MOHM SMD Newava Technology Inc. |
2,640 |
|
规格书 |
- | Nonstandard | Bag | Active | Thick Film | Ceramic, Ferrite | 13 µH | ±20% | 1 A | 280mA | Shielded | 200mOhm | - | 13MHz | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | - |
