在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

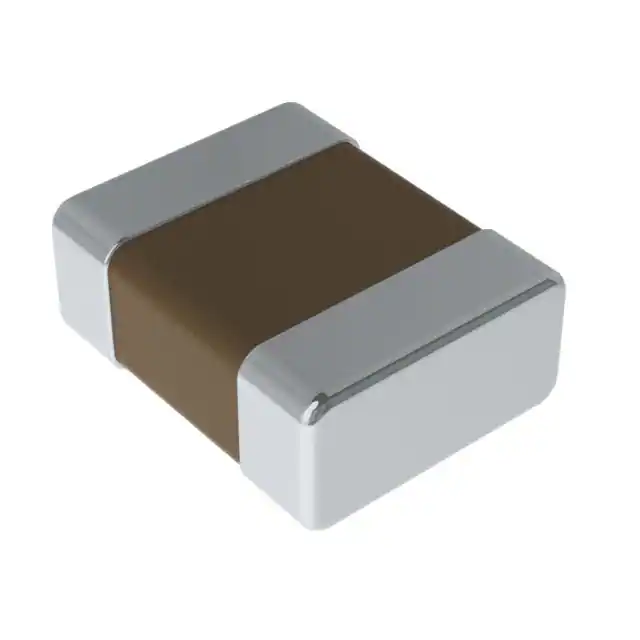

-2,00x1,60x,80mm.jpg)
|
CIGT201610LH1R0MNEFIXED IND 1UH 2.8A 57 MOHM SMD Samsung Electro-Mechanics |
696,210 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 2.8 A | 3.9A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CIGT201610EH2R2MNEFIXED IND 2.2UH 2.5A 87MOHM SMD Samsung Electro-Mechanics |
66,797 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 2.5 A | 2.9A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CIGT201610EHR47MNEFIXED IND 470NH 4.8A 22MOHM SMD Samsung Electro-Mechanics |
938,548 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 4.8 A | 5.9A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CIGW201610GH4R7MLEFIXED IND 4.7UH 1.1A 279MOHM SMD Samsung Electro-Mechanics |
197,717 |
|
规格书 |
CIGW | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 1.1 A | 2A | Shielded | 279mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |

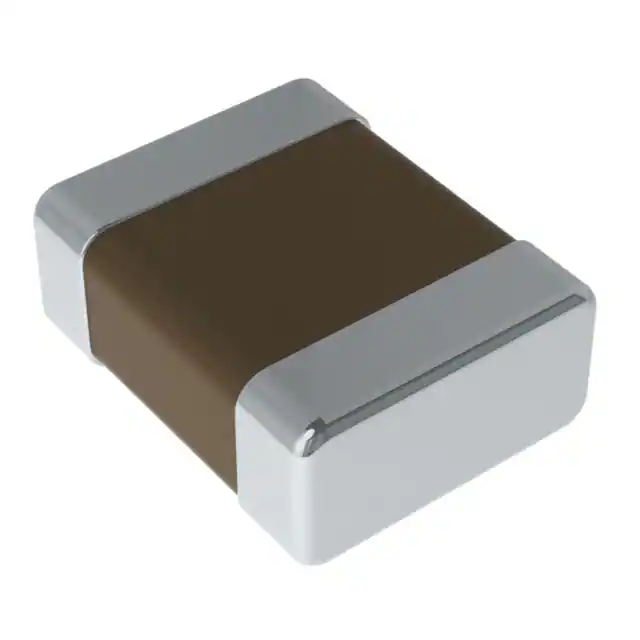

-2,5x2,0x1,00mm.jpg)
|
CIGT252010EH1R0MNEFIXED IND 1UH 4.1A 30 MOHM SMD Samsung Electro-Mechanics |
54,711 |
|
规格书 |
CIGT | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 4.1 A | 5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CIGW252010GL1R5MNEFIXED IND 1.5UH 3.2A 54MOHM SMD Samsung Electro-Mechanics |
166,894 |
|
规格书 |
CIGW | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 3.2 A | 3.1A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CIGW252010GL2R2MNEFIXED IND 2.2UH 2.2A 93MOHM SMD Samsung Electro-Mechanics |
103,936 |
|
规格书 |
CIGW | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 2.2 A | 2.6A | Shielded | 93mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CIGT201610LH2R2MNEFIXED IND 2.2UH 1.8A 139MOHM SMD Samsung Electro-Mechanics |
200,547 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 1.8 A | 2.3A | Shielded | 139mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CIGT201610LHR24MNEFIXED IND 240NH 4.7A 19MOHM SMD Samsung Electro-Mechanics |
40,046 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 240 nH | ±20% | 4.7 A | 6.5A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CIGT201610LM2R2MNEFIXED IND 2.2UH 1.6A 154MOHM SMD Samsung Electro-Mechanics |
26,377 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 1.6 A | 1.7A | Shielded | 154mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
