在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RI410PCFIXED IND 1MH 10A 28 MOHM TH Schaffner EMC Inc. |
2,149 |
|
规格书 |
RI | Radial, Horizontal - Corner Terminals | Tray | Obsolete | - | - | 1 mH | - | 10 A | - | Unshielded | 28mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 1.299" L x 1.299" W (33.00mm x 33.00mm) | 1.102" (28.00mm) |
|

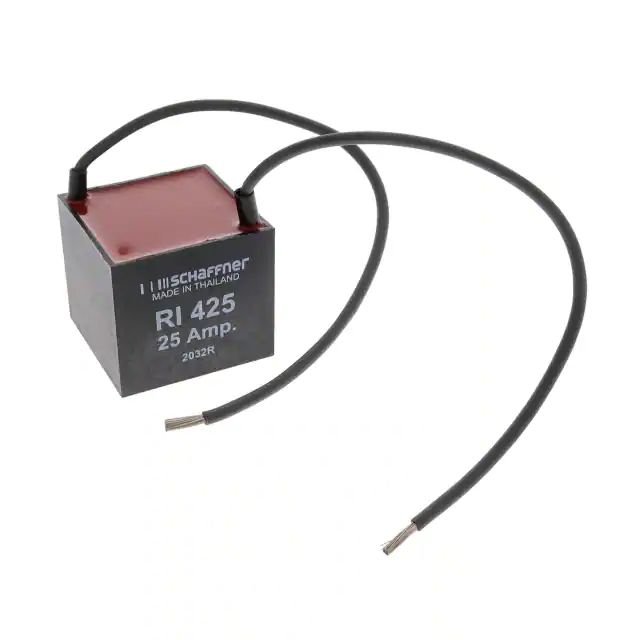

RI425FIXED IND 250UH 25A 4 MOHM TH Schaffner EMC Inc. |
2,052 |
|
规格书 |
RI | Radial, Vertical | Tray | Obsolete | - | - | 250 µH | - | 25 A | - | Unshielded | 4mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 1.890" L x 1.890" W (48.00mm x 48.00mm) | 1.693" (43.00mm) |
|

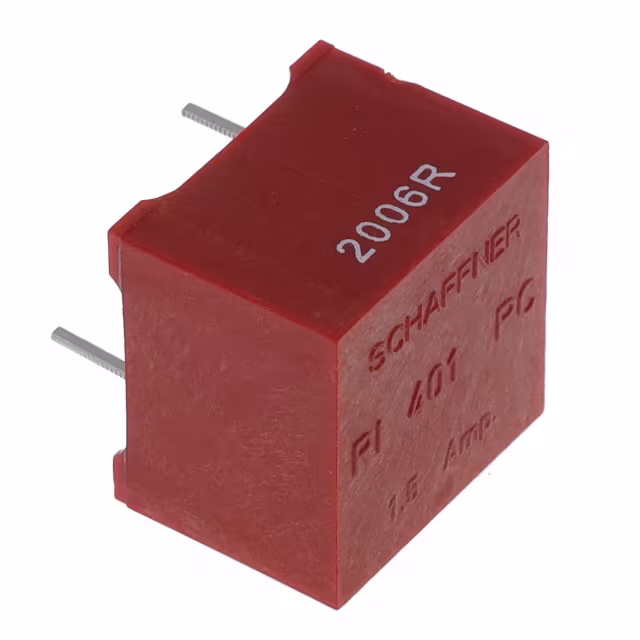

RI401PCFIXED IND 3MH 1.5A 620 MOHM TH Schaffner EMC Inc. |
3,172 |
|
规格书 |
RI | Radial, Horizontal - Corner Terminals | Tray | Obsolete | - | - | 3 mH | - | 1.5 A | - | Unshielded | 620mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 0.768" L x 0.768" W (19.50mm x 19.50mm) | 0.591" (15.00mm) |
|
|
RI406PCFIXED IND 1.2MH 6A 53 MOHM TH Schaffner EMC Inc. |
3,141 |
|
规格书 |
RI | Radial, Horizontal - Corner Terminals | Tray | Obsolete | - | - | 1.2 mH | - | 6 A | - | Unshielded | 53mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 1.122" L x 1.122" W (28.50mm x 28.50mm) | 0.846" (21.50mm) |
|

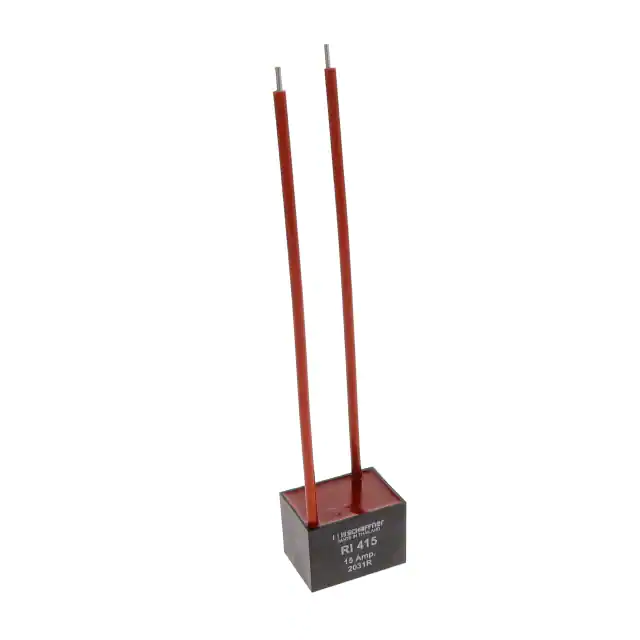

RI415FIXED IND 300UH 15A 8 MOHM TH Schaffner EMC Inc. |
1,464 |
|
规格书 |
RI | Radial, Vertical | Tray | Obsolete | - | - | 300 µH | - | 15 A | - | Unshielded | 8mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 1.929" L x 1.378" W (49.00mm x 35.00mm) | 1.339" (34.00mm) |
|

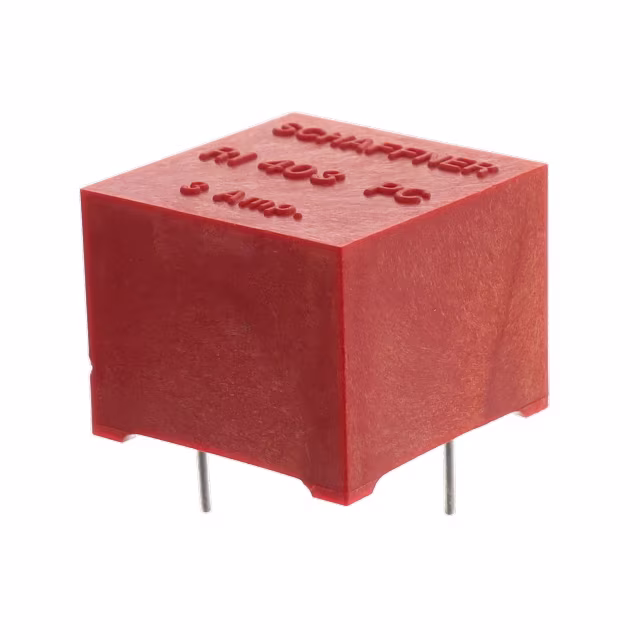

RI403PCFIXED IND 1.8MH 3A 105 MOHM TH Schaffner EMC Inc. |
2,747 |
|
规格书 |
RI | Radial, Horizontal - Corner Terminals | Tray | Obsolete | - | - | 1.8 mH | - | 3 A | - | Unshielded | 105mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 0.917" L x 0.917" W (23.30mm x 23.30mm) | 0.709" (18.00mm) |
