在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR75NP-470KCFIXED IND 47UH 1.1A 180 MOHM SMD Sumida America Components Inc. |
71,482 |
|
规格书 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.1 A | - | Unshielded | 180mOhm Max | - | 13MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

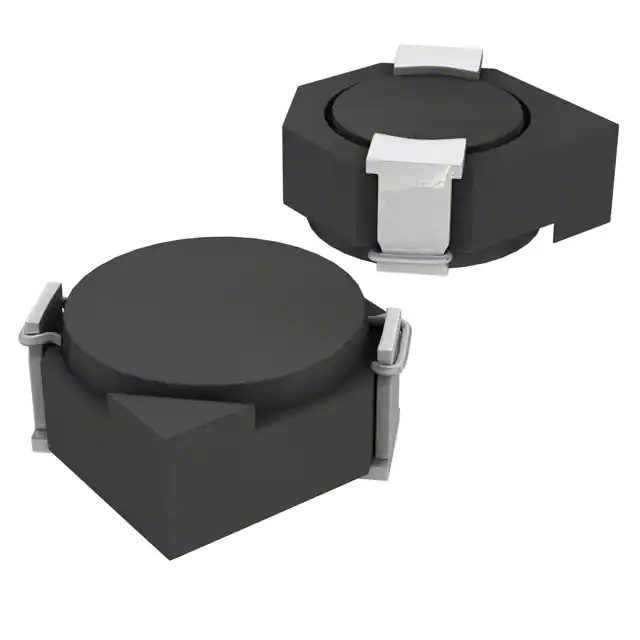

CDRH2D18/HPNP-4R7NCFIXED IND 4.7UH 1.2A 140MOHM SMD Sumida America Components Inc. |
68,314 |
|
规格书 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.2 A | 1.2A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
CDRH2D18/HPNP-2R2NCFIXED IND 2.2UH 1.9A 60 MOHM SMD Sumida America Components Inc. |
34,426 |
|
规格书 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.9 A | 1.6A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
CDRH2D18/HPNP-100NCFIXED IND 10UH 900MA 245MOHM SMD Sumida America Components Inc. |
15,932 |
|
规格书 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 900 mA | 850mA | Shielded | 245mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
CDRH2D14NP-2R2NCFIXED IND 2.2UH 1.6A 94 MOHM SMD Sumida America Components Inc. |
92,358 |
|
规格书 |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.6 A | 1.5A | Shielded | 94mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" (1.55mm) |
|
CDRH127/LDNP-220MCFIXED IND 22UH 4.7A 36.4MOHM SMD Sumida America Components Inc. |
63,137 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 4.7 A | - | Shielded | 36.4mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH125NP-470MCFIXED IND 47UH 1.8A 75 MOHM SMD Sumida America Components Inc. |
63,094 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.8 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

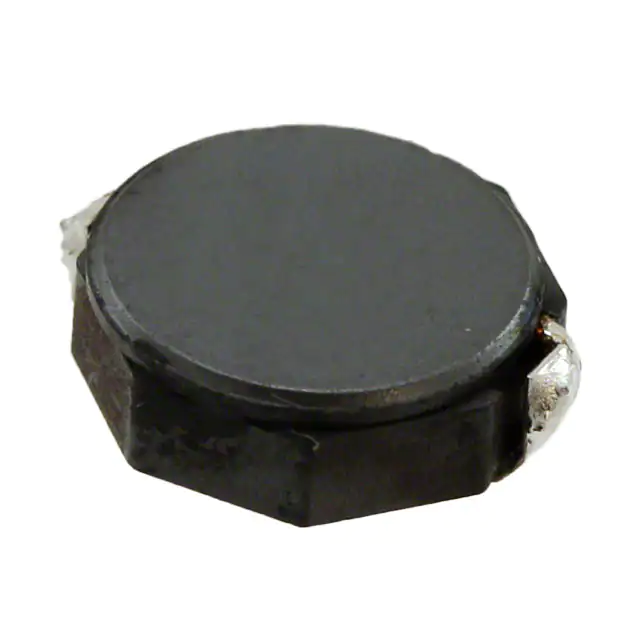

CDRH8D28NP-100NCFIXED IND 10UH 3.2A 47 MOHM SMD Sumida America Components Inc. |
6,250 |
|
规格书 |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 3.2 A | 2.5A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
CDPH4D19FNP-150MCFIXED IND 15UH 1.88A 95 MOHM SMD Sumida America Components Inc. |
21,682 |
|
规格书 |
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.88 A | 660mA | Shielded | 95mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
CDPH4D19FNP-470MCFIXED IND 47UH 1.03A 293MOHM SMD Sumida America Components Inc. |
15,237 |
|
规格书 |
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.03 A | 360mA | Shielded | 293mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
