在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM2011A-4R7MHFMOLDED INDUCTOR4.7UH 52.2M 5.5A |
1,714 |
|
规格书 |
SM2011A | Nonstandard | Bulk | Active | Molded | - | 4.7 µH | ±20% | 4.5 A | 5.5A | Unshielded | 57.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
CTMPC080604F-R33M0.33UH SMD SHLDED POWER INDUCTOR |
4,189 |
|
规格书 |
CTMPC080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 3.5 A | 4A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CTMPC100804F-R68M0.68UH SMD SHLDED POWER INDUCTOR |
2,647 |
|
规格书 |
CTMPC100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 2.9 A | 3.8A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMPC080604F-R56M0.56UH SMD SHLDED POWER INDUCTOR |
3,667 |
|
规格书 |
CTMPC080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 2.8 A | 2.8A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CTMPC100804F-R47M0.47UH SMD SHLDED POWER INDUCTOR |
1,394 |
|
规格书 |
CTMPC100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.1 A | 5.2A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMPC080604F-R47M0.47UH SMD SHLDED POWER INDUCTOR |
2,968 |
|
规格书 |
CTMPC080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3 A | 3.2A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CTMPC080604F-2R2M2.2UH SMD SHLDED POWER INDUCTOR |
1,662 |
|
规格书 |
CTMPC080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.3 A | 2A | Shielded | 204mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CTMPC100804F-1R5M1.5UH SMD SHLDED POWER INDUCTOR |
2,404 |
|
规格书 |
CTMPC100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.2 A | 3.2A | Shielded | 105mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
CTLVH2510F-4R7MSMD SHIELDED POWER INDUCTOR |
4,939 |
|
规格书 |
CTLVH2510F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.2 A | 1.4A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTLVH2510F-6R8MSMD SHIELDED POWER INDUCTOR |
3,973 |
|
规格书 |
CTLVH2510F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1 A | 1.1A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

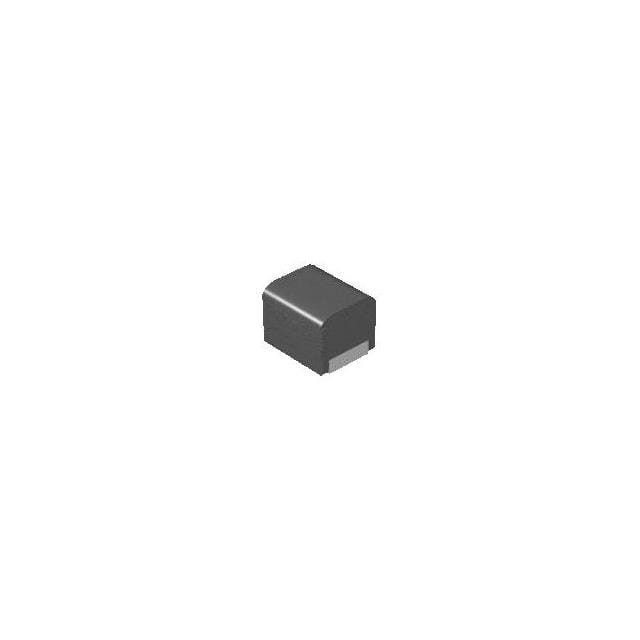

CTMC1008F-R56J.56UH FERRITE CORE WW INDUCTOR |
3,358 |
|
规格书 |
CTMC1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 325 mA | - | Unshielded | 750mOhm Max | 30 @ 25.2MHz | 325MHz | - | -45°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
CTMC1008F-4R7J4.7UH FERRITE CORE WW INDUCTOR |
1,516 |
|
规格书 |
CTMC1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 175 mA | - | Unshielded | 2.3Ohm Max | 30 @ 7.96MHz | 43MHz | - | -45°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
CTMC1008F-R22M.22UH FERRITE CORE WW INDUCTOR |
4,038 |
|
规格书 |
CTMC1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 430 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 450MHz | - | -45°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
CTMPC100804F-2R2M2.2UH SMD SHLDED POWER INDUCTOR |
2,642 |
|
规格书 |
CTMPC100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.4 A | 2.6A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMC1008F-220M22UH FERRITE CORE WW INDUCTOR |
4,095 |
|
规格书 |
CTMC1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 125 mA | - | Unshielded | 5.5Ohm Max | 25 @ 2.52MHz | 22MHz | - | -45°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
CTMC1008F-1R0J1.0UH FERRITE CORE WW INDUCTOR |
2,963 |
|
规格书 |
CTMC1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 245 mA | - | Unshielded | 1.1Ohm Max | 30 @ 7.96MHz | 245MHz | - | -45°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
CTMC1008F-1R5J1.5UH FERRITE CORE WW INDUCTOR |
4,231 |
|
规格书 |
CTMC1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 220 mA | - | Unshielded | 1.3Ohm Max | 30 @ 7.96MHz | 182MHz | - | -45°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|

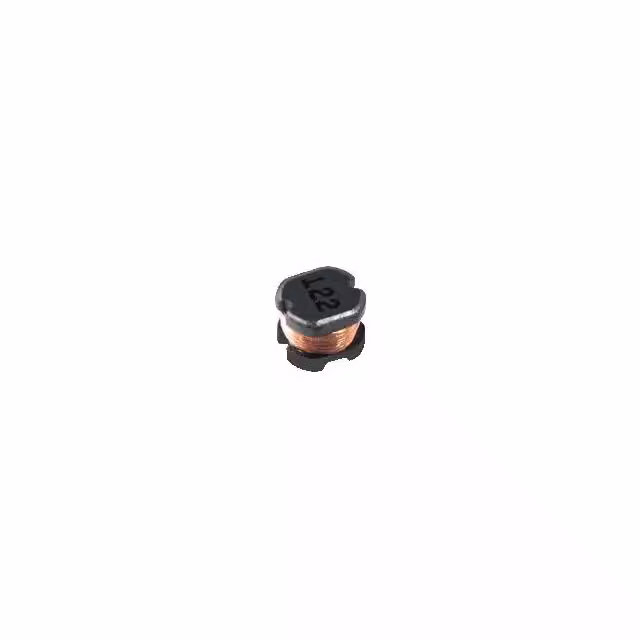

CTGS32F-470K47UH SMD UNSHLD POWER INDUCTOR |
100 |
|
规格书 |
CTGS32F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 360 mA | 400mA | Unshielded | 1.27Ohm Max | 23 @ 2.52MHz | 17MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
SM1605A-2R2MHFMOLDED INDUCTOR0.22UH 9.35M 11A |
4,206 |
|
规格书 |
SM1605A | Nonstandard | Bulk | Active | Molded | Metal | 2.2 µH | ±20% | 2.75 A | 3.5A | Unshielded | 83.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
CTAC1008F-R12KSMD AIR CORE INDUCTOR |
2,035 |
|
规格书 |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±10% | - | - | - | 63.4mOhm | - | 950MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
