在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV32T-2R2J-EFDFIXED IND 2.2UH 320MA 1 OHM SMD |
3,497 |
|
规格书 |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 320 mA | - | Unshielded | 1Ohm Max | 30 @ 7.96MHz | 75MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
.jpg)
|
MLF1608DR15MTD25FIXED IND 150NH 200MA 450MOHM SM |
3,410 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±20% | 200 mA | - | Shielded | 450mOhm Max | 15 @ 25MHz | 350MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MLF2012E5R6MT000FIXED IND 5.6UH 15MA 600MOHM SMD |
3,280 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±20% | 15 mA | - | Shielded | 600mOhm Max | 50 @ 4MHz | 45MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF1608E8R2MTD25FIXED IND 8.2UH 10MA 1.5 OHM SMD |
3,171 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±20% | 10 mA | - | Shielded | 1.5Ohm Max | 35 @ 4MHz | 35MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
0805CT-180EJTSFIXED IND 18NH 800MA 130MOHM SMD |
3,143 |
|
规格书 |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 800 mA | - | Unshielded | 130mOhm | 50 @ 500MHz | 3.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|

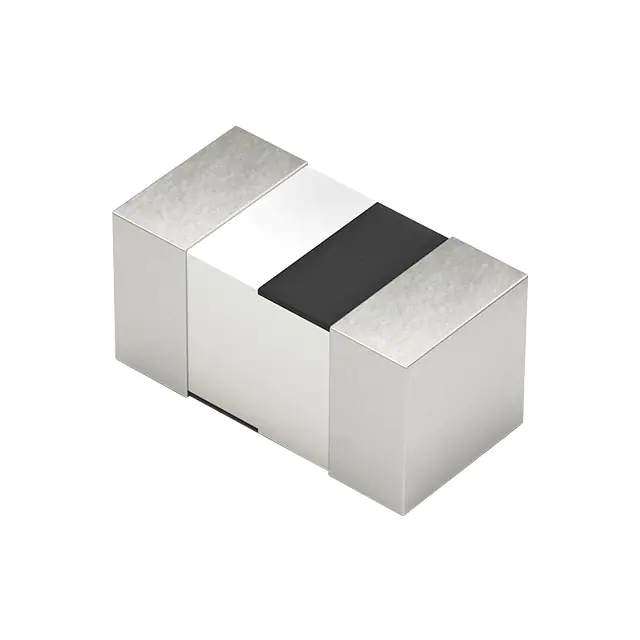

7447860239GWE-MK MULTILAYER CERAMIC SMT IND |
3,136 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 390 nH | ±2% | 150 mA | - | Unshielded | 2.3Ohm Max | 8 @ 50MHz | 350MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
0402HP-1N0ECTSFIXED IND 1NH 2.3A 30 MOHM SMD |
2,810 |
|
规格书 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±0.2nH | 2.3 A | - | Unshielded | 30mOhm | - | 16GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
.jpg)
|
LQG15HH22NJ02DFIXED IND 22NH 300MA 0.42OHM SMD |
2,425 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 22 nH | ±5% | 300 mA | - | Unshielded | 420mOhm Max | 8 @ 100MHz | 1.9GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
0402HP-220EKTSFIXED IND 22NH 800MA 160MOHM SMD |
2,245 |
|
规格书 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±10% | 800 mA | - | Unshielded | 160mOhm | - | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
MLG1005S82NJTD25FIXED IND 82NH 200MA 1.6 OHM SMD |
2,208 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 82 nH | ±5% | 200 mA | - | Unshielded | 1.6Ohm Max | 8 @ 100MHz | 700MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF2012DR56MT000FIXED IND 560NH 150MA 550MOHM SM |
1,900 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 560 nH | ±20% | 150 mA | - | Shielded | 550mOhm Max | 25 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

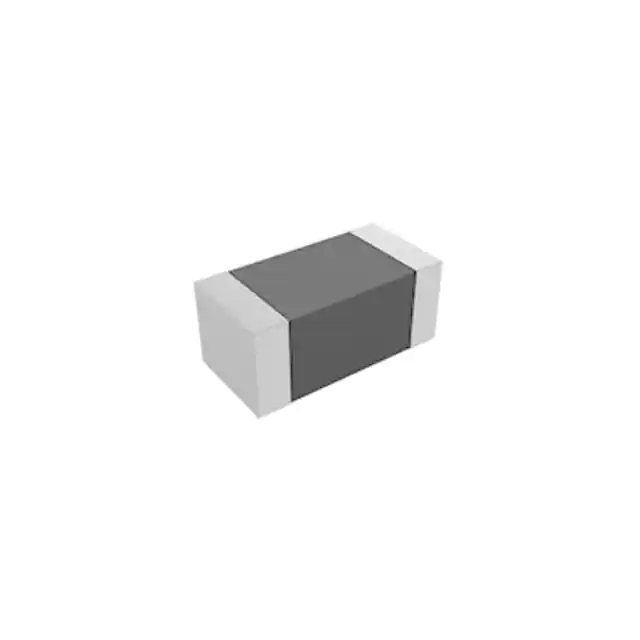

MCL2520A4R7MTFIXED IND 4.7UH 950MA 280MOHM SM |
1,765 |
|
规格书 |
MCL-A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 950 mA | 250mA | Shielded | 280mOhm | - | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW15AN2N2D10DFIXED IND 2.2NH 1A 0.027OHM SMD |
1,740 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.2 nH | ±0.5nH | 1 A | - | Unshielded | 27mOhm Max | 25 @ 250MHz | 14GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MCL2016A1R0MTFIXED IND 1UH 1.1A 140 MOHM SMD |
1,714 |
|
规格书 |
MCL-A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.1 A | 900mA | Shielded | 140mOhm | - | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
MLF1608E6R8MTD25FIXED IND 6.8UH 15MA 1.3 OHM SMD |
1,454 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 15 mA | - | Shielded | 1.3Ohm Max | 35 @ 4MHz | 40MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-0,95mm.jpg)
|
LB1608T4R7MFIXED IND 4.7UH 70MA 550MOHM SMD |
28,335 |
|
规格书 |
LB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 70 mA | - | Unshielded | 550mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
LQG15HH4N7C02DFIXED IND 4.7NH 700MA 0.16OHM SM |
24,092 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 4.7 nH | ±0.2nH | 700 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15HH3N6C02DFIXED IND 3.6NH 750MA 0.14OHM SM |
17,095 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 3.6 nH | ±0.2nH | 750 mA | - | Unshielded | 140mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MHQ0603P11NHTD25FIXED IND 11NH 240MA 1.3 OHM SMD |
11,000 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 11 nH | ±3% | 240 mA | - | Unshielded | 1.3Ohm Max | 16 @ 500MHz | 3.2GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
LQG15HH1N0C02DFIXED IND 1NH 1A 0.07OHM SMD |
10,000 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
