在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MHQ Series.jpg)
|
MHQ1005PR30GT000FIXED IND 300NH 80MA 7.8 OHM SMD |
8,435 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 300 nH | ±2% | 80 mA | - | Unshielded | 7.8Ohm Max | 13 @ 100MHz | 480MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005PR39HT000FIXED IND 390NH 70MA 8.8 OHM SMD |
8,038 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 390 nH | ±3% | 70 mA | - | Unshielded | 8.8Ohm Max | 13 @ 100MHz | 450MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
SDCL1V2512-2R2M-RIND 2.2 UH 1.90A SMT |
7,684 |
|
规格书 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.9A | Shielded | 106mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQW15AN1N7D8ZDFIXED IND 1.7NH 1.15A 0.065OHM |
7,500 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 1.7 nH | ±0.5nH | 1.15 A | - | Unshielded | 65mOhm Max | 20 @ 250MHz | 18GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLG0603P20NJTD25FIXED IND 20NH 150MA 1.9 OHM SMD |
7,280 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 20 nH | ±5% | 150 mA | - | Unshielded | 1.9Ohm Max | 14 @ 500MHz | 2.2GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQW15AN6N3J8ZDFIXED IND 6.3NH 1.6A 0.057OHM SM |
6,000 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.3 nH | ±5% | 1.6 A | - | Unshielded | 57mOhm Max | 32 @ 250MHz | 7.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MHQ0603P30NHTD25FIXED IND 30NH 160MA 2.7 OHM SMD |
5,370 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 30 nH | ±3% | 160 mA | - | Unshielded | 2.7Ohm Max | 16 @ 500MHz | 1.9GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|

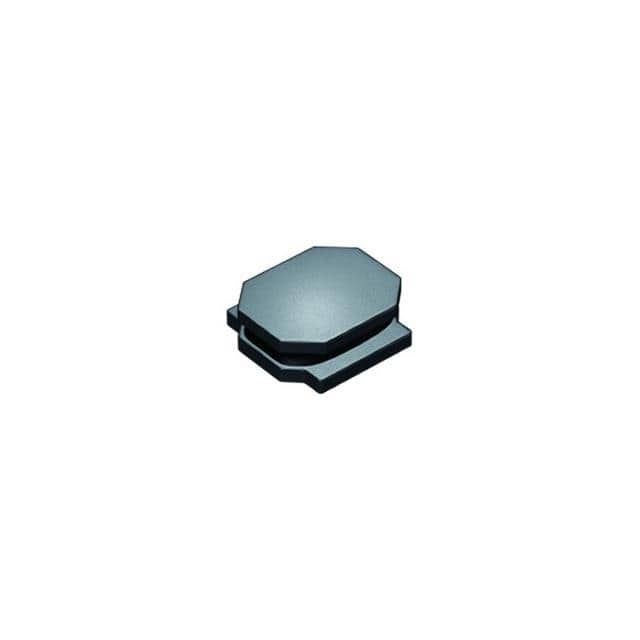

LSXNE2424MKTR47NNGFIXED IND 470NH 2.1A 50 MOHM SMD |
4,972 |
|
规格书 |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 2.1 A | 2.9A | Shielded | 60mOhm Max | - | 180MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
LSXNE2424MKT1R5NNGFIXED IND 1.5UH 1.15A 100MOHM SM |
4,950 |
|
规格书 |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 1.15 A | 2.1A | Shielded | 120mOhm Max | - | 89MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
LSAPB2016KKTR22MFIXED IND 0.22UH SMD |
4,495 |
|
规格书 |
LSAP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 220 nH | ±20% | 4 A | 5.8A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
MLG0603P18NJTD25FIXED IND 18NH 200MA 1.4 OHM SMD |
4,466 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 18 nH | ±5% | 200 mA | - | Unshielded | 1.4Ohm Max | 14 @ 500MHz | 3GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LQW18AN8N7C80DFIXED IND 8.7NH 1.6A 0.052OHM SM |
3,966 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.7 nH | ±0.2nH | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |

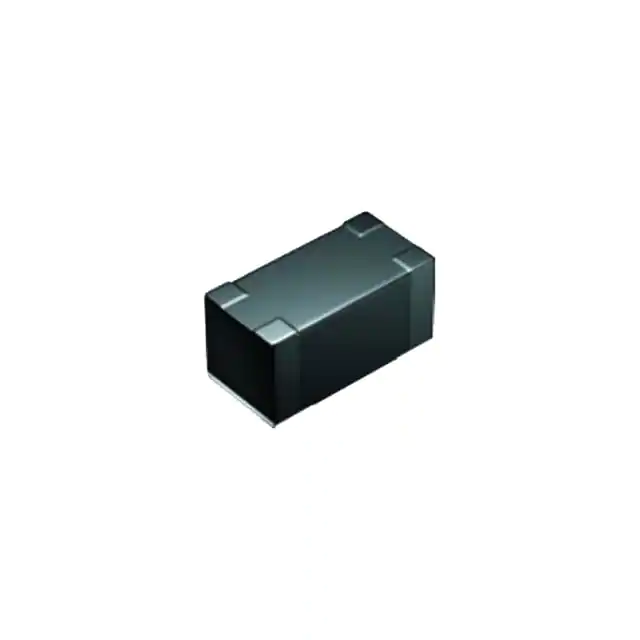

-BR-Series.jpg)
|
BRC2016T1R0MFIXED IND 1UH 1.1A 110.5MOHM SMD |
3,638 |
|
规格书 |
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.1 A | 1.35A | Unshielded | 110.5mOhm Max | - | 450MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LQM21NN1R8K10DFIXED IND 1.8UH 50MA 570MOHM SMD |
3,015 |
|
规格书 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 1.8 µH | ±10% | 50 mA | - | Shielded | 570mOhm Max | 45 @ 10MHz | 80MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
SDEB12101T-R22MSDFIXED IND 220NH 1.9A 60MOHM SMD |
2,609 |
|
规格书 |
SDEB12101T | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±20% | 1.9 A | 2.16A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.049" L x 0.039" W (1.25mm x 1.00mm) | 0.039" (1.00mm) |
|
NRH2410T1R0NN4FIXED IND 1UH 1.41A 84 MOHM SMD |
2,452 |
|
规格书 |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.41 A | 1.8A | Shielded | 84mOhm Max | - | 106MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
|
NRH2410T1R5MNFIXED IND 1.5UH 1.16A 132MOHM SM |
2,275 |
|
规格书 |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.16 A | 1.55A | Shielded | 132mOhm Max | - | 94MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
NLV25T-2R7J-EFDFIXED IND 2.7UH 195MA 1.7OHM SMD |
1,902 |
|
规格书 |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 195 mA | - | Unshielded | 1.7Ohm Max | 30 @ 7.96MHz | 70MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NLV32T-018J-EFDFIXED IND 18NH 450MA 180MOHM SMD |
1,700 |
|
规格书 |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 nH | ±5% | 450 mA | - | Unshielded | 180mOhm Max | 21 @ 100MHz | 1.9GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
WCL3225-330-RFIXED IND 33UH 160MA 2.9 OHM SMD |
1,596 |
|
规格书 |
WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 µH | ±5% | 160 mA | - | Unshielded | 2.9Ohm Max | 10 @ 2.52MHz | 15MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
