在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402HM-5N1ECTSFIXED IND 5.1NH 600MA 120MOHM SM |
7,990 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±0.2nH | 600 mA | - | Unshielded | 120mOhm | 25 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-360EKTSFIXED IND 36NH 260MA 630MOHM SMD |
7,990 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±10% | 260 mA | - | Unshielded | 630mOhm | 25 @ 250MHz | 3.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-820EJTSFIXED IND 82NH 130MA 2.24OHM SMD |
7,990 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 130 mA | - | Unshielded | 2.24Ohm | 20 @ 150MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|

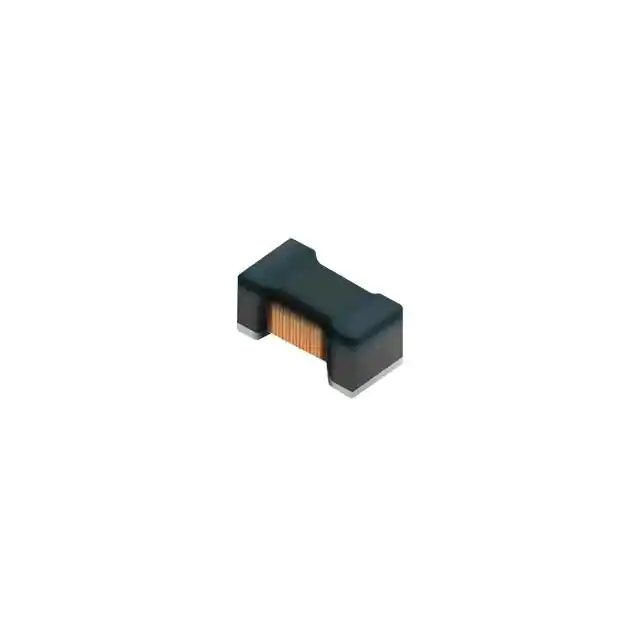

LQW15CE1R5M10DFIXED IND 1.5UH 95MA 1.5OHM SMD |
7,977 |
|
规格书 |
LQW15 | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 95 mA | 350mA | Unshielded | 1.5Ohm Max | - | 120MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
0402HM-200EKTSFIXED IND 20NH 370MA 270MOHM SMD |
7,972 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 20 nH | ±10% | 370 mA | - | Unshielded | 270mOhm | 25 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-5N8ECTSFIXED IND 5.8NH 700MA 120MOHM SM |
7,970 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.8 nH | ±0.2nH | 700 mA | - | Unshielded | 120mOhm | 25 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-2N4EDTSFIXED IND 2.4NH 850MA 50MOHM SMD |
7,960 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.4 nH | ±0.5nH | 850 mA | - | Unshielded | 50mOhm | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-100EKTSFIXED IND 10NH 500MA 170MOHM SMD |
7,947 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±10% | 500 mA | - | Unshielded | 170mOhm | 25 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-7N0EDTSFIXED IND 7NH 570MA 130 MOHM SMD |
7,936 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7 nH | ±0.5nH | 570 mA | - | Unshielded | 130mOhm | 25 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-7N5EHTSFIXED IND 7.5NH 570MA 130MOHM SM |
7,930 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±3% | 570 mA | - | Unshielded | 130mOhm | 25 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-8N7ECTSFIXED IND 8.7NH 540MA 140MOHM SM |
7,925 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.7 nH | ±0.2nH | 540 mA | - | Unshielded | 140mOhm | 25 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-180EKTSFIXED IND 18NH 370MA 270MOHM SMD |
7,920 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±10% | 370 mA | - | Unshielded | 270mOhm | 25 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-8N2EJTSFIXED IND 8.2NH 540MA 140MOHM SM |
7,918 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 540 mA | - | Unshielded | 140mOhm | 25 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-9N1EJTSFIXED IND 9.1NH 540MA 140MOHM SM |
7,900 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9.1 nH | ±5% | 540 mA | - | Unshielded | 140mOhm | 25 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-2N7EDTSFIXED IND 2.7NH 850MA 50MOHM SMD |
7,895 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.5nH | 850 mA | - | Unshielded | 50mOhm | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
0402HP-230EJTSFIXED IND 23NH 800MA 160MOHM SMD |
7,891 |
|
规格书 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 23 nH | ±5% | 800 mA | - | Unshielded | 160mOhm | - | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-360EJTSFIXED IND 36NH 260MA 630MOHM SMD |
7,875 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±5% | 260 mA | - | Unshielded | 630mOhm | 25 @ 250MHz | 3.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-7N0EJTSFIXED IND 7NH 570MA 130 MOHM SMD |
7,870 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7 nH | ±5% | 570 mA | - | Unshielded | 130mOhm | 25 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-270EKTSFIXED IND 27NH 280MA 520MOHM SMD |
7,862 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±10% | 280 mA | - | Unshielded | 520mOhm | 25 @ 250MHz | 3.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-4N1EDTSFIXED IND 4.1NH 750MA 70MOHM SMD |
7,852 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.1 nH | ±0.5nH | 750 mA | - | Unshielded | 70mOhm | 25 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
