在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR127-101-RFIXED IND 100UH 1.96A 163MOHM SM Eaton - Electronics Division |
392 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.96 A | 3.64A | Shielded | 163mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

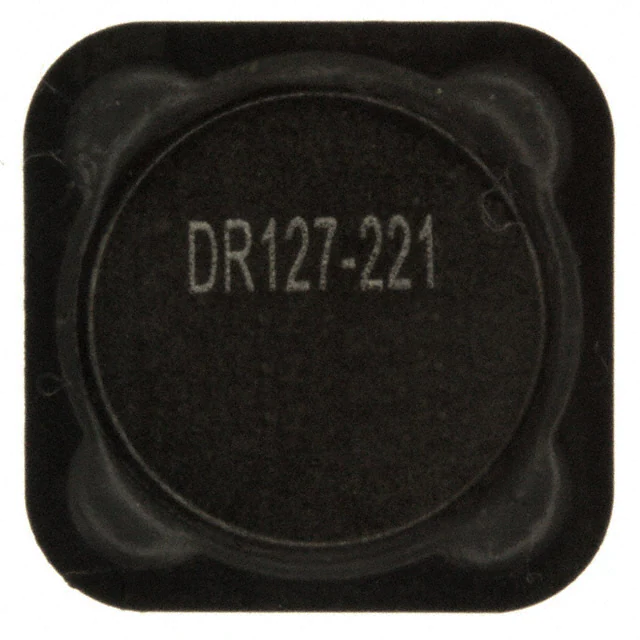

DR127-221-RFIXED IND 220UH 1.29A 376MOHM SM Eaton - Electronics Division |
4,421 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.29 A | 2.43A | Shielded | 376mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

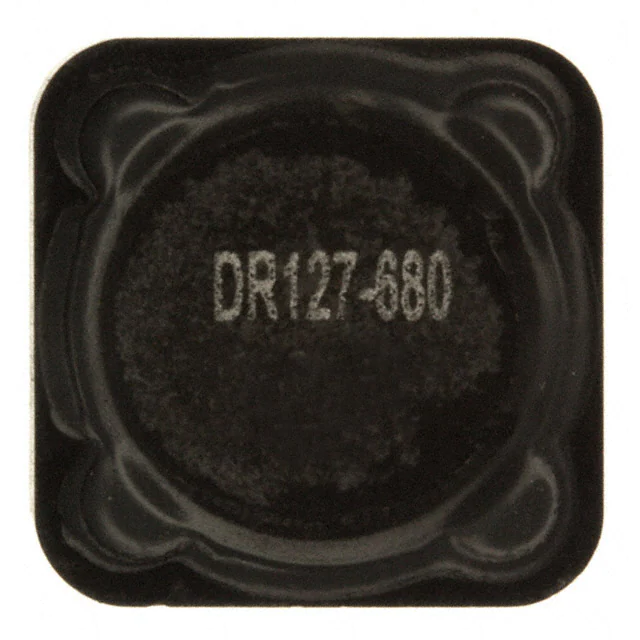

DR127-680-RFIXED IND 68UH 2.44A 105MOHM SMD Eaton - Electronics Division |
113 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.44 A | 4.44A | Shielded | 105mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DR125-8R2-RFIXED IND 8.2UH 5.54A 17.6 MOHM Eaton - Electronics Division |
4,993 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 5.54 A | 7.86A | Shielded | 17.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

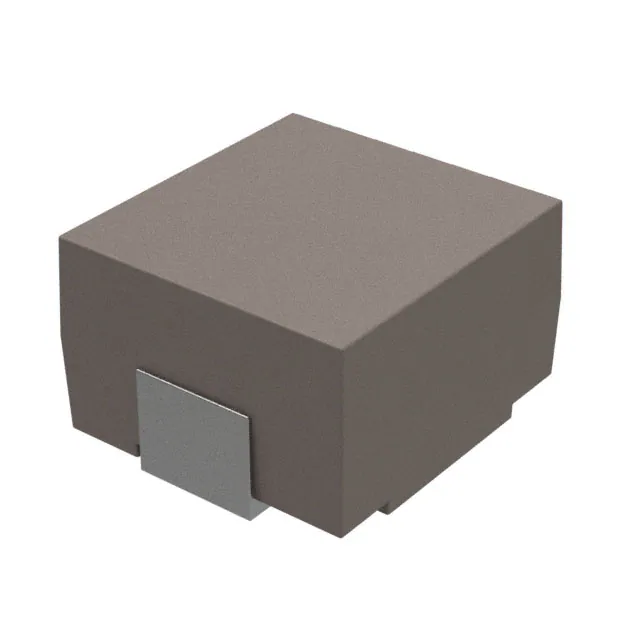

FP1308R3-R44-RFIXED IND 440NH 68A 0.18MOHM SMD Eaton - Electronics Division |
10,018 |
|
规格书 |
FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 440 nH | ±10% | 68 A | 37A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | 0.315" (8.00mm) |
|

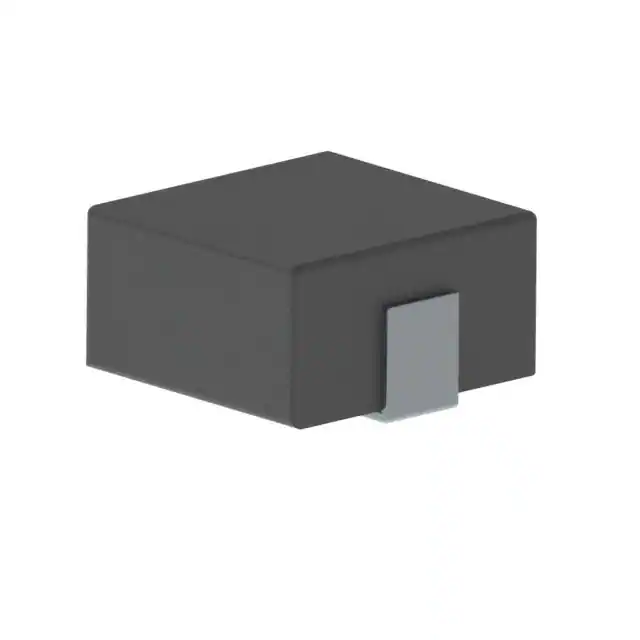

HCM1A4020V2-4R7-RFIXED IND 4.7UH 2.5A 118MOHM SMD Eaton - Electronics Division |
3,003 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 2.5 A | 3.2A | Shielded | 118mOhm Max | - | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

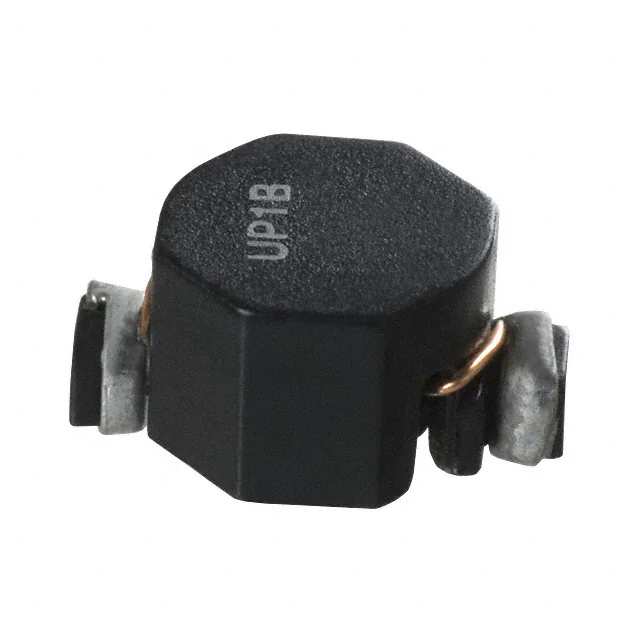

UP1B-220-RFIXED IND 22UH 1A 254.1 MOHM SMD Eaton - Electronics Division |
13,848 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 1.2A | Unshielded | 254.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|

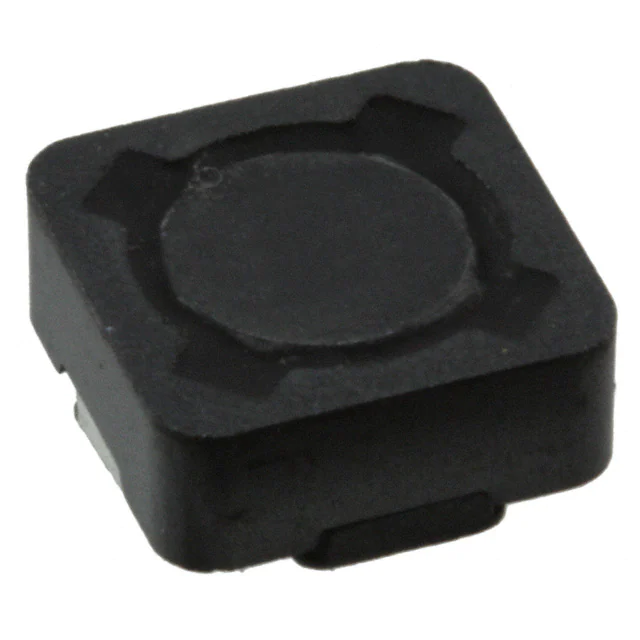

DRA73-470-RFIXED IND 47UH 1.02A 275MOHM SMD Eaton - Electronics Division |
170 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.02 A | 1.1A | Shielded | 275mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
MPI4015V2-6R8-RFIXED IND 6.8UH 2A 207 MOHM SMD Eaton - Electronics Division |
1,484 |
|
规格书 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 2 A | 2.3A | Shielded | 207mOhm Max | - | 21MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.059" (1.50mm) |
|

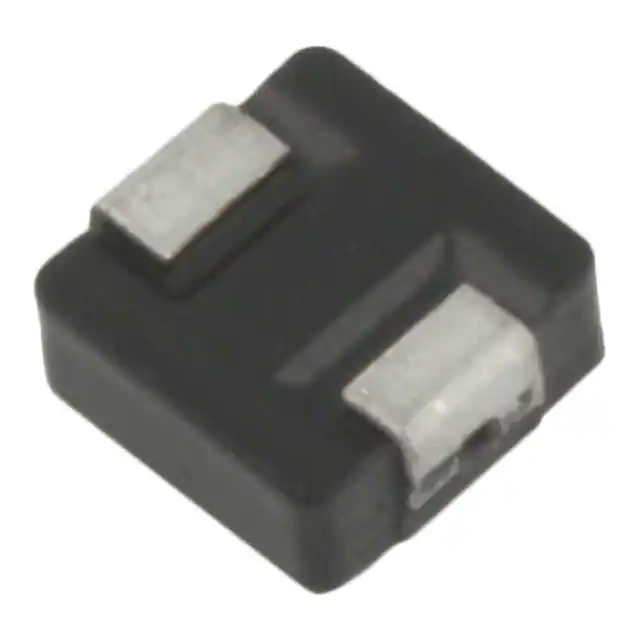

HCM0703-4R7-RFIXED IND 4.7UH 5.5A 40 MOHM SMD Eaton - Electronics Division |
13,726 |
|
规格书 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
