在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

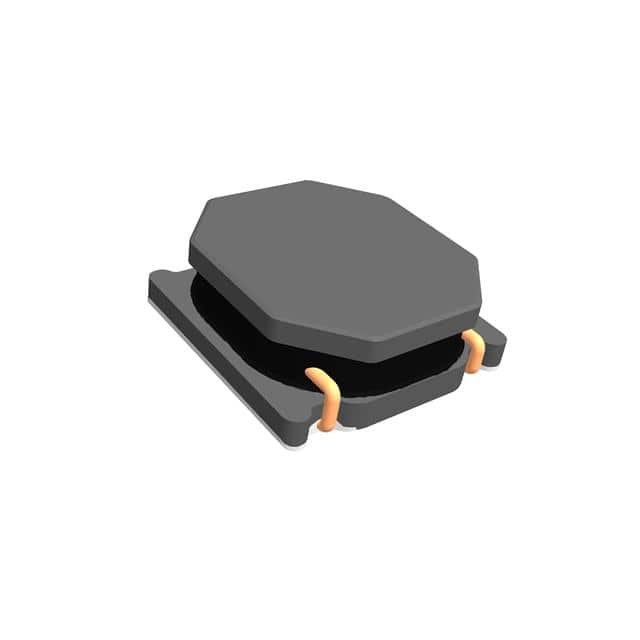

SDCHA1V5020-1R0-RIND SMD POWER 1.0UH 4.1A |
2,445 |
|
规格书 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 1 µH | ±30% | 4.1 A | 5A | Shielded | 20mOhm | - | 137MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

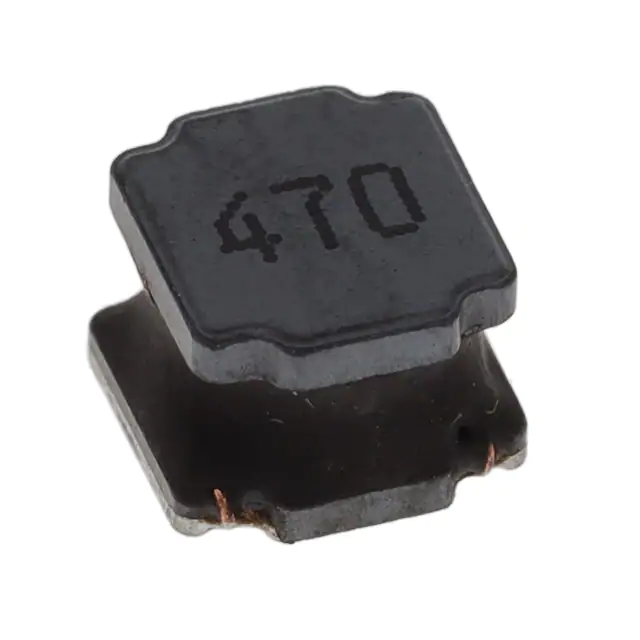

ASPI-6045T-470M-TIND 47UH 1.2A 260M |
2,357 |
|
规格书 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.4A | Shielded | 260mOhm Max | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SDCHA1V5020-6R8-RIND SMD POWER 6.8UH 1.9A |
2,248 |
|
规格书 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 1.9 A | 2.1A | Shielded | 90mOhm | - | 45MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
744762333AFIXED IND 3.3UH 185MA 2.85OHM SM |
1,970 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 185 mA | - | Unshielded | 2.85Ohm Max | 20 @ 7.96MHz | 80MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762382AFIXED IND 8.2UH 160MA 3.05OHM SM |
1,965 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 160 mA | - | Unshielded | 3.05Ohm Max | 20 @ 7.96MHz | 36MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762415AFIXED IND 15UH 130MA 4 OHM SMD |
1,950 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 130 mA | - | Unshielded | 4Ohm Max | 15 @ 2.52MHz | 26MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

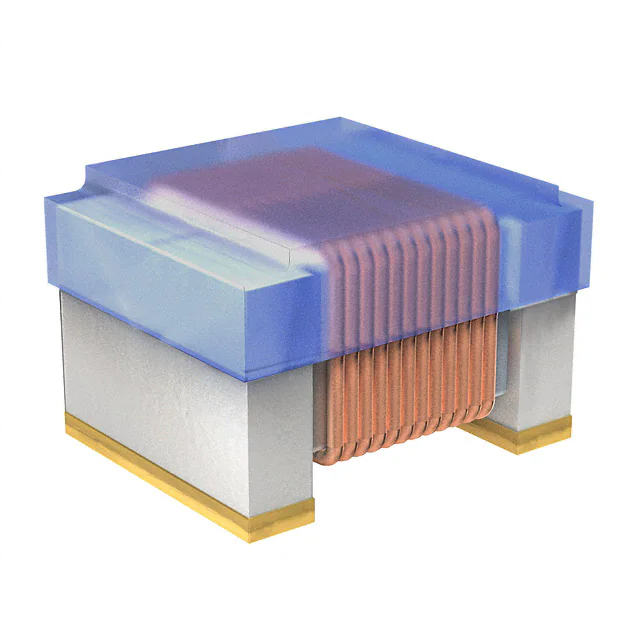

744758310AFIXED IND 1UH 370MA 1.7 OHM SMD |
1,945 |
|
规格书 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 370 mA | - | Unshielded | 1.7Ohm Max | 33 @ 100MHz | 290MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
.jpg)
|
744760356AFIXED IND 5.6UH 160MA 3 OHM SMD |
1,820 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 160 mA | - | Unshielded | 3Ohm Max | 15 @ 7.96MHz | 45MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760312AFIXED IND 1.2UH 150MA 2.38OHM SM |
1,810 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 150 mA | - | Unshielded | 2.38Ohm Max | 15 @ 7.96MHz | 200MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
744762112AFIXED IND 12NH 1A 80 MOHM SMD |
1,775 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 3.6GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762347AFIXED IND 4.7UH 175MA 4.3OHM SMD |
1,675 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 175 mA | - | Unshielded | 4.3Ohm Max | 20 @ 7.96MHz | 45MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
MDMK4040T1R0MMFIXED IND 1UH 4.5A 360 MOHM SMD |
1,675 |
|
规格书 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.5 A | 5A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
SDCHA1V5040-6R8-RIND SMD POWER 6.8UH 2.5A |
1,500 |
|
规格书 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 2.5 A | 3.3A | Shielded | 43mOhm | - | 29MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SDCHA1V5040-2R2-RIND SMD POWER 2.2UH 3.8A |
1,500 |
|
规格书 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 3.8 A | 5.7A | Shielded | 21mOhm | - | 55MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SDCHA1V5040-4R7-RIND SMD POWER 4.7UH 3.2A |
1,453 |
|
规格书 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 3.2 A | 3.9A | Shielded | 32mOhm | - | 36MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
744762339AFIXED IND 3.9UH 180MA 4 OHM SMD |
1,419 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 180 mA | - | Unshielded | 4Ohm Max | 20 @ 7.96MHz | 50MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
SDCHA1V5040-100-RIND SMD POWER 10.0UH 2.2A |
1,418 |
|
规格书 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 2.2 A | 2.52A | Shielded | 56mOhm | - | 26MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SDCHA1V5040-1R0-RIND SMD POWER 1.0UH 5.0A |
1,392 |
|
规格书 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 1 µH | ±20% | 5 A | 7.5A | Shielded | 12mOhm | - | 140MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
744762318AFIXED IND 1.8UH 210MA 2.2OHM SMD |
1,360 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 210 mA | - | Unshielded | 2.2Ohm Max | 20 @ 7.96MHz | 200MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

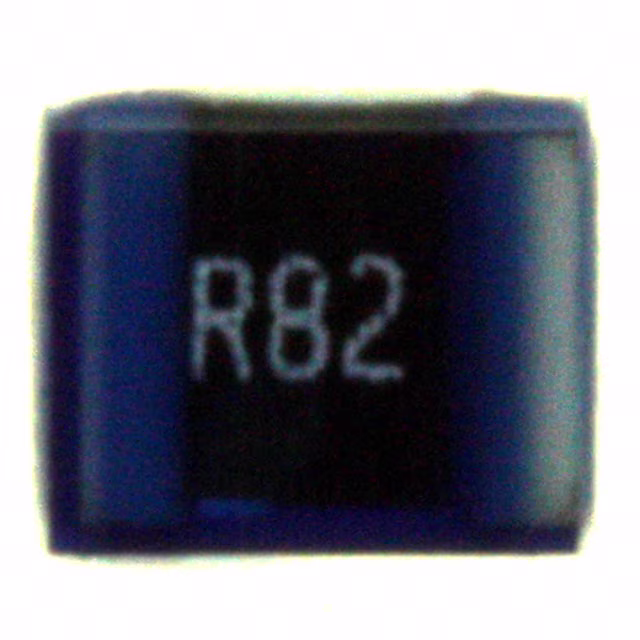

744762282AFIXED IND 820NH 180MA 2.3OHM SMD |
1,260 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 180 mA | - | Unshielded | 2.3Ohm Max | 45 @ 100MHz | 350MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
