在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744758268AFIXED IND 680NH 480MA 1.2OHM SMD |
1,990 |
|
规格书 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±5% | 480 mA | - | Unshielded | 1.2Ohm Max | 40 @ 100MHz | 375MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
VLS3012HBX-R47M-NINDUCTORS FOR POWER CIRCUITS, WO |
1,959 |
|
规格书 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.32 A | 6.3A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
744758256AFIXED IND 560NH 450MA 1.33OHM SM |
1,939 |
|
规格书 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 450 mA | - | Unshielded | 1.33Ohm Max | 45 @ 100MHz | 415MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
84102CFIXED IND 1UH 2.8A 80 MOHM SMD |
1,820 |
|
规格书 |
8400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 2.8 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.177" L x 0.130" W (4.50mm x 3.30mm) | 0.114" (2.90mm) |
|
74479153FIXED IND 3.3UH 50MA 700MOHM SMD |
1,153 |
|
规格书 |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±10% | 50 mA | - | Unshielded | 700mOhm Max | 45 @ 10MHz | 48MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
PA2982.191HLFIXED IND 190NH 62A 0.35MOHM SMD |
4,240 |
|
规格书 |
PA2982.XXXHL | Nonstandard | Tray | Active | - | - | 190 nH | ±10% | 62 A | 48A | Shielded | 0.35mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.201" (5.10mm) |
|
SDR0302-331KLFIXED IND 330UH 130MA 10 OHM SMD |
7,255 |
|
规格书 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 130 mA | 150mA | Unshielded | 10Ohm Max | 40 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
B82144B1155J000FIXED IND 1.5MH 230MA 6.4 OHM TH |
5,240 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 230 mA | - | Unshielded | 6.4Ohm Max | 60 @ 252kHz | 1.9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|
|
SDR0302-121KLFIXED IND 120UH 220MA 3.2OHM SMD |
5,169 |
|
规格书 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 220 mA | 250mA | Unshielded | 3.2Ohm Max | 40 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
SDR0302-6R8MLFIXED IND 6.8UH 1A 180 MOHM SMD |
4,888 |
|
规格书 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 1.2A | Unshielded | 180mOhm Max | 18 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
SDR0302-100KLFIXED IND 10UH 800MA 250MOHM SMD |
3,890 |
|
规格书 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 900mA | Unshielded | 250mOhm Max | 18 @ 2.52MHz | 34MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
AIAC-1008C-27NK-TFIXED IND 27NH 600MA 13.9MOHM SM |
3,284 |
|
规格书 |
AIAC-1008C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27 nH | ±10% | 600 mA | - | Unshielded | 13.9mOhm Max | 70 @ 300MHz | 1.6GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.126" L x 0.075" W (3.20mm x 1.90mm) | 0.087" (2.20mm) |
|
|
B82144B1225J000FIXED IND 2.2MH 180MA 9.5 OHM TH |
2,945 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 180 mA | - | Unshielded | 9.5Ohm Max | 60 @ 252kHz | 1.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|
B82144A2155J000FIXED IND 1.5MH 160MA 6 OHM TH |
2,900 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 160 mA | - | Unshielded | 6Ohm Max | 60 @ 252kHz | 1MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
AIAC-0805C-33NK-TFIXED IND 33NH 500MA 18.7MOHM SM |
2,701 |
|
规格书 |
AIAC-0805C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 33 nH | ±10% | 500 mA | - | Unshielded | 18.7mOhm Max | 70 @ 300MHz | 1.6GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.112" L x 0.071" W (2.85mm x 1.80mm) | 0.083" (2.10mm) |
|
SDR0403-151KLFIXED IND 150UH 260MA 3.4OHM SMD |
2,400 |
|
规格书 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 260 mA | 400mA | Unshielded | 3.4Ohm Max | 50 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
AIAC-1008C-6N8K-TFIXED IND 6.8NH 1.2A 4 MOHM SMD |
2,170 |
|
规格书 |
AIAC-1008C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 6.8 nH | ±10% | 1.2 A | - | Unshielded | 4mOhm Max | 80 @ 300MHz | 3GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.126" L x 0.075" W (3.20mm x 1.90mm) | 0.087" (2.20mm) |
|

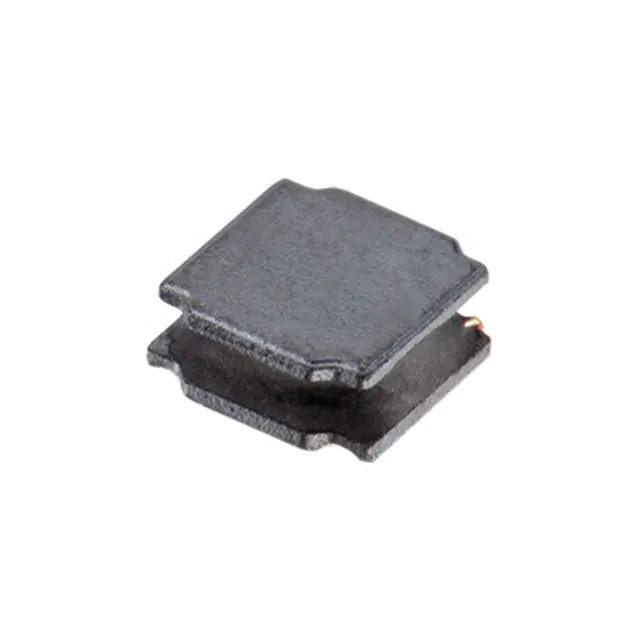

744040200047FIXED IND 470NH 2.08A 49MOHM SMD |
2,000 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2.1 A | 2.8A | Shielded | 49mOhm | - | 293MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SDR0302-681KLFIXED IND 680UH 85MA 18 OHM SMD |
1,929 |
|
规格书 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 85 mA | 110mA | Unshielded | 18Ohm Max | 43 @ 796kHz | 4.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
SDR0403-181KLFIXED IND 180UH 240MA 3.9OHM SMD |
1,869 |
|
规格书 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 240 mA | 390mA | Unshielded | 3.9Ohm Max | 50 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
