在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWSA0605S-R47MTFIXED IND 470NH 20A 3.9MOHM SMD |
979 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 470 nH | ±20% | 20 A | 21A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MWSA0604S-470MTFIXED IND 47UH 320 MOHM SMD |
978 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 47 µH | ±20% | - | - | Shielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
MWSA0605S-1R0MTFIXED IND 1UH 12A 6.6 MOHM SMD |
919 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 12 A | 16A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
78404054010WE-LQSA SMT SEMI-SHIELDED POWER |
855 |
|
规格书 |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 5.7 A | 7.4A | Shielded | 14mOhm Max | - | 187MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
EXLA1V0606-6R8-RIND MOLDED SHLD 6.8UH 9.0A |
680 |
|
规格书 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 9 A | 8.7A | Shielded | 20.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
ASPIAIG-F6030-R56M-TFIXED IND 560NH 22A 3.31MOHM SMD |
645 |
|
规格书 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 22 A | 25A | Shielded | 3.31mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6030 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
9230-32-RCFIXED IND 3.3UH 380MA 850MOHM TH |
591 |
|
规格书 |
9230 | Axial | Bulk | Active | Molded | Ferrite | 3.3 µH | ±10% | 380 mA | - | Unshielded | 850mOhm Max | 45 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
NS10145T220MNVVFIXED IND 22UH 2.3A 68.4MOHM SMD |
470 |
|
规格书 |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.3 A | 2.87A | Shielded | 68.4mOhm Max | - | 13.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
EXLA1V0606-4R7-RIND MOLDED SHLD 4.7UH 11.0A |
337 |
|
规格书 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 11 A | 9.5A | Shielded | 14.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
|
EXLA1V0606-1R5-RIND MOLDED SHLD 1.5UH 16.0A |
195 |
|
规格书 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 16 A | 14A | Shielded | 5.61mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
|
5300-43-RCFIXED IND 3.3MH 83MA 29 OHM TH |
109 |
|
规格书 |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 83 mA | 52mA | Unshielded | 29Ohm Max | - | 530kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
MGAH10056R8M-101005 INDUCTOR 6.8UH 8.5A |
7,962 |
|
规格书 |
MGAH1005 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 8.5 A | 14A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MGAH10052R2M-101005 INDUCTOR 2.2UH 13A |
7,825 |
|
规格书 |
MGAH1005 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 13 A | 20A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MGAH10051R5M-101005 INDUCTOR 1.5UH 16A |
7,677 |
|
规格书 |
MGAH1005 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 16 A | 26A | Shielded | 3.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.201" (5.10mm) |
|
PA4546.472NLTFIXED IND 4.7UH 2A 145 MOHM SMD |
6,787 |
|
规格书 |
PA4546.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 2 A | 2.5A | Unshielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MGAH1005330M-101005 0603 INDUCTOR 33UH 4.5A |
6,661 |
|
规格书 |
MGAH1005 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 4.5 A | 5A | Shielded | 76mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.201" (5.10mm) |
|
SPM5015T-1R5M-LRFIXED IND 1.5UH 5.2A 36.9MOHM SM |
3,563 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 5.2 A | 6A | Shielded | 36.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
PA4547.332NLTFIXED IND 3.3UH 2.5A 205MOHM SMD |
2,934 |
|
规格书 |
PA4547.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.5 A | 3.2A | Unshielded | 205mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PA4547.102NLTFIXED IND 1UH 3.6A 50 MOHM SMD |
2,900 |
|
规格书 |
PA4547.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.6 A | 5.8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|

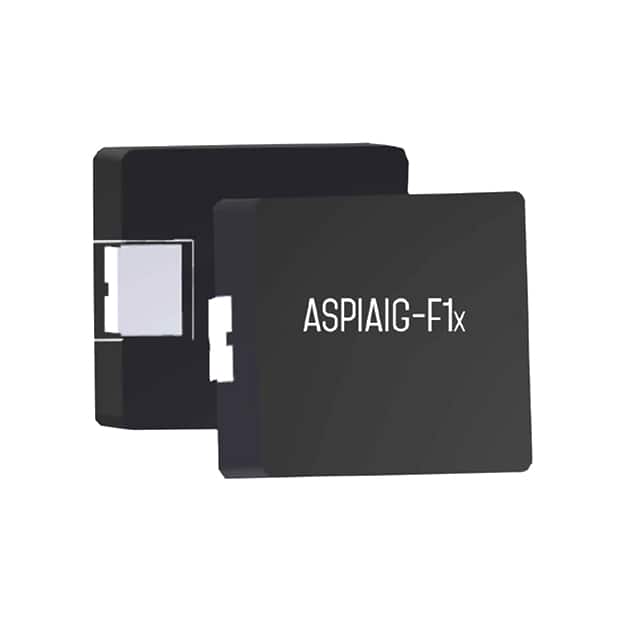

ASPIAIG-F1040-R15N-TFIXED IND 150NH 43A 0.6 MOHM SMD |
2,613 |
|
规格书 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 43 A | 75A | Shielded | 0.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
