在线询价高频（RF）继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

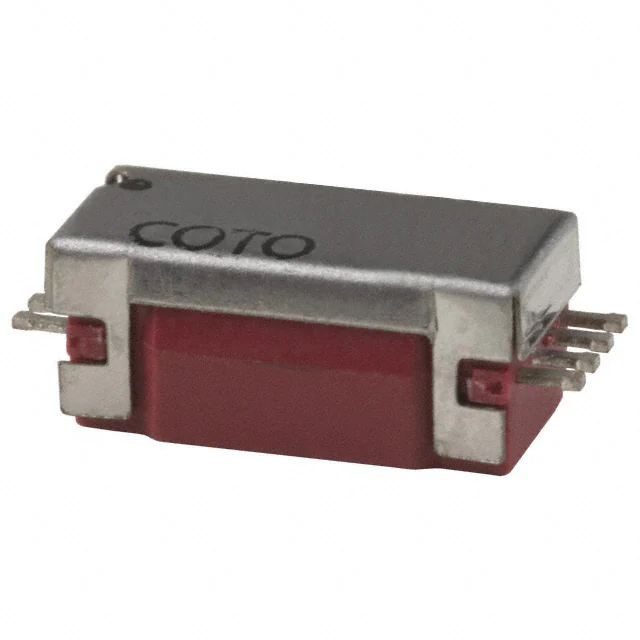

9814-03-10RELAY RF SPST-NO 250MA 3.3V Coto Technology |
2,017 |
|
规格书 |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
9814-05-10RELAY RF SPST-NO 250MA 5V Coto Technology |
3,892 |
|
规格书 |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
9852-03-00RELAY RF SPDT 100MA 3.3V Coto Technology |
4,411 |
|
规格书 |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 2.5 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9852-03-20RELAY RF SPDT 100MA 3.3V Coto Technology |
1,379 |
|
规格书 |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 2.5 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9852-05-10RELAY RF SPDT 100MA 5V Coto Technology |
4,663 |
|
规格书 |
9800 | Tube | Obsolete | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
2611-05-320RELAY RF SPDT 250MA 5V Coto Technology |
3,216 |
|
规格书 |
2600 | Bulk | Obsolete | Non Latching | - | 5VDC | SPDT (1 Form C) | 250 mA | 200VDC - Max | 3.7 VDC | 0.4 VDC | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C |
|
|
2611-05-321RELAY RF SPDT 250MA 5V Coto Technology |
2,053 |
|
规格书 |
2600 | Bulk | Obsolete | Non Latching | - | 5VDC | SPDT (1 Form C) | 250 mA | 200VDC - Max | 3.7 VDC | 0.4 VDC | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C |
|
|
2611-12-321RELAY RF SPDT 250MA 12V Coto Technology |
3,618 |
|
规格书 |
2600 | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 250 mA | 200VDC - Max | 9 VDC | 1 VDC | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C |
|
|
2653-05-320RELAY RF DPST-NO 500MA 5V Coto Technology |
2,932 |
|
规格书 |
2600 | Bulk | Obsolete | Non Latching | - | 5VDC | DPST-NO (2 Form A) | 500 mA | 250VAC - Max | 3.7 VDC | 0.4 VDC | - | - | - | Through Hole | PC Pin | -20°C ~ 70°C |
|
|
9002-12-10RELAY RF SPST-NO 500MA 12V Coto Technology |
4,388 |
|
规格书 |
9000 | Tube | Obsolete | Non Latching | 16 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | Magnetic Shield | Through Hole | PC Pin | -20°C ~ 85°C |
