在线询价工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CP10.241AC/DC DIN RAIL SUPPLY 24V 240W |
157 |
|
规格书 |
DIMENSION CP (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CP5.241-C1AC/DC DIN RAIL SUPPLY 24V 120W |
4,962 |
|
规格书 |
DIMENSION CP (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX, IEC, IECEx, UL | Class I Div 2; 61010-2-201; 62368-1 |
|

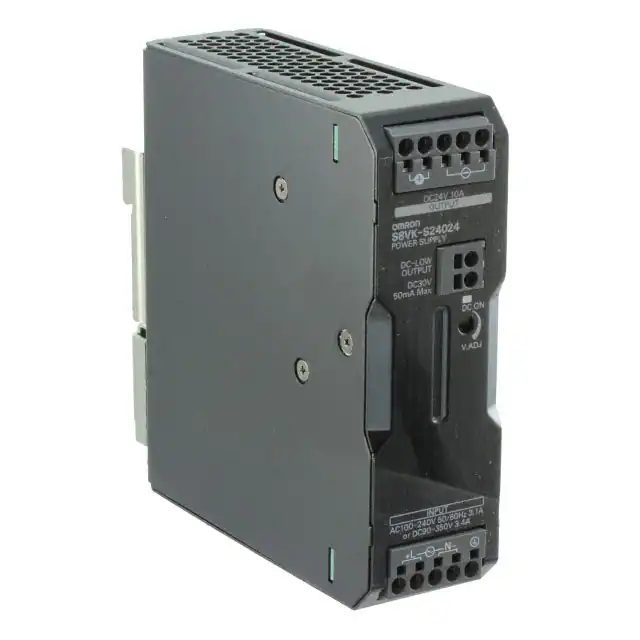

S8VK-S24024AC/DC DIN RAIL SUPPLY 24V 240W |
413 |
|
规格书 |
S8VK-S (240W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cURus, TUV | - |
|

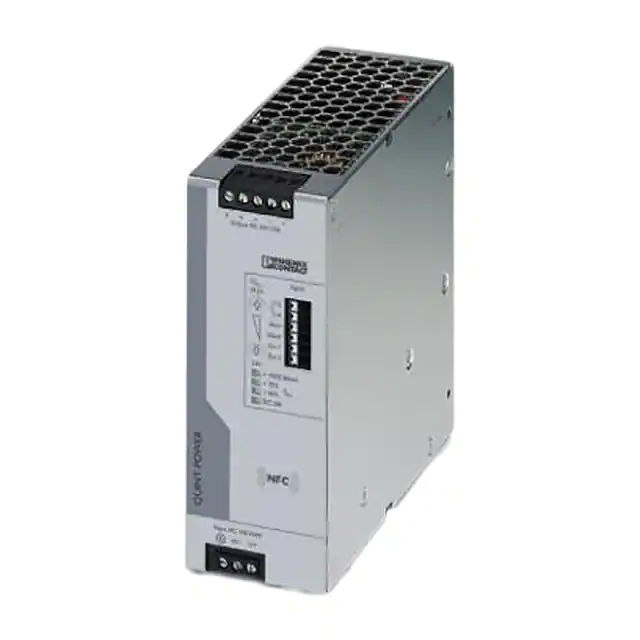

2904601AC/DC DIN RAIL SUPPLY 24V 240W |
325 |
|
规格书 |
Quint | Box | Active | AC | 1 | 100 ~ 250 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, IP20 | CSA, cUL, cURus | - |
|

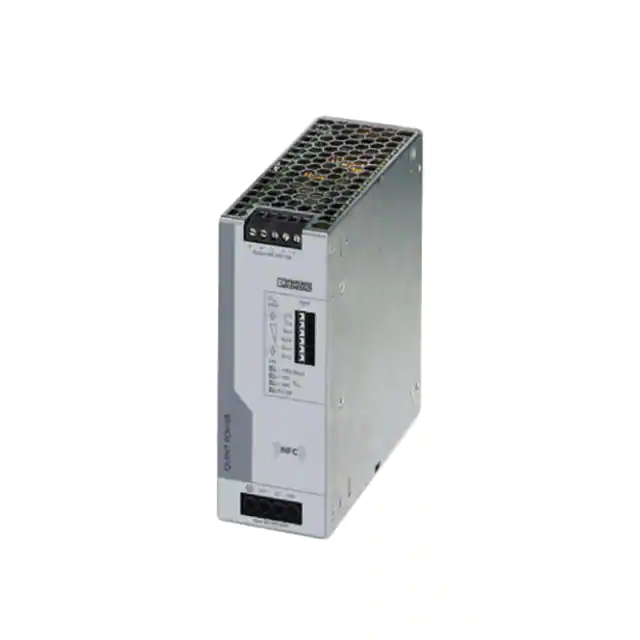

2904621AC/DC DIN RAIL SUPPLY 24V 240W |
3,841 |
|
规格书 |
Quint | Box | Active | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, IP20 | CSA, cUL, cURus | - |
|

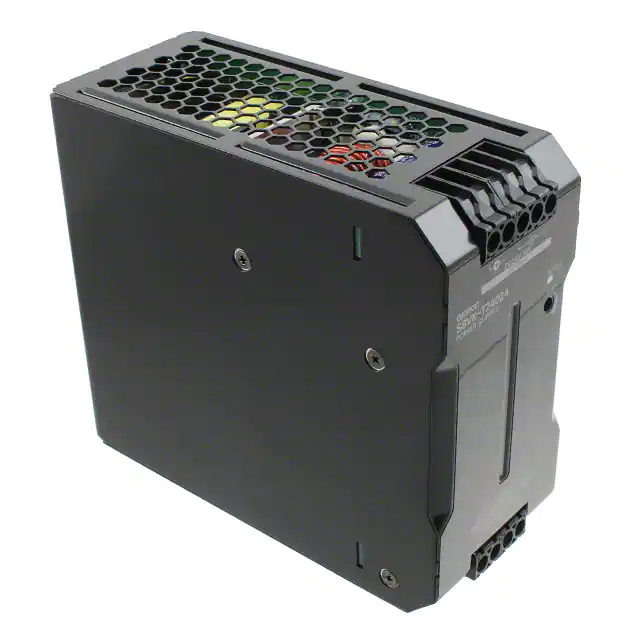

S8VK-T24024AC/DC DIN RAIL SUPPLY 24V 240W |
888 |
|
规格书 |
S8VK-T (240W) | Box | Active | AC | 1 | 320 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | CE, TUV, UL | - |
|
S8VS-12024AAC/DC DIN RAIL SUPPLY 24V 120W |
293 |
|
规格书 |
S8VS (120W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, VDE | - |
|
DRM-24V480W1PNAC/DC DIN RAIL SUPPLY 24V 480W |
4,716 |
|
规格书 |
CliQ M (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4.54 kV | ITE (Commercial) | 94.17% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC | CB, cCSAus, CE, cULus, cURus | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-6-2; 61000-6-3; 61010-1; 61204-3; 61558-1; 61558-2-16; 62368-1 |
|
2903151AC/DC DIN RAIL SUPPLY 24V 480W |
137 |
|
规格书 |
TRIO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | cULus, cURus, EAC | - |
|

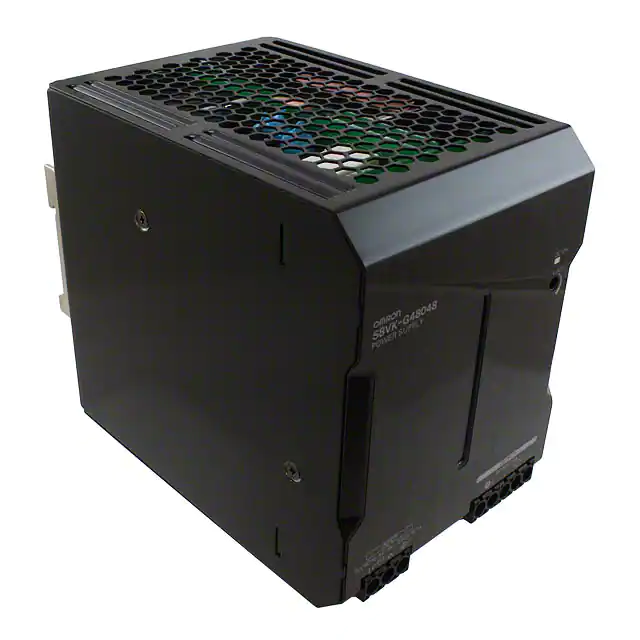

S8VK-G48048AC/DC DIN RAIL SUPPLY 48V 480W |
3,583 |
|
规格书 |
S8VK-G (480W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 93% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | CE, cULus, cURus, VDE | - |
|

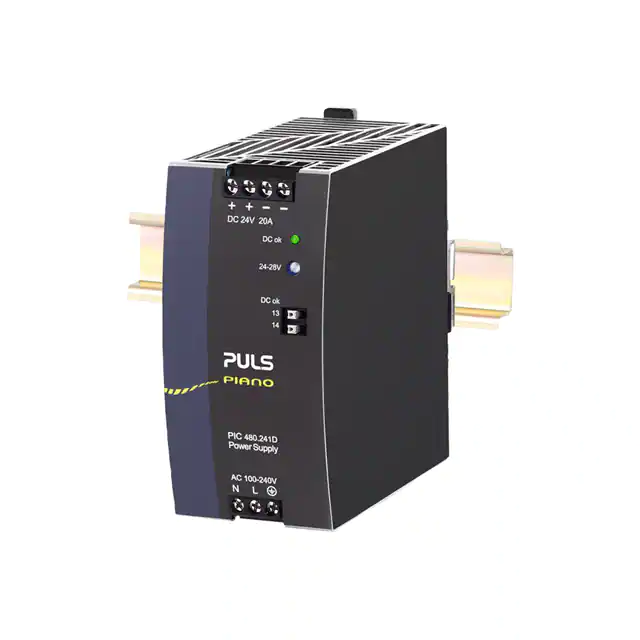

PIC480.241DAC/DC DIN RAIL SUPPLY 24V 480W |
2,083 |
|
规格书 |
PIANO (480W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial), Laboratory | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | EAC, IEC, UL | 61010-2-201; 62368-1 |
|

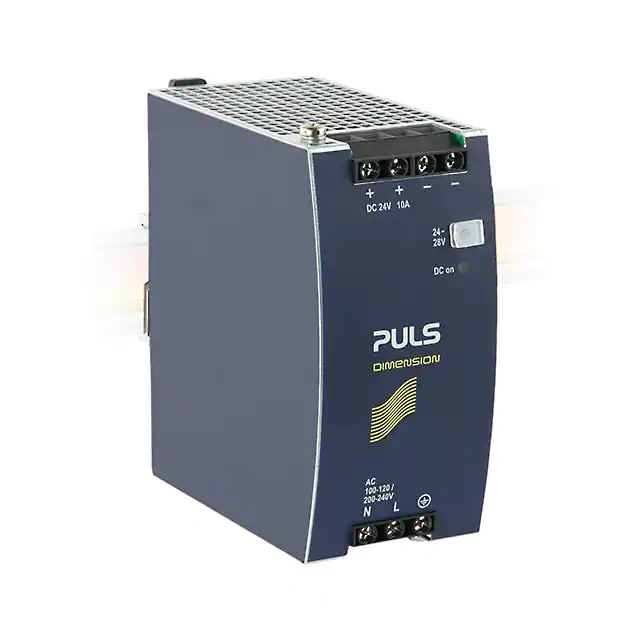

CS10.241AC/DC DIN RAIL SUPPLY 24V 240W |
108 |
|
规格书 |
DIMENSION C (240W) | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 91.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

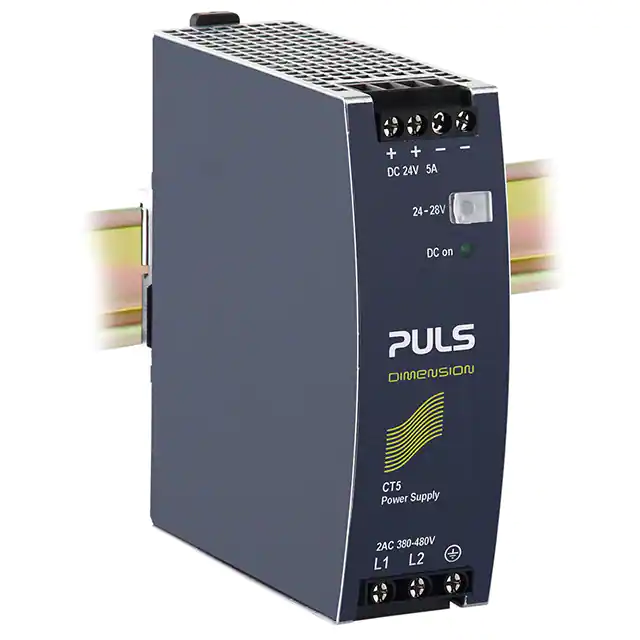

CT5.241AC/DC DIN RAIL SUPPLY 24V 120W |
4,656 |
|
规格书 |
DIMENSION C (120W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90.4% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|

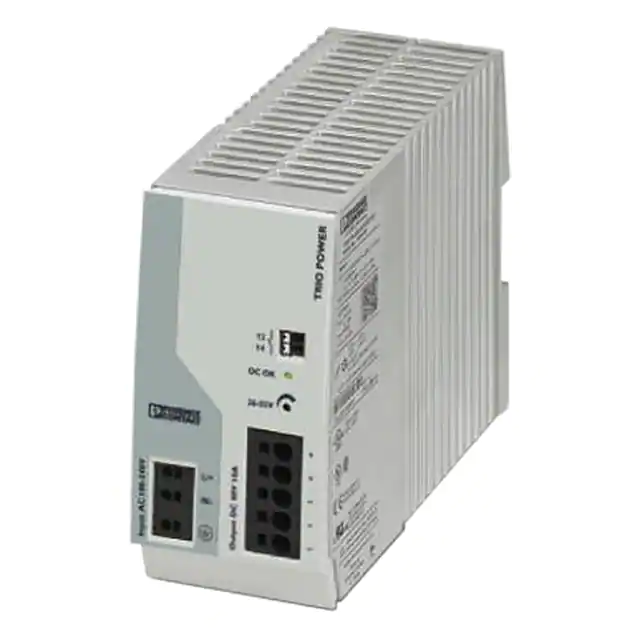

2903160AC/DC DIN RAIL SUPPLY 48V 480W |
1,865 |
|
规格书 |
TRIO | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 48V | - | - | - | - | - | - | 480W | 3 kV | Industrial, ITE (Commercial) | 93.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, UL | - |
|

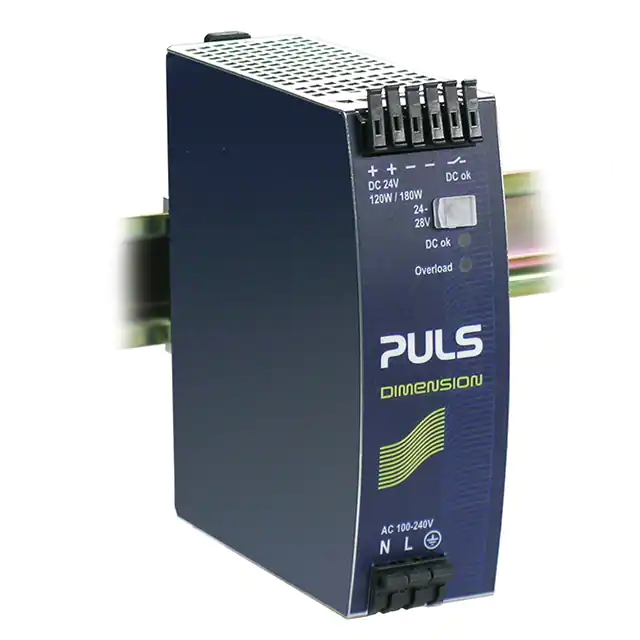

QS5.241AC/DC DIN RAIL SUPPLY 24V 120W |
1,538 |
|
规格书 |
DIMENSION Q (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | Hazardous Locations, ITE (Commercial) | 92.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|

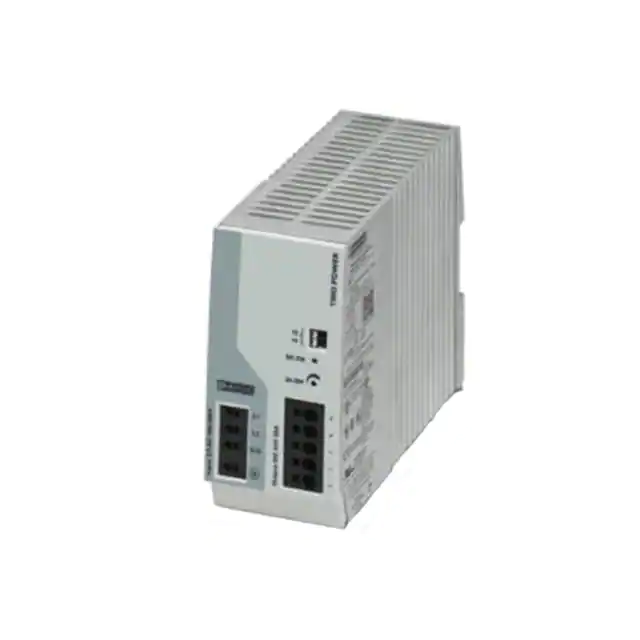

2903155AC/DC DIN RAIL SUPPLY 24V 480W |
146 |
|
规格书 |
TRIO | Bulk | Active | AC | 1 | 320 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | cULus, cURus, EAC | - |
|
CD5.241DC/DC DIN RAIL SUPPLY 24V 120W |
4,962 |
|
规格书 |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 18V | 32.4V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90.3% | -25°C ~ 70°C (With Derating) | - | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1 |
|
CP10.481AC/DC DIN RAIL SUPPLY 48V 240W |
126 |
|
规格书 |
DIMENSION CP (260W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5.4A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CP10.121AC/DC DIN RAIL SUPPLY 12V 192W |
1,281 |
|
规格书 |
DIMENSION CP (192W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 16A | 192W | 3 kV | Hazardous Locations, ITE (Commercial) | 94.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

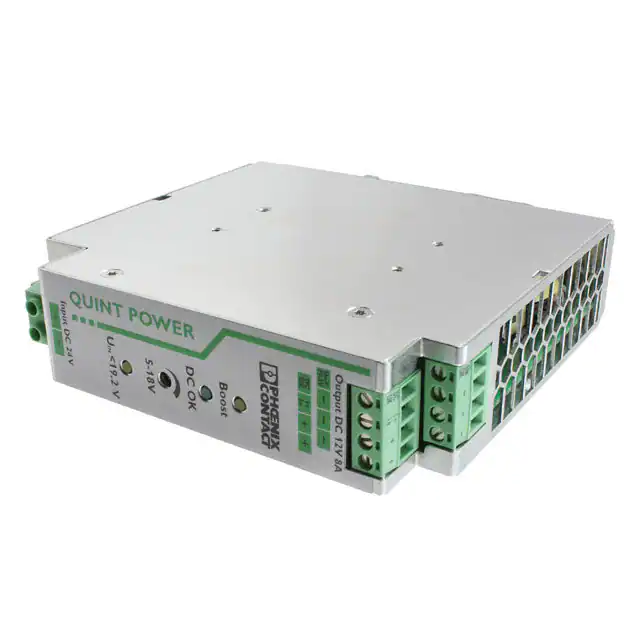

2320115DC/DC DIN RAIL SUPPLY 12V 96W |
279 |
|
规格书 |
Quint | Bulk | Active | DC | 1 | - | 18V | 32V | 12V | - | - | - | - | - | 8A | 96W | - | ITE (Commercial) | 90% | -25°C ~ 70°C | Adjustable Output, IP20 | cULus | 60950-1 |
