在线询价工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYB20-Q48-S15-DINDC/DC DIN RAIL SUPPLY 15V 20W |
1,435 |
|
规格书 |
PYB20-DIN (20W) | Tray | Obsolete | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 1.333A | 20W | - | - | 88% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
SPM5241SAC/DC CONVERTER 24V 91W |
4,482 |
|
规格书 |
SPM5 (100W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 3.8A | 91W | 3 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, TUV | - |
|

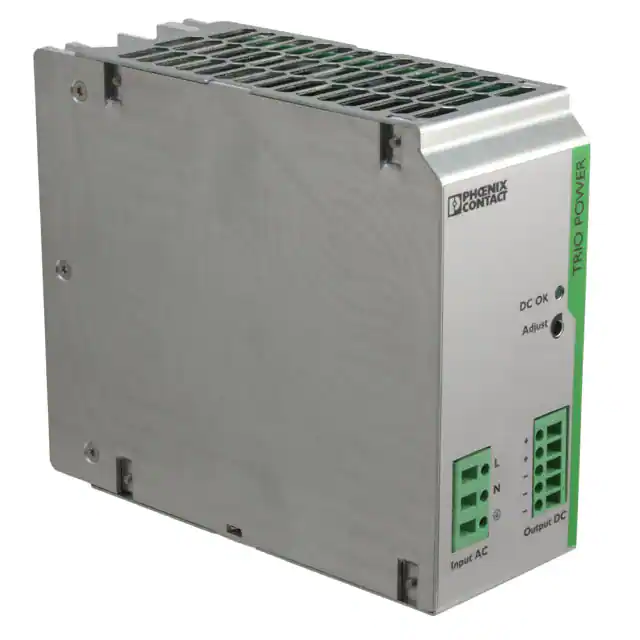

2866310AC/DC DIN RAIL SUPPLY 24V 120W |
3,827 |
|
规格书 |
TRIO | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | IP20, Universal Input | cULus, cURus, UL | - |
|
SDR-240-24AC/DC CONVERTER 2X24V 240W |
2,495 |
|
规格书 |
SDR-240 (240W) | Retail Package | Active | - | 2 | - | - | - | 24V | 24V | - | - | - | - | - | 240W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | CB, CE, cULus, EAC, TUV, UKCA | 62368-1; UL 508 |
|
NDR-480-48AC/DC CONVERTER 2X48V 480W |
4,786 |
|
规格书 |
NDR-480 (480W) | Retail Package | Active | - | 2 | - | - | - | 48V | 48V | - | - | - | - | - | 480W | 3 kV | Industrial, ITE (Commercial) | 92.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | CB, CE, cULus, EAC, TUV, UKCA | 62368-1; UL 508 |
|
|
PYB20-Q48-D5-DINDC/DC DIN RAIL SUPPLY +/-5V 20W |
2,579 |
|
规格书 |
PYB20-DIN (20W) | Bulk | Obsolete | DC | 2 | - | 18V | 75V | 5V | -5V | - | - | - | - | 2A, 2A | 20W | - | - | 84% | -40°C ~ 85°C | - | EN | 55024; 55032 Class A |
|
NDR-240-48AC/DC CONVERTER 48V 240W |
2,740 |
|
规格书 |
NDR-240 | Retail Package | Active | - | 1 | - | - | - | 48V | - | - | - | - | - | - | 240W | 3 kV | Industrial, ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | CB, CE, cULus, EAC, KC, PSE, TUV, UKCA | 60950-1; 62368-1; UL 508 |
|

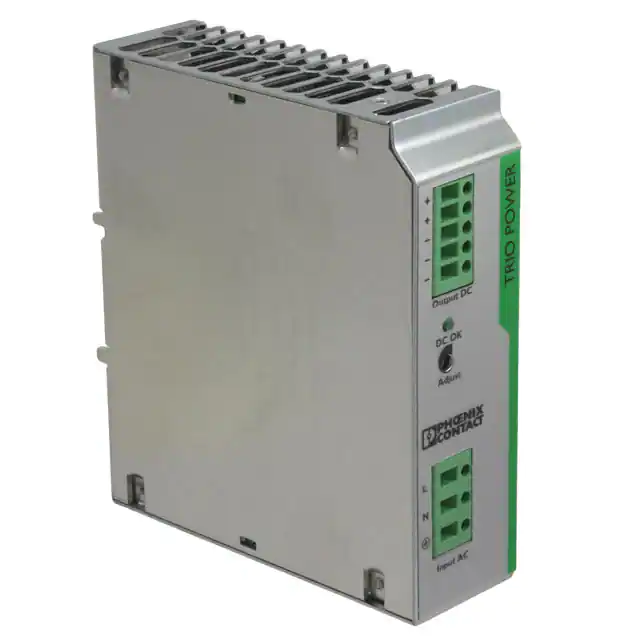

2866323AC/DC DIN RAIL SUPPLY 24V 240W |
2,309 |
|
规格书 |
TRIO | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | IP20, Universal Input | cULus, cURus, UL | - |
|

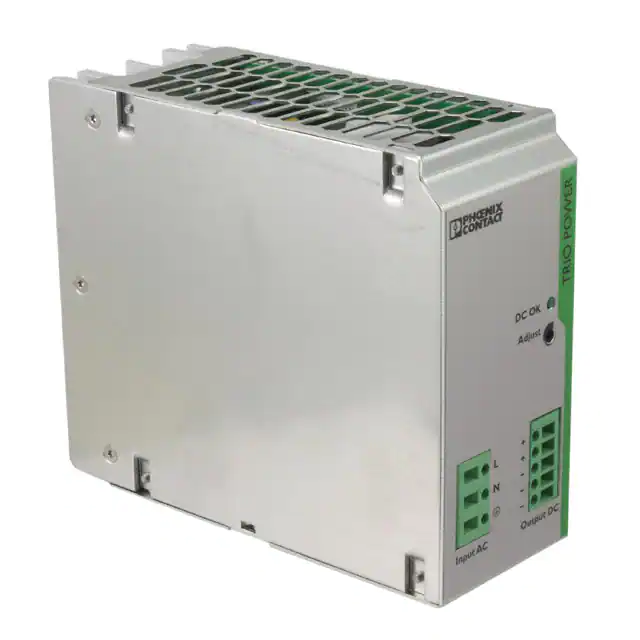

2866459AC/DC DIN RAIL SUPPLY 24V 240W |
3,525 |
|
规格书 |
TRIO | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | IP20, Universal Input | cULus, cURus, UL | - |
|

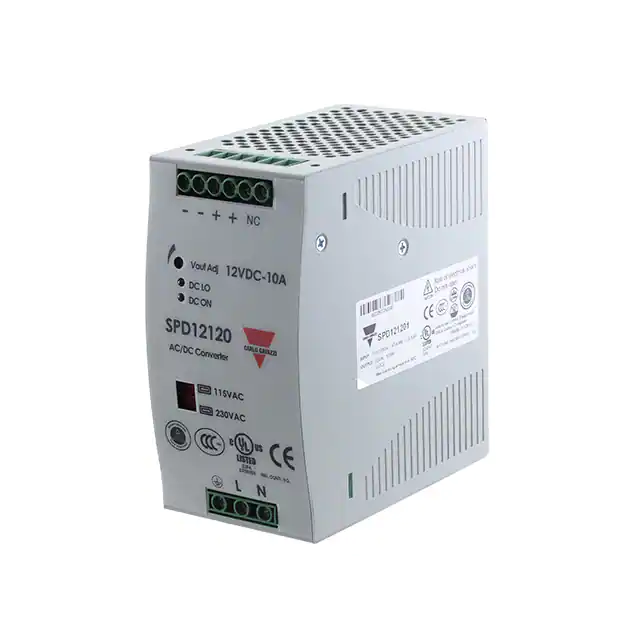

SPD121201AC/DC DIN RAIL SUPPLY 12V 120W |
2,052 |
|
规格书 |
SPD (120W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 12V | - | - | - | - | - | 10A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -35°C ~ 71°C (With Derating) | Adjustable Output, IP20 | CCC, CE, cULus, TUV | - |
|
VHK200W-Q48-S15-DINDC/DC DIN RAIL SUPPLY 15V 200W |
1,327 |
|
规格书 |
VHK200W-DIN (200W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 13.3A | 200W | - | - | 86% | -40°C ~ 85°C | - | CE | - |
|
|
ASINPSM481-7272V DIN Rail Power Supply, 6.7A |
1,442 |
|
规格书 |
- | Retail Package | Active | AC or DC | 1 | 90 ~ 264 VAC | 110V | 345V | 72V | - | - | - | - | - | 6.7A | 482W | 4.2 kV | Industrial, ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | IP20 | CE, cURus | 60950-1; UL 508 |
|

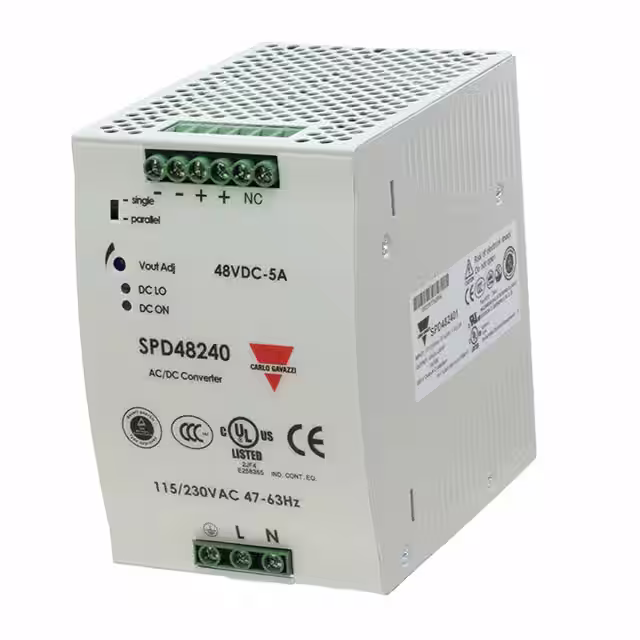

SPD482401AC/DC DIN RAIL SUPPLY 48V 240W |
1,074 |
|
规格书 |
SPD (240W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 48V | - | - | - | - | - | 5A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | CCC, CE, cULus, cURus, TUV | - |
|
SDR-480-24480 Watt Series/ 24 VDC/ 20.0 A |
1,360 |
|
规格书 |
SDR-480 (480W) | Retail Package | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, TUV | - |
|

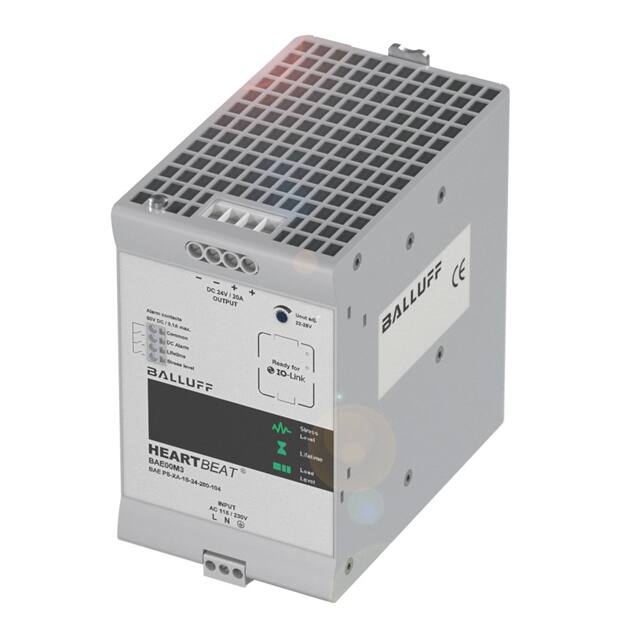

BAE00M3AC/DC DIN RAIL SUPPLY 24V 720W |
4,389 |
|
规格书 |
- | Bag | Active | AC | 1 | 90 ~ 132 VAC, 198 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 30A | 720W | 3 kV | ITE (Commercial) | 94% | -25°C ~ 60°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus | - |
|
|
GDG220S05-15WAC/DC DIN RAIL SUPPLY 5V 15W |
20,000 |
|
规格书 |
- | Case | Active | AC | 1 | 90 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 3A | 15W | 4 kV | ITE (Commercial) | 80% | -20°C ~ 60°C | Universal Input | - | - |
|
|
GDG220S48-15WAC/DC DIN RAIL SUPPLY 48V 60W |
20,000 |
|
规格书 |
- | Case | Active | AC | 1 | 90 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 313mA | 60W | 4 kV | ITE (Commercial) | 80% | -20°C ~ 60°C | Universal Input | - | - |
|
|
GDG220S36-15WAC/DC DIN RAIL SUPPLY 36V 60W |
20,000 |
|
规格书 |
- | Case | Active | AC | 1 | 90 ~ 264 VAC | 120V | 370V | 36V | - | - | - | - | - | 416mA | 60W | 4 kV | ITE (Commercial) | 80% | -20°C ~ 60°C | Universal Input | - | - |
|
|
GDG220S15-15WAC/DC DIN RAIL SUPPLY 15V 100W |
20,000 |
|
规格书 |
- | Case | Active | AC | 1 | 90 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 1A | 100W | 4 kV | ITE (Commercial) | 80% | -20°C ~ 60°C | Universal Input | - | - |
|
|
GDG220S12-15WAC/DC DIN RAIL SUPPLY 12V 15W |
20,000 |
|
规格书 |
- | Case | Active | AC | 1 | 90 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | ITE (Commercial) | 80% | -20°C ~ 60°C | Universal Input | - | - |
