在线询价工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TIB 240-124AC/DC DIN RAIL SUPPLY 24V 240W |
2,178 |
|
规格书 |
TIB 240 (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4.25 kV | Industrial, ITE (Commercial) | 94.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
ML30.102AC/DC DIN RAIL SUPPLY 12V 30W |
3,728 |
|
规格书 |
MiniLine (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3A | 30W | - | ITE (Commercial) | 84% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | CSA, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
ML30.101AC/DC DIN RAIL SUPPLY 5V 30W |
3,757 |
|
规格书 |
MiniLine (25W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 5A | 30W | - | ITE (Commercial) | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
SDP2-24-100TAC/DC DIN RAIL SUPPLY 24V 50W |
2,516 |
|
规格书 |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 2.1A | 50W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus | - |
|

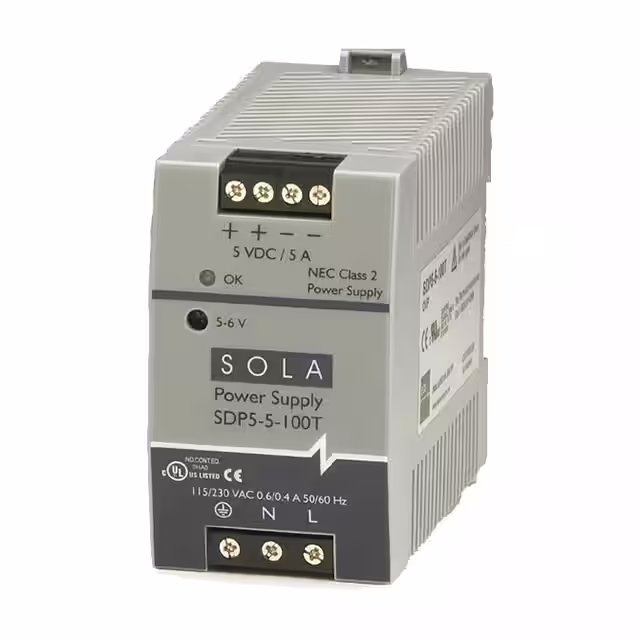

SDP5-5-100TAC/DC DIN RAIL SUPPLY 5V 25W |
4,326 |
|
规格书 |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 5V | - | - | - | - | - | 5A | 25W | - | Hazardous Locations, Industrial, ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus | - |
|

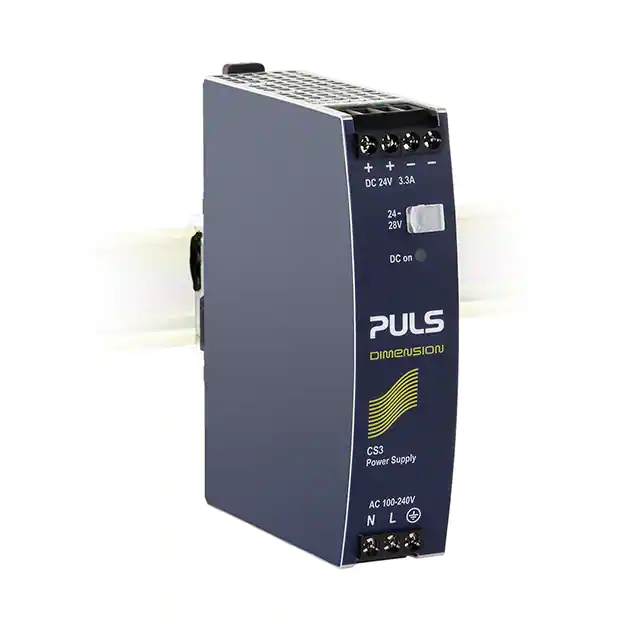

CS3.241AC/DC DIN RAIL SUPPLY 24V 80W |
2,655 |
|
规格书 |
DIMENSION C (80W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.3A | 80W | - | ITE (Commercial) | 89.8% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
DPX40-24WD15DC/DC DIN RAIL SUPPLY +/-15V 40W |
4,895 |
|
规格书 |
DPX (40W) | Bulk | Active | DC | 2 | - | 9.5V | 36V | 15V | -15V | - | - | - | - | 1.333A, 1.333A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | CE | - |
|
DRS-240-12AC/DC DIN RAIL SUPPLY 12V 240W |
4,386 |
|
规格书 |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 12V | - | - | - | - | - | 20A | 240W | 4 kV | ITE (Commercial) | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
|
DRS-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
2,117 |
|
规格书 |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|

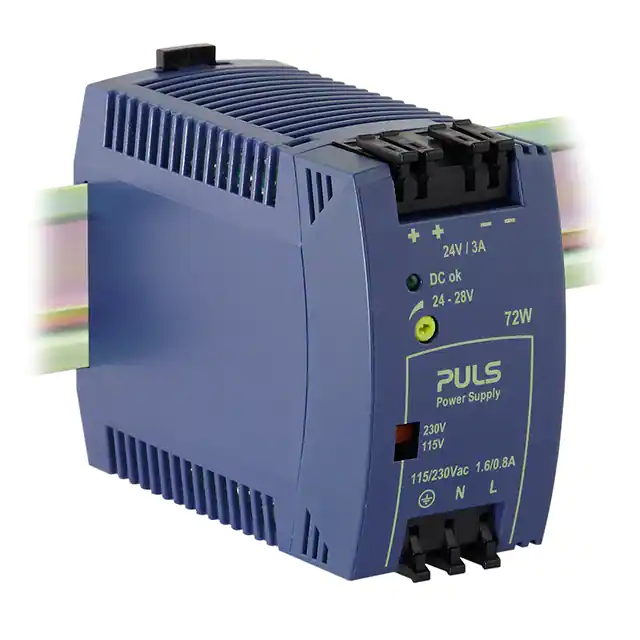

ML70.100AC/DC DIN RAIL SUPPLY 24V 72W |
3,073 |
|
规格书 |
MiniLine (72W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3A | 72W | - | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
1478180000AC/DC DIN RAIL SUPPLY 24V 240W |
2,306 |
|
规格书 |
PRO MAX3 (240W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Industrial, ITE (Commercial) | 91.5% | -25°C ~ 70°C | Adjustable Output, IP20 | CE, cULus, cuRus, EAC, TUV | - |
|
2687-2146POWER SUPPLY; ECO 2; 1-PHASE; 24 |
3,747 |
|
规格书 |
- | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3.51 kV | Laboratory | 93% | -25°C ~ 70°C | Adjustable Output, PFC, Universal Input | CE, cULus, UKCA | 61010-1 |
|

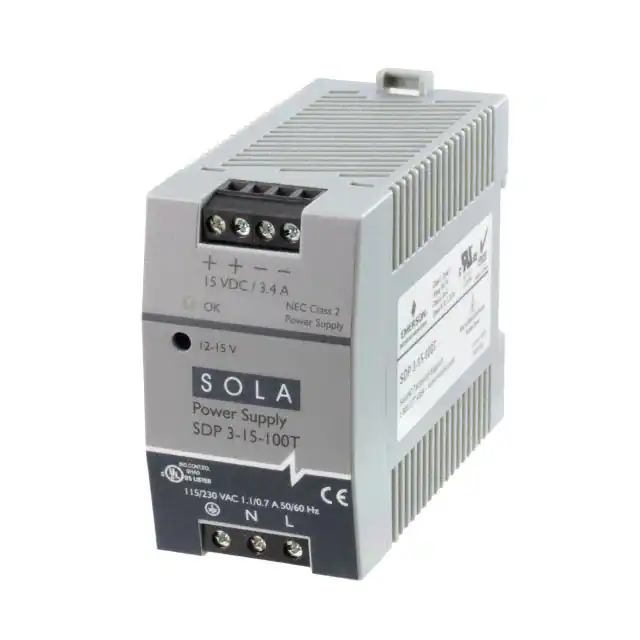

SDP3-15-100TAC/DC DIN RAIL SUPPLY 15V 51W |
2,346 |
|
规格书 |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 15V | - | - | - | - | - | 3.4A | 51W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus | - |
|
ML100.100AC/DC DIN RAIL SUPPLY 24V 100W |
1,602 |
|
规格书 |
MiniLine (100W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.2A | 100W | - | ITE (Commercial) | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

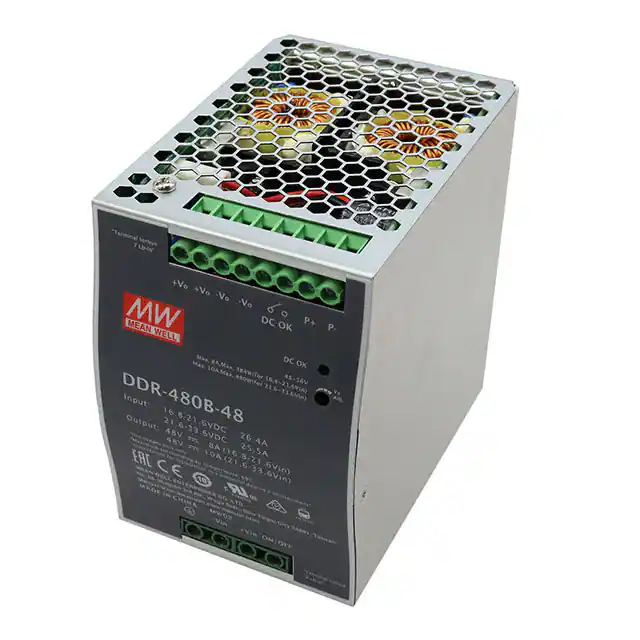

DDR-480B-48DC/DC DIN RAIL SUPPLY 48V 480W |
1,041 |
|
规格书 |
DDR-480 (480W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Railway | 90.5% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|

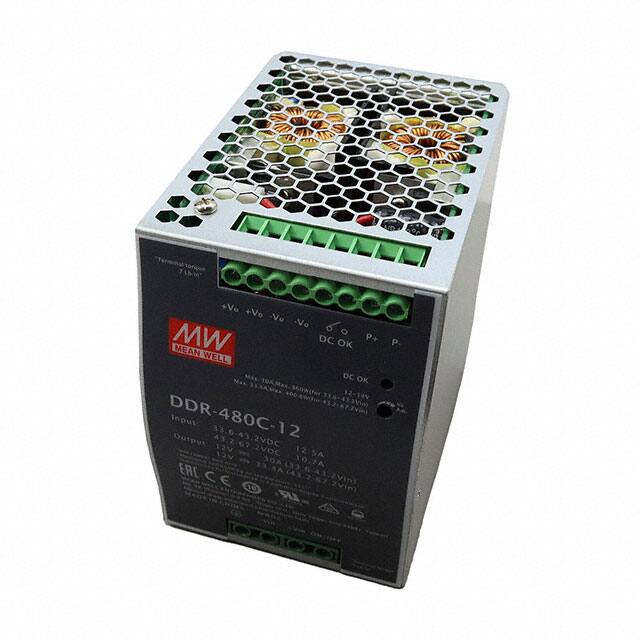

DDR-480C-12DC/DC DIN RAIL SUPPLY 12V 401W |
4,576 |
|
规格书 |
DDR-480 (480W) | Box | Active | DC | 1 | - | 33.6V | 67.2V | 12V | - | - | - | - | - | 33.4A | 401W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
|
DDR-480B-24DC/DC DIN RAIL SUPPLY 24V 480W |
1,507 |
|
规格书 |
DDR-480 (480W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
2001800000DC/DC DIN RAIL SUPPLY 24V 120W |
1,609 |
|
规格书 |
PRO-DCDC (120W) | Box | Active | DC | 1 | - | 14V | 32V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 92% | -20°C ~ 70°C | - | cULus | - |
|

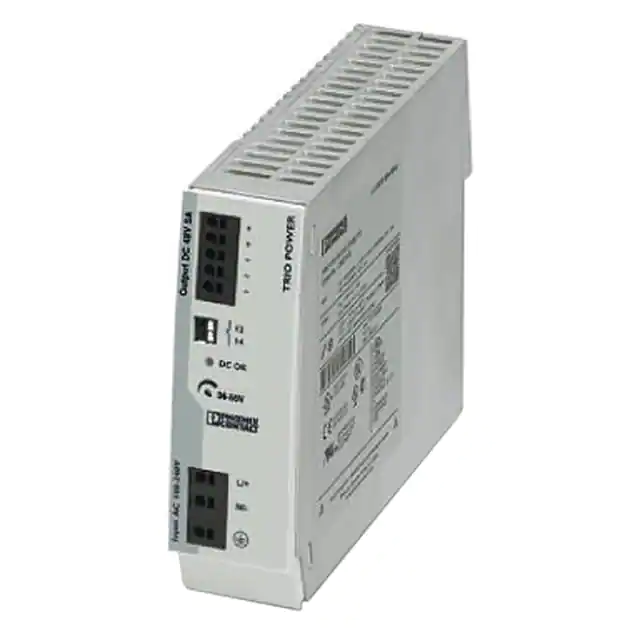

2903159AC/DC DIN RAIL SUPPLY 48V 240W |
4,241 |
|
规格书 |
TRIO | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cUL, UL | - |
|
|
1066708QUINT4-PS/48-110DC/24DC/2.5/PT |
2,117 |
|
规格书 |
- | Bulk | Active | DC | 1 | - | 30V | 110V | 24V | - | - | - | - | - | 2.5A | 60W | 1.2 kV | Laboratory | 93.7% | -25°C ~ 70°C (With Derating) | Adjustable Output | CB | 61010-1 |
