在线询价力传感器、称重传感器 - 工业级
| 图片 | 型号 | 库存 | 数量 | 规格书 | 封装/外壳 | 操作力 | 输出 | 传感器类型 | 精度 | 电压 - 电源 | 执行器类型 | 执行器样式/尺寸 | 包括内容 | 工作温度 | 补偿温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

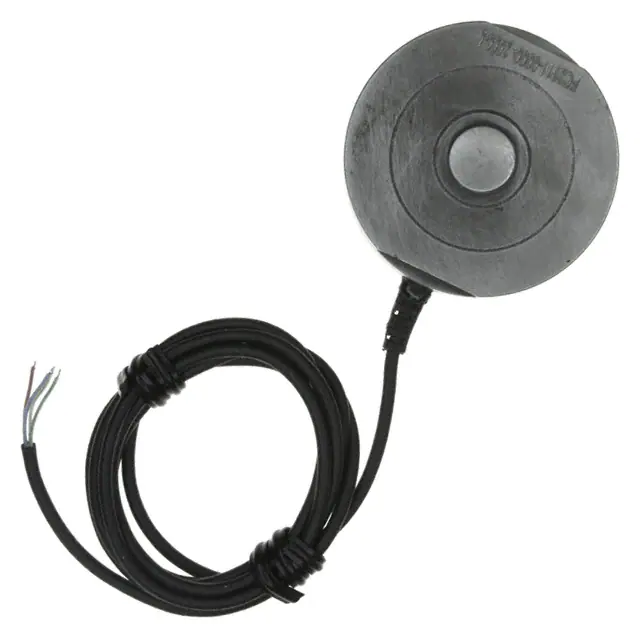

FC2311-0000-2000-LSENSOR FORCE LOAD CELL 2000LBS |
2,089 |
|
规格书 |
907.18kgf (2000lbs) | 100mV | Load Cell | ±1% | 0°C ~ 50°C | 2V ~ 10V | Pushbutton | Round, 8mm | Sensor | -40°C ~ 85°C | |
|

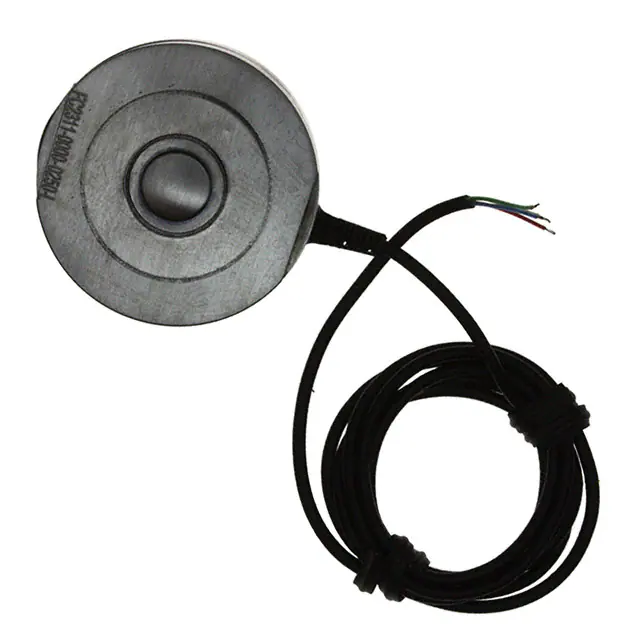

FC2311-0000-0250-LSENSOR FORCE LOAD CELL 250LBS |
4,014 |
|
规格书 |
113.4kgf (250lbs) | 100mV | Load Cell | ±1% | 0°C ~ 50°C | 2V ~ 10V | Pushbutton | Round, 8mm | Sensor | -40°C ~ 85°C | |
|

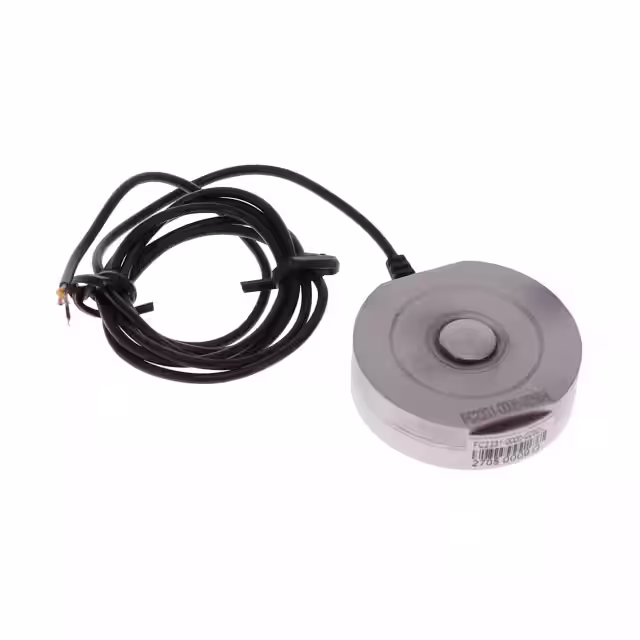

FC2331-0000-0250-LFC23 AMPLIFIED 2FT CABLE 250L |
1,244 |
|
规格书 |
113.40kgf (250lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 2V ~ 10V | Pushbutton | Round, 8mm | Sensor | -40°C ~ 85°C | |
|
060-2443-08SENSOR FORCE LOAD CELL 50LBS |
1,846 |
|
规格书 |
22.68kgf (50lbs) | Voltage | Load Cell | ±0.7% | 15°C ~ 71°C | 5V | Pushbutton | Round, 2.29mm | Sensor | -54°C to 121°C | |
|
|
060-2443-07SENSOR FORCE LOAD CELL 25LBS |
3,780 |
|
规格书 |
11.34kgf (25lbs) | Voltage | Load Cell | ±0.7% | 15°C ~ 71°C | 5V | Pushbutton | Round, 2.29mm | Sensor | -54°C to 121°C | |
|
060-0240-02SENSOR FORCE LOAD CELL 20000LBS |
3,516 |
|
规格书 |
9072kgf (20000lbs) | Voltage | Load Cell | ±0.5% | 15°C ~ 71°C | 10V | Pushbutton | Round, 15.24mm | Sensor | -54°C to 121°C | |
|
060-1430-06SENSOR FORCE LOAD CELL 100LBS |
3,565 |
|
规格书 |
45.36kgf (100lbs) | Voltage | Load Cell | ±0.15% | 15°C ~ 71°C | 5V | Diaphragm | Stud, 10-32 UNF | Sensor | -54°C to 121°C | |
|
|
060-1426-02SENSOR FORCE LOAD CELL 2.2LBS |
3,827 |
|
规格书 |
1kgf (2.2lbs) | Voltage | Load Cell | ±0.15% | 15°C ~ 71°C | 5V | Diaphragm | Stud, 6-32 UNC | Sensor | -54°C to 121°C | |
|
|
060-1426-04SENSOR FORCE LOAD CELL 10LBS |
2,650 |
|
规格书 |
4.54kgf (10lbs) | Voltage | Load Cell | ±0.15% | 15°C ~ 71°C | 5V | Diaphragm | Stud, 6-32 UNC | Sensor | -54°C to 121°C | |
|
060-0571-07SENSOR FORCE LOAD CELL 500LBS |
3,040 |
|
规格书 |
226.80kgf (500lbs) | Voltage | Load Cell | ±0.1% | 15°C ~ 71°C | 10V | Diaphragm | Internal Thread, 38-24 UNF | Sensor | -54°C to 121°C | |
|

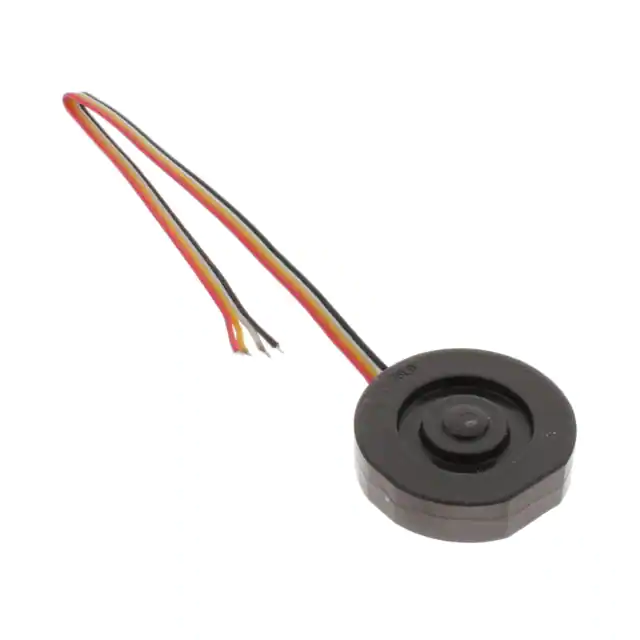

FX292X-100A-0010-L10LBF COMPRESSION LOAD CELL, 100 |
1,477 |
|
规格书 |
5.00kgf (11lbs) | Analog Voltage | Load Cell | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|

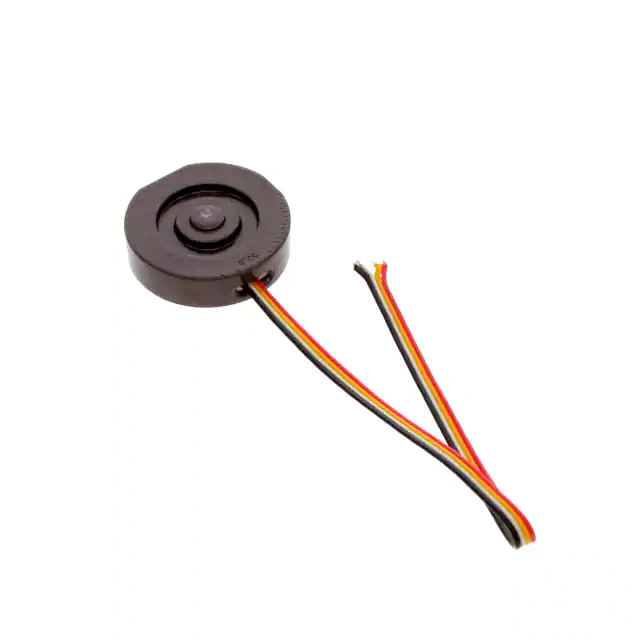

FX293X-100A-0025-L25LBF COMPRESSION LOAD CELL, 0.5 |
1,471 |
|
规格书 |
12.50kgf (28lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
|
FX292X-100A-0050-L50LBF COMPRESSION LOAD CELL, 100 |
4,951 |
|
规格书 |
25.00kgf (55lbs) | Analog Voltage | Load Cell | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
FX292X-100A-0100-L100LBF COMPRESSION LOAD CELL, 10 |
2,785 |
|
规格书 |
50.00kgf (110lbs) | Analog Voltage | Load Cell | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
FX1901-0001-0010-LSENSOR TENSE LOAD CELL |
4,396 |
|
规格书 |
4.54kgf (10lbs) | Voltage | Load Cell | ±1% | - | 5V | Pushbutton | - | Sensor | 0°C ~ 50°C | |
|
|
FX1901-0001-0100-LSENSOR TENSE LOAD CELL |
3,977 |
|
规格书 |
45.36kgf (100lbs) | Voltage | Load Cell | ±1% | - | 5V | Pushbutton | - | Sensor | 0°C ~ 50°C | |
|

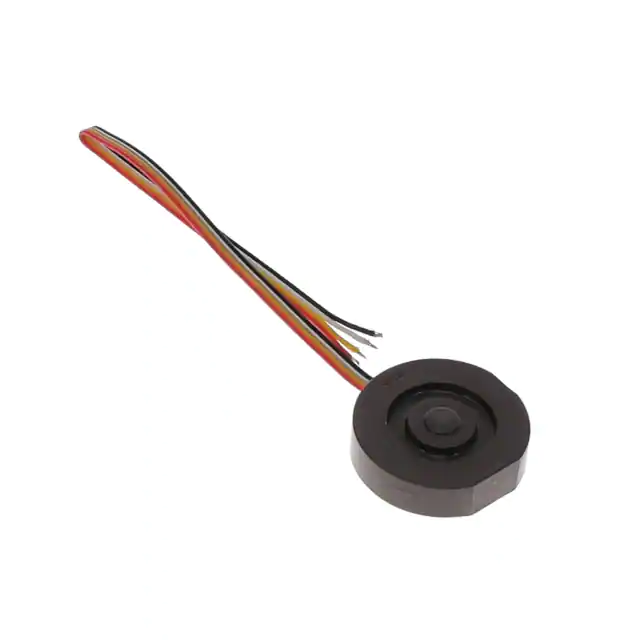

FX29K0-100A-0025-L25LBF COMPRESSION LOAD CELL, I2C |
4,993 |
|
规格书 |
12.50kgf (28lbs) | Digital | Load Cell | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
|
FX1901-0001-0050-LSENSOR TENSE LOAD CELL |
1,039 |
|
规格书 |
22.68kgf (50lbs) | Voltage | Load Cell | ±1% | - | 5V | Pushbutton | - | Sensor | 0°C ~ 50°C | |
|
|
FX29K0-100A-0050-L50LBF COMPRESSION LOAD CELL, I2C |
4,684 |
|
规格书 |
25.00kgf (55lbs) | Digital | Load Cell | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
|
FX293X-040B-0025-LFORCE SENSOR |
3,875 |
|
规格书 |
12.50kgf (28lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | - | Sensor | 0°C ~ 85°C |
