在线询价模拟开关、复用器、解复用器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4704EUB+IC SWITCH SP4T X 1 60OHM 10UMAX |
346 |
|
规格书 |
- | Tube | Active | SP4T | 4:1 | 1 | 60Ohm | 1Ohm | 1.8V ~ 5.5V | - | 60ns, 20ns | 200MHz | 2pC | 7pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
ADG1222BRMZIC SW SPST-NCX2 200OHM 10MSOP |
187 |
|
规格书 |
- | Tube | Active | SPST - NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|

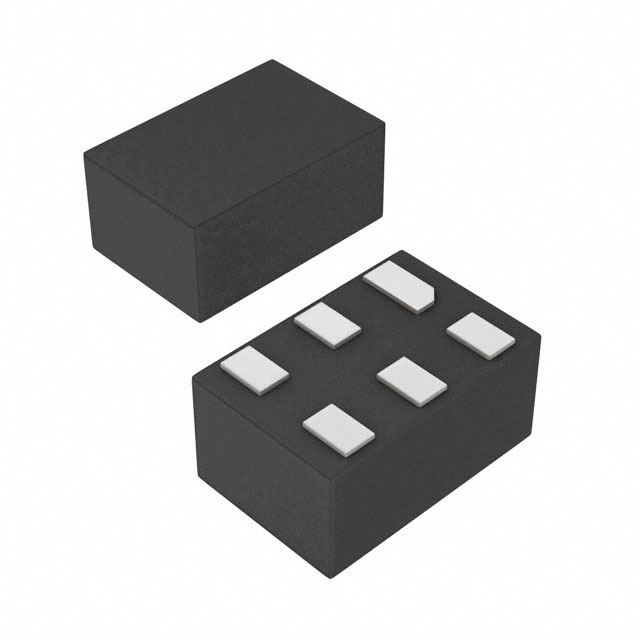

MAX4714ELT+TIC SWITCH SPDT X 1 800MOHM 6UDFN |
11,563 |
|
规格书 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 800mOhm | 30mOhm | 1.6V ~ 3.6V | - | 18ns, 12ns | - | 22pC | 30pF | 1nA | -54dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1.5x1) |
|

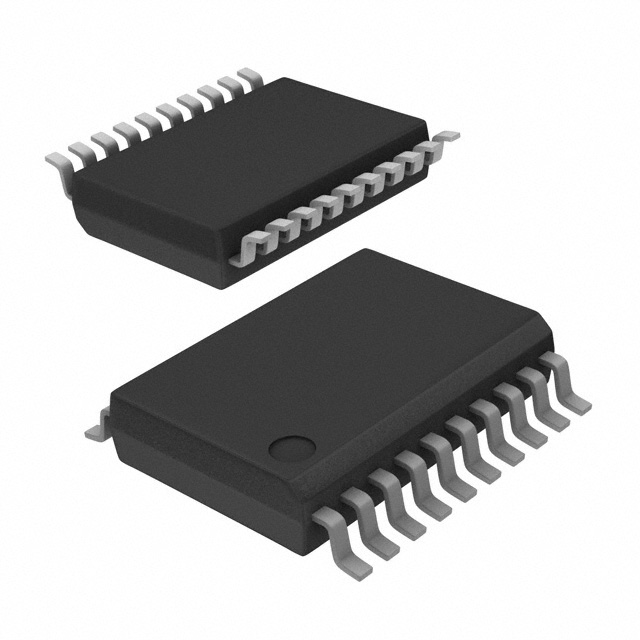

MAX4530EAP+IC MUX 8:1 75OHM 20SSOP |
2,839 |
|
规格书 |
- | Tube | Active | - | 8:1 | 1 | 75Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 100ns | - | 1.5pC | 3pF, 15pF | 1nA | -92dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SSOP |
|
|
ADG836YRMZIC SWITCH SPDTX2 650MOHM 10MSOP |
595 |
|
规格书 |
- | Tube | Active | SPDT | 2:1 | 2 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 26ns, 7ns | 57MHz | 40pC | 25pF | 200pA (Typ) | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
ISL84781IVZIC MUX 8:1 750MOHM 16TSSOP |
943 |
|
规格书 |
- | Tube | Active | - | 8:1 | 1 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -39pC | 65pF, 470pF | 4nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

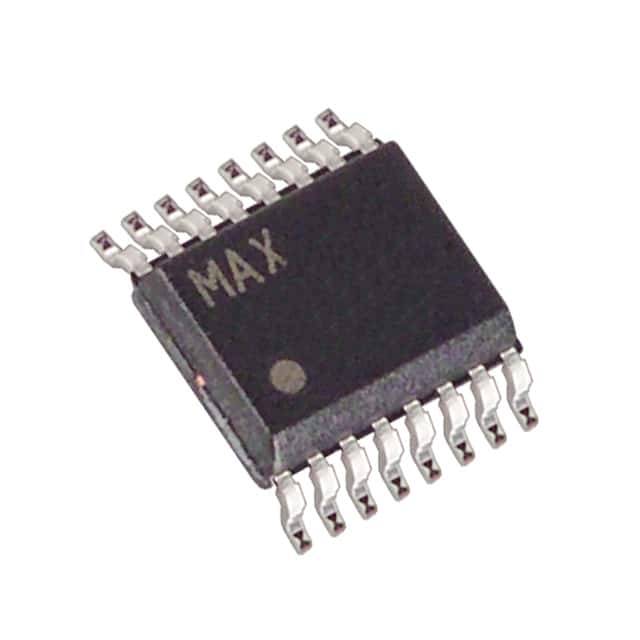

ADG658YRQZIC MUX 8:1 75OHM 16QSOP |
1,282 |
|
规格书 |
- | Tube | Active | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 12V | ±2V ~ 6V | 115ns, 45ns | 210MHz | 2pC | 4pF, 23pF | 200pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4583EEE+IC SWITCH SPDT X 3 80OHM 16QSOP |
288 |
|
规格书 |
- | Tube | Active | SPDT | 2:1 | 3 | 80Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 200ns, 100ns | - | 0.5pC | 4pF, 6pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
MAX4729ELT+TIC SWITCH SPDT X 1 5.5OHM 6UDFN |
8,974 |
|
规格书 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5.5Ohm | 50mOhm | 1.8V ~ 5.5V | - | 45ns, 26ns | 300MHz | 3pC | 6.5pF | 2nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1.5x1) |
|
|
MAX4719EUB+IC SWITCH SPDT X 2 20OHM 10UMAX |
385 |
|
规格书 |
- | Tube | Active | SPDT | 2:1 | 2 | 20Ohm | 150mOhm | 1.8V ~ 5.5V | - | 80ns, 40ns | 300MHz | 18pC | 9pF | 500pA | -110dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
MAX4614CSD+IC SWITCH SPST-NOX4 10OHM 14SOIC |
4,681 |
|
规格书 |
- | Tube | Active | SPST - NO | 1:1 | 4 | 10Ohm | 200mOhm | 2V ~ 5.5V | - | 12ns, 10ns | 70MHz | 6.5pC | 5pF, 5pF | 1nA | -96dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
MAX4695EUB+IC SWITCH SPDT X 2 60OHM 10UMAX |
1,801 |
|
规格书 |
- | Tube | Active | SPDT | 2:1 | 2 | 60Ohm | 500mOhm | 1.8V ~ 5.5V | - | 30ns, 18ns | 300MHz | 4pC | 7pF | 100pA | -82dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
ADG788BCPZ-REELIC SWITCH SPDTX4 4.5OHM 20LFCSP |
14,071 |
|
规格书 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 160MHz | 5pC | 11pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
|
MAX4653EUE+IC SW SPST-NO/NCX4 4OHM 16TSSOP |
834 |
|
规格书 |
- | Tube | Active | SPST - NO/NC | 1:1 | 4 | 4Ohm | 50mOhm | 1.8V ~ 5.5V | - | 14ns, 8ns | - | 2pC | 16pF, 16pF | 100pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4528CUA+IC SWITCH SPDT X 2 110OHM 8UMAX |
185 |
|
规格书 |
- | Tube | Active | SPDT | 2:1 | 2 | 110Ohm | 3Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | - | - | 1pC | 13pF | 500pA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
ADG1402BRMZ-REEL7IC SWITCH SPST-NOX1 1.3OHM 8MSOP |
8,113 |
|
规格书 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|

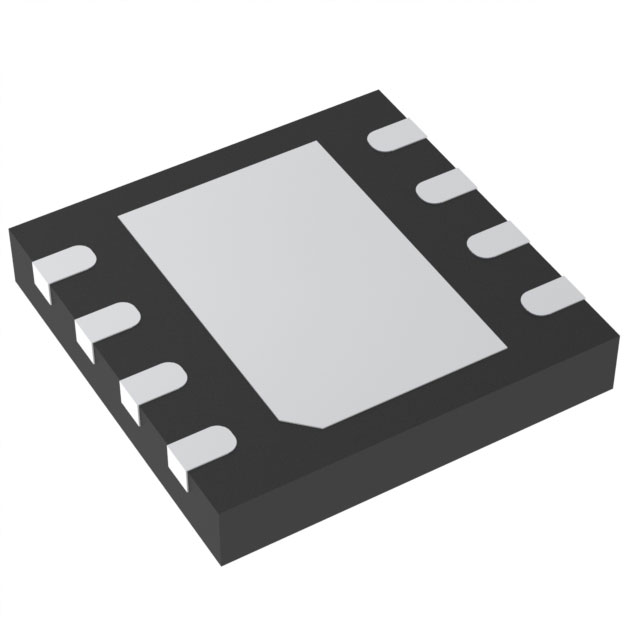

ADV3219ACPZIC SWITCH SPDT X 1 8LFCSP |
1,025 |
|
规格书 |
- | Tray | Active | SPDT | 2:1 | 1 | - | - | - | ±4.5V ~ 5.5V | - | 840MHz | - | 0.6pF | 2µA (Typ) | -70dB @ 100MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|

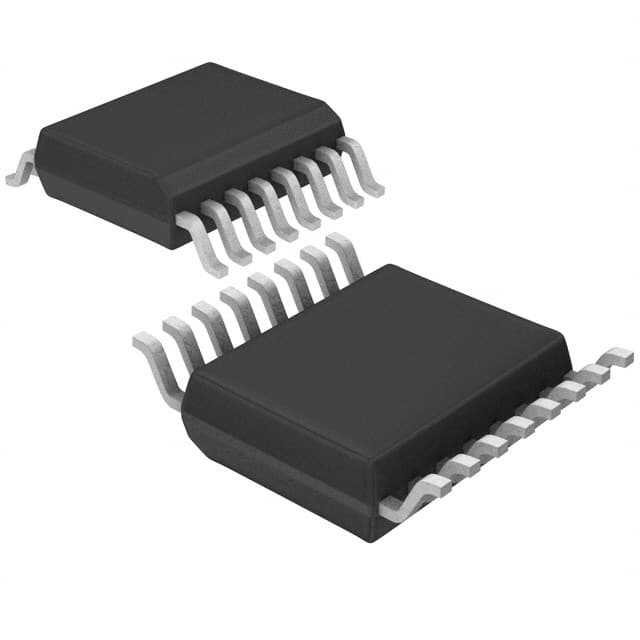

ADG713BRZIC SW SPST-NO/NCX4 4OHM 16SOIC |
786 |
|
规格书 |
- | Tube | Active | SPST - NO/NC | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG1209EUE+IC MUX DUAL 4:1 160OHM 16TSSOP |
705 |
|
规格书 |
- | Tube | Active | - | 4:1 | 2 | 160Ohm | 30Ohm | 10V ~ 20V | ±15V | 400ns, 400ns | 250MHz | 0.5pC | 15pF, 10pF | 30µA | -80dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 16-TSSOP |
|
|
MAX4518CEE+IC SWITCH SP4T X 1 100OHM 16QSOP |
2,408 |
|
规格书 |
- | Tube | Active | SP4T | 4:1 | 1 | 100Ohm | 4Ohm (Max) | 2V ~ 15V | ±2.7V ~ 8V | 150ns, 150ns | - | 5pC (Max) | 5pF, 16pF | 100pA | -92dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
