在线询价钥匙锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 开关功能 | 触点时间 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 钥匙可拆卸位置 | 扳动角度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 面板开孔尺寸 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-10 SERIES.jpg)
|

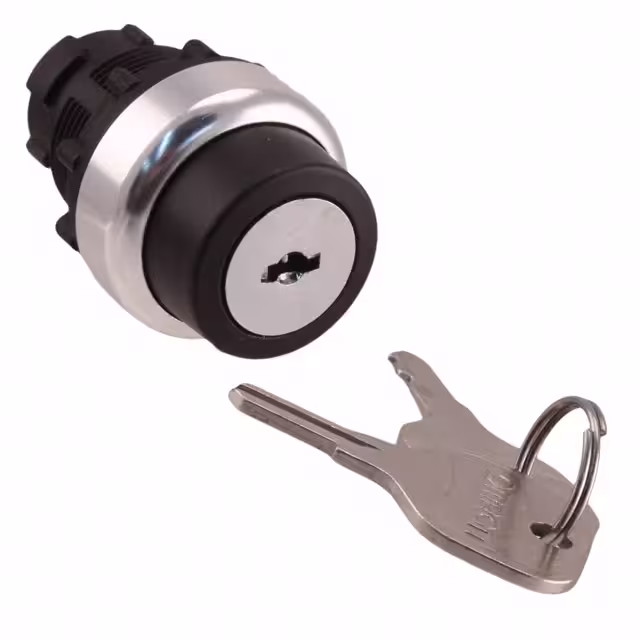

A22RK-2M-10SWITCH KEYLCK 2POS SPST 10A 120V |
2,471 |
|
规格书 |
A22RK | Bulk | Obsolete | SPST-NO | 2 | Off-On | Not Specified | 10A (AC) | 120 V | - | Flat Key | All | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 60°C |
|

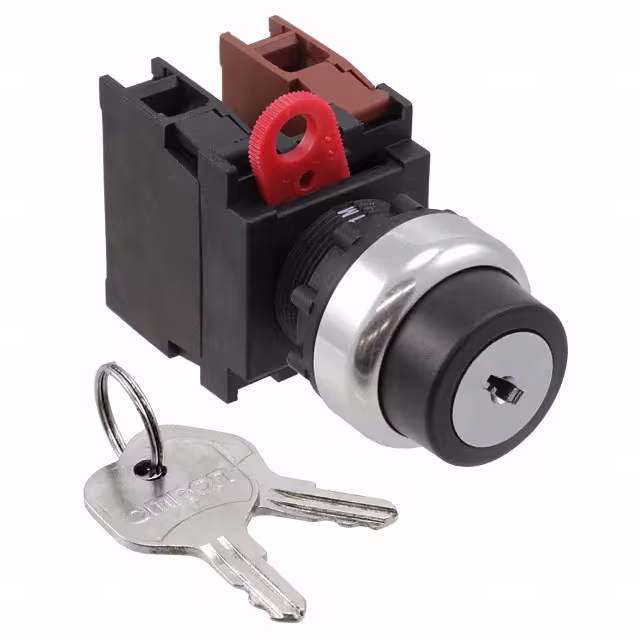

A22RK-2AL-11SWITCH KEYLCK 2POS DPST 10A 120V |
1,801 |
|
规格书 |
A22RK | Tray | Obsolete | DPST-NO/NC | 2 | On-Mom, Off-Mom | Not Specified | 10A (AC) | 120 V | - | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 60°C |
|
AML27ABK2AA23BDSWITCH KEYLOCK 2POS SPDT 3A 125V |
4,594 |
|
规格书 |
AML27 | Bulk | Obsolete | SPDT | 2 | On-Mom | Not Specified | 3A (AC) | 125 V | - | Flat Key | Center | 60° | - | Silver | Panel Mount, Snap-In | Solder, Quick Connect - 0.110" (2.8mm) | Square - 19.05mm² | - | - |
|
PF201UEBM03KQ22SWITCH KEYLOCK 3POS SP3T 4A 125V |
4,565 |
|
规格书 |
PF | Bulk | Obsolete | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45° | Copper | Silver | Panel Mount, Snap-In | Solder Lug | Circular - 11.81mm Dia | Epoxy Sealed Terminals | - |
|
|
PF211UEBM03KB22SWITCH KEYLK 2POS DPDT 0.4VA 20V |
4,044 |
|
规格书 |
PF | Bulk | Obsolete | DPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | All | 90° | Copper | Gold | Panel Mount, Snap-In | Solder Lug | Circular - 11.81mm Dia | Epoxy Sealed Terminals | - |
|
|
PF211UEBM03KQ22SWITCH KEYLOCK 2POS DPDT 4A 125V |
1,524 |
|
规格书 |
PF | Bulk | Obsolete | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount, Snap-In | Solder Lug | Circular - 11.81mm Dia | Epoxy Sealed Terminals | - |
|
|
PM061UEBMWCKQTTSWITCH KEYLOCK 2POS SPST 4A 125V |
2,492 |
|
规格书 |
PM | Bulk | Obsolete | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount, Snap-In | Wire Leads | Circular - 11.81mm Dia | - | - |
|
|
Y101132C2WCNQSWITCH KEYLOCK 2POS SPDT 4A 125V |
2,885 |
|
规格书 |
Y | Tray | Obsolete | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
|
Y1011U2R203NQESWITCH KEYLOCK 2POS SPDT 4A 125V |
1,953 |
|
规格书 |
Y | Tray | Obsolete | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic, Epoxy Sealed Terminals | - |
|
|
SM0319SWITCH KEYLOCK 2POS SPST 3A 250V |
4,108 |
|
规格书 |
SM | Bulk | Obsolete | SPST | 2 | Off-On | Not Specified | 3A (AC) | 250 V | - | Flat Key | Left | 90° | Brass | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | -20°C ~ 70°C |
|
|
SM0319/DSWITCH KEYLOCK 2POS SPST 3A 250V |
1,683 |
|
规格书 |
SM | Bulk | Obsolete | SPST | 2 | Off-On | Not Specified | 3A (AC) | 250 V | - | Flat Key | All | 90° | Brass | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | -20°C ~ 70°C |
|
|
SM0320SWITCH KEYLOCK 2POS SPDT 2A 250V |
3,092 |
|
规格书 |
SM | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 2A (AC) | 250 V | - | Flat Key | Left | 90° | Brass | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | -20°C ~ 70°C |
|
|
SM0324/2/DSWITCH KEYLOCK 2POS DPDT 2A 250V |
1,412 |
|
规格书 |
SM | Bulk | Obsolete | DPDT | 2 | On-On | Not Specified | 2A (AC) | 250 V | - | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | -20°C ~ 70°C |
|
|
SX0686SWITCH KEYLOCK 2POS DPDT 5A 250V |
4,782 |
|
规格书 |
SX | Bulk | Obsolete | DPDT | 2 | On-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | Left | 90° | Brass | Silver | Panel Mount | Solder Lug | Rectangular - 23.30mm x 21.30mm | - | -20°C ~ 70°C |
|
|
SX0686/DSWITCH KEYLOCK 2POS DPDT 5A 250V |
2,675 |
|
规格书 |
SX | Bulk | Obsolete | DPDT | 2 | On-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | All | 90° | Brass | Silver | Panel Mount | Solder Lug | Rectangular - 23.30mm x 21.30mm | - | -20°C ~ 70°C |
|
|
58J1007SWITCH KEYLOCK |
2,028 |
|
规格书 |
58 | Bulk | Active | - | 7 | - | - | - | - | - | Flat Key | - | - | - | Gold Alloy | Panel Mount | Solder Lug | Circular - 19.05mm Dia | Antistatic | - |
|
|
58J4A45-01-1-02NSWITCH KEY 2POS SPDT 200MA 115V |
1,116 |
|
规格书 |
58 | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flat Key | 1 and each 90° | 45° | - | Gold Alloy | Panel Mount | Solder Lug | Circular - 19.05mm Dia | Antistatic | - |
|
|
58J4A45-01-1-03NSWITCH KEY 3POS SP3T 200MA 115V |
2,498 |
|
规格书 |
58 | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flat Key | 1 and each 90° | 45° | - | Gold Alloy | Panel Mount | Solder Lug | Circular - 19.05mm Dia | Antistatic | - |
|
|
58J4A45-01-1-06NSWITCH KEY 6POS SP6T 200MA 115V |
4,143 |
|
规格书 |
58 | Bulk | Active | SP6T | 6 | On-On-On-On-On-On | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flat Key | 1 and each 90° | 45° | - | Gold Alloy | Panel Mount | Solder Lug | Circular - 19.05mm Dia | Antistatic | - |
|
|
58J4P45-01-1-05NSWITCH KEY 5POS SP5T 200MA 115V |
4,219 |
|
规格书 |
58 | Bulk | Active | SP5T | 5 | On-On-On-On-On | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flat Key | 1 and each 90° | 45° | - | Gold Alloy | Panel Mount | PC Pin | Circular - 19.05mm Dia | Antistatic | - |
