图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 颜色 | 配置 | 镜片颜色 | 镜片透明度 | 毫坎德拉等级 | 透镜样式 | 透镜尺寸 | 电压 - 正向 (Vf)(典型值) | 电流 - 测试 | 视角 | 安装类型 | 波长 - 主波长 | 波长 - 峰值 | 特性 | 等级 | 认证 | 供应商设备封装 | 尺寸 / 尺寸 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

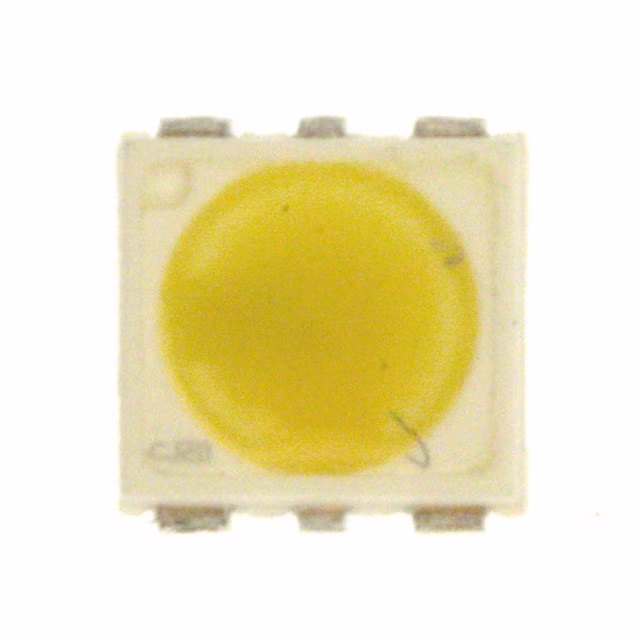

STW8T36BLED COOL WHITE SMD Seoul Semiconductor Inc. |
1,978 |
|
![]() 规格书 |
- | 6-SMD, J-Lead | Tape & Reel (TR) | Active | White, Cool | Standard | - | - | 6300mcd | Round with Flat Top | 4.00mm Dia | 3.2V | 60mA | 120° | Surface Mount | 2600K ~ 8200K | - | - | - | - | SMD | 5.00mm L x 5.00mm W |
![]() |
C9WT728SLED WHITE/NEUTRAL SMD Seoul Semiconductor Inc. |
1,425 |
|
![]() 规格书 |
- | 6-SMD, J-Lead | Tape & Reel (TR) | Obsolete | White, Neutral | Standard | - | - | 4500mcd | Round with Flat Top | 4.00mm Dia | 3.3V | 3 x 20mA | 120° | Surface Mount | 4800K | - | - | - | - | SMD | 5.00mm L x 5.00mm W |
![]() |

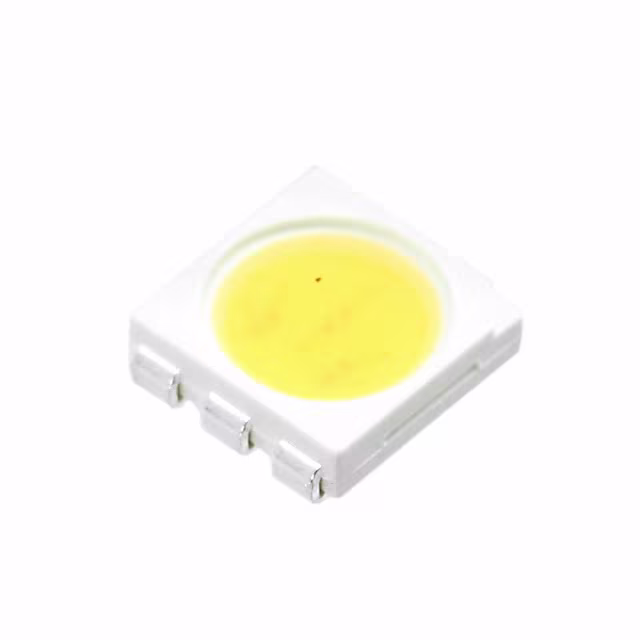

C8WT728LED WHITE/NEUTRAL SMD Seoul Semiconductor Inc. |
3,388 |
|
![]() 规格书 |
- | 6-SMD, J-Lead | Tape & Reel (TR) | Obsolete | White, Neutral | Standard | - | - | 5000mcd | Round with Flat Top | 4.00mm Dia | 3.3V | 3 x 20mA | 120° | Surface Mount | 4800K | - | - | - | - | SMD | 5.00mm L x 5.00mm W |
![]() |
LR530LED RED CLEAR T/H Seoul Semiconductor Inc. |
1,690 |
|
![]() 规格书 |
- | Radial | Cut Tape (CT) | Active | Red | Standard | Colorless | Clear | 6500mcd | Round with Domed Top | 5.00mm Dia | 2.2V | 20mA | 30° | Through Hole | 625nm | - | - | - | - | - | - |
|

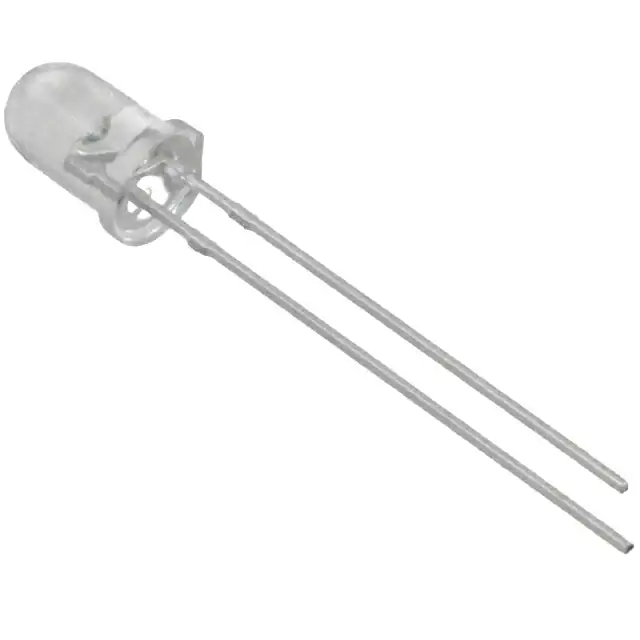

LY521LED YELLOW T-1 3/4 T/H Seoul Semiconductor Inc. |
2,011 |
|
![]() 规格书 |
- | Radial | Cut Tape (CT) | Obsolete | Yellow | Standard | - | - | 7500mcd | Round with Domed Top | 5.00mm Dia | 2V | 20mA | 22° | Through Hole | 590nm | - | - | - | - | T-1 3/4 | - |
|
SFT825Z-SLED RGB DIFFUSED 6PLCC SMD Seoul Semiconductor Inc. |
3,621 |
|
![]() 规格书 |
- | 6-PLCC | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Independent | White | Diffused | 700mcd Red, 1200mcd Green, 400mcd Blue | Rectangle with Flat Top | - | 2.1V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 623nm Red, 527nm Green, 460nm Blue | 632nm Red, 518nm Green, 453nm Blue | - | - | - | 6-PLCC | 3.20mm L x 2.80mm W |
![]() |

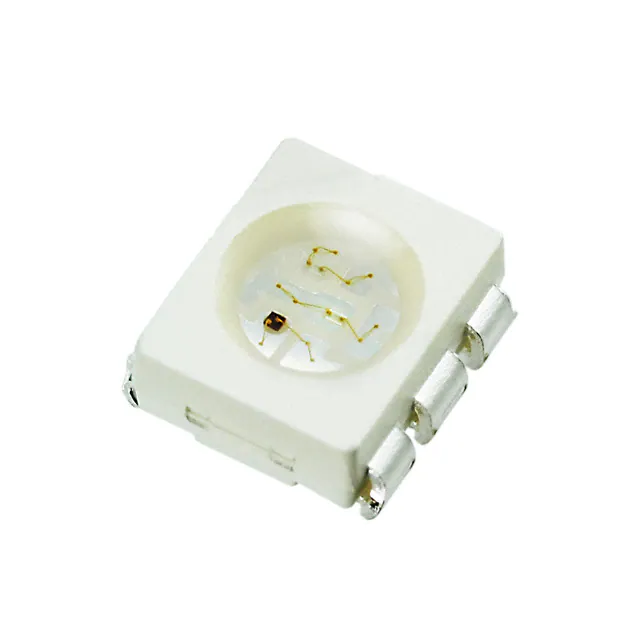

SFT722N-SLED RGB 6PLCC SMD Seoul Semiconductor Inc. |
1,146 |
|
![]() 规格书 |
- | 6-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Red, Green, Blue (RGB) | Independent | - | - | 700mcd Red, 1200mcd Green, 200mcd Blue | Round with Flat Top | 4.00mm Dia | 2.1V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 623nm Red, 527nm Green, 460nm Blue | 632nm Red, 518nm Green, 453nm Blue | - | - | - | 6-PLCC | 6.00mm L x 5.00mm W |
![]() |

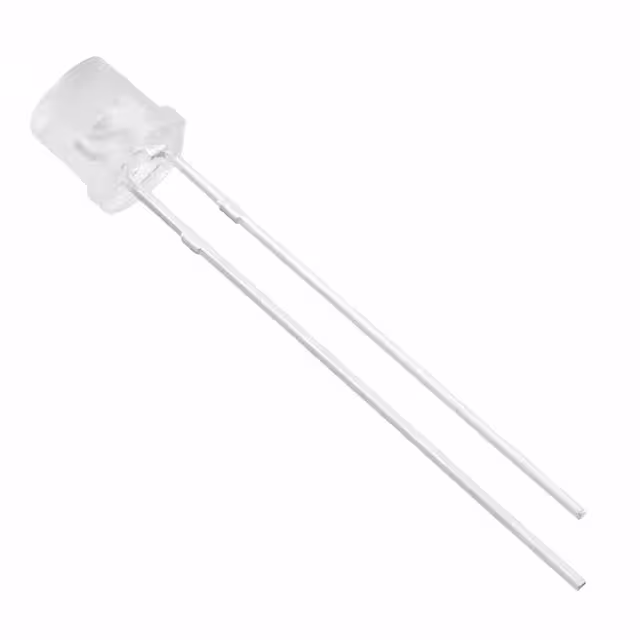

LW500AMLED WHITE CLEAR 5MM T/H Seoul Semiconductor Inc. |
4,538 |
|
![]() 规格书 |
- | Radial | Bulk | Obsolete | White | Standard | Colorless | Clear | 850mcd | Round with Flat Top | 5.00mm Dia | 3.3V | 20mA | 100° | Through Hole | - | - | - | - | - | 5mm | - |
![]() |

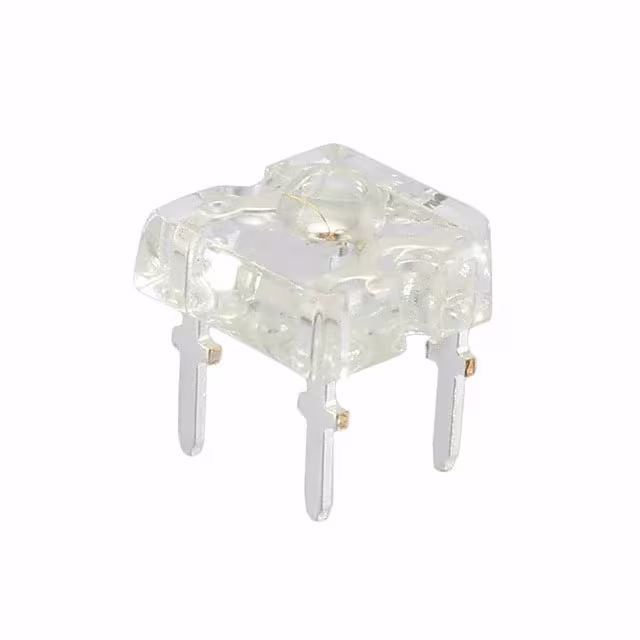

HY330LED YELLOW 4DIP THROUGH HOLE Seoul Semiconductor Inc. |
2,363 |
|
![]() 规格书 |
- | 4-DIP (0.200", 5.08mm) | Tube | Obsolete | Yellow | Standard | - | - | 4000mcd | Round with Domed Top | 3.00mm Dia | 2.6V | 70mA | 90° | Through Hole | 590nm | - | - | - | - | - | 7.62mm L x 7.62mm W |
![]() |
LW551ALED WHITE ROUND 5MM T/H Seoul Semiconductor Inc. |
3,239 |
|
![]() 规格书 |
- | Radial | Bulk | Obsolete | White | Standard | - | - | 2200mcd | Round with Domed Top | 5.00mm Dia | 3.2V | 20mA | 52° | Through Hole | - | - | - | - | - | - | - |
