在线询价限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM3CQF3502L04SWITCH LIMIT SPDT 5A 125V |
3,351 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 22gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
SM3AQF0801L00SWITCH LIMIT SPST-NO 5A 125V |
1,807 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 80gf | 40gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
|
SM3AQF0802L04SWITCH LIMIT SPST-NO 5A 125V |
2,119 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 12gf | 5.000gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
SM3AQF0803L00SWITCH LIMIT SPST-NO 5A 125V |
2,591 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 80gf | 40gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
|
SM3AQF0802L03SWITCH LIMIT SPST-NO 5A 125V |
2,468 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 18gf | 5.000gf | 0.646" (16.4mm) | 0.161" (4.1mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|

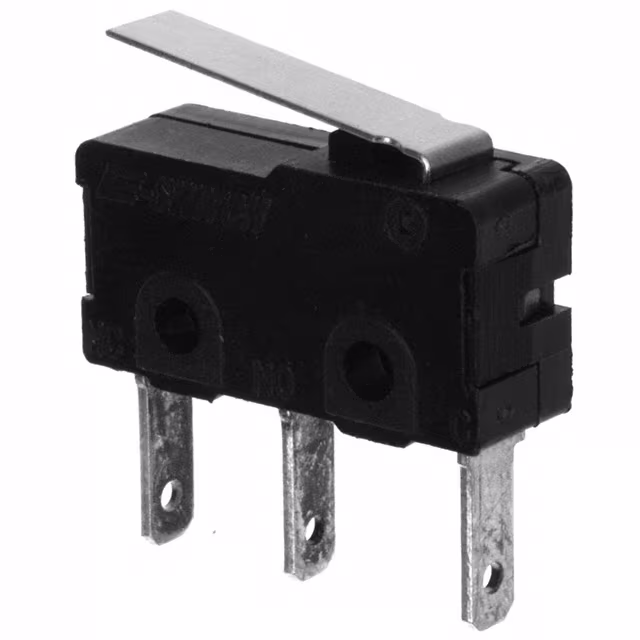

MS0850501F025C1ASWITCH SNAP ACTION SPDT 5A 125V |
414 |
|
规格书 |
MS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 25gf | 12gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
VM3CQF0801L02SWITCH LIMIT SPDT 16A 125V |
4,786 |
|
规格书 |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 40gf | 20gf | 0.697" (17.7mm) | 0.122" (3.1mm) | 0.027" (0.7mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|

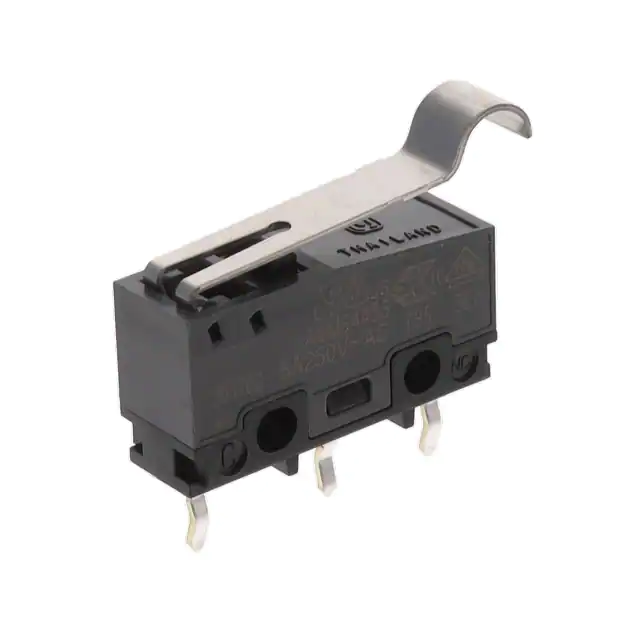

AVM34453SWITCH SNAP ACTION SPDT 5A 125V |
3,671 |
|
规格书 |
AVM3 | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 55gf | 3.467gf | 0.459" (11.65mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
SM3AQF0803L04SWITCH LIMIT SPST-NO 5A 125V |
1,157 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 12gf | 5.000gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
SM3AQF0801L04SWITCH LIMIT SPST-NO 5A 125V |
4,577 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 12gf | 5.000gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
|
SM3CQF1303L00SWITCH LIMIT SPDT 5A 125V |
3,227 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 130gf | 75gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|

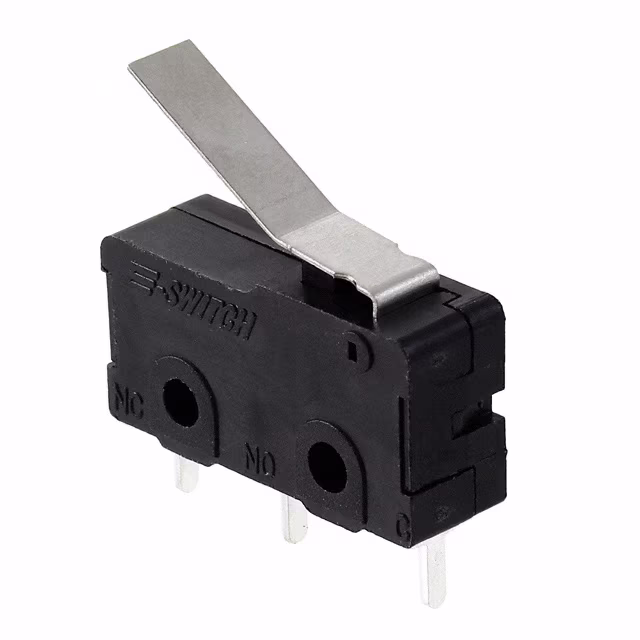

MS0850506F035P1ASWITCH SNAP ACTION SPDT 5A 125V |
4,775 |
|
规格书 |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole | PC Pin | - | - | 35gf | 20gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
SM3CQF0802L04SWITCH LIMIT SPDT 5A 125V |
3,449 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 12gf | 5.000gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
|
SM3AQF0804L04SWITCH LIMIT SPST-NO 5A 125V |
1,825 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 12gf | 5.000gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
VM3AQF1801L04SWITCH LIMIT SPST-NO 16A 125V |
2,064 |
|
规格书 |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 145gf | 60gf | 0.560" (14.2mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|
|
SM3CQF1303L04SWITCH LIMIT SPDT 5A 125V |
3,049 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 25gf | 10gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
|
AVM32153SWITCH SNAP ACTION SPDT 5A 125V |
1,077 |
|
规格书 |
AVM3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -25°C ~ 85°C |
|
|
SM3CQF0805L03SWITCH LIMIT SPDT 5A 125V |
3,254 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 18gf | 5.000gf | 0.646" (16.4mm) | 0.161" (4.1mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
VM3AQF1802L00SWITCH LIMIT SPST-NO 16A 125V |
4,247 |
|
规格书 |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 180gf | 90gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
VM3CQF1802L07SWITCH LIMIT SPDT 16A 125V |
3,302 |
|
规格书 |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 20gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
