在线询价限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

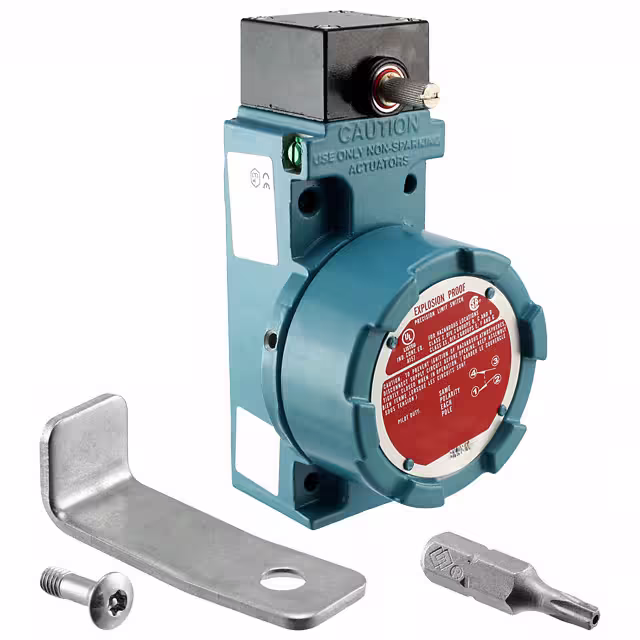

BXA3KSWITCH SNAP ACTION SPDT 10A 120V |
2,187 |
|
规格书 |
BX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Explosion Proof | 46gfm | - | 15° | 15° | 5° | 60° | -40°C ~ 70°C |
|

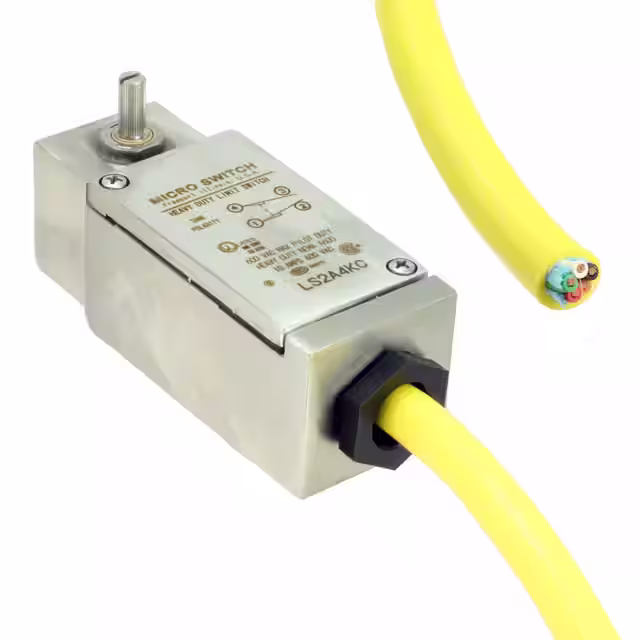

LS2A4KCSWITCH SNAP ACTION SPDT 10A 120V |
2,301 |
|
规格书 |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Stainless Steel | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
EXD-Q-3SWITCH SNAP ACTION DPDT 10A 125V |
1,391 |
|
规格书 |
EX | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Explosion Proof | 1360gf | 227gf | 1.812" (46.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.141" (3.6mm) | -40°C ~ 71°C |
|
16CX2SWITCH SNAP ACT SPDTX2 1A 120V |
2,973 |
|
规格书 |
CX | Bulk | Active | SPDT x 2 | On-Mom | 1A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 126gfm | 11gfm | - | 30° | 20° | 75° | -25°C ~ 85°C |
|

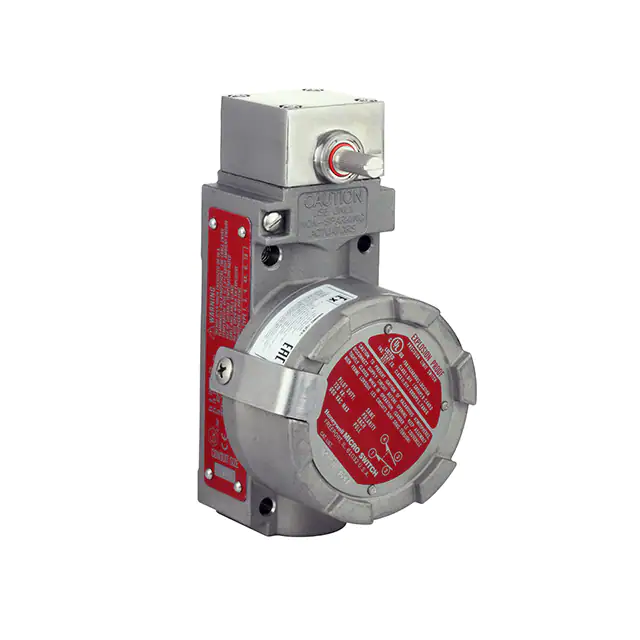

BX2A3KSWITCH SNAP ACTION SPDT 10A 120V |
1,953 |
|
规格书 |
BX2 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Explosion Proof, Stainless Steel | 46gfm | - | 15° | 15° | 5° | 60° | -40°C ~ 70°C |
|

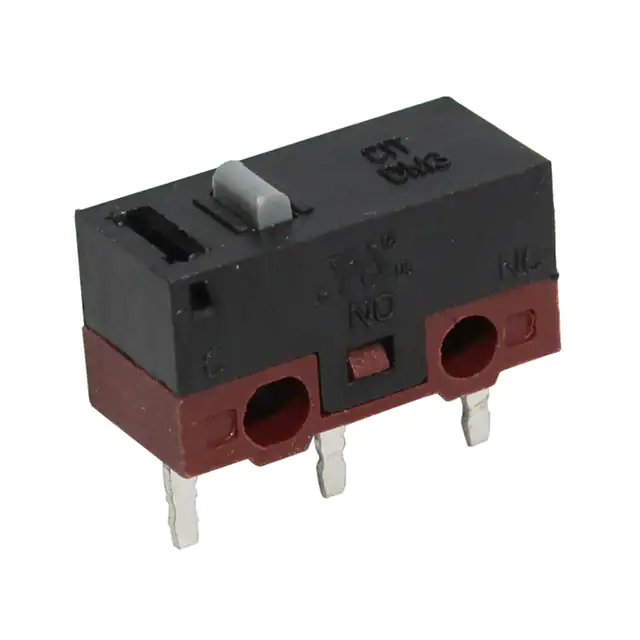

DM3CQF1003L00SWITCH LIMIT SPDT 3A 125V |
618 |
|
规格书 |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 100gf | 50gf | 0.217" (5.5mm) | 0.028" (0.7mm) | 0.008" (0.2mm) | 0.004" (0.1mm) | -40°C ~ 85°C |
|

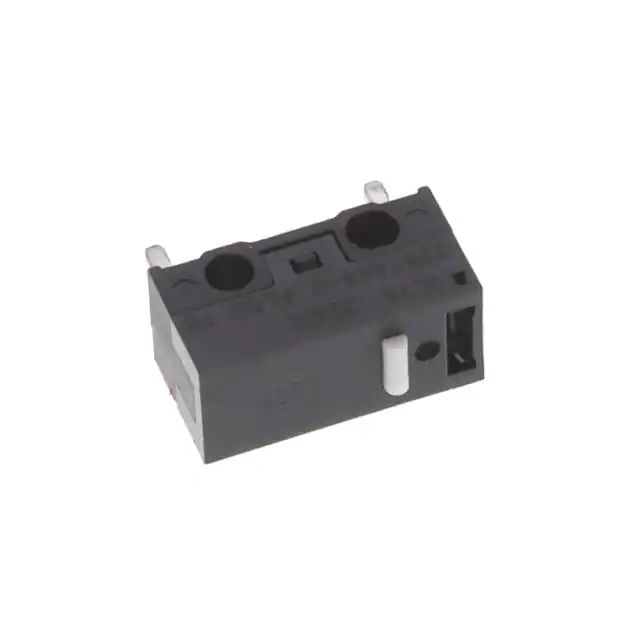

SAJ101XPP0N74SNCPTQSWITCH SNAP ACT SPST-NC 0.1A 30V |
948 |
|
规格书 |
SAJ1 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 76gf | 2.000gf | 0.272" (6.9mm) | 0.020" (0.5mm) | 0.008" (0.2mm) | 0.008" (0.2mm) | -25°C ~ 75°C |
|

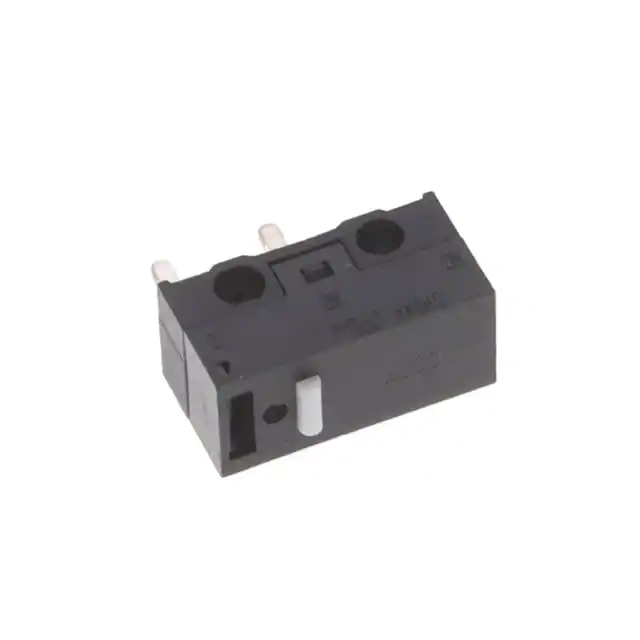

SAJ101XPP0N74SNOPTQSWITCH SNAP ACT SPST-NO 0.1A 30V |
920 |
|
规格书 |
SAJ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 76gf | 2.000gf | 0.272" (6.9mm) | 0.020" (0.5mm) | 0.008" (0.2mm) | 0.008" (0.2mm) | -25°C ~ 75°C |
|

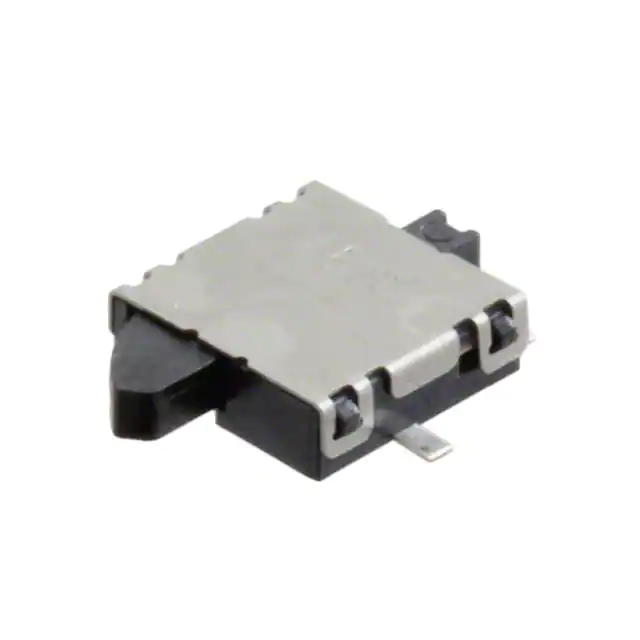

ESE-31R15TSWITCH DETECTOR SPST-NO 0.01A 5V |
903 |
|
规格书 |
ESE31 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | 20 V | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 40gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|
ESE-24CMH1TSWITCH DETECTOR SPDT 0.01A 5V |
2,648 |
|
规格书 |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -40°C ~ 85°C |
|
SM3CQF3501L00SWITCH LIMIT SPDT 5A 125V |
3,686 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 350gf | 170gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
JJLV0UG840NOPPRTRSWITCH DETECT SPST-NO 0.005A 5V |
777 |
|
规格书 |
JJL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 35gf | - | 0.301" (7.65mm) | 0.029" (0.75mm) | - | - | -20°C ~ 70°C |
|
SM3AQF0805L00SWITCH LIMIT SPST-NO 5A 125V |
1,966 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 80gf | 40gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
SM3AQF0804L00SWITCH LIMIT SPST-NO 5A 125V |
4,606 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 80gf | 40gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|

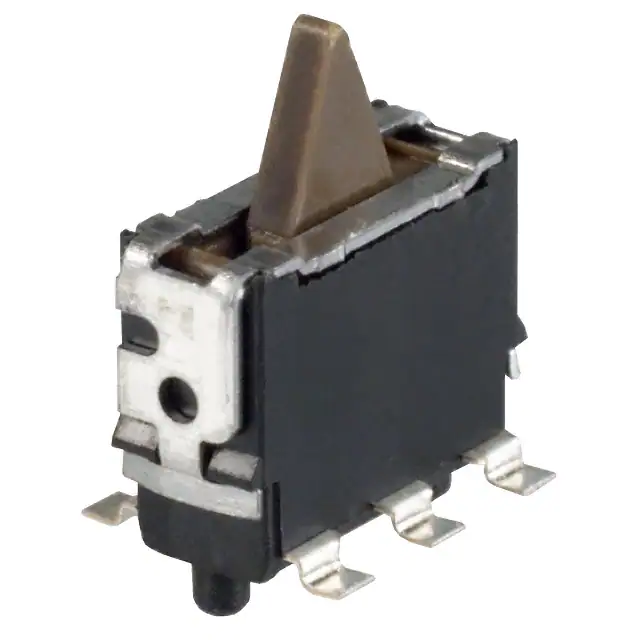

ESE-24MV6TSWITCH DETECTOR SPDT 0.01A 5V |
490 |
|
规格书 |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 35gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|
|
SM3AQF0803L02SWITCH LIMIT SPST-NO 5A 125V |
2,596 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 25gf | 5.000gf | 0.512" (13.00mm) | 0.178" (4.5mm) | 0.035" (0.9mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|

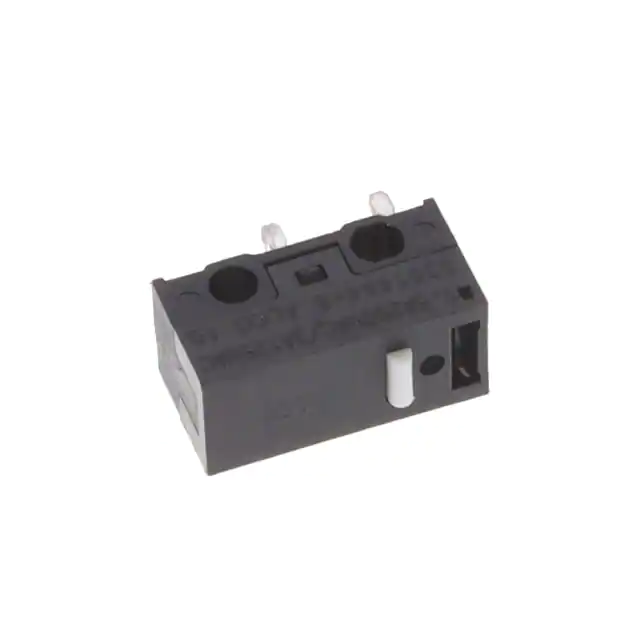

SAJ13XXPP0N88SNOPTQSWITCH SNAP ACT SPST-NO 3A 125V |
960 |
|
规格书 |
SAJ1 | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 90gf | 5.000gf | 0.272" (6.9mm) | 0.020" (0.5mm) | 0.008" (0.2mm) | 0.008" (0.2mm) | -25°C ~ 75°C |
|

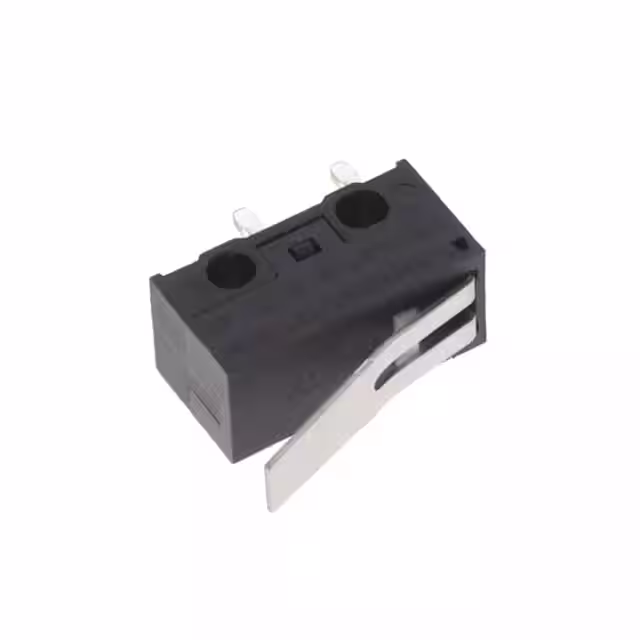

SAJ13XXBL0N88SNOPTQSWITCH SNAP ACT SPST-NO 3A 125V |
932 |
|
规格书 |
SAJ1 | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 26gf | 2.000gf | 0.378" (9.6mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
|

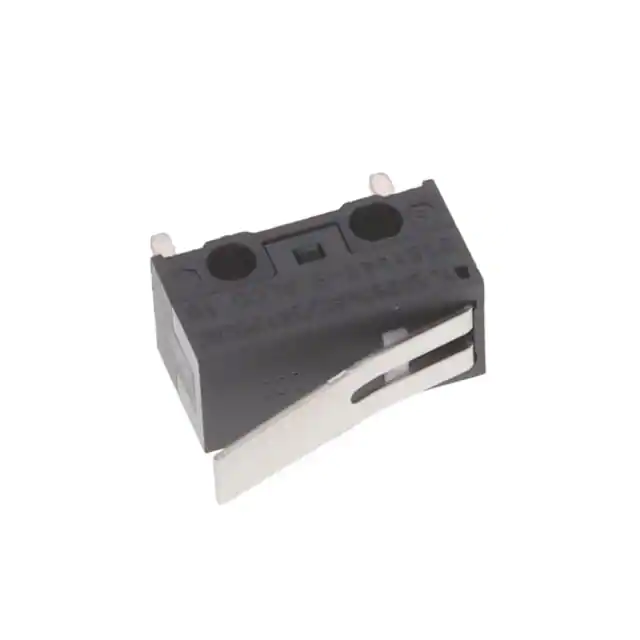

SAJ13XXBL0N88SNCPTQSWITCH SNAP ACT SPST-NC 3A 125V |
929 |
|
规格书 |
SAJ1 | Bulk | Active | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 26gf | 2.000gf | 0.378" (9.6mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
|

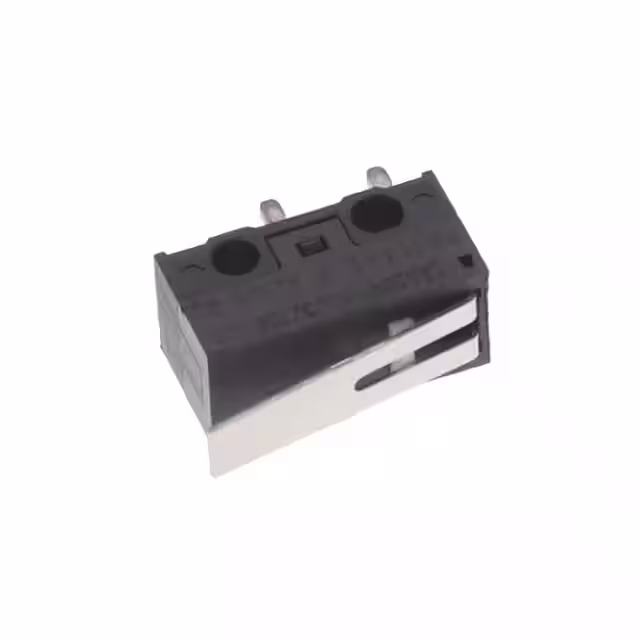

SAJ13XXHL0N88SNOPTQSWITCH SNAP ACT SPST-NO 3A 125V |
777 |
|
规格书 |
SAJ1 | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 40gf | 2.000gf | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
