在线询价限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3V-11G2-2C25-KSWITCH SNAP ACT SPST-NC 11A 250V |
2,926 |
|
规格书 |
D3V | Bulk | Obsolete | SPST-NC | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D2F-01FL30SWITCH SNAP ACTION SPDT 0.1A 30V |
3,210 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 31gf | 2.039gf | 0.374" (9.5mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
MS085R105F075V2ASWITCH SNAP ACT SPDT 0.4VA 20V |
3,538 |
|
规格书 |
MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 75gf | 25gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
MS085R105F075V1ASWITCH SNAP ACT SPDT 0.4VA 20V |
3,064 |
|
规格书 |
MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 75gf | 25gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
AH14809-ASWITCH SNAP ACTION SPDT 1A 125V |
3,706 |
|
规格书 |
AH1 | Tube | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
|
AH16609-ASWITCH SNAP ACTION SPDT 3A 125V |
4,339 |
|
规格书 |
AH1 | Tube | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
SM3AQF1304L01SWITCH LIMIT SPST-NO 5A 125V |
1,578 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 40gf | 20gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
SM3AQF1305L01SWITCH LIMIT SPST-NO 5A 125V |
1,871 |
|
规格书 |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 40gf | 20gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
MBB101B01C10ASNAP ACTING SWITCH MB |
3,623 |
|
规格书 |
MBB | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 153gf | 46gf | 0.689" (17.5mm) | 0.157" (4.0mm) | 0.031" (0.80mm) | 0.047" (1.2mm) | 0°C ~ 85°C |
|
1478604-6SWITCH SNAP ACTION SPDT 16A 125V |
3,501 |
|
规格书 |
- | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -20°C ~ 130°C |
|
|
DE2L-AALBYInterconnect Rectangular |
1,638 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LS0851512F110C1ASWITCH SNAP ACTION SPDT 15A 125V |
4,686 |
|
规格书 |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 110gf | 25gf | 0.787" (20.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
LS0851501F160V1ASWITCH SNAP ACTION SPDT 15A 125V |
1,516 |
|
规格书 |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.602" (15.3mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|

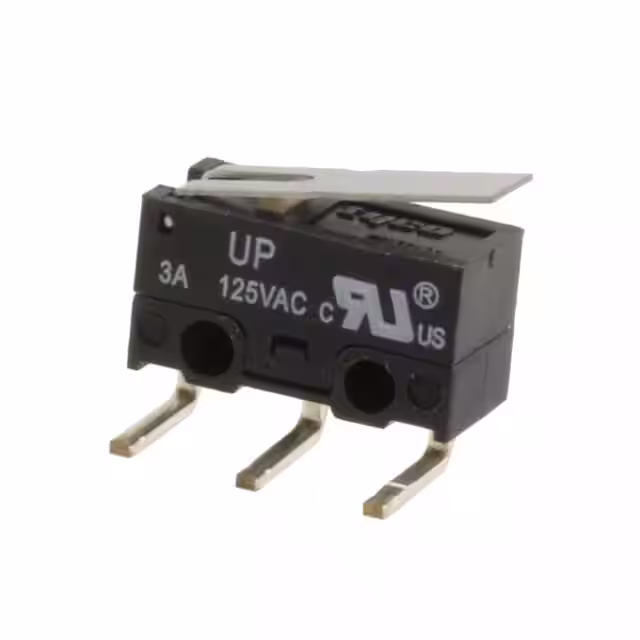

UP3DTBNLB04SWITCH SNAP ACTION SPDT 3A 125V |
4,522 |
|
规格书 |
UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 30gf | 5.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -40°C ~ 80°C |
|
|
UP3DTBNLA04SWITCH SNAP ACTION SPDT 3A 125V |
1,062 |
|
规格书 |
UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -40°C ~ 80°C |
|

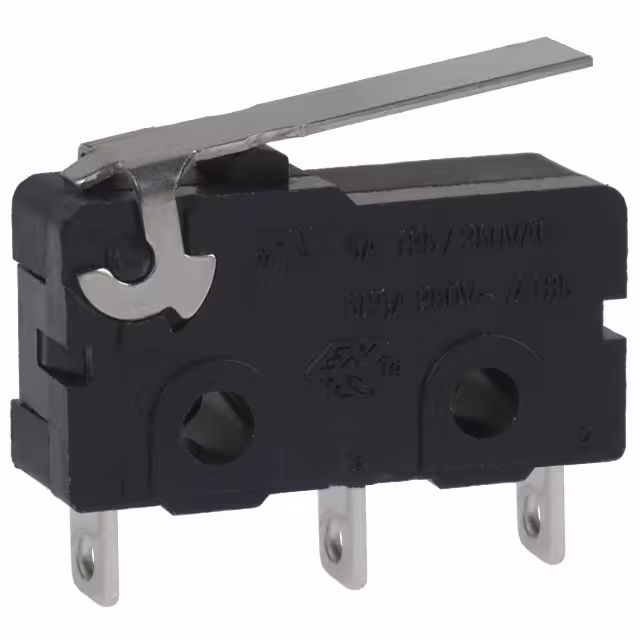

ZV50E10B01SWITCH SNAP ACTION SPDT 6A 125V |
4,501 |
|
规格书 |
ZV | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 10gf | 0.465" (11.8mm) | 0.180" (4.6mm) | 0.032" (0.81mm) | 0.035" (0.9mm) | -40°C ~ 120°C |
|
|
MBB101A01C01BSNAP ACTING SWITCH MB |
2,745 |
|
规格书 |
MBB | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 102gf | - | 0.358" (9.1mm) | 0.031" (0.79mm) | 0.008" (0.2mm) | 0.020" (0.5mm) | 0°C ~ 85°C |
|
|
MBB101A01C08ASNAP ACTING SWITCH MB |
1,540 |
|
规格书 |
MBB | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 102gf | 31gf | 0.386" (9.8mm) | 0.165" (4.2mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | 0°C ~ 85°C |
|
|
SM3CQF3505L01SWITCH LIMIT SPDT 5A 125V |
2,466 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 90gf | 45gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
SM3CQF3504L01SWITCH LIMIT SPDT 5A 125V |
2,708 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 90gf | 45gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
