在线询价限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCGGV6P00ECUESWITCH SNAP ACTION SPDT 5A 125V |
3,915 |
|
规格书 |
LC | Bulk | Not For New Designs | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | Epoxy Sealed Terminals | 142gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
21SX39-T2SWITCH SNAP ACTION SPDT 7A 115V |
3,658 |
|
规格书 |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|

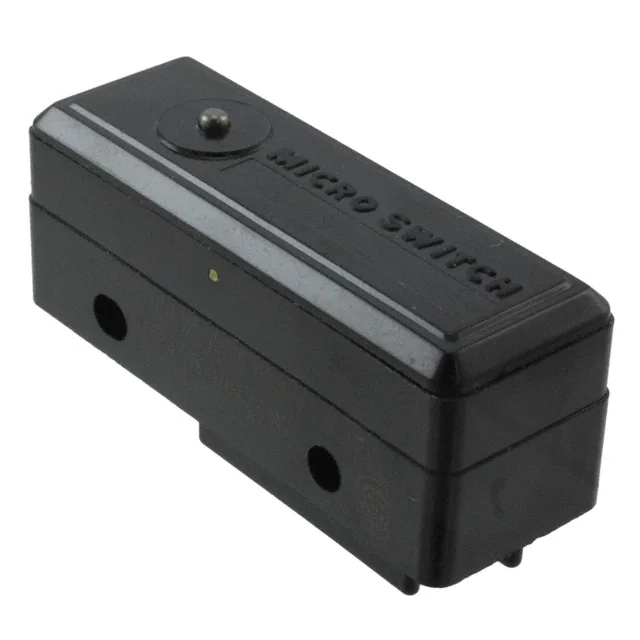

BZ-RSWITCH SNAP ACTION SPDT 15A 125V |
1,544 |
|
规格书 |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0003" (0.008mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
F79-30ASWITCH SNAP ACTION DPDT 10A 125V |
3,746 |
|
规格书 |
E | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 757gf | - | 0.610" (15.5mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|
VM3SCGF3003L06SWITCH LIMIT SPDT 10A 125V |
1,101 |
|
规格书 |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 380gf | 160gf | 0.799" (20.3mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.012" (0.3mm) | -40°C ~ 120°C |
|
1SM3-TSWITCH SNAP ACTION SPDT 5A 250V |
1,265 |
|
规格书 |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
83160067SWITCH SNAP ACTION SPDT 16A 250V |
2,023 |
|
规格书 |
83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 204gf | 41gf | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.051" (1.3mm) | -20°C ~ 125°C |
|
|
926AS4SWITCH SPRING LVR SPST 0.1A QC |
1,322 |
|
规格书 |
* | Bulk | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

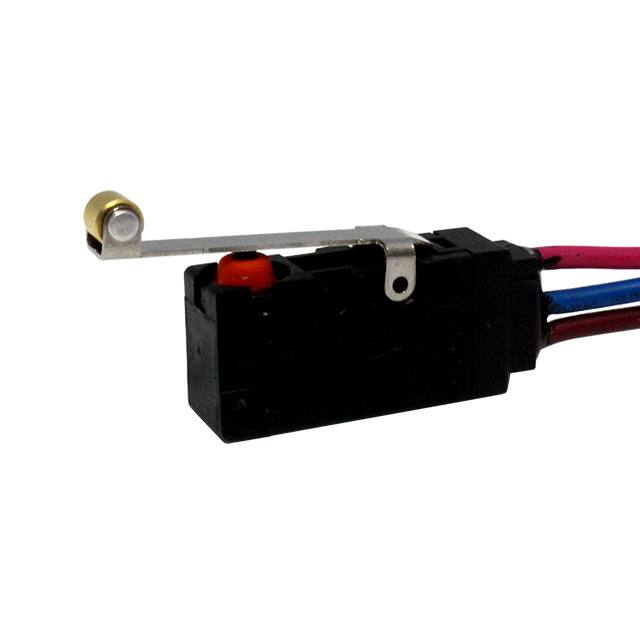

VM3SCGF3003L01SWITCH LIMIT SPDT 10A 125V |
3,541 |
|
规格书 |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 210gf | 100gf | 0.795" (20.2mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
1520076-3SWITCH SNAP ACTION DPST 6A 125V |
4,739 |
|
规格书 |
8907 | Bulk | Obsolete | DPST-NO | On-Off | 6A (AC) | 125 V | - | - | Chassis Mount | - | - | - | - | - | - | - | - | - | - |
|
|
111SM2410SWITCH SNAP ACTION SPDT 5A 250V |
4,073 |
|
规格书 |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 170gf | 14gf | 0.562" (14.3mm) | 0.218" (5.5mm) | 0.055" (1.4mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
|
11SM701-H2SWITCH SNAP ACTION SPDT 4A 250V |
1,149 |
|
规格书 |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 56gf | 14gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
VM3SAGF3003L00SWITCH LIMIT SPST-NO 10A 125V |
4,525 |
|
规格书 |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 320gf | 250gf | 0.581" (14.75mm) | 0.080" (2.0mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|

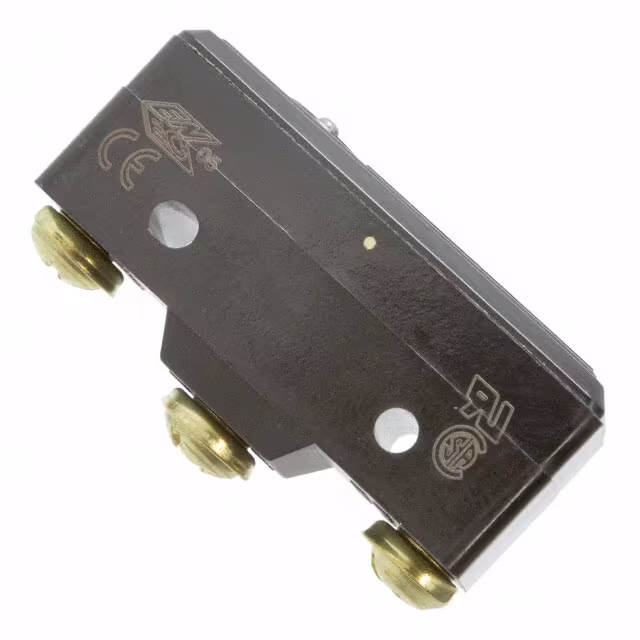

BM-1R-A4SWITCH SNAP ACTION SPDT 22A 125V |
2,180 |
|
规格书 |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
83160601SWITCH SNAP ACTION SPDT 16A 250V |
4,324 |
|
规格书 |
83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 510gf | 77gf | - | 0.125" (3.2mm) | 0.060" (1.5mm) | 0.051" (1.3mm) | -20°C ~ 125°C |
|
83290001SWITCH SNAP ACTION SPDT 10A 250V |
2,083 |
|
规格书 |
V3DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | 459gf | 82gf | 0.579" (14.7mm) | - | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
83186005SWITCH SNAP ACTION SPDT 6A 250V |
4,443 |
|
规格书 |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
|
1DM171SWITCH SNAP ACTION SPDT 10A 125V |
2,968 |
|
规格书 |
DM | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | 283gf | 0.750" (19.1mm) | - | 0.045" (1.1mm) | 0.375" (9.5mm) | -37°C ~ 82°C |
|
|
1SM36-H2SWITCH SNAP ACTION SPDT 5A 250V |
4,508 |
|
规格书 |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 113gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.002" (0.05mm) | 0.011" (0.3mm) | -55°C ~ 125°C |
|
VM3SBGF3003L00SWITCH LIMIT SPST-NC 10A 125V |
4,639 |
|
规格书 |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 320gf | 250gf | 0.581" (14.75mm) | 0.080" (2.0mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
