云母和 PTFE 电容器

制造商	系列	封装/外壳	包装	产品状态	电容	容差	额定电压	介电材料	工作温度	安装类型	引线间距	特性	尺寸 / 尺寸	高度 - 安装后（最大值）
Cornell Dubilier Knowles	* - 271 272 273 291 292 293 294 CD10 CD15 CD16 CD17 CD18 CD19 CD30 CD4 CD42 CD5 CD6 CD7 CDA15 CDS10 CDS15 CDS19 CDS30 CDS5 CDV16 CDV19 CDV30 CM04 CM05 CM06 CM07 CMR D10 F2 MC MCH MCHN MCM MCM01 MCN MIN	- 0805 (2012 Metric) 1210 (3225 Metric) 1812 (4532 Metric) 2220 (5750 Metric) Axial, Can Disk, Metal Fitting - Threaded Nonstandard SMD Radial Rectangular Box	Bulk Tape & Reel (TR)	Active Discontinued at BomKey Last Time Buy Obsolete	- 0.011 µF 0.012 µF 0.013 µF 0.015 µF 0.016 µF 0.018 µF 0.02 µF 0.022 µF 0.024 µF 0.025 µF 0.027 µF 0.03 µF 0.033 µF 0.036 µF 0.039 µF 0.04 µF 0.043 µF 0.047 µF 0.05 µF 0.051 µF 0.056 µF 0.062 µF 0.068 µF 0.075 µF 0.082 µF 0.091 µF 0.1 µF 0.2 µF 0.25 µF 0.3 µF 0.4 µF 0.5 µF 0.6 µF 0.75 µF 1 pF 1.5 pF 10 pF 100 pF 1000 pF 10000 pF 105 pF 11 pF 110 pF 1100 pF 12 pF 120 pF 1200 pF 125 pF 1260 pF 13 pF 130 pF 1300 pF 133 pF 135 pF 137 pF 143 pF 15 pF 150 pF 1500 pF 16 pF 160 pF 1600 pF 17 pF 170 pF 18 pF 180 pF 1800 pF 19 pF 2 pF 2.5 pF 2.8 pF 20 pF 200 pF 2000 pF 2100 pF 22 pF 220 pF 2200 pF 24 pF 240 pF 2400 pF 25 pF 250 pF 2500 pF 27 pF 270 pF 2700 pF 28 pF 3 pF 3.3 pF 3.5 pF 3.9 pF 30 pF 300 pF 3000 pF 32 pF 33 pF 330 pF 3300 pF 35 pF 350 pF 36 pF 360 pF 3600 pF 37 pF 39 pF 390 pF 3900 pF 4 pF 4.3 pF 4.4 pF 4.5 pF 4.7 pF 40 pF 400 pF 4000 pF 420 pF 43 pF 430 pF 4300 pF 44 pF 45 pF 4500 pF 47 pF 470 pF 4700 pF 5 pF 5.6 pF 50 pF 500 pF 5000 pF 51 pF 510 pF 5100 pF 52 pF 56 pF 560 pF 5600 pF 58 pF 6 pF 6.2 pF 6.5 pF 6.8 pF 60 pF 600 pF 6000 pF 62 pF 620 pF 6200 pF 63 pF 65 pF 68 pF 680 pF 6800 pF 69 pF 7 pF 7.5 pF 70 pF 700 pF 72 pF 74 pF 75 pF 750 pF 7500 pF 76.5 pF 8 pF 8.2 pF 80 pF 800 pF 8000 pF 82 pF 820 pF 8200 pF 83 pF 86 pF 9 pF 9.1 pF 90 pF 91 pF 910 pF 9100 pF 94 pF	- ±0.1pF ±0.25pF ±0.5% ±0.5pF ±1% ±10% ±1pF ±2% ±20% ±5%	- 1 kV 1.5 kV 10 kV 100 V 1000 V 12 kV 15 kV 2 kV 2.5 kV 20 kV 2000 V 25 kV 250 V 3 kV 30 kV 300 V 4 kV 5 kV 50 V 500 V 6 kV 600 V 8 kV	- Mica Polytetrafluoroethylene (PTFE)	- -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 200°C -55°C ~ 70°C	- Chassis Mount Requires Holder Surface Mount Through Hole	- 0.098" (2.50mm) 0.118" (3.00mm) 0.120" (3.00mm) 0.141" (3.60mm) 0.142" (3.60mm) 0.150" (3.80mm) 0.173" (4.40mm) 0.201" (5.10mm) 0.220" (5.60mm) 0.224" (5.70mm) 0.232" (5.90mm) 0.234" (5.90mm) 0.234" (5.94mm) 0.343" (8.70mm) 0.344" (8.70mm) 0.350" (8.90mm) 0.425" (10.80mm) 0.437" (11.10mm) 0.438" (11.10mm) 0.559" (14.20mm) 1.051" (26.70mm) 1.063" (27.00mm) 1.440" (36.58mm) 1.625" (41.28mm)	- General Purpose RF, High Frequency RF, High Q, Low Loss	- 0.079" L x 0.049" W (2.00mm x 1.25mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.218" L x 0.207" W (5.54mm x 5.26mm) 0.218" L x 0.400" W (5.54mm x 10.16mm) 0.224" L x 0.197" W (5.70mm x 5.00mm) 0.250" L x 0.090" W (6.40mm x 2.30mm) 0.250" L x 0.100" W (6.40mm x 2.50mm) 0.250" L x 0.110" W (6.40mm x 2.80mm) 0.250" L x 0.120" W (6.40mm x 3.00mm) 0.250" L x 0.130" W (6.40mm x 3.30mm) 0.250" L x 0.140" W (6.40mm x 3.60mm) 0.250" L x 0.150" W (6.40mm x 3.80mm) 0.250" L x 0.160" W (6.40mm x 4.10mm) 0.250" L x 0.170" W (6.40mm x 4.30mm) 0.250" L x 0.180" W (6.40mm x 4.60mm) 0.250" L x 0.190" W (6.40mm x 4.80mm) 0.252" L x 0.091" W (6.40mm x 2.30mm) 0.252" L x 0.094" W (6.40mm x 2.40mm) 0.252" L x 0.098" W (6.40mm x 2.50mm) 0.252" L x 0.110" W (6.40mm x 2.80mm) 0.252" L x 0.118" W (6.40mm x 3.00mm) 0.252" L x 0.130" W (6.40mm x 3.30mm) 0.252" L x 0.142" W (6.40mm x 3.60mm) 0.252" L x 0.150" W (6.40mm x 3.80mm) 0.252" L x 0.161" W (6.40mm x 4.10mm) 0.264" L x 0.110" W (6.70mm x 2.80mm) 0.272" L x 0.110" W (6.90mm x 2.80mm) 0.272" L x 0.118" W (6.90mm x 3.00mm) 0.272" L x 0.130" W (6.90mm x 3.30mm) 0.272" L x 0.142" W (6.90mm x 3.60mm) 0.272" L x 0.150" W (6.90mm x 3.80mm) 0.272" L x 0.161" W (6.90mm x 4.10mm) 0.272" L x 0.169" W (6.90mm x 4.30mm) 0.272" L x 0.181" W (6.90mm x 4.60mm) 0.272" L x 0.189" W (6.90mm x 4.80mm) 0.275" L x 0.140" W (7.00mm x 3.60mm) 0.276" L x 0.094" W (7.00mm x 2.40mm) 0.276" L x 0.126" W (7.00mm x 3.20mm) 0.291" L x 0.110" W (7.40mm x 2.80mm) 0.299" L x 0.134" W (7.60mm x 3.40mm) 0.310" L x 0.120" W (7.90mm x 3.00mm) 0.310" L x 0.130" W (7.90mm x 3.30mm) 0.311" L x 0.118" W (7.90mm x 3.00mm) 0.311" L x 0.130" W (7.90mm x 3.30mm) 0.319" L x 0.130" W (8.10mm x 3.30mm) 0.319" L x 0.142" W (8.10mm x 3.60mm) 0.319" L x 0.154" W (8.10mm x 3.90mm) 0.320" L x 0.130" W (8.10mm x 3.30mm) 0.320" L x 0.140" W (8.10mm x 3.60mm) 0.330" L x 0.150" W (8.40mm x 3.80mm) 0.331" L x 0.150" W (8.40mm x 3.80mm) 0.331" L x 0.173" W (8.40mm x 4.40mm) 0.339" L x 0.161" W (8.60mm x 4.10mm) 0.339" L x 0.169" W (8.60mm x 4.30mm) 0.339" L x 0.181" W (8.60mm x 4.60mm) 0.340" L x 0.160" W (8.60mm x 4.10mm) 0.358" L x 0.189" W (9.10mm x 4.80mm) 0.360" L x 0.189" W (9.15mm x 4.80mm) 0.370" L x 0.189" W (9.40mm x 4.80mm) 0.370" L x 0.201" W (9.40mm x 5.10mm) 0.380" L x 0.380" W (9.65mm x 9.65mm) 0.382" L x 0.201" W (9.70mm x 5.10mm) 0.382" L x 0.209" W (9.70mm x 5.30mm) 0.390" L x 0.209" W (9.90mm x 5.30mm) 0.390" L x 0.220" W (9.90mm x 5.60mm) 0.429" L x 0.142" W (10.90mm x 3.60mm) 0.429" L x 0.150" W (10.90mm x 3.80mm) 0.430" L x 0.140" W (10.90mm x 3.60mm) 0.430" L x 0.150" W (10.90mm x 3.80mm) 0.440" L x 0.150" W (11.20mm x 3.80mm) 0.440" L x 0.160" W (11.20mm x 4.10mm) 0.441" L x 0.150" W (11.20mm x 3.80mm) 0.441" L x 0.161" W (11.20mm x 4.10mm) 0.449" L x 0.161" W (11.40mm x 4.10mm) 0.449" L x 0.169" W (11.40mm x 4.30mm) 0.449" L x 0.181" W (11.40mm x 4.60mm) 0.450" L x 0.160" W (11.40mm x 4.10mm) 0.450" L x 0.170" W (11.40mm x 4.30mm) 0.460" L x 0.180" W (11.70mm x 4.60mm) 0.460" L x 0.400" W (11.68mm x 10.16mm) 0.461" L x 0.173" W (11.70mm x 4.40mm) 0.461" L x 0.181" W (11.70mm x 4.60mm) 0.461" L x 0.189" W (11.70mm x 4.80mm) 0.461" L x 0.201" W (11.70mm x 5.10mm) 0.461" L x 0.209" W (11.70mm x 5.30mm) 0.469" L x 0.209" W (11.90mm x 5.30mm) 0.469" L x 0.220" W (11.90mm x 5.60mm) 0.469" L x 0.252" W (11.90mm x 6.40mm) 0.480" L x 0.228" W (12.20mm x 5.80mm) 0.488" L x 0.240" W (12.40mm x 6.10mm) 0.492" L x 0.311" W (12.50mm x 7.90mm) 0.500" L x 0.252" W (12.70mm x 6.40mm) 0.500" L x 0.382" W (12.70mm x 9.70mm) 0.500" L x 0.400" W (12.70mm x 10.16mm) 0.500" L x 0.402" W (12.70mm x 10.20mm) 0.610" L x 0.130" W (15.50mm x 3.30mm) 0.610" L x 0.140" W (15.50mm x 3.60mm) 0.610" L x 0.142" W (15.50mm x 3.60mm) 0.610" L x 0.150" W (15.50mm x 3.80mm) 0.618" L x 0.169" W (15.70mm x 4.30mm) 0.618" L x 0.181" W (15.70mm x 4.60mm) 0.620" L x 0.160" W (15.70mm x 4.10mm) 0.620" L x 0.170" W (15.70mm x 4.30mm) 0.620" L x 0.180" W (15.70mm x 4.60mm) 0.630" L x 0.189" W (16.00mm x 4.80mm) 0.630" L x 0.190" W (16.00mm x 4.80mm) 0.630" L x 0.209" W (16.00mm x 5.30mm) 0.630" L x 0.210" W (16.00mm x 5.30mm) 0.630" L x 0.220" W (16.00mm x 5.60mm) 0.630" L x 0.228" W (16.00mm x 5.80mm) 0.630" L x 0.230" W (16.00mm x 5.80mm) 0.630" L x 0.240" W (16.00mm x 6.10mm) 0.640" L x 0.200" W (16.30mm x 5.10mm) 0.640" L x 0.250" W (16.30mm x 6.40mm) 0.640" L x 0.260" W (16.30mm x 6.60mm) 0.640" L x 0.270" W (16.30mm x 6.90mm) 0.642" L x 0.189" W (16.30mm x 4.80mm) 0.642" L x 0.201" W (16.30mm x 5.10mm) 0.642" L x 0.250" W (16.30mm x 6.40mm) 0.650" L x 0.201" W (16.50mm x 5.10mm) 0.650" L x 0.209" W (16.50mm x 5.30mm) 0.650" L x 0.220" W (16.50mm x 5.60mm) 0.650" L x 0.280" W (16.50mm x 7.10mm) 0.661" L x 0.220" W (16.80mm x 5.60mm) 0.661" L x 0.228" W (16.80mm x 5.80mm) 0.669" L x 0.240" W (17.00mm x 6.10mm) 0.669" L x 0.252" W (17.00mm x 6.40mm) 0.669" L x 0.260" W (17.00mm x 6.60mm) 0.669" L x 0.319" W (17.00mm x 8.10mm) 0.670" L x 0.320" W (17.00mm x 8.10mm) 0.681" L x 0.260" W (17.30mm x 6.60mm) 0.681" L x 0.272" W (17.30mm x 6.90mm) 0.681" L x 0.280" W (17.30mm x 7.10mm) 0.681" L x 0.291" W (17.30mm x 7.40mm) 0.681" L x 0.299" W (17.30mm x 7.60mm) 0.681" L x 0.311" W (17.30mm x 7.90mm) 0.689" L x 0.311" W (17.50mm x 7.90mm) 0.689" L x 0.319" W (17.50mm x 8.10mm) 0.689" L x 0.331" W (17.50mm x 8.40mm) 0.700" L x 0.340" W (17.80mm x 8.60mm) 0.701" L x 0.339" W (17.80mm x 8.60mm) 0.701" L x 0.350" W (17.80mm x 8.90mm) 0.709" L x 0.358" W (18.00mm x 9.10mm) 0.709" L x 0.370" W (18.00mm x 9.40mm) 0.720" L x 0.180" W (18.30mm x 4.60mm) 0.720" L x 0.220" W (18.30mm x 5.60mm) 0.720" L x 0.370" W (18.30mm x 9.40mm) 0.720" L x 0.382" W (18.30mm x 9.70mm) 0.728" L x 0.272" W (18.50mm x 6.90mm) 0.730" L x 0.230" W (18.50mm x 5.80mm) 0.730" L x 0.250" W (18.50mm x 6.40mm) 0.730" L x 0.260" W (18.50mm x 6.60mm) 0.730" L x 0.270" W (18.50mm x 6.90mm) 0.740" L x 0.330" W (18.80mm x 8.40mm) 0.740" L x 0.340" W (18.80mm x 8.60mm) 0.740" L x 0.420" W (18.80mm x 10.70mm) 0.740" L x 0.421" W (18.80mm x 10.70mm) 0.750" L x 0.360" W (19.10mm x 9.10mm) 0.750" L x 0.380" W (19.10mm x 9.70mm) 0.760" L x 0.390" W (19.30mm x 9.90mm) 0.760" L x 0.400" W (19.30mm x 10.20mm) 0.760" L x 0.460" W (19.30mm x 11.70mm) 0.760" L x 0.461" W (19.30mm x 11.70mm) 0.770" L x 0.250" W (19.60mm x 6.40mm) 0.770" L x 0.260" W (19.60mm x 6.60mm) 0.772" L x 0.240" W (19.60mm x 6.10mm) 0.772" L x 0.252" W (19.60mm x 6.40mm) 0.772" L x 0.260" W (19.60mm x 6.60mm) 0.780" L x 0.250" W (19.80mm x 6.40mm) 0.780" L x 0.252" W (19.80mm x 6.40mm) 0.780" L x 0.270" W (19.80mm x 6.90mm) 0.780" L x 0.272" W (19.80mm x 6.90mm) 0.780" L x 0.272" W (19.81mm x 6.90mm) 0.780" L x 0.280" W (19.80mm x 7.10mm) 0.780" L x 0.280" W (19.81mm x 7.10mm) 0.780" L x 0.290" W (19.80mm x 7.40mm) 0.780" L x 0.291" W (19.80mm x 7.40mm) 0.780" L x 0.291" W (19.81mm x 7.40mm) 0.780" L x 0.299" W (19.80mm x 7.60mm) 0.790" L x 0.310" W (20.10mm x 7.90mm) 0.790" L x 0.320" W (20.10mm x 8.10mm) 0.790" L x 0.330" W (20.10mm x 8.40mm) 0.790" L x 0.340" W (20.10mm x 8.60mm) 0.791" L x 0.311" W (20.10mm x 7.90mm) 0.791" L x 0.319" W (20.10mm x 8.10mm) 0.791" L x 0.331" W (20.10mm x 8.40mm) 0.791" L x 0.339" W (20.10mm x 8.60mm) 0.799" L x 0.339" W (20.30mm x 8.60mm) 0.799" L x 0.350" W (20.30mm x 8.90mm) 0.799" L x 0.358" W (20.30mm x 9.10mm) 0.800" L x 0.340" W (20.30mm x 8.60mm) 0.800" L x 0.350" W (20.30mm x 8.90mm) 0.800" L x 0.360" W (20.30mm x 9.10mm) 0.810" L x 0.370" W (20.60mm x 9.40mm) 0.810" L x 0.380" W (20.60mm x 9.70mm) 0.810" L x 0.390" W (20.60mm x 9.90mm) 0.810" L x 0.400" W (20.60mm x 10.20mm) 0.811" L x 0.370" W (20.60mm x 9.40mm) 0.811" L x 0.382" W (20.60mm x 9.70mm) 0.811" L x 0.390" W (20.60mm x 9.90mm) 0.811" L x 0.402" W (20.60mm x 10.20mm) 0.819" L x 0.402" W (20.80mm x 10.20mm) 0.819" L x 0.409" W (20.80mm x 10.40mm) 0.819" L x 0.421" W (20.80mm x 10.70mm) 0.819" L x 0.429" W (20.80mm x 10.90mm) 0.819" L x 0.441" W (20.80mm x 11.20mm) 0.820" L x 0.400" W (20.80mm x 10.20mm) 0.820" L x 0.440" W (20.80mm x 11.20mm) 0.830" L x 0.420" W (21.10mm x 10.70mm) 0.830" L x 0.450" W (21.10mm x 11.40mm) 0.830" L x 0.460" W (21.10mm x 11.70mm) 0.831" L x 0.421" W (21.10mm x 10.70mm) 0.831" L x 0.441" W (21.10mm x 11.20mm) 0.831" L x 0.449" W (21.10mm x 11.40mm) 0.831" L x 0.461" W (21.10mm x 11.70mm) 0.839" L x 0.461" W (21.30mm x 11.70mm) 0.840" L x 0.460" W (21.30mm x 11.70mm) 1.187" L x 0.935" W (30.15mm x 23.75mm) 1.187" L x 0.937" W (30.15mm x 23.80mm) 1.421" L x 0.299" W (36.10mm x 7.60mm) 1.421" L x 0.311" W (36.10mm x 7.90mm) 1.429" L x 0.319" W (36.30mm x 8.10mm) 1.429" L x 0.331" W (36.30mm x 8.40mm) 1.441" L x 0.350" W (36.60mm x 8.90mm) 1.441" L x 0.358" W (36.60mm x 9.10mm) 1.449" L x 0.382" W (36.80mm x 9.70mm) 1.449" L x 0.402" W (36.80mm x 10.20mm) 1.461" L x 0.421" W (37.10mm x 10.70mm) 1.469" L x 0.441" W (37.30mm x 11.20mm) 1.469" L x 0.449" W (37.30mm x 11.40mm) 1.480" L x 0.461" W (37.60mm x 11.70mm) 1.480" L x 0.469" W (37.60mm x 11.90mm) 1.500" L x 0.500" W (38.10mm x 12.70mm) 1.750" L x 1.250" W (44.45mm x 31.75mm) 2.000" Dia (50.80mm) 2.500" Dia (63.50mm) 3.109" L x 1.250" W (78.97mm x 31.75mm) 3.375" L x 1.750" W (85.73mm x 44.45mm) 3.500" Dia (88.90mm)	- 0.055" (1.40mm) 0.079" (2.00mm) 0.080" (2.03mm) 0.120" (3.05mm) 0.157" (4.00mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.169" (4.30mm) 0.173" (4.40mm) 0.175" (4.40mm) 0.181" (4.60mm) 0.189" (4.80mm) 0.201" (5.10mm) 0.209" (5.30mm) 0.220" (5.60mm) 0.228" (5.80mm) 0.240" (6.10mm) 0.252" (6.40mm) 0.260" (6.60mm) 0.270" (6.86mm) 0.272" (6.90mm) 0.280" (7.10mm) 0.291" (7.40mm) 0.299" (7.60mm) 0.311" (7.90mm) 0.331" (8.40mm) 0.339" (8.60mm) 0.350" (8.90mm) 0.358" (9.10mm) 0.370" (9.40mm) 0.382" (9.70mm) 0.390" (9.90mm) 0.402" (10.20mm) 0.421" (10.70mm) 0.429" (10.90mm) 0.449" (11.40mm) 0.461" (11.70mm) 0.469" (11.90mm) 0.480" (12.20mm) 0.488" (12.40mm) 0.500" (12.70mm) 0.512" (13.00mm) 0.520" (13.20mm) 0.529" (13.42mm) 0.532" (13.50mm) 0.540" (13.72mm) 0.551" (14.00mm) 0.559" (14.20mm) 0.571" (14.50mm) 0.579" (14.70mm) 0.591" (15.00mm) 0.598" (15.20mm) 0.610" (15.50mm) 0.630" (16.00mm) 0.791" (20.10mm) 0.799" (20.30mm) 0.819" (20.80mm) 0.831" (21.10mm) 0.843" (21.40mm) 0.850" (21.60mm) 0.858" (21.80mm) 0.870" (22.10mm) 0.882" (22.40mm) 0.890" (22.60mm) 0.902" (22.90mm) 0.909" (23.10mm) 0.917" (23.30mm) 0.921" (23.40mm) 0.929" (23.60mm) 0.941" (23.90mm) 1.187" (30.15mm) 1.437" (36.50mm) 1.813" (46.05mm) 2.000" (50.80mm) 2.562" (65.07mm) 2.812" (71.42mm) 2.951" (74.96mm) 3.062" (77.77mm) 3.312" (84.12mm) 4.062" (103.17mm) 4.562" (115.87mm) 5.062" (128.57mm)

全部重置

应用所有

结果:

型号	库存	价格	数量	规格书	系列	封装/外壳	包装	产品状态	电容	容差	额定电压	介电材料	工作温度	安装类型	引线间距	特性	尺寸 / 尺寸	高度 - 安装后（最大值）
CD15ED220JO3F CAP MICA 22PF 5% 500V RADIAL Cornell Dubilier Knowles	804	-	立即询价	规格书	CD15	Radial	Bulk	Active	22 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
CD15FD101JO3F CAP MICA 100PF 5% 500V RADIAL Cornell Dubilier Knowles	780	-	立即询价	规格书	CD15	Radial	Bulk	Active	100 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.461" L x 0.181" W (11.70mm x 4.60mm)	0.358" (9.10mm)
CD15CD100JO3F CAP MICA 10PF 5% 500V RADIAL Cornell Dubilier Knowles	470	-	立即询价	规格书	CD15	Radial	Bulk	Active	10 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
CD15ED330JO3F CAP MICA 33PF 5% 500V RADIAL Cornell Dubilier Knowles	1,410	-	立即询价	规格书	CD15	Radial	Bulk	Active	33 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)

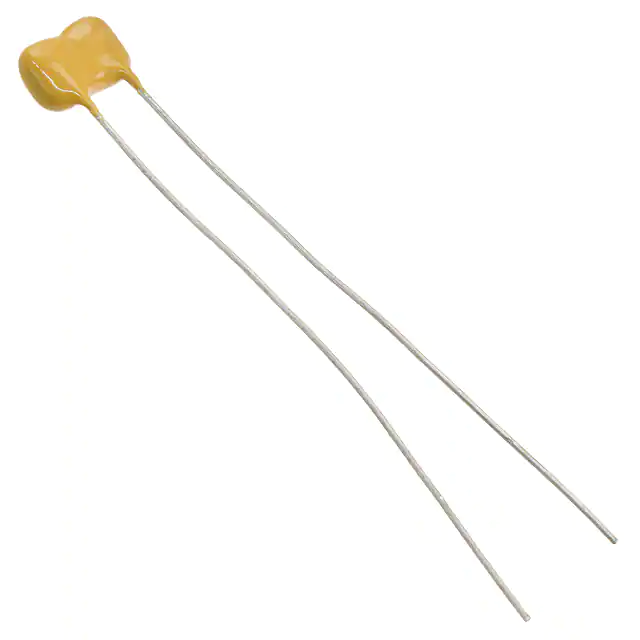

CD5EC330JO3F CAP MICA 33PF 5% 300V RADIAL Cornell Dubilier Knowles	1,410	-	立即询价	规格书	CD5	Radial	Bulk	Active	33 pF	±5%	300 V	Mica	-55°C ~ 125°C	Through Hole	0.118" (3.00mm)	General Purpose	0.272" L x 0.130" W (6.90mm x 3.30mm)	0.201" (5.10mm)
CD15ED220DO3F CAP MICA 22PF 0.5PF 500V RADIAL Cornell Dubilier Knowles	400	-	立即询价	规格书	CD15	Radial	Bulk	Active	22 pF	±0.5pF	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
CD17CD100JO3 CAP MICA 10PF 5% 500V RADIAL Cornell Dubilier Knowles	202	-	立即询价	规格书	CD17	Radial	Bulk	Active	10 pF	±5%	500 V	Mica	-55°C ~ 150°C	Through Hole	0.232" (5.90mm)	RF, High Q, Low Loss	0.449" L x 0.169" W (11.40mm x 4.30mm)	0.358" (9.10mm)
MC12FA101J-F CAP MICA 100PF 5% 100V 1210 Cornell Dubilier Knowles	552	-	立即询价	规格书	MC	1210 (3225 Metric)	Bulk	Active	100 pF	±5%	100 V	Mica	-55°C ~ 125°C	Surface Mount	-	RF, High Q, Low Loss	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.079" (2.00mm)
MC12FD390J-F CAP MICA 39PF 5% 500V 1210 Cornell Dubilier Knowles	494	-	立即询价	规格书	MC	1210 (3225 Metric)	Bulk	Active	39 pF	±5%	500 V	Mica	-55°C ~ 125°C	Surface Mount	-	RF, High Q, Low Loss	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.079" (2.00mm)
CDV16FF221JO3F CAP MICA 220PF 5% 1KV RADIAL Cornell Dubilier Knowles	188	-	立即询价	规格书	CDV16	Radial	Bulk	Active	220 pF	±5%	1 kV	Mica	-55°C ~ 150°C	Through Hole	0.234" (5.94mm)	RF, High Q, Low Loss	0.429" L x 0.150" W (10.90mm x 3.80mm)	0.461" (11.70mm)
CDV16FF102JO3 CAP MICA 1000PF 5% 1KV RADIAL Cornell Dubilier Knowles	1,650	-	立即询价	规格书	CDV16	Radial	Bulk	Active	1000 pF	±5%	1 kV	Mica	-55°C ~ 150°C	Through Hole	0.232" (5.90mm)	RF, High Q, Low Loss	0.461" L x 0.173" W (11.70mm x 4.40mm)	0.500" (12.70mm)
CD15FD121JO3 CAP MICA 120PF 5% 500V RADIAL Cornell Dubilier Knowles	191	-	立即询价	规格书	CD15	Radial	Bulk	Active	120 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.461" L x 0.181" W (11.70mm x 4.60mm)	0.370" (9.40mm)
MC12FD101J-F CAP MICA 100PF 5% 500V 1210 Cornell Dubilier Knowles	924	-	立即询价	规格书	MC	1210 (3225 Metric)	Bulk	Active	100 pF	±5%	500 V	Mica	-55°C ~ 125°C	Surface Mount	-	RF, High Q, Low Loss	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.079" (2.00mm)
CD19FD821JO3 CAP MICA 820PF 5% 500V RADIAL Cornell Dubilier Knowles	595	-	立即询价	规格书	CD19	Radial	Bulk	Active	820 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.343" (8.70mm)	General Purpose	0.650" L x 0.209" W (16.50mm x 5.30mm)	0.512" (13.00mm)
CD15FD151JO3 CAP MICA 150PF 5% 500V RADIAL Cornell Dubilier Knowles	490	-	立即询价	规格书	CD15	Radial	Bulk	Active	150 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.461" L x 0.189" W (11.70mm x 4.80mm)	0.370" (9.40mm)
CDV19CF050DO3F CAP MICA 5PF 0.5% 1KV RADIAL Cornell Dubilier Knowles	508	-	立即询价	规格书	CDV19	Radial	Bulk	Active	5 pF	±0.5pF	1 kV	Mica	-55°C ~ 125°C	Through Hole	0.343" (8.70mm)	General Purpose	0.642" L x 0.189" W (16.30mm x 4.80mm)	0.500" (12.70mm)
CD15FD121FO3F CAP MICA 120PF 1% 500V RADIAL Cornell Dubilier Knowles	157	-	立即询价	规格书	CD15	Radial	Bulk	Active	120 pF	±1%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.461" L x 0.181" W (11.70mm x 4.60mm)	0.370" (9.40mm)
MC18FD221J-F CAP MICA 220PF 5% 500V 1812 Cornell Dubilier Knowles	258	-	立即询价	规格书	MC	1812 (4532 Metric)	Bulk	Active	220 pF	±5%	500 V	Mica	-55°C ~ 125°C	Surface Mount	-	RF, High Q, Low Loss	0.177" L x 0.126" W (4.50mm x 3.20mm)	0.079" (2.00mm)
MC18FD471J-F CAP MICA 470PF 5% 500V 1812 Cornell Dubilier Knowles	766	-	立即询价	规格书	MC	1812 (4532 Metric)	Bulk	Active	470 pF	±5%	500 V	Mica	-55°C ~ 125°C	Surface Mount	-	RF, High Q, Low Loss	0.177" L x 0.126" W (4.50mm x 3.20mm)	0.079" (2.00mm)
CD15FD151JO3F CAP MICA 150PF 5% 500V RADIAL Cornell Dubilier Knowles	2,381	-	立即询价	规格书	CD15	Radial	Bulk	Active	150 pF	±5%	500 V	Mica	-55°C ~ 125°C	Through Hole	0.232" (5.90mm)	General Purpose	0.461" L x 0.189" W (11.70mm x 4.80mm)	0.370" (9.40mm)
